Quality harvesting without constraints.
LEXION 6000 / 5000.

Featuring an accelerated crop flow enabled by APS SYNFLOW and an additional separator drum after the threshing drum, the LEXION 6000 and 5000 represent a new category in the straw-walker machine segment. These models deliver stable harvesting performance along with excellent straw quality. Their cab has been revised to make everyday work more pleasant and convenient. In addition to these improvements, the LEXION 6800 and 6900 are now equipped with the latest generation of MAN engines.

The strengths of the new LEXION 6000 / 5000.

Efficiency – increase your productivity.
Precision – make use of its intelligence.
Convenience – harvest for longer.
Reliability – you can count on it.

Harvesting made easy – automatically.

You can optimise your machine setup automatically thanks to CEMOS DIALOG and CEMOS AUTOMATIC.

Increase your productivity.

Efficiency means success.

Impressively powerful performance translates into profitable efficiency. The top-of-the-range LEXION models deliver their top performance precisely when your operators really need it. This means that you save time and money while benefiting from exceptional productivity.

Excellent straw quality.

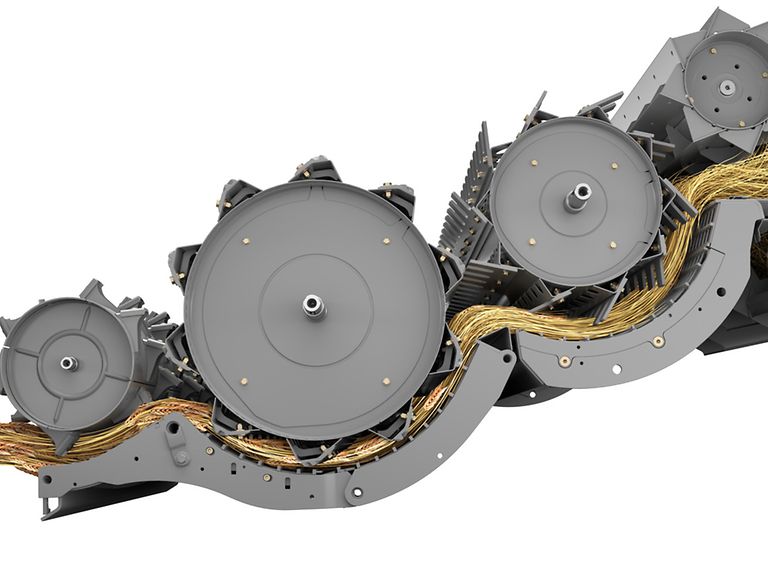

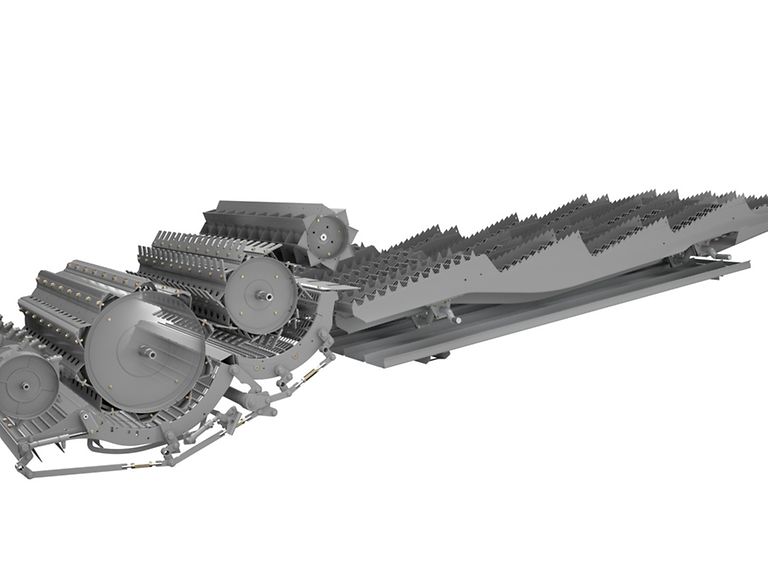

APS SYNFLOW WALKER.

The APS SYNFLOW WALKER threshing system is gentle on the straw as a result of a particularly straight crop flow. This design means that the crop takes the shortest path through the threshing unit. The large diameter of the threshing and separator drums enables small contact angles and flat transitions between the drums. The outlet of the separator concave is larger than its inlet. The increasing width of the gap prevents the crop from building up and causing congestion. There is hardly any mechanical stress on the straw.

Don't accept any compromises.

Harvest performance needs power.

You have many possibilities for optimising the LEXION to meet the characteristics of your farm and your fields so precisely that your campaign performance increases to a significant degree.

DYNAMIC POWER adjusts the engine output to the power requirement. This allows you to achieve fuel savings of up to 10%.
DYNAMIC COOLING reduces your diesel costs. The variable fan drive adjusts its speed automatically in line with the degree of cooling required.
TERRA TRAC reduces soil compaction. The crawler track units offer a high level of driving comfort and are narrow enough for road travel.
You can harvest on slopes as effectively as on level ground. The LEXION 5500 is also available as a MONTANA version.
The differential lock on the front axle allows you to continue to operate reliably in difficult terrain.
For greater tractive power in difficult terrain you can equip your machine with a POWER TRAC 4-wheel drive.

DYNAMIC POWER - the intelligent way to put power down.

More intelligence for the engine.

DYNAMIC POWER automatically adjusts the engine output of your LEXION to the operating conditions. This means that you are always running with the most efficient power curve when operating under partial load and can save – during swathing, for example – up to 10% of fuel. At full load when the grain tank is being unloaded and the straw chopper is engaged, for example, maximum engine output is automatically maintained.

DYNAMIC POWER uses a variety of power curves on the basis of the engine load. The parameter which triggers the power adjustment is the reduction or increase in the engine speed resulting from a change in the power requirement.

DYNAMIC COOLING - the smart solution.

What makes DYNAMIC COOLING so unique?

Variable fan drive provides cooling when required
Provides effective and reliable cooling
Uses full fan speed only under full load
Minimises extent to which dust is able to rise
Reduces soiling of the radiator and engine compartment
With grain tank unloading tube extended, automatically increases speed to actively blow dust away from engine compartment

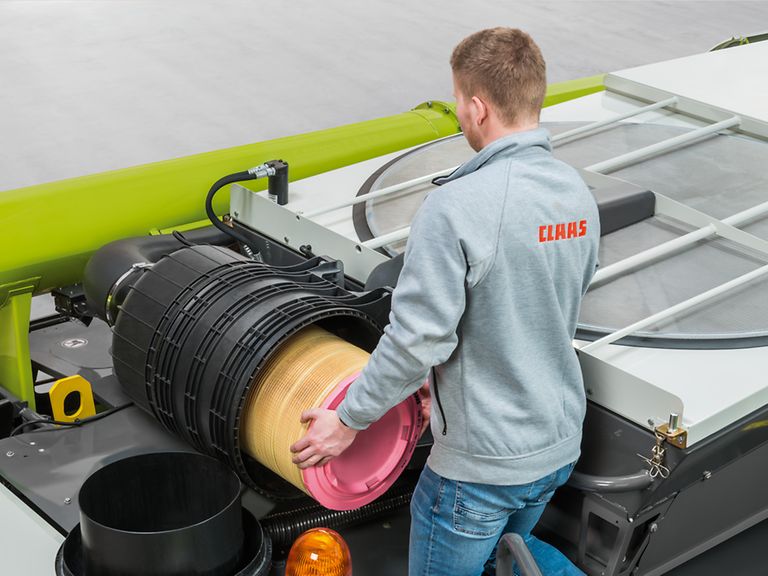

Extends the air filter maintenance intervals

40 km/h for fast transfers.

Your time is too valuable to waste.

All LEXION models are equipped with a 2-speed hydrostatic ground drive with convenient gear selection via the buttons on the armrest. The high efficiency of the hydrostatic motor saves power which is available to the rest of the machine. Both the wheeled machines and the TERRA TRAC models can travel at up to 40 km/h.

A LEXION makes the most of your crop.

Every grain counts.

The secondary separation via the straw walkers is accomplished over a total length of 3,800 mm across four straw walker steps. Even large volumes of straw are transported rapidly and loosely.

Large separation area for precise secondary separation
Centre and side risers to fluff material
Maintenance-free, robust straw walker bearings.

Clean grain is worth real money.

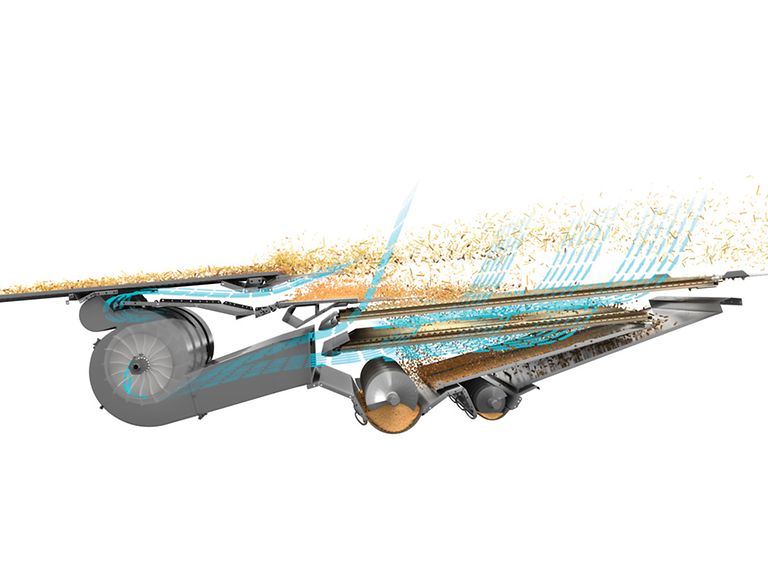

Intensive cleaning.

The JET STREAM cleaning system with its hydraulic fan speed variator and high-performance returns has plenty of performance capacity in reserve in all crop types. A dual-ventilated step enables intensive pre-cleaning. JET STREAM is controlled conveniently from the cab. You no longer have to adjust anything manually. As an option, you can put the JET STREAM cleaning function under the fully automatic control of CEMOS AUTO CLEANING.

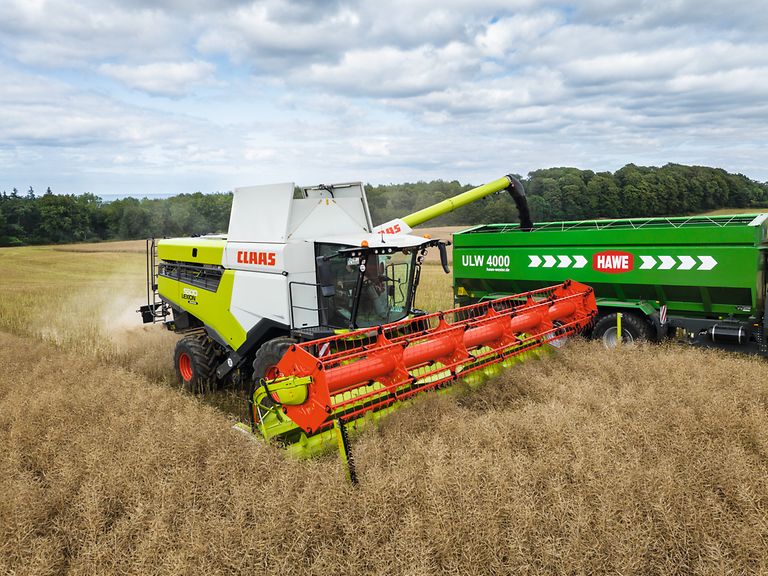

Grain tank unloading at up to 180 l/s.

Collect your grain quickly and reliably.

With a volume of up to 13,500 litres, the grain tank has a capacity to match the huge throughput of the LEXION.

At 180 l/s you can unload the large grain tank of the LEXION in record time. The rate can be reduced from 180 l/s to 90 l/s. If necessary, you can stop the process immediately or turn off the augers gradually in order to completely empty the grain tank unloading tube first. − Reliable filling of the transport vehicles − No losses during unloading.

Top performance with all crops.

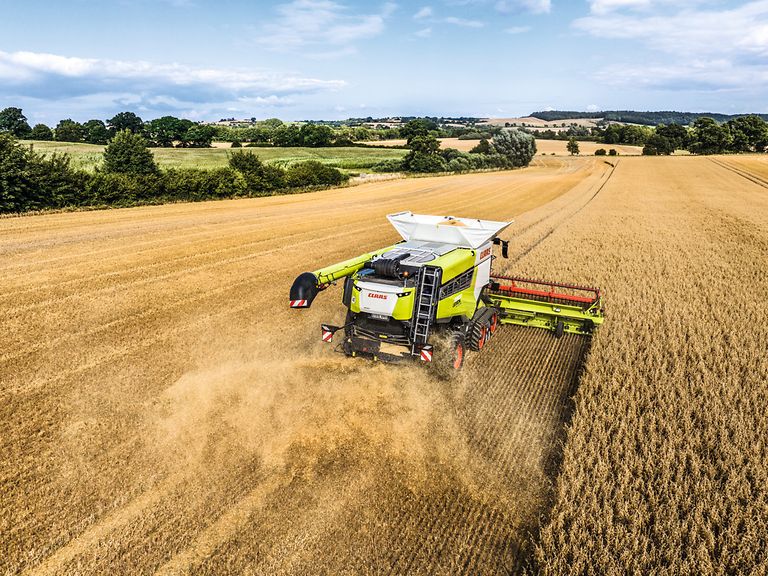

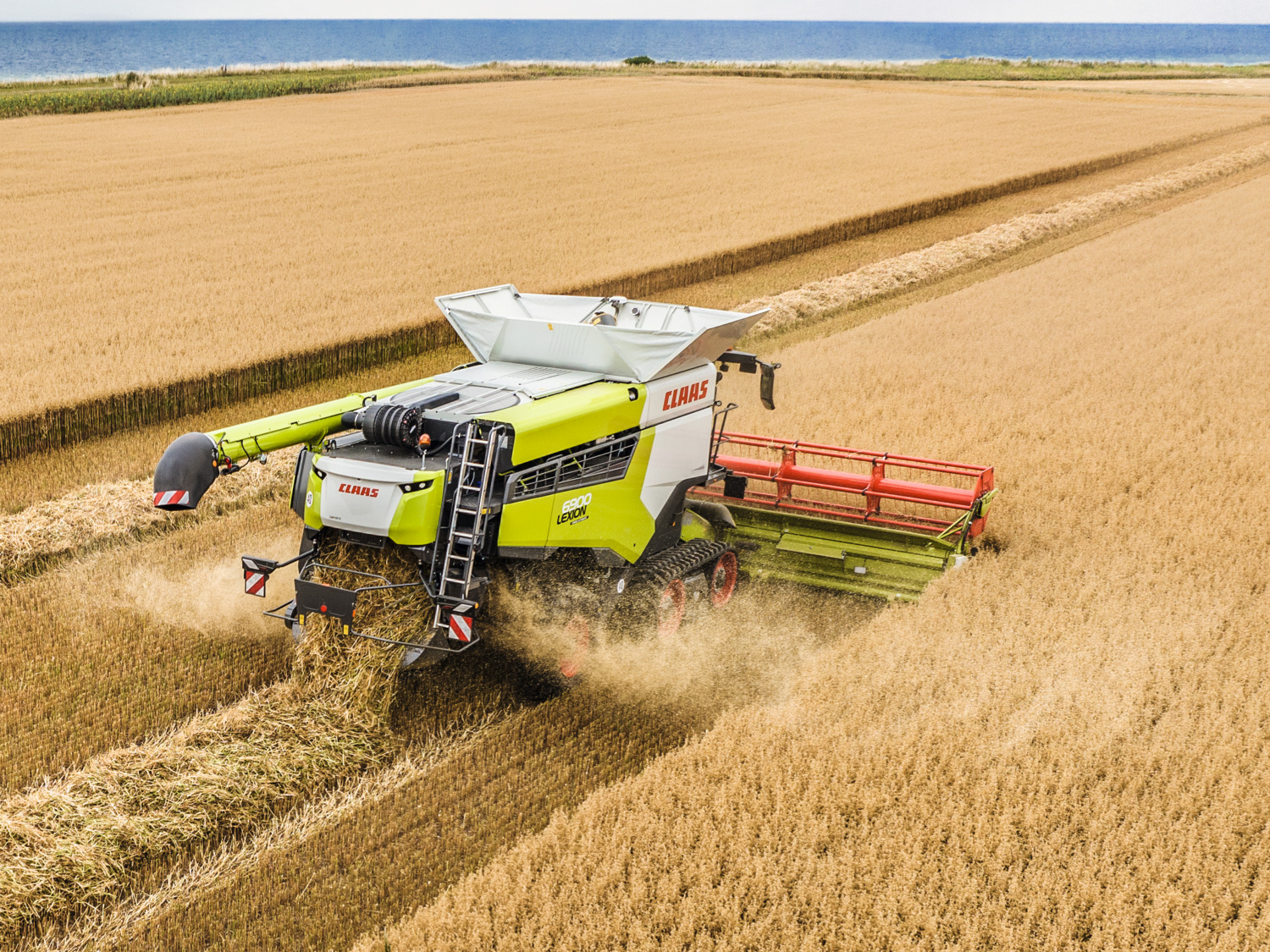

Precise straw spreading.

Even when the machine is operating in strong crosswinds, handling high straw volumes or negotiating side slopes, the power spreader always deposits the straw precisely. Comprising two discharge rotors turning in opposite directions at a constant speed, it takes both the chopped material and the chaff straight from the cleaning section, accelerates it further and spreads it evenly across the entire working width.

During swathing, the chaff blower automatically turns outwards. Swaths of long straw and chaff/broken straw mixture are laid separately. For straw spreading, however, the chaff blower forces the sieve pan discharge straight into the power spreader for active distribution. The chopped straw and the sieve pan discharge are spread across the entire working width.

The LEXION MONTANA harvests on slopes as effectively as on level ground.

Built for tough terrain.

The LEXION 5500 MONTANA is the ideal combine harvester if your farm is located in a hilly region. With 4-wheel drive and differential lock, it is perfectly at home in particularly challenging terrain and is able to operate successfully even under extreme conditions.

With its fully automatic side slope compensation of up to 18% and longitudinal compensation of up to 6%, the LEXION 5500 MONTANA is able to cope with even the hilliest of fields. Efficient cutting on slopes is ensured by the MONTANA feeder housing with precise MULTI CONTOUR cutterbar guidance.

Precision means profitability.

Make use of its intelligence.

To increase your campaign performance, you need a combine harvester that is able to think for itself and think ahead. In the LEXION, self-learning assistance systems, such as CEMOS AUTOMATIC, are working in the background to support the operator during every minute of the harvesting process.

CEMOS operators are unbeatable.

Optimum performance, even when time is at a premium.

CEMOS AUTOMATIC is a self-learning operator assistance system which provides you and your operators with continuous, active support throughout the entire work process. On the basis of harvesting parameters, such as grain quality, threshing quality, standard of cleaning, straw quality and throughput, the system checks sensors and settings. It optimises your LEXION to its technical performance limits while it is running.

Compose your own CEMOS AUTOMATIC solution.

The functions at a glance:

CEMOS DIALOG guides the operator to the best machine settings
AUTO CROP FLOW protects the entire system against overload
AUTO SLOPE controls the fan setting on the basis of the slope
CRUISE PILOT actively controls the harvesting speed
AUTO CLEANING improves cleaning by controlling the sieve opening and fan speed
AUTO THRESHING provides fully automatic adjustment of the threshing concave clearance and the threshing drum speed
AUTO HEADER actively controls the position of the reel and the VARIO cutterbar table
AUTO CHOPPING improves the chopped material quality and reduces fuel consumption

CEMOS DIALOG analyses the machine's performance.

Greater safety and reliability in the field.

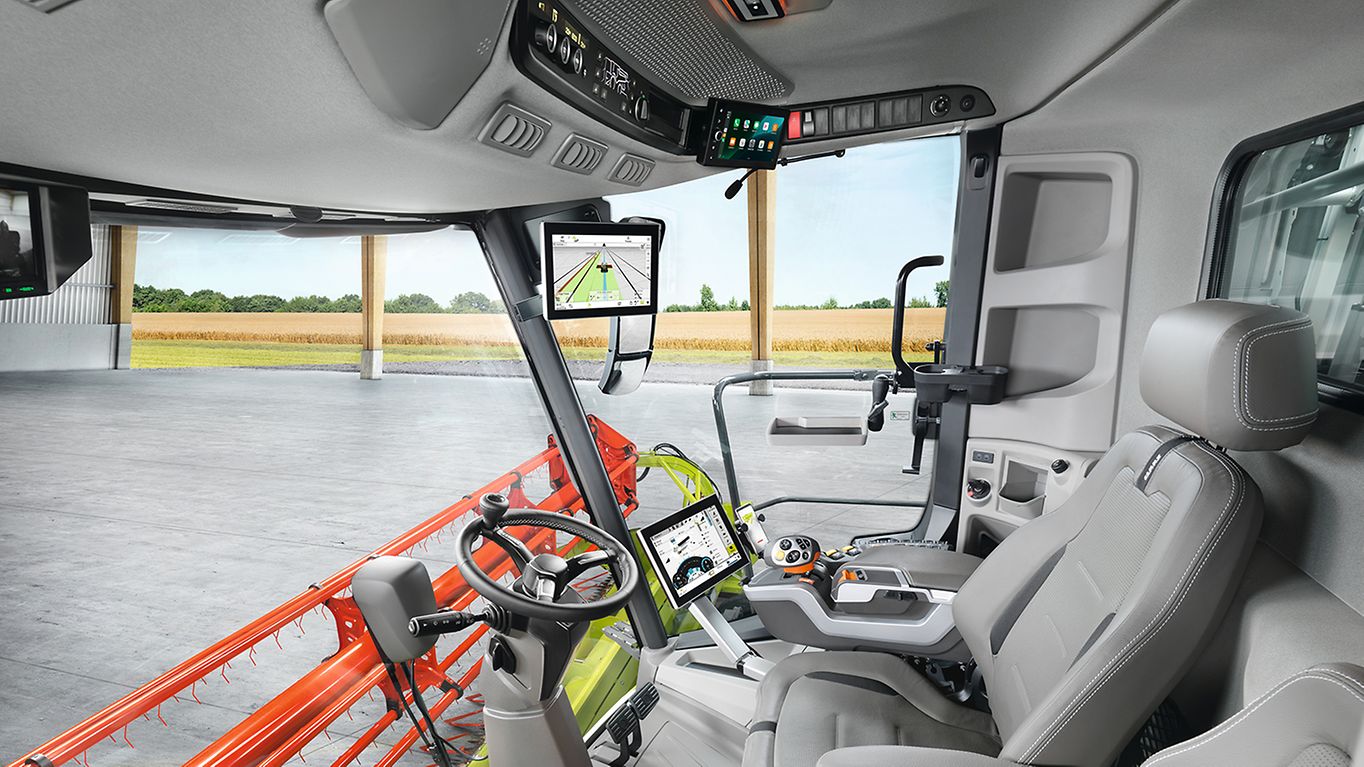

Controlled through CEBIS, the CEMOS DIALOG operator assistance system guides you to the optimal machine setup. Settings which are confirmed by you are implemented directly by CEMOS DIALOG. You are motivated to check the settings more frequently and also benefit from the learning effects.

The machine always keeps you informed about the scope for optimisation. It continuously indicates all the factors imposing the greatest limitations on throughput and actively suggests ways to increase performance.

Harvest right up to the grain loss limit.

You only have to calibrate the loss sensors at the start of the day.
CEMOS DIALOG actively supports you with loss measurements.
After the loss level has been changed, the sensitivity of the sensors is corrected automatically.
The machine always works precisely up to the limit set for acceptable losses.

Keep the number of passes to a minimum.

Harvest with pinpoint precision.

Steering systems are an essential tool in your everyday work. The LEXION can be equipped with three automatic steering systems, which you can choose between on the basis of the task in question: the digital AUTO PILOT, the satellite-based GPS PILOT CEMIS 1200 and the electro-optical LASER PILOT, which we can also equip with the FIELD SCANNER for you as an option.

Digitalisation puts your farm ahead.

A connected LEXION is more productive.

With Machine connect, you transmit data from the machine straight to the cloud.
With CEMIS 1200, you create and manage all jobs on the spot in the machine.
With DataConnect, you are able to process the data from your machines, regardless of manufacturer.
With Machine connect, you are able to simplify maintenance and service activities.

What level of performance do you need?

Operating reliability you can count on.

Reassuringly reliable .

When a combine harvester sets the standards for power and performance, it should do the same with regard to endurance and reliability too. The intelligent drive system of the LEXION is one of the many factors which keep maintenance requirements low and operating reliability high.

Reliably high efficiency.

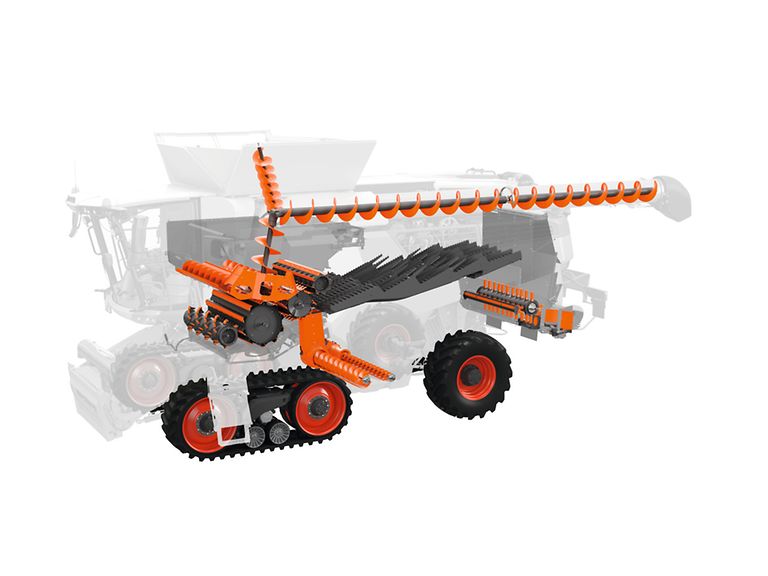

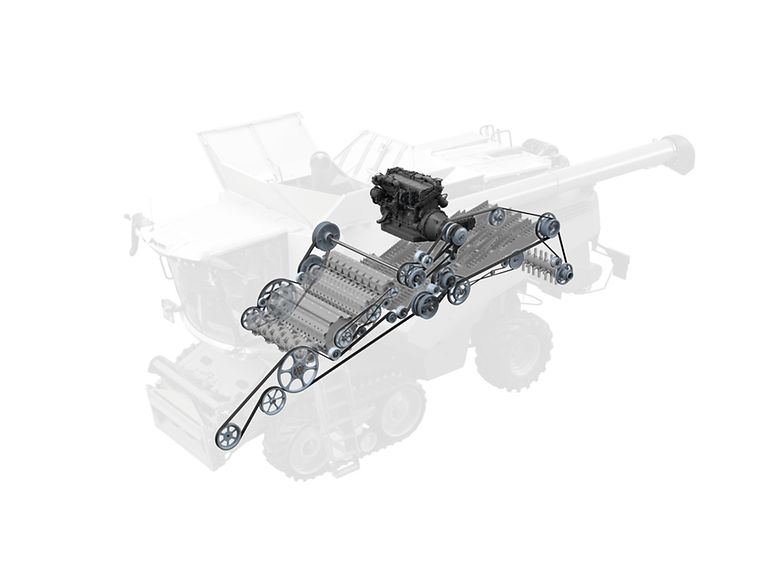

Unique drive system.

A drive system that has what it takes:

Hydraulically actuated dry clutch
Hydraulically tensioned main belts
Standardised belt tensioners
Improved power transmission
Lower maintenance costs

Reduced daily maintenance requirement.

Fast maintenance is crucial for your harvest.

Like all its predecessors, the LEXION is also appreciated for being a model of restraint where maintenance requirements are concerned. The maintenance intervals are long: 1,000 hours for the oil in the working hydraulics. Daily maintenance tasks can be carried out quickly and effortlessly. All the key maintenance points can be accessed easily.

Optimal accessibility.

More time for harvesting.

The robust engine compartment cover makes it particularly easy for you to access the grain tank and to perform any maintenance tasks required there. It is slip-resistant and designed to be walked on. Handrails and a folding step provide additional safety.

All the maintenance points around the machine are easily accessible.
Contact points for the mobile ladders enable safe access for maintenance and cleaning tasks.

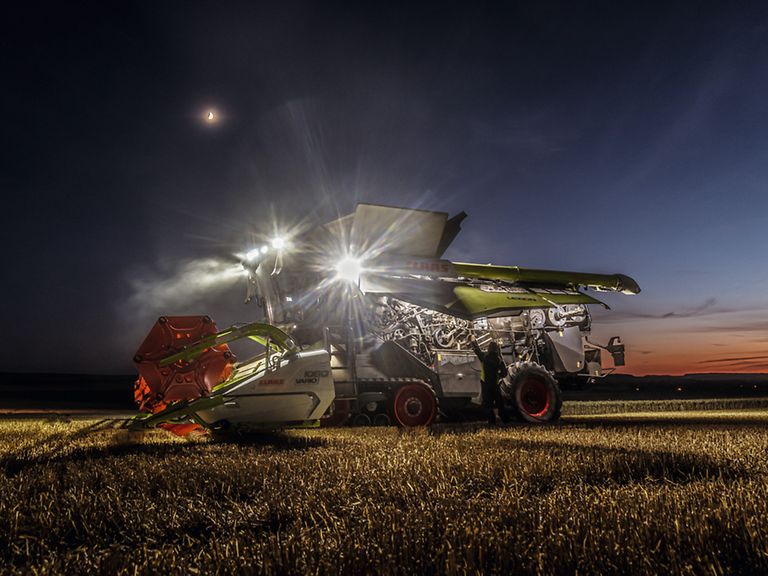

The side panels, steps and engine compartment are brightly lit.

Replace wear parts less often.

Every minute is precious.

All components subject to particularly heavy wear and tear in the crop flow are optionally available in PREMIUM LINE quality. These are the right choice when you have to harvest under extreme conditions which are particularly hard on your combine harvester. PREMIUM LINE components are extra resistant to wear and corrosion and have a very long service life. Even with intensive annual use or when subjected to aggressive crops, these parts will not usually have to be changed until after several campaigns. This increased durability is achieved through special manufacturing processes, high-quality materials and special coatings.

Making costs predictable.

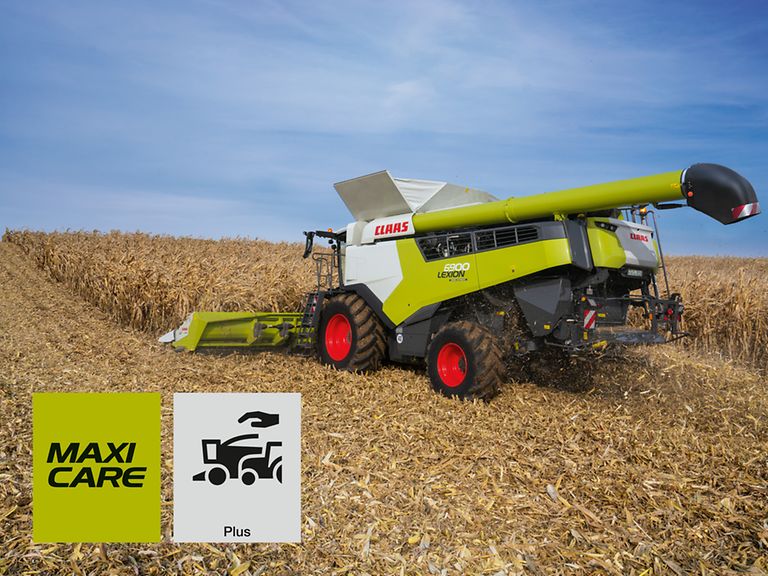

MAXI CARE PLUS.

MAXI CARE Plus is a combination of contractual services which meets your specific requirement for maximum operating reliability and cost control. An example of this is the combination of the MAXI CARE Protect extended warranty and MAXI CARE Maintenance, the customisable CLAAS maintenance programme.

Maintenance contracts improve your operational reliability.

MAXI CARE maintenance.

MAXI CARE Maintenance provides for all defined maintenance to be carried out by your CLAAS service partner. Under this maintenance contract, CLAAS ORIGINAL spare parts and consumables are used as a matter of course. This ensures that you can count on maximum cost transparency and a high resale value.

Extend your warranty.

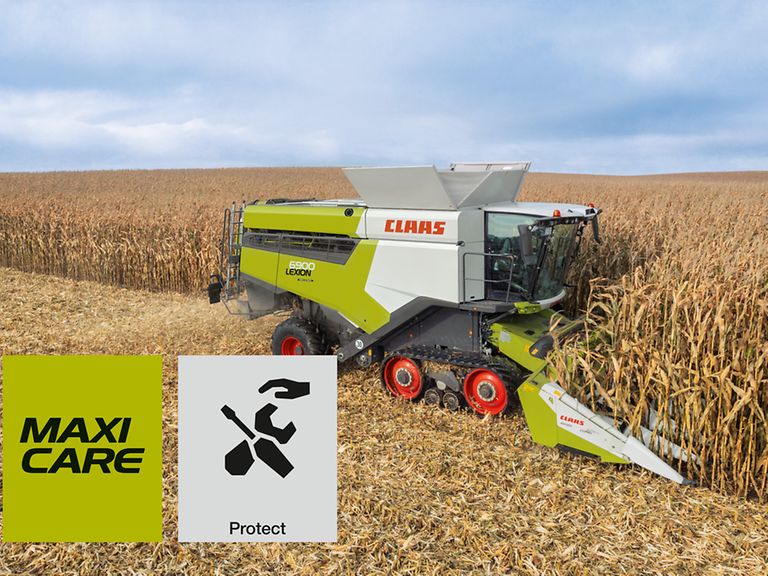

MAXI CARE Protect.

The MAXI CARE Protect extended warranty offers you protection for your machine beyond the statutory warranty. Any warranty claim then covers all the CLAAS ORIGINAL spare parts and consumables required, as well as any repair work carried out by your qualified service partner.

Technical data

Modell	Threshing system	Type of secondary separation	Threshing drum width (mm)	Grain tank volume (l)	grain tank unloading (l/s)
6900 TERRA TRAC	APS SYNFLOW WALKER	6-walker	1,700	13,500	180
6900	APS SYNFLOW WALKER	6-walker	1,700	13,500	180
6800 TERRA TRAC	APS SYNFLOW WALKER	6-walker	1,700	11,000-12,500	110-130
6800	APS SYNFLOW WALKER	6-walker	1,700	11,000-12,500	110-130
6700 TERRA TRAC	APS SYNFLOW WALKER	6-walker	1,700	11,000-12,500	110-130
6700	APS SYNFLOW WALKER	6-walker	1,700	11,000-12,500	110-130
6600	APS SYNFLOW WALKER	6-walker	1,700	10,000-11,000	110-130
5500 TERRA TRAC	APS SYNFLOW WALKER	5-walker	1,420	10,000-11,000	110-130
5500 MONTANA	APS SYNFLOW WALKER	5-walker	1,420	10,000-11,000	110-130
5400	APS SYNFLOW WALKER	5-walker	1,420	10,000	110
5300	APS SYNFLOW WALKER	5-walker	1,420	9,000-10,000	110
