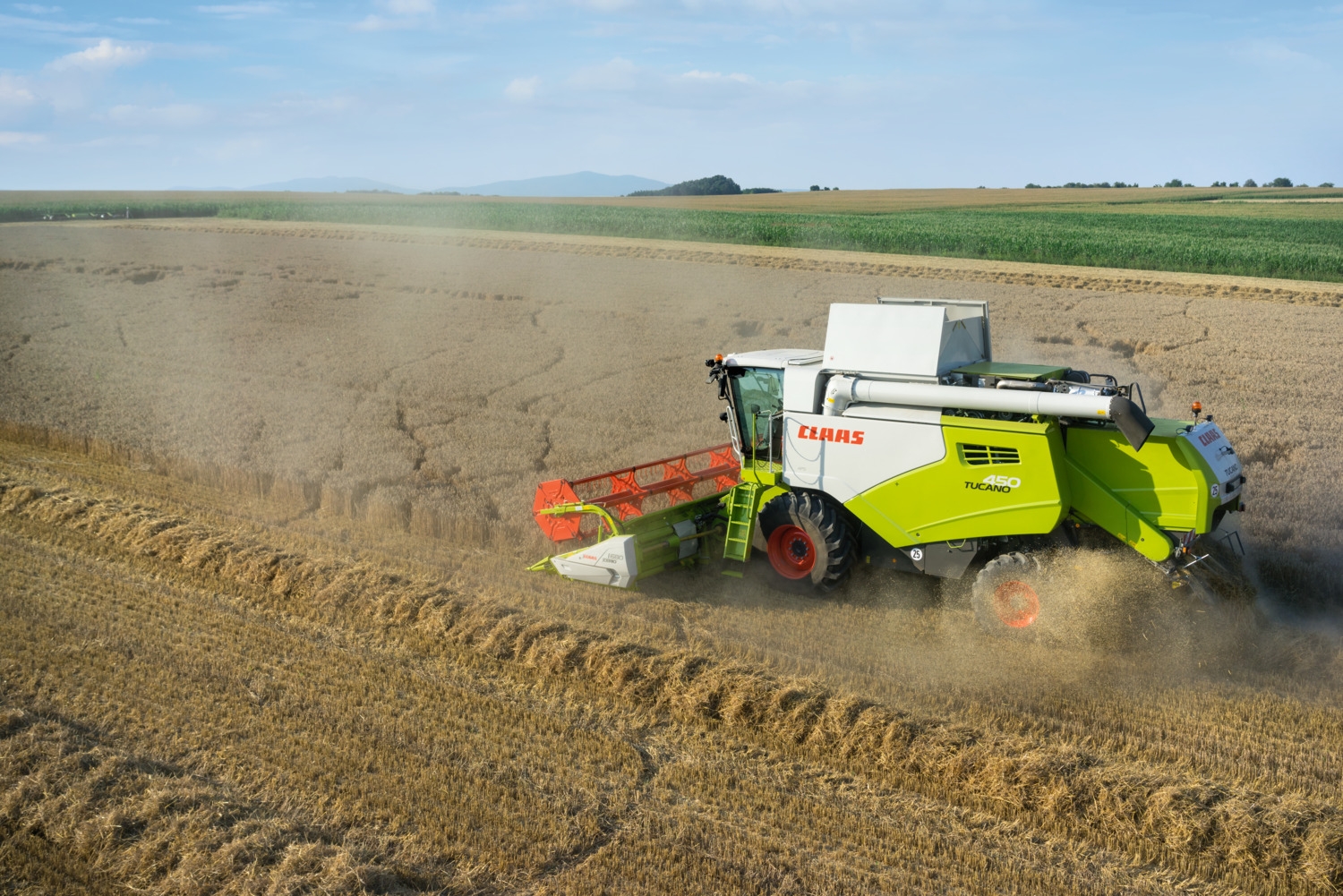

CERIO cutterbars.

The hydraulic reel drive adjusts the tractive power of the reel automatically to cope with difficult harvesting conditions, such as laid crops. At the same time, the automatic height control system, which operates on the basis of the programmed pressure and sensitivity levels, helps to maintain a continuous crop flow.

Your combine harvester configures the key parameters automatically so that it's ready for action faster. It does this based on

the following information it receives from the front attachment module: cutterbar type, working width, number of sections, reel position, parking position and the AUTO CONTOUR set values for working height and hectare counter.

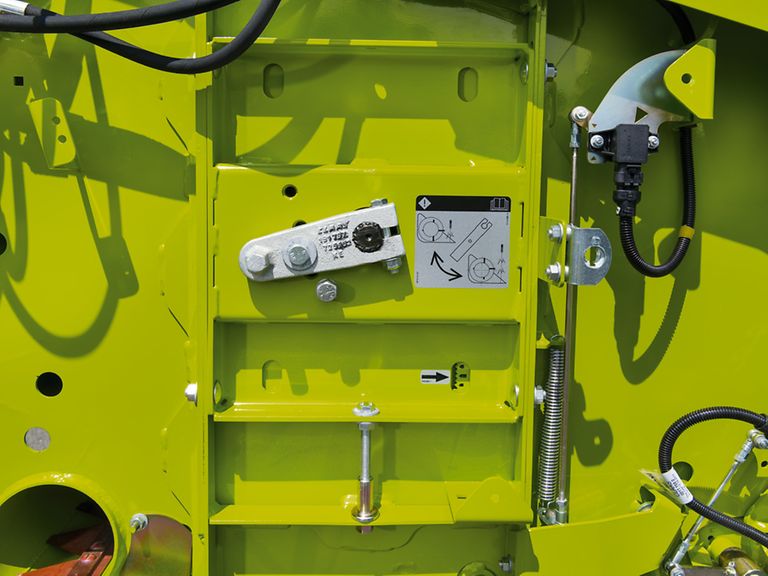

The CERIO cutterbars can be adjusted manually for different crops or conditions. Five table positions are available for this. The cutterbar table can be extended or shortened by as much as 20 cm, depending on the crop height or conditions at the time of harvest. Adjustment is performed simply by releasing ten bolts.

Uninterrupted crop flow starts right at the cutterbar, with the correct height setting of the intake auger being a particularly important factor.

Height scales are therefore provided on the left and right sides to aid easy adjustment.

The stripper plates in the cutterbar trough can also be adjusted conveniently from outside.

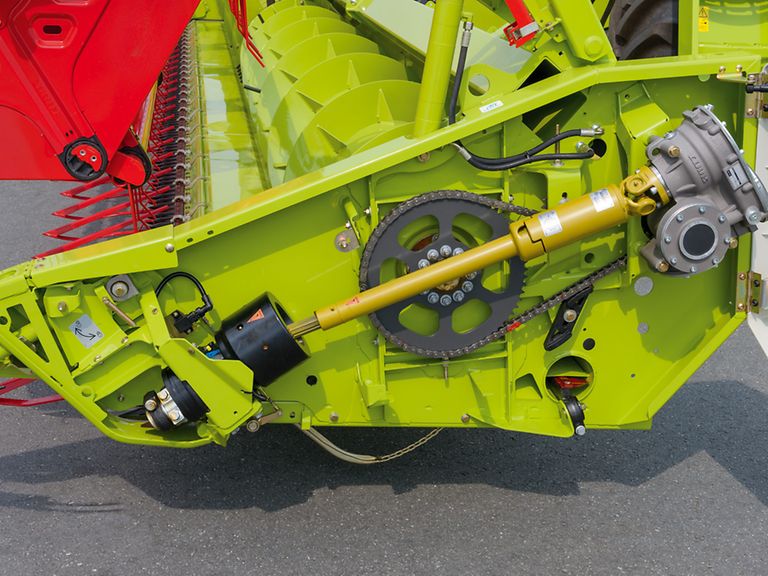

As the knife bar is driven via a planetary transmission, it runs very smoothly. When the cutterbar table position is changed, the drive shaft adjusts telescopically at the same time, thus allowing work to continue in any position without the need for operator intervention. The feed roller and knife drive are protected by individual overload clutches. This arrangement allows the CERIO cutterbar to withstand the most adverse conditions and ensures reliable operation.

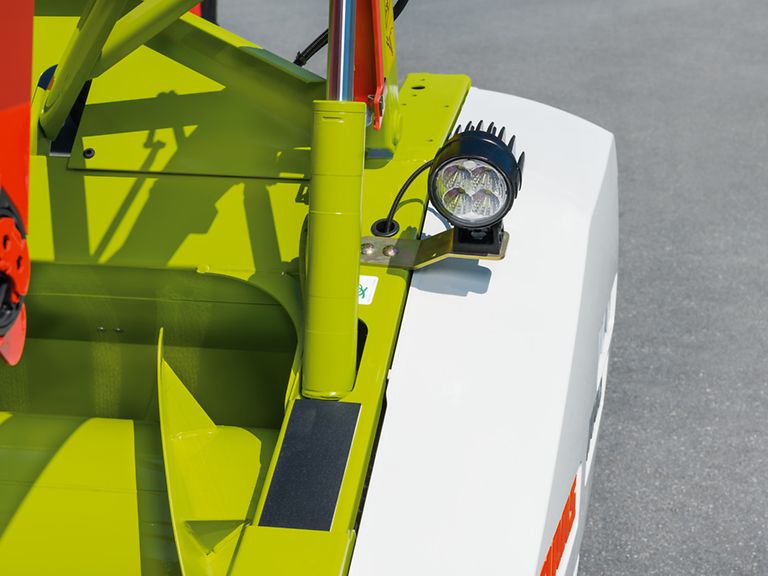

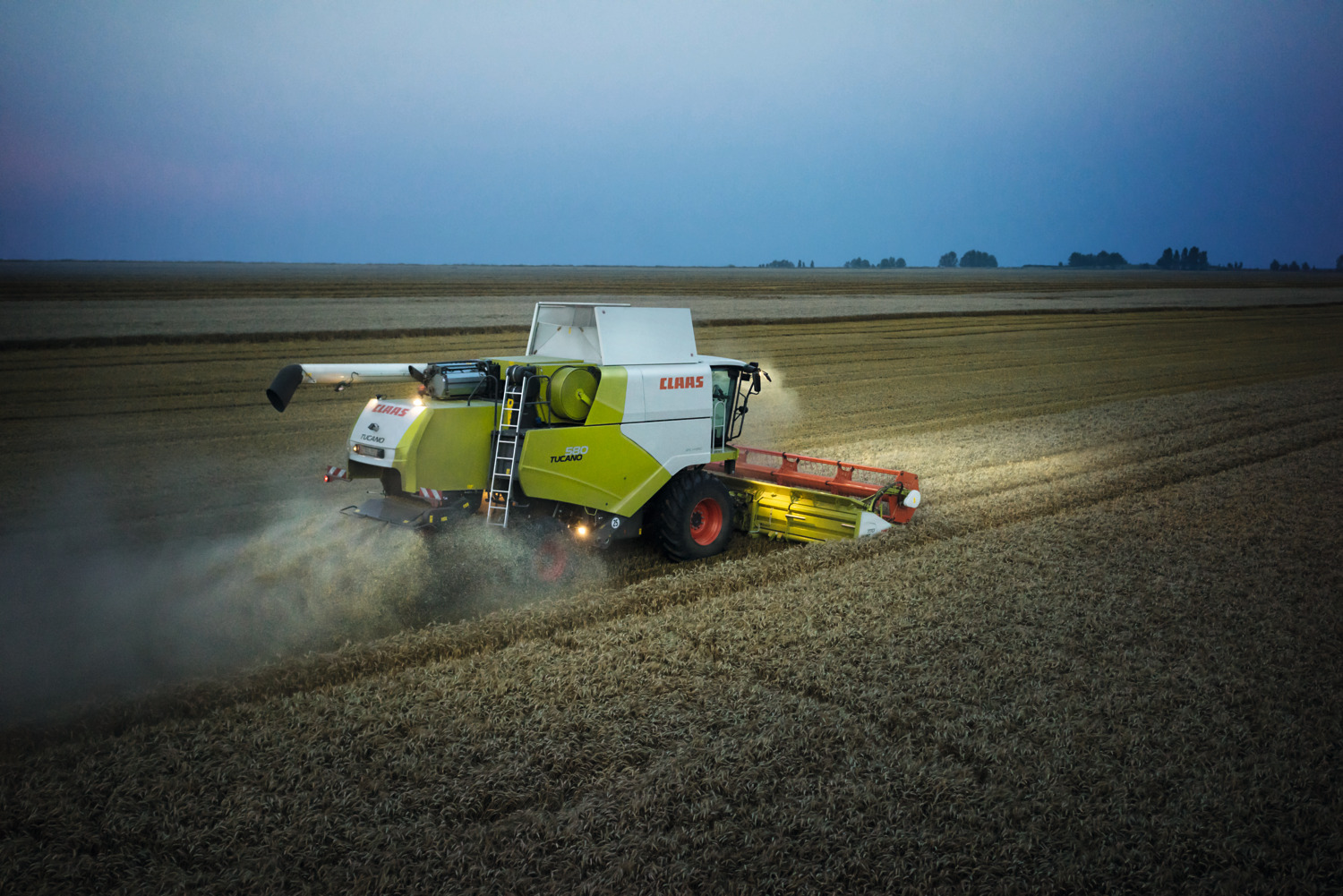

The lighting package provides good all-round visibility when operating in the dark. Work lights on the left and right sidewalls illuminate the crop edge. The work lights at left and right on the back panel allow the stubble immediately behind the cutterbar to be monitored.

Don't waste any valuable harvesting time.

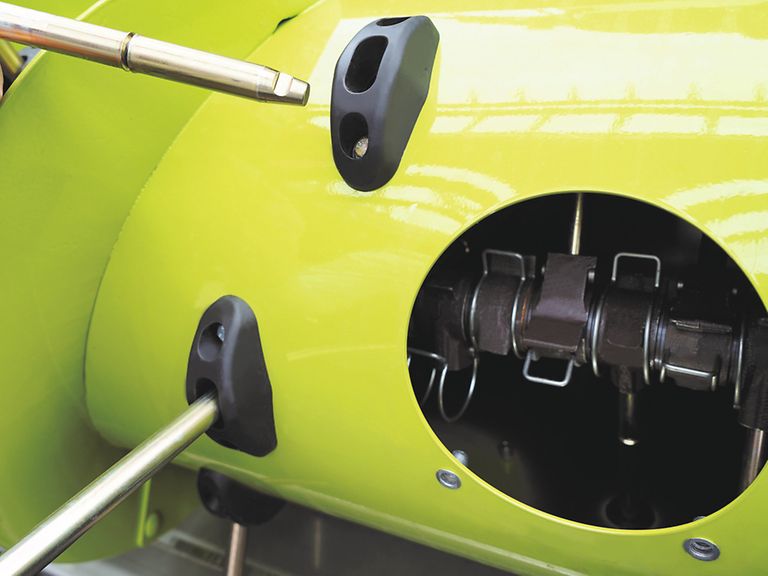

All CERIO cutterbars are equipped as standard with intake auger fingers which can be replaced without tools. The quick-release mounts can be accessed easily through the large maintenance openings in the intake auger. As a result, any repairs which may be necessary can be carried out in a very short time.

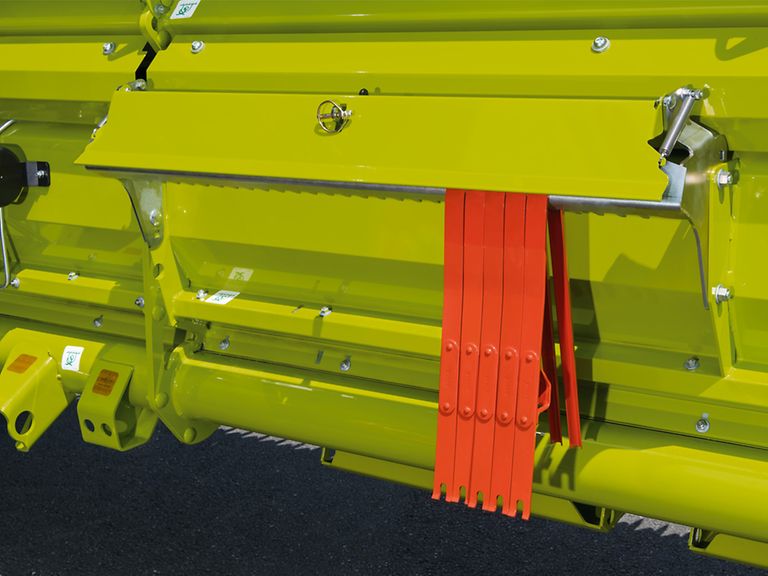

Fitted on the back panel of the CERIO cutterbars is a transport bracket for crop lifters which can be accessed safely in the parking position. You can therefore react quickly to different harvesting conditions and always have a sufficient store of crop lifters on board.
