Medium series.
TORION 1611P-1285

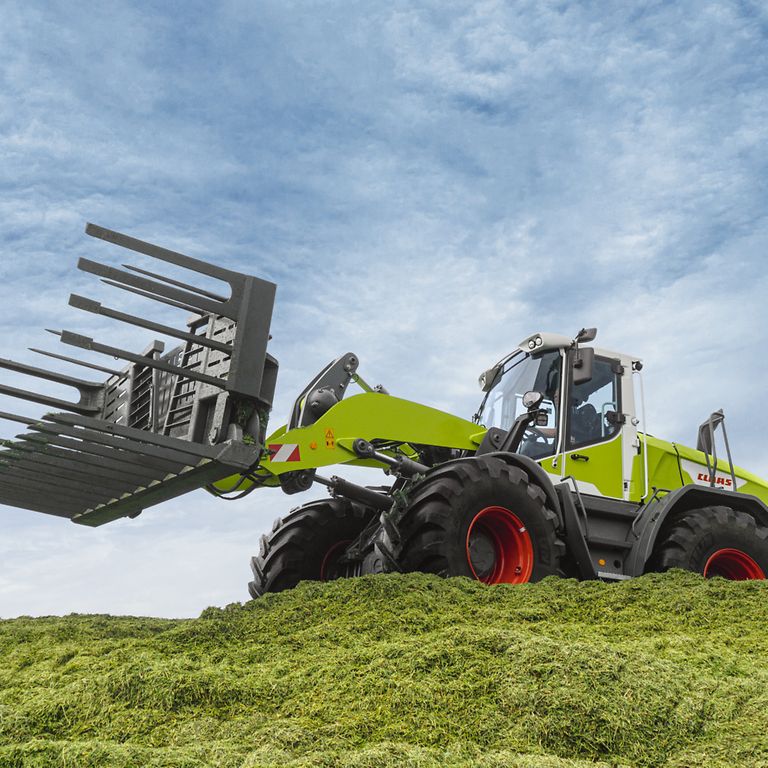

The TORION in the medium series puts a flexible all-rounder at your disposal. This machine is at home working on your yard, in the clamp and on your fields.

Highlights.

More power, less strain.

The newly developed Z-kinematics is ideal for agricultural use. The working hydraulics delivers high power. Automatic SMART LOADING functions such as the bucket return, weighing system and programmable lift mast reduce driver strain in any operation and ensure productive work processes.

Greater engine output and lift capacity: benefit from substantially faster materials handling
Greater bucket volume and higher tipping load: achieve more in less time
A 350 mm longer high-lift kinematics raises the bucket pivot point to 4,520 mm so you can load higher when you need to
A bucket shake function offers additional relief when loading sticky goods. Forage can be distributed more safely and evenly in the clamp
Larger hydrostatic units are reflected in greater thrust and improved driving dynamics to increase your productivity and efficiency

Work safely at height.

Mast.

To allow you to increase your materials handling capacity, the kinematics and mast of the medium TORION series have been optimised. The machine now offers an even greater breakaway force and faster load cycles. The high retention forces when working in the upper range ensure safe operation even with heavy loads.

TORION		Height of bucket pivot point (m)	Dump-over height (m)	Tipping load, fully articulated (t)	Breakaway power (kN)	Payload with loading fork (t)
1285	Z-ST	3.88	3.45	9.4	100	4.9
1285	Z-HL	4.46	4.01	7.2	105	5
1611	Z-ST	3.98	3.54	10.3	130	6.1
1611	Z-HL	4.52	4.07	8.5	135	5.2
1611P	Z-ST	3.98	3.54	9.4	115	5.4
1611P	Z-HL	4.52	4.07	7.6	120	4.6

Z-ST = Z-kinematics, standard

Z-HL = Z-kinematics, high lift

How much power would you like?

Make your loading cycles easier.

SMART LOADING.

If you load heavy weights, SMART LOADING provides active support. This unique assistance system precisely manages the interaction between all functions needed to optimise loading cycles. You only need to set the functions once, and they are then performed automatically.

Three support functions for greater ease.

The bucket return function actuates the stored bucket position automatically
The lifting and lowering height limits store the ideal level close to the ground and the dumping height
The weighing system precisely measures and documents your daily handling volumes

The TORION takes care of gear changes for you.

VARIPOWER ensures comfortable, continuous operation.

In the medium TORION series, the smart VARIPOWER ground drive makes your work easier. With this infinitely variable hydrostatic drive you operate the TORION in comfort at any speed and precisely adjust the amount of thrust you need. Accelerate without loss of thrust in all speed ranges. Thrust and speed are continuously synchronised.

Powerful, economical and clean.

Engine.

Handle everything that comes your way. In the medium TORION series, robust 6 and 4-cylinder DPS engines provide the output you need for a wide range of applications. All engines comply with the Stage V emission standard.

Maximum available output:

TORION 1611P: 185 kW / 252 hp at 2,000 min-1
TORION 1611: 152 kW / 207 hp at 2,000 min-1
TORION 1285: 116 kW / 158 hp at 2,200 min-1

Maximum torque:

TORION 1611: 970 Nm at 1,600 min-1
TORION 1611: 809 Nm at 1,600 min-1
TORION 1285: 667 Nm at 1,600 min-1

Digital solutions for loaders

With CLAAS Machine connect, you can easily transfer machine and process data online.

Specifications

Model	Tip load fully articulated (kg)	Max. height bucket pivot point (m)	Max. output ECE R 120	Hydraulic capacity	Operating weight (kg)
1611 P	7,600-9,400	3.98-4.52	185 kW / 252 PS	200 l/min / 350 bar	15,200-15,360
1611	8,540-10,250	3.98-4.52	152 kW / 207 PS	200 l/min / 350 bar	15,810-16,000
1285	6,100-8,000	3.88-4.46	116 kW / 158 PS	170 l/min / 350 bar	13,570-13,870
