Reliable swath collection.

SWATH UP

Pick-up of windrowed crops, such as rice, rapeseed and grass seed.

Exceptionally high performance.

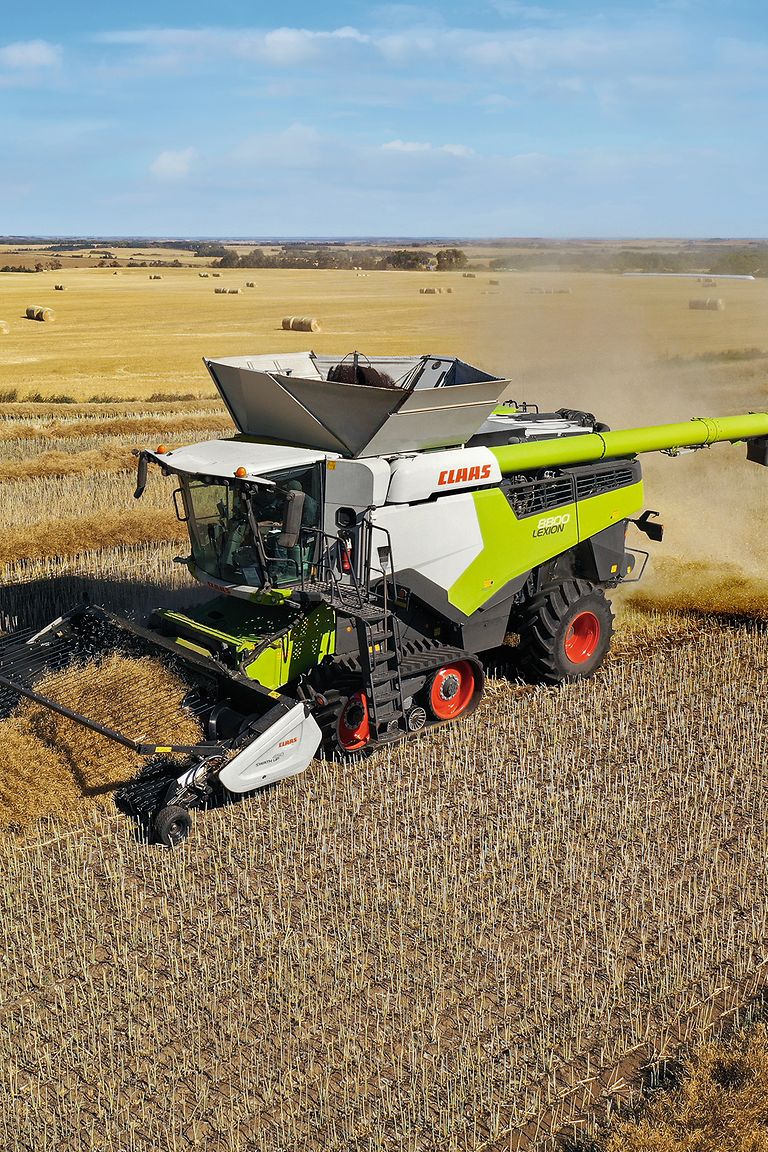

SWATH UP demonstrates its abilities in areas which are unsuited to direct threshing – and it does so under all imaginable conditions. It enables the pick-up of nearly all windrowed crops, especially crops such as rice, rapeseed and grass seed, and provides yet another demonstration of the exceptional efficiency of CLAAS front attachments.

Highlights.

Universal front attachment for different crop types
Pick-up belts for consistent swath pick-up
Effective avoidance of stone pick-up thanks to castor guide wheels
Loss-free crop pick-up
Working speed is automatically controlled via ground speed

SWATH UP.

The technology.

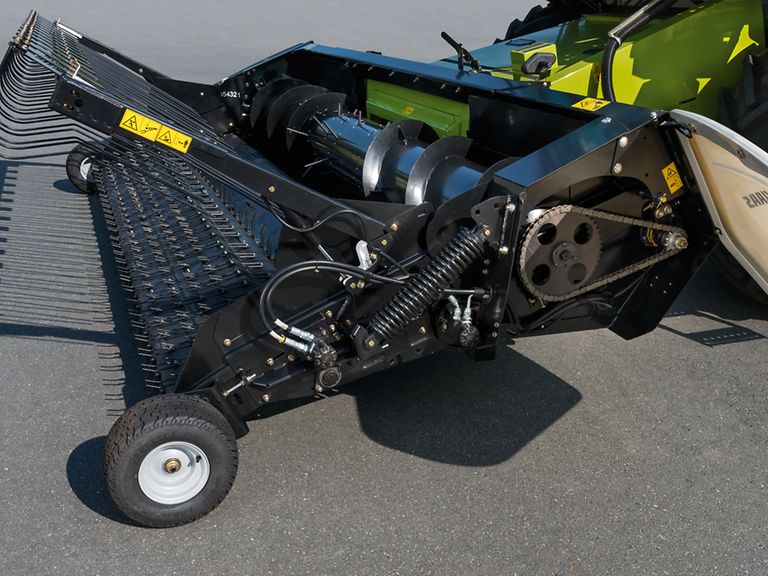

Four wide, interlinked pick-up belts form the front belt unit (with pick-up tines)
Four wide, interlinked transfer belts form the rear belt unit
Driven via chains and belts
Pick-ups controlled by angular gear
Speed of intake units can be adjusted continuously from inside the cab
The working speed is controlled automatically via the ground speed
Rake unit is suspended (coil springs and gas-filled spring struts)
Working depth can be set by castor guide wheels
Seals between pick-up belts and frame prevent leakage losses

Loss-free crop collection.

Functional principle.

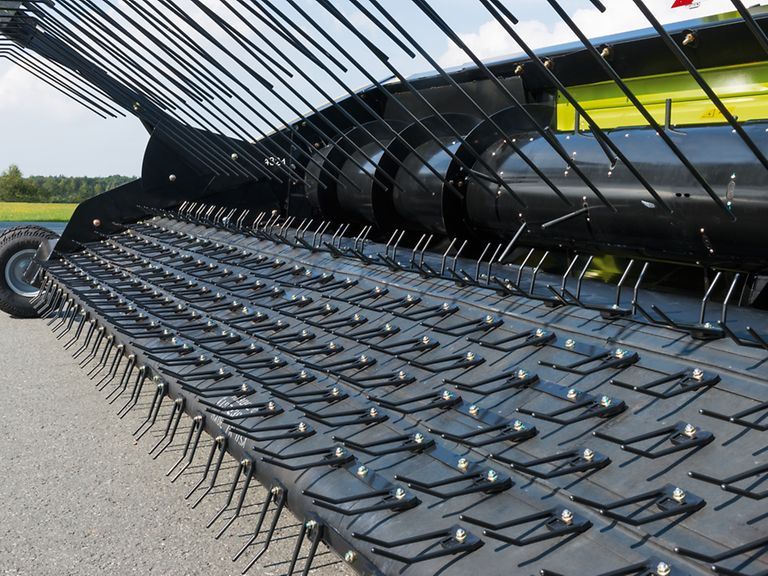

The pick-up tines on the front belt module ensure clean and loss-free collection of the harvested crop. The crop is transferred to the rear belt unit which conveys it to the feed roller. Guide blocks and guide rollers ensure that the belt modules are positioned and tensioned precisely if unevenly loaded, thereby avoiding losses. The feed roller ensures a clean transfer to the feeder housing.

Crop guard.

The crop guard ensures efficient crop flow. It can be adjusted hydraulically for height and is therefore able to adapt optimally to the most diverse conditions. Furthermore, the distance to the rake unit is adjustable.

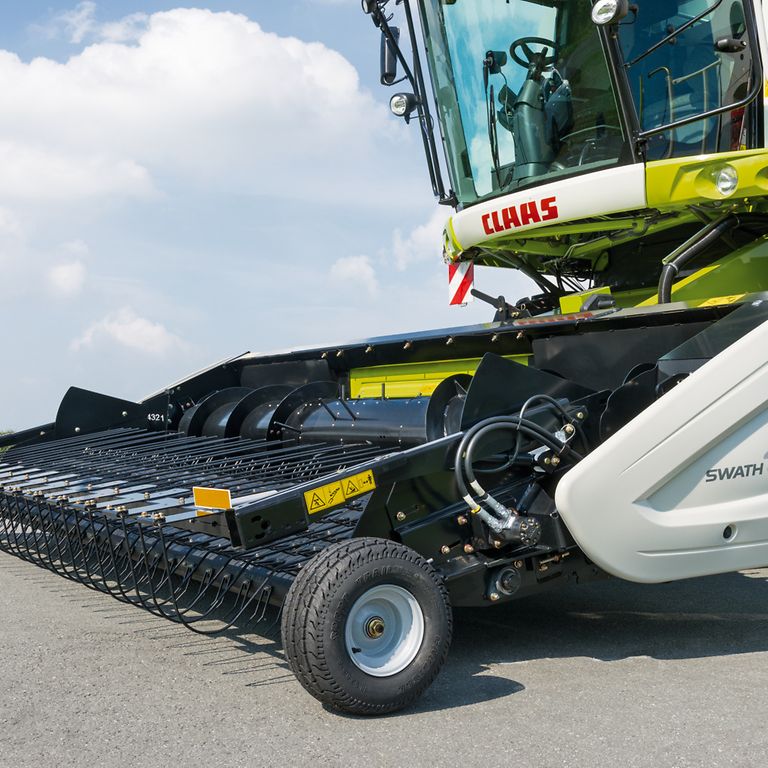

Castor guide wheels.

The two castor guide wheels at left and right not only limit the depth but also ensure that the tines do not pick up any stones.

Technical data

Model	Working width (m)
450	4.77
