Three series:
FL / FL C / FL E

From traditional applications in agriculture and forestry to specialist tasks in the municipal sector – front loaders are used for a huge variety of work.

Highlights.

Three series and 20 models to meet every need
CLAAS front loaders are perfectly matched to your tractor and the challenges of your day-to-day work.
With numerous control options to choose from, you're sure to find the right solution for any tractor, user or task.
With FITLOCK and MACH, you only need to leave your cab once to connect the front loader lift arms.
Clever solutions designed to boost your productivity

Loading made easy.

FL 100-40 E.

The FL E is the perfect choice if you are looking for a simple, efficient and robust front loader.

For tractors from 45 to 120 hp
Mechanical self-levelling linkage
Hydraulic lines integrated into the boom
FITLOCK with automatic front loader locking
Third hydraulic function for attachments
MACH 2 to connect the third function
Mechanical, automatic locking of attachments
Folding support legs

Unrivalled convenience.

FL 140-40 C.

Designed for intensive work, the FL C features productivity-boosting equipment and an innovative design that provides an outstanding view.

For tractors from 45 to 205 hp
Mechanical self-levelling linkage is integrated into both sections of the front loader lift arm.
Hydraulic lines are integrated into the boom
FITLOCK with automatic front loader locking
Third and fourth hydraulic function for attachments
MACH 2 for connecting the third and fourth function
Pressure release function for third function
Mechanical, automatic attachment locking or FASTLOCK for hydraulic locking and unlocking of attachments
Folding support legs
Additional options for greater productivity and convenience: automatic bucket return and integrated
LED work lights

Higher, faster and more accurate.

FL 250-100 with hydraulic self-levelling linkage.

Discover the intelligent solutions in the FL front loader.

For tractors from 100 to 300 hp
Hydraulic self-levelling linkage
Hydraulic lines are integrated into the boom
FITLOCK with automatic front loader locking
Third and fourth hydraulic function for attachments
MACH 2 for connecting the third and fourth function
Mechanical, automatic attachment locking or FASTLOCK for hydraulic locking and unlocking of attachments
Folding support legs
Additional options available for greater productivity and convenience: automatic bucket return, synchronised bucket/grab control and SPEEDLINK

Perfectly integrated front loaders.

An unbeatable combination.

Specially designed for CLAAS tractors, the front loader mounting brackets transfer mechanical forces across the entire implement frame. They are perfectly matched, allowing ready access to all maintenance points without restricting your tractor's manoeuvrability. So you can work productively and save yourself a lot of valuable time. Whether your front loader is installed at the factory or retrofitted, it will complement your tractor perfectly, creating a powerful unit which boosts the versatility and economic efficiency of CLAAS tractors from 45 to 300 hp.

The SHOCK ELIMINATOR has a nitrogen-filled accumulator which absorbs impacts and protects the tractor, operator and front loader from vibration. Less fatigue and improved concentration produce better work results throughout the day. The SHOCK ELIMINATOR can be switched off for special applications.

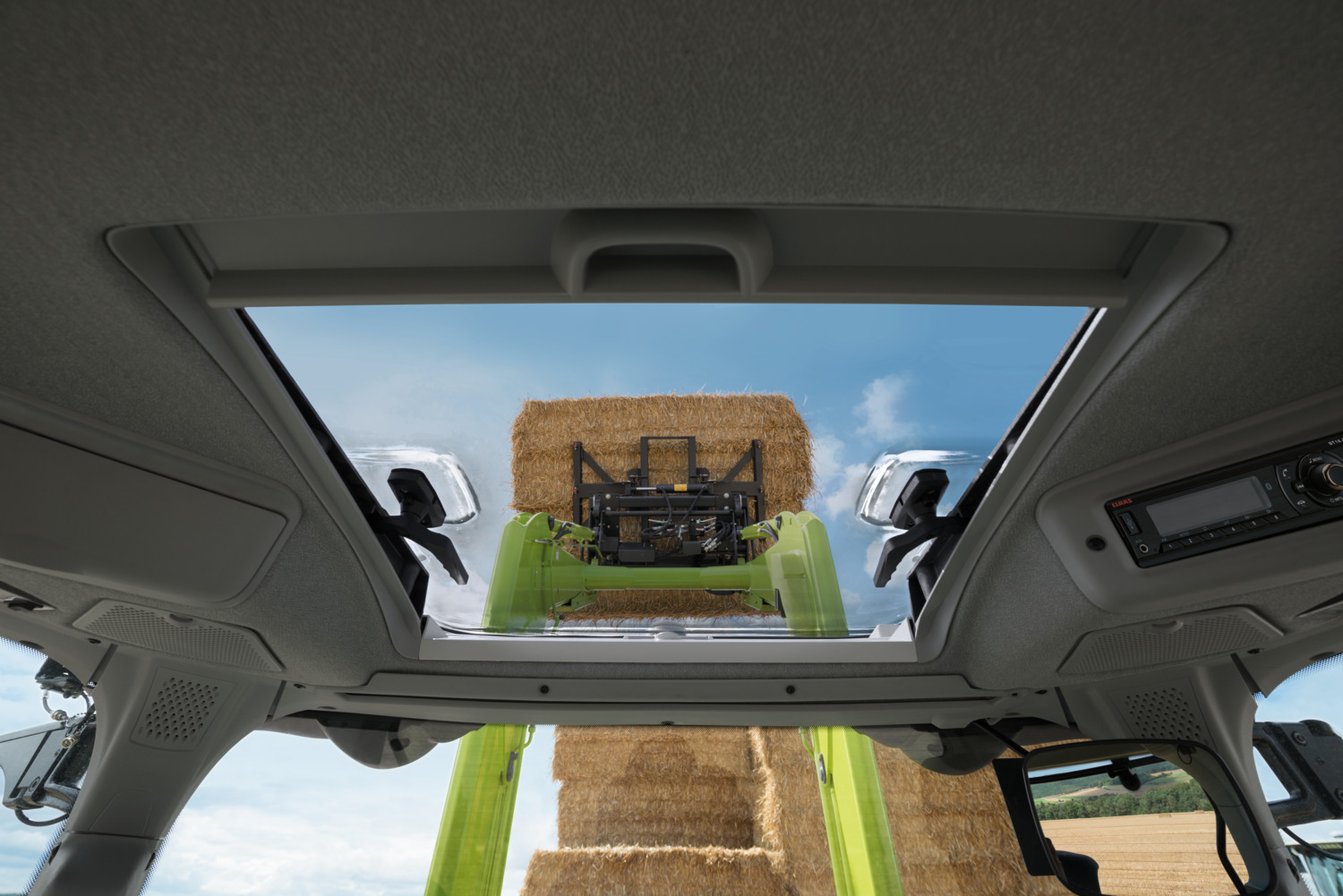

Safe work.

Clear view.

Thanks to the wide FOPS (Falling Object Protective Structure) glass roof, CLAAS tractors are ideally equipped for safe front loader work – ensuring that you have a clear view of the entire working area for loading and are well protected from falling materials.

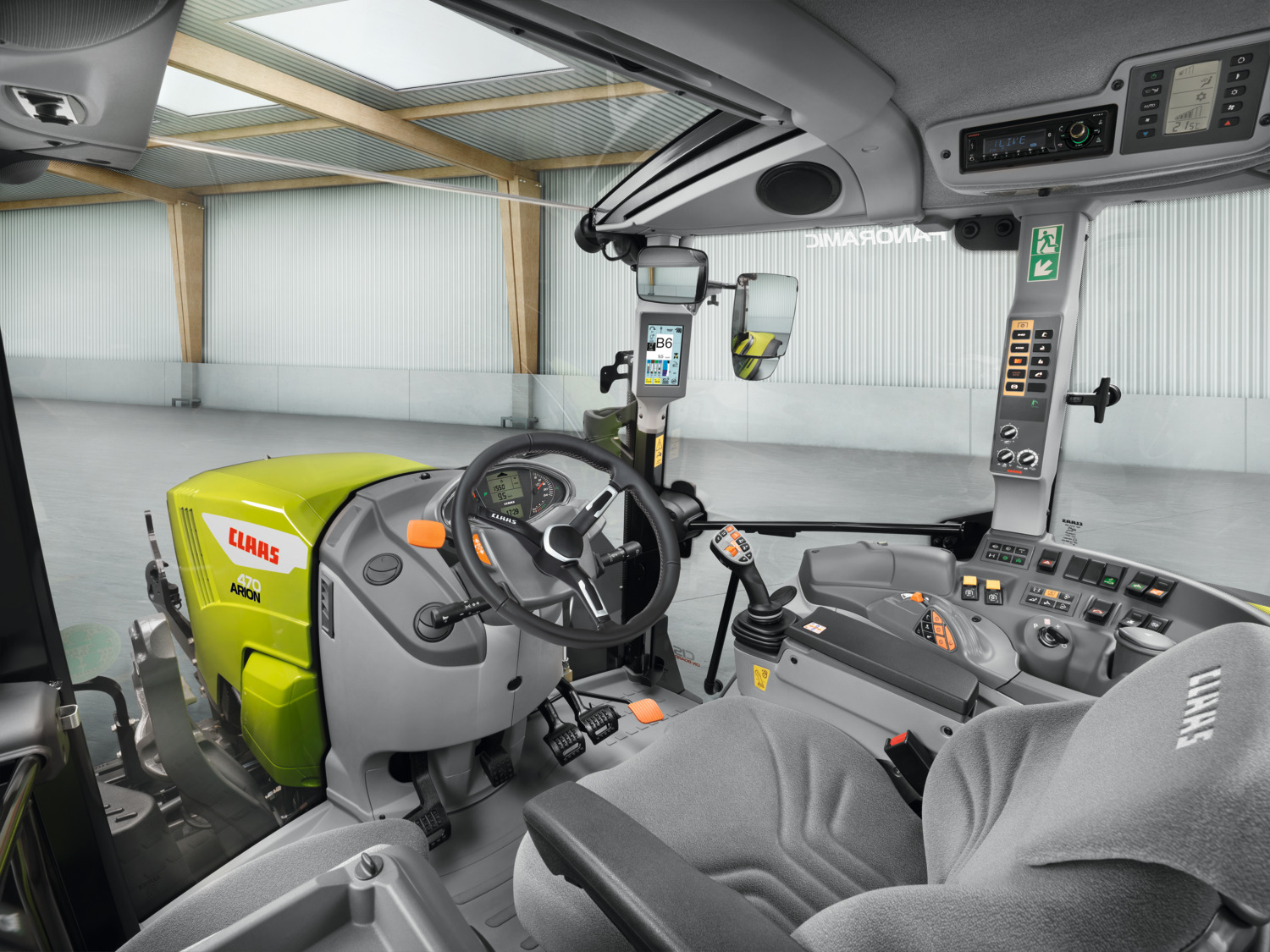

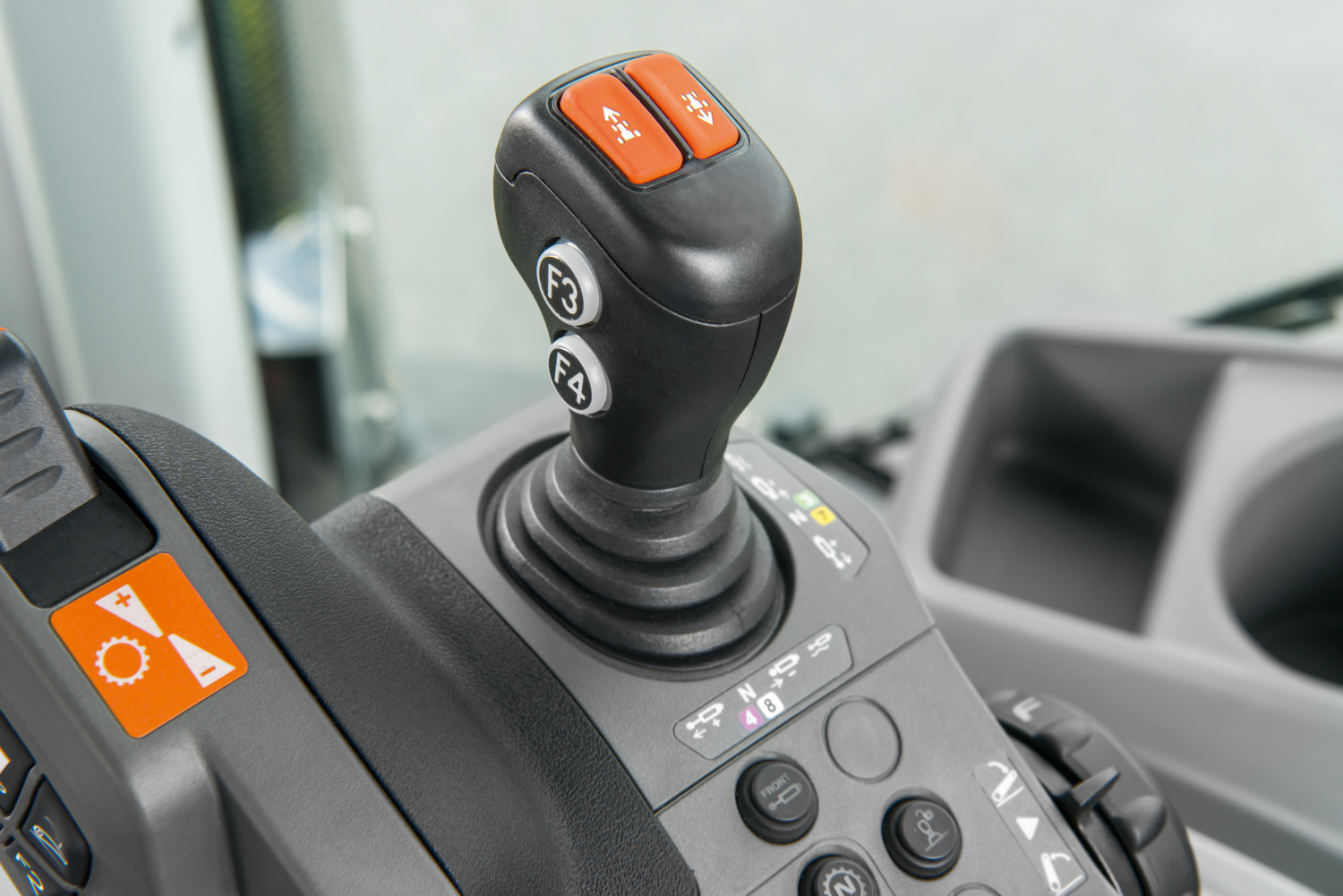

ELECTROPILOT for ARION 400.

You're in command.

The joystick in the ARION 400 is integrated into the right-hand armrest. In addition to operating the front loader, it can also be used to simultaneously control the QUADRISHIFT / HEXASHIFT transmission. You no longer have to alternate between gear-shifting and front loader actuation, which brings considerable benefits when it comes to operation. With its ergonomic design and razor-sharp precision, the joystick is ideal for all front loader operations.

ELECTROPILOT for AXION 800 and ARION 600 / 500.

Precise and ergonomic.

AXION 800 and ARION 600 / 500 tractors can be optionally fitted with the ELECTROPILOT system at the factory. The integral joystick in the armrest or right-hand console controls all the front loader functions. It is ergonomically designed for comfort and ease of use.

Depending on the tractor model, other operating systems are available factory-fitted or as a retrofit option. Contact your CLAAS dealer for more information.

Only leave your cab once.

Ready in record time.

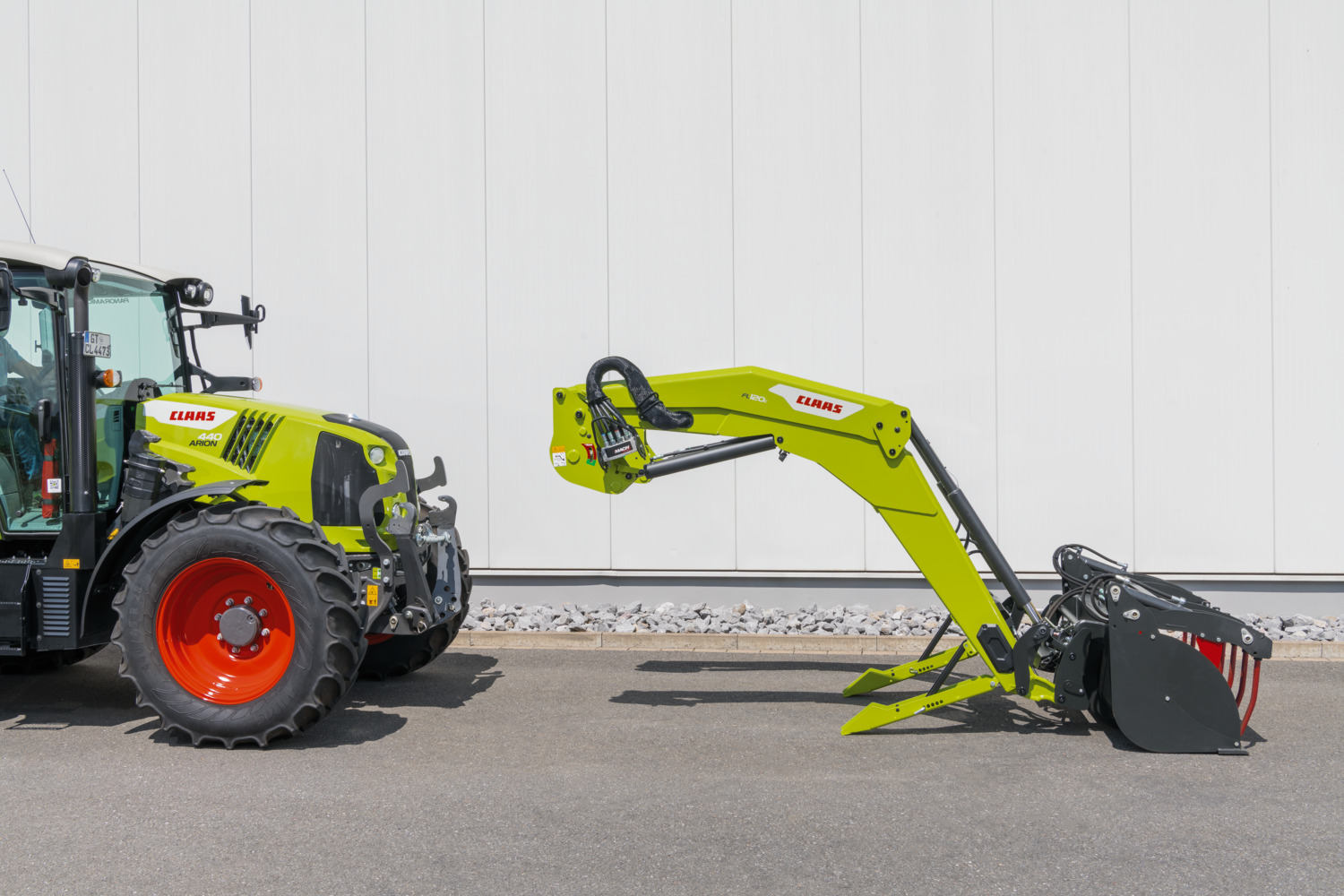

With a combination of FITLOCK and MACH, you only need to leave your cab once to connect the front loader. Just drive the tractor up to the lift arms: as soon as the FITLOCK system is pre-locked in place, simply get out of the cab, connect the multi-coupling system and stow the support legs in the boom. It's that easy!

Just one action.

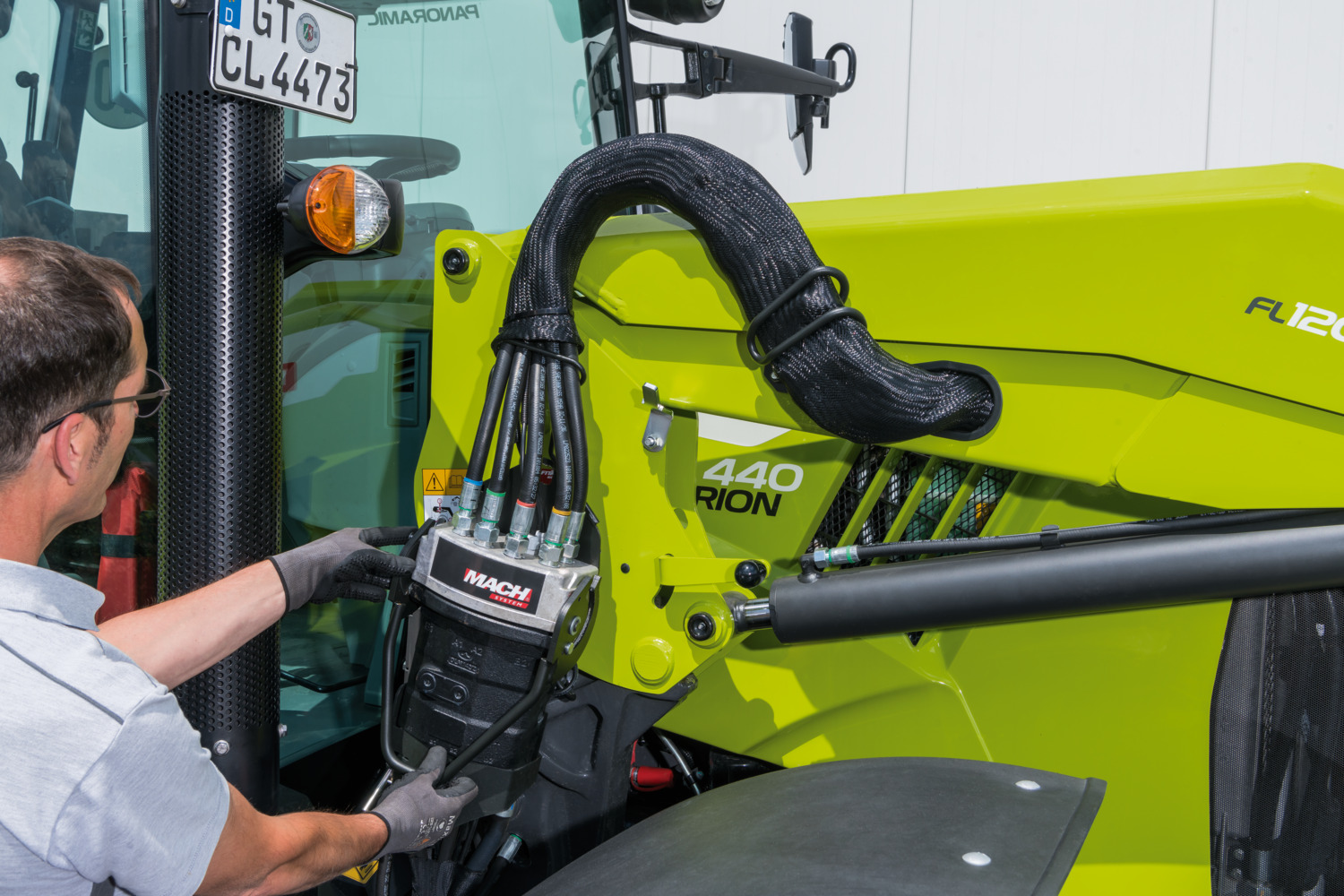

MACH

With the MACH multi-coupling system, you can easily connect all the hydraulic and electrical connections in just one action, even when the lines are under pressure. Simply place the multi-coupling system on the tractor bracket, pull the handle down and everything is connected. The hydraulic connectors have flat faces so they don't drip and remain clean and dry. Problems caused by dirt in the hydraulic system or wrong connections are now a thing of the past.

Technical data

Model	Lift capacity over entire lifting height (kg)	Max. lifting height (mm)
250	2,910	4,600
150	2,910	4,600
140	2,210	4,500
120	2,420	4,150
100	2,220	4,000
140 C	2,360	4,500
120 C	2,140	4,200
100 C	2,280	4,000
80 C	2,050	3,850
60 C	1,700	3,700
100 E	2,170	4,000
60 E	2,020	3,800
40 E	1,600	3,500

Front loader videos

CLAAS front loader lift arms.
