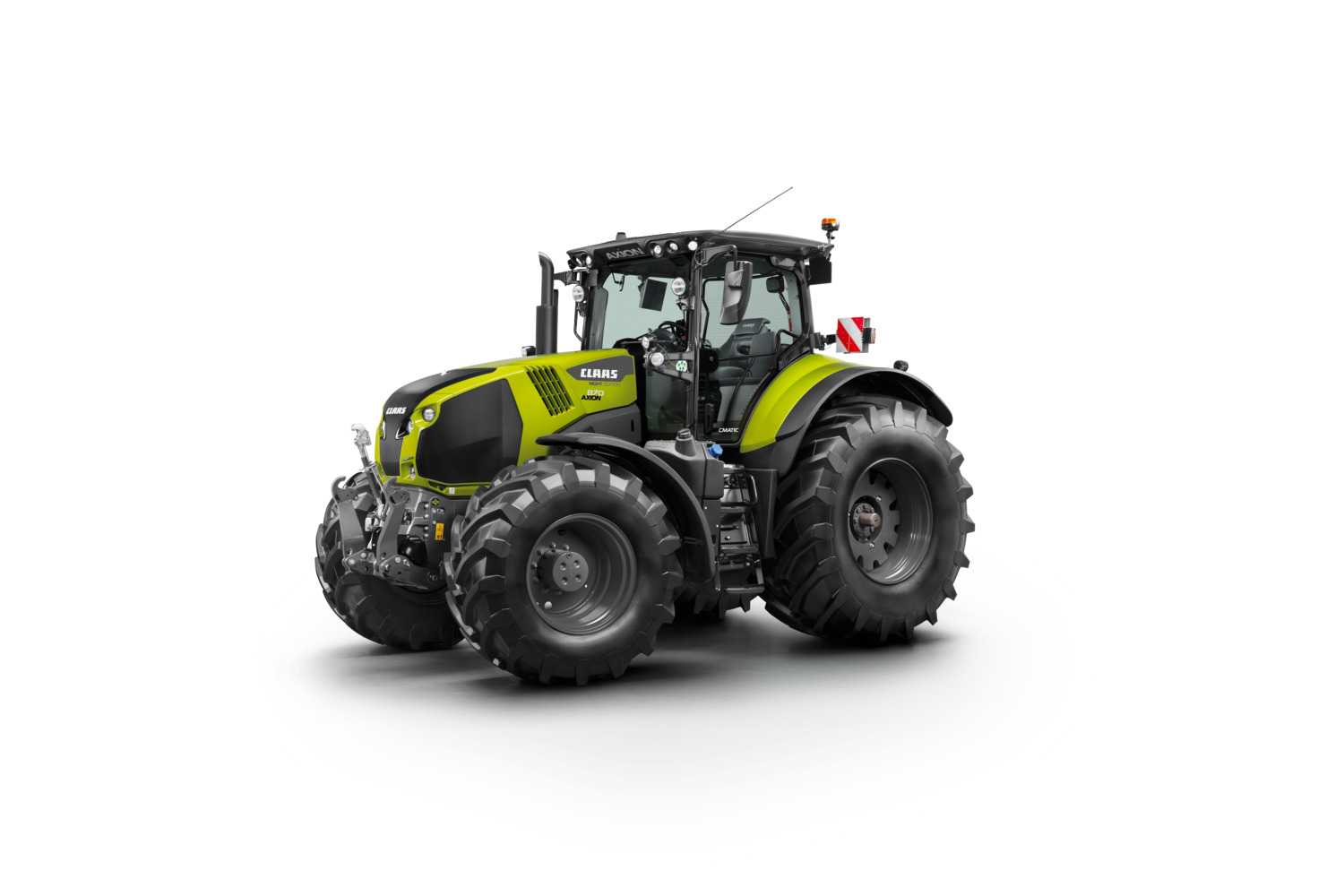

AXION 800.
Impressive in every way.

The AXION 800 in the 200 to 300 hp class offers an outstanding level of driving comfort and ease of operation that makes long working days seem short.

More of everything.

Comfort concept with 4-point cab suspension protects the operator and the machine.
The CEBIS version features user-friendly operation and more automated functions to boost your productivity
CMATIC continuously variable transmission from CLAAS will change your mind forever
The CTIC tyre pressure control system and wide choice of tyres make the AXION 800 exceptionally versatile
Get more done with operator assistance systems and advanced data management

Always perfectly adjusted.

Optimise your machine settings to suit all conditions with CEMOS.

Power and endurance.

For all applications.

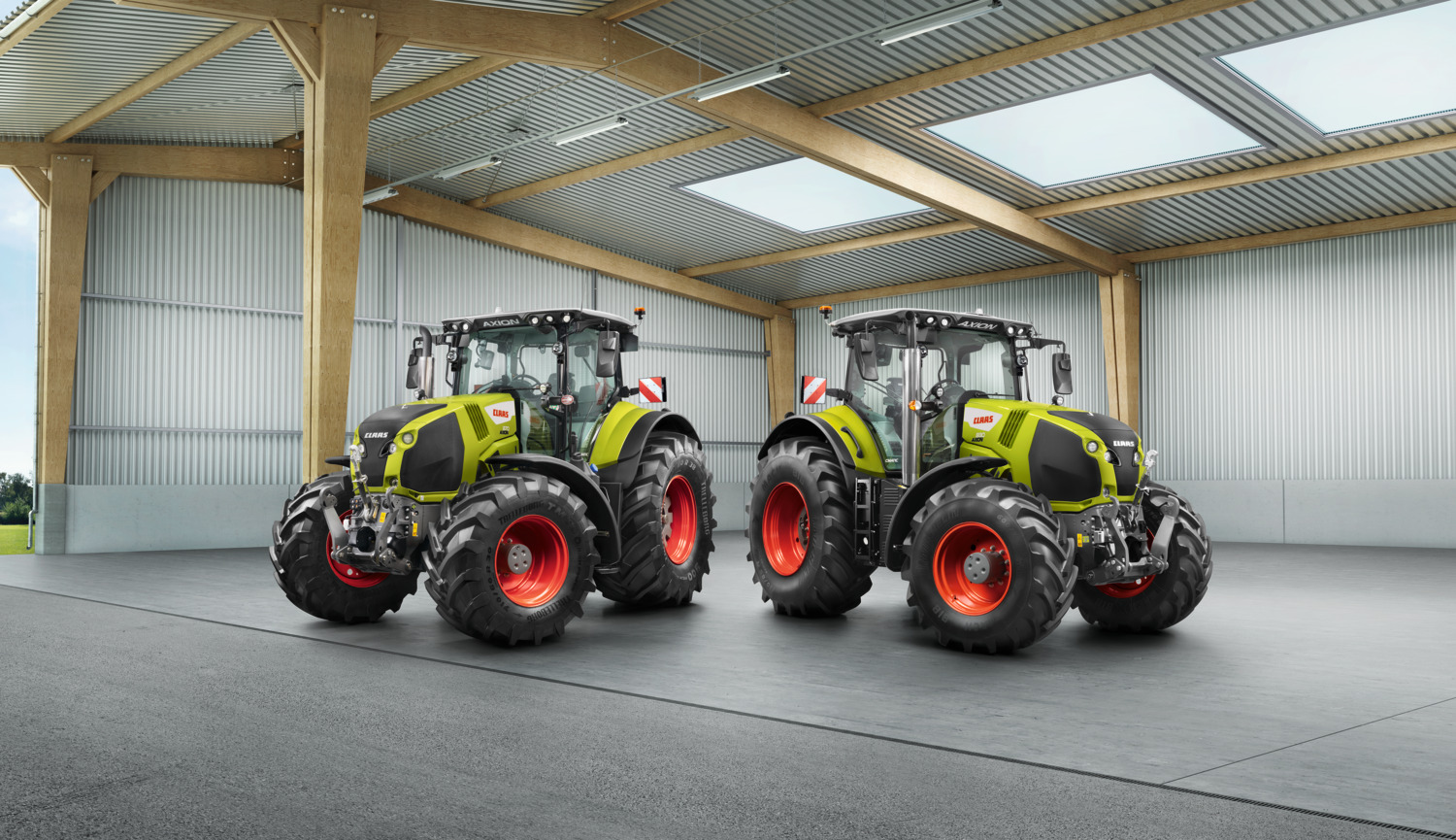

The rear tyres on AXION 800 tractors can be up to 2.05 m in diameter. Tyres up to 1.60 m diameter are used on the front axle. The numerous tyre options make the AXION capable of any type of work. Even with the biggest tyres (900/60 R 38) the tractor has an external width of less than 3.0 m, making it flexible on the road and gentle on the field.

CTIC CLAAS Tyre Inflation Control.

Tyre pressure adjustment system.

The right tyre pressure protects the soil and benefits the yield in the long term. But it offers other economical advantages too, such as increased tractive power, reduced fuel consumption and low tyre wear. The air valves are integrated into the patented rotary transmitters to ensure precise
high-precision tyre pressure measurement and control at the wheel. The tyre pressure is continually monitored and automatically adjusted.

In the basic version, the CTIC is supplied by the tractor compressor. The CTIC 2800 version has its own screw compressor with an airflow rate of 2,800 l/min. We recommend the CTIC 2800 if you frequently
switch from field to road or want to adjust the tyre pressure to suit the trailed implement.

Protects both driver and machine.

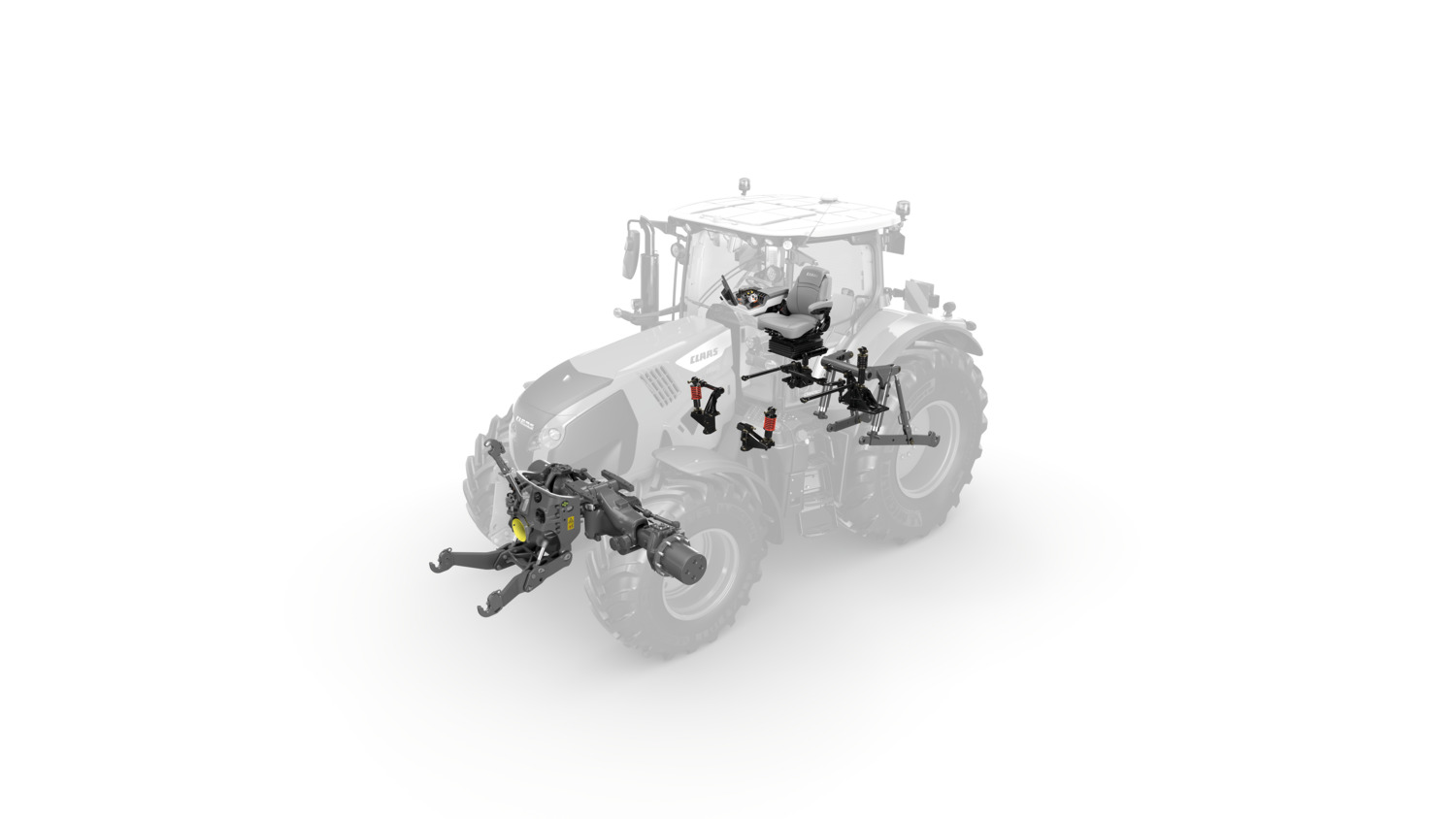

The suspension.

Full suspension. With four suspension points, the cab is fully isolated from the chassis, preventing impacts and vibration from reaching the driver. Longitudinal and lateral struts join the suspension points and keep the cab stable when turning corners or braking. The entire suspension system is completely maintenance-free.

PROACTIV front axle suspension – complete comfort automatically. The suspension adjusts to tractor loading and automatically remains in the central position. Changes in load due to braking and turning manoeuvres are also
compensated for. Parallelogram axle suspension and 85 mm spring travel guarantee a smooth ride.

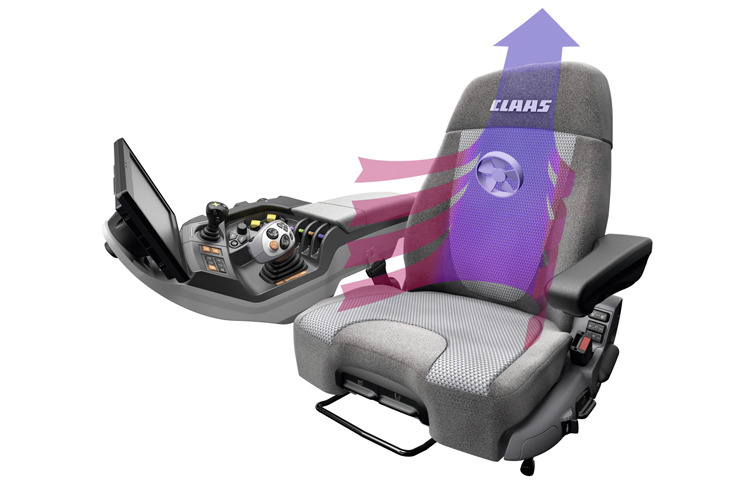

The Premium seat.

Warm and ventilated.

The range of Sears and Grammer seats includes a ventilated premium seat.

Active seat ventilation and heating make the seat feel comfortable whatever the weather
Semi-active suspension adjusts automatically to the weight of the driver
Longitudinal and lateral horizontal suspension

Shift your mind.

CMATIC continuously variable transmission.

Forget everything you thought you knew about continuously variable tractor transmissions. CMATIC from CLAAS will change your mind forever.

Our continuously variable transmission increases your efficiency. The machine operates at the optimum speed at all times, autonomously – ensuring genuinely impressive ride comfort, yet simple operation. So you can focus all your attention on the job in hand and benefit from long-lasting transmission quality.

Exploiting real potential.

The available drive power can be used effectively at speeds from 0.05 to 50 km/h. The high level of mechanical power in the transmission also delivers outstanding driving force in reverse. What's more, every gear ratio can be used at every engine speed, giving AXION 870-810 tractors enormous potential for use all year round.

With engine speeds of 1,600 rpm at a top speed of 50 km/h and 1,300 rpm at 40 km/h, AXION 870-810 tractors also demonstrate their capabilities in transport operations. If the
accelerator is not depressed, the transmission is in powered zero mode and maintains its position without creeping or rolling. This means that the tractor can start up safely and easily at steep field entrances or road junctions, even with a full load.

Technical data

Model	Number of cylinders	Displacement (l)	Max. output ECE R 120 (hp)	Transmission
870 CMATIC FIRST CLAAS	6	6.70	295	CMATIC (CV transmission)
870 CMATIC	6	6.70	295	CMATIC (CV transmission)
850 CMATIC	6	6.70	264	CMATIC (CV transmission)
830 CMATIC FIRST CLAAS	6	6.70	235	CMATIC (CV transmission)
830 CMATIC	6	6.70	235	CMATIC (CV transmission)
810 CMATIC	6	6.70	215	CMATIC (CV transmission)
850	6	6.70	264	24/24 HEXASHIFT (6 powershift speeds / 4 electronically controlled groups) + REVERSHIFT
830	6	6.70	235	24/24 HEXASHIFT (6 powershift speeds / 4 electronically controlled groups) + REVERSHIFT
810	6	6.70	215	24/24 HEXASHIFT (6 powershift speeds / 4 electronically controlled groups) + REVERSHIFT

Up to 16.8% lower fuel consumption.

CEMOS drivers are unbeatable.

CEMOS is the most comprehensive operator assistance system for tractors on the market. It helps you find the optimum settings for the tractor and implement. In a benchmark test, independent test institute the DLG confirmed that CEMOS increased the work rate (ha/h) by up to 16.3% and decreased fuel consumption (l/ha) by up to 16.8%.

cemos.claas.com
