LINER dual-rotor swathers with central swathing
Broadly positioned.

LINER central swathers come in working widths ranging from 6.80 m – 10.00 m.

Hitching and unhitching.

The optimised 2-point hitch makes for easy attachment and removal – as do the KENNFIXX® hydraulic couplings available for the LINER 2800 and above. When the job is done, the drive shaft can be conveniently stowed in the handy parking bracket, along with all the hoses.

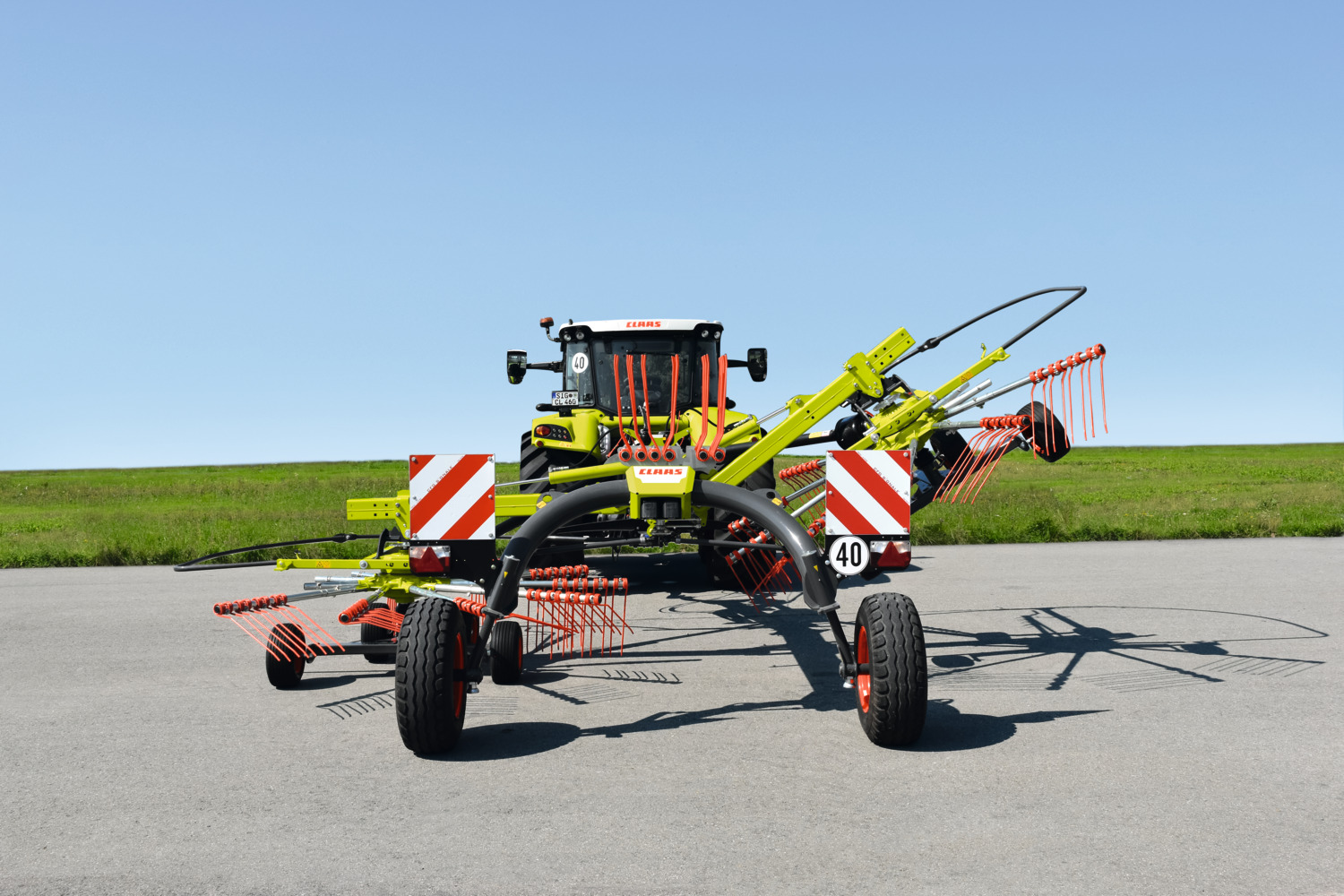

Safe on the road.

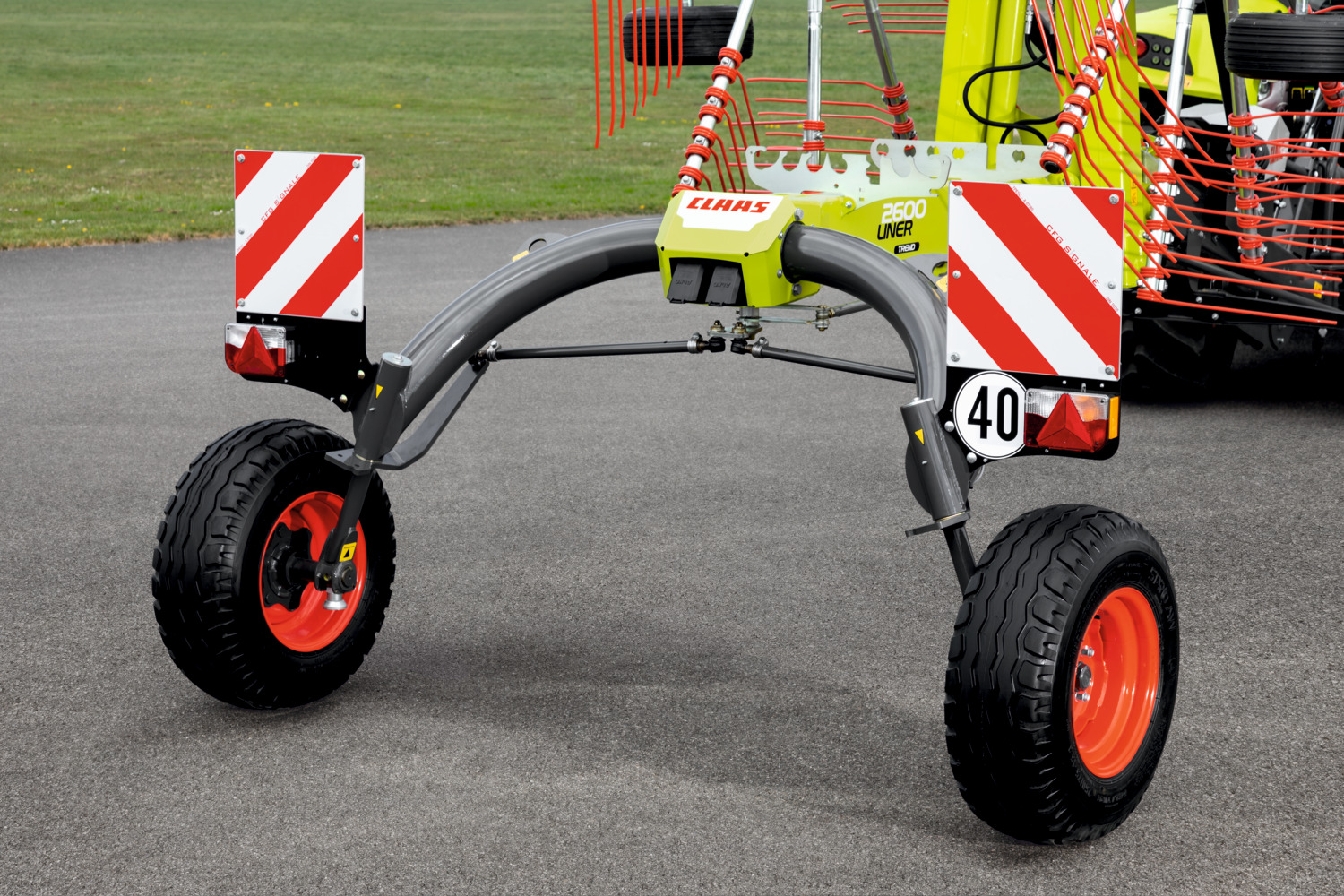

Forced steering ensures that the swather always follows the tractor's tracks for perfect trailing. The steering angle display helps the operator when negotiating tight bends.

Proven swathing technology.

Naturally, LINER central swathers are fitted with the reliable, professional rotor drive assembly which runs in an oil bath. Furthermore, all models are equipped with CLAAS silage tines – so gentle forage handling is guaranteed.

Gentle on the soil.

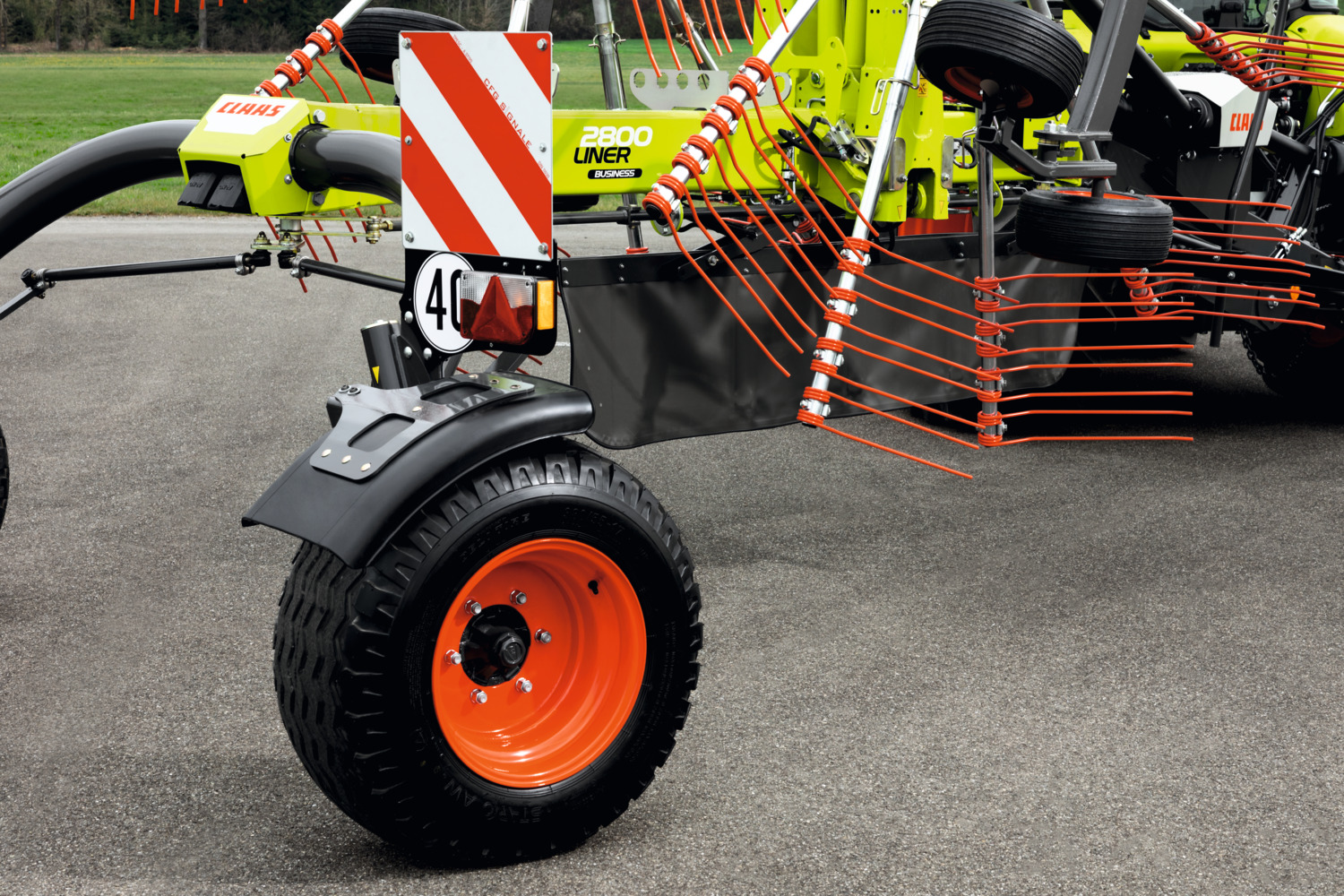

Our rotor chassis is designed for maximum soil protection. The six-wheel option available for some models amplifies the GRASS CARE effect even further.

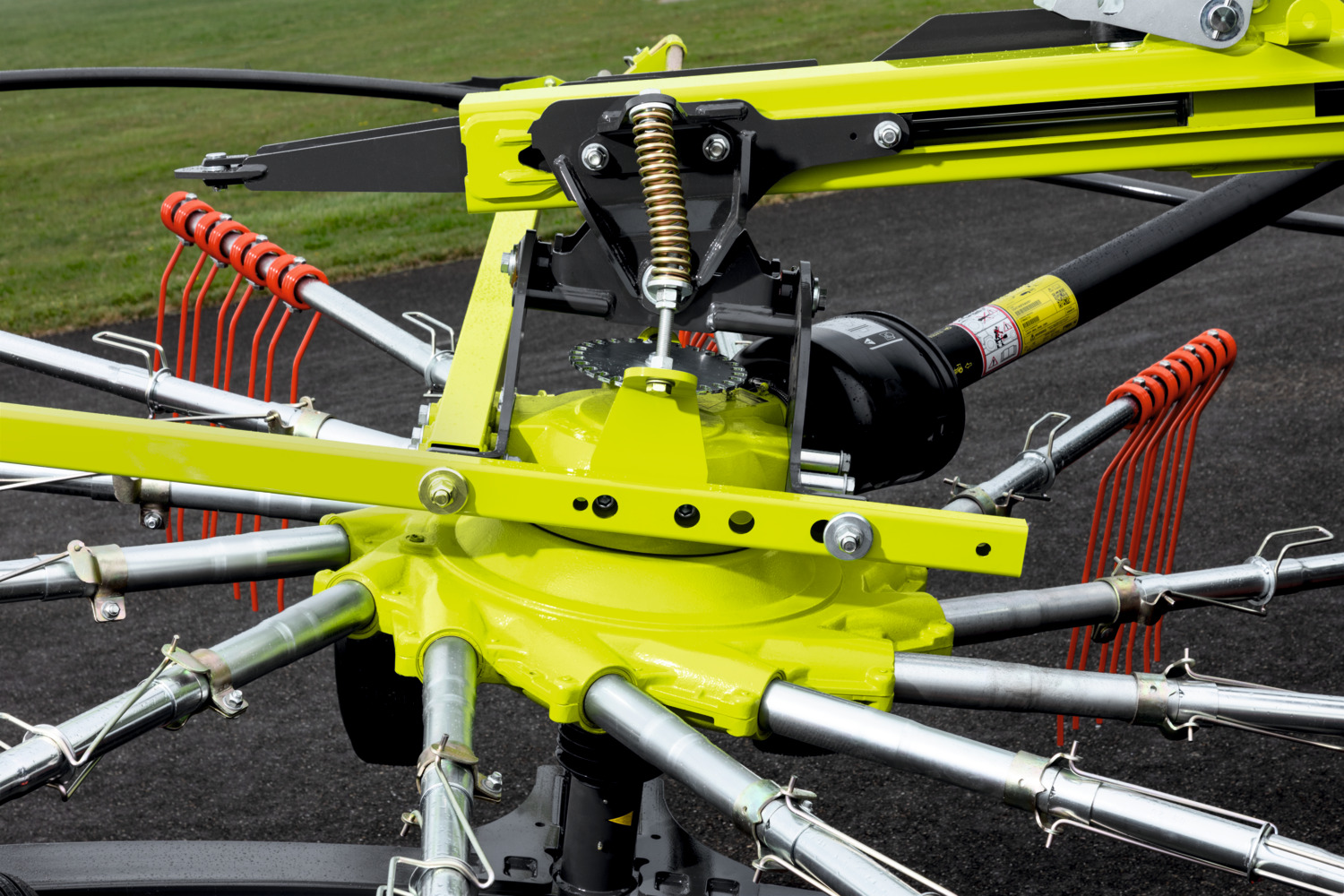

Drive and maintenance.

CLAAS relies on a mechanical drive for maximum efficiency. The friction clutches we use are particularly high on torque.

Super slimline.

The LINER 2600 with 260/75-15.3 tyres is especially compact on the road. With an external width of just 2.55 m, it has no problem negotiating narrow lanes.

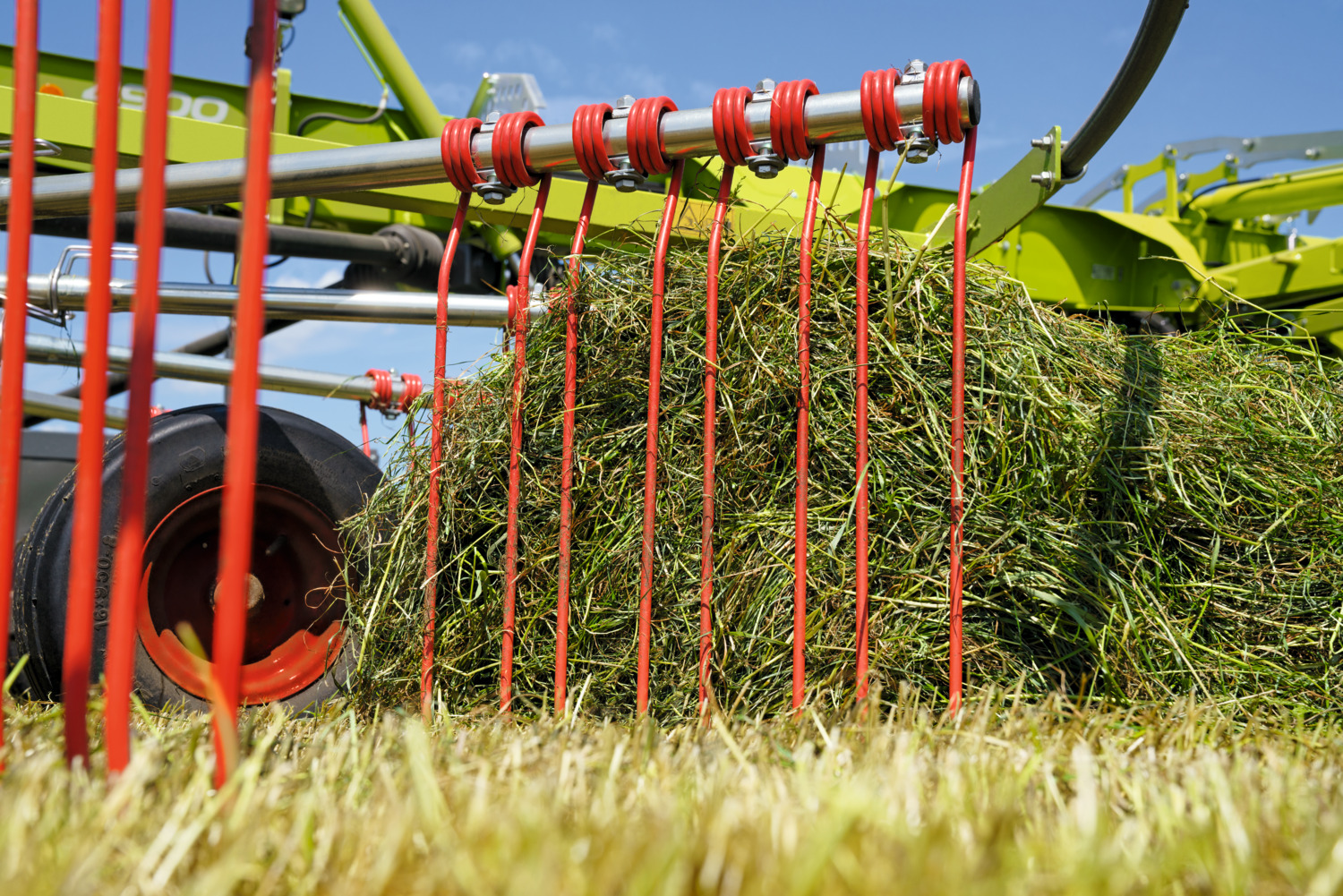

Silage tines for all models.

CLAAS has been using the double-angled silage tine for over 20 years. The specially shaped 9.50 mm thick tines are bent at an angle of 10° at the end to ensure a clean pick-up – they gather up the forage gently and without contamination.

BUSINESS or TREND.

Equipment options.

The LINER central swathers have a proven track record. With the introduction of the BUSINESS and TREND variants, customers can now choose between two different basic specifications. The BUSINESS model comes with the CEMIS 10 terminal, which handles preselection control. In the TREND version the LINER is operated directly via the spool valves.

BUSINESS

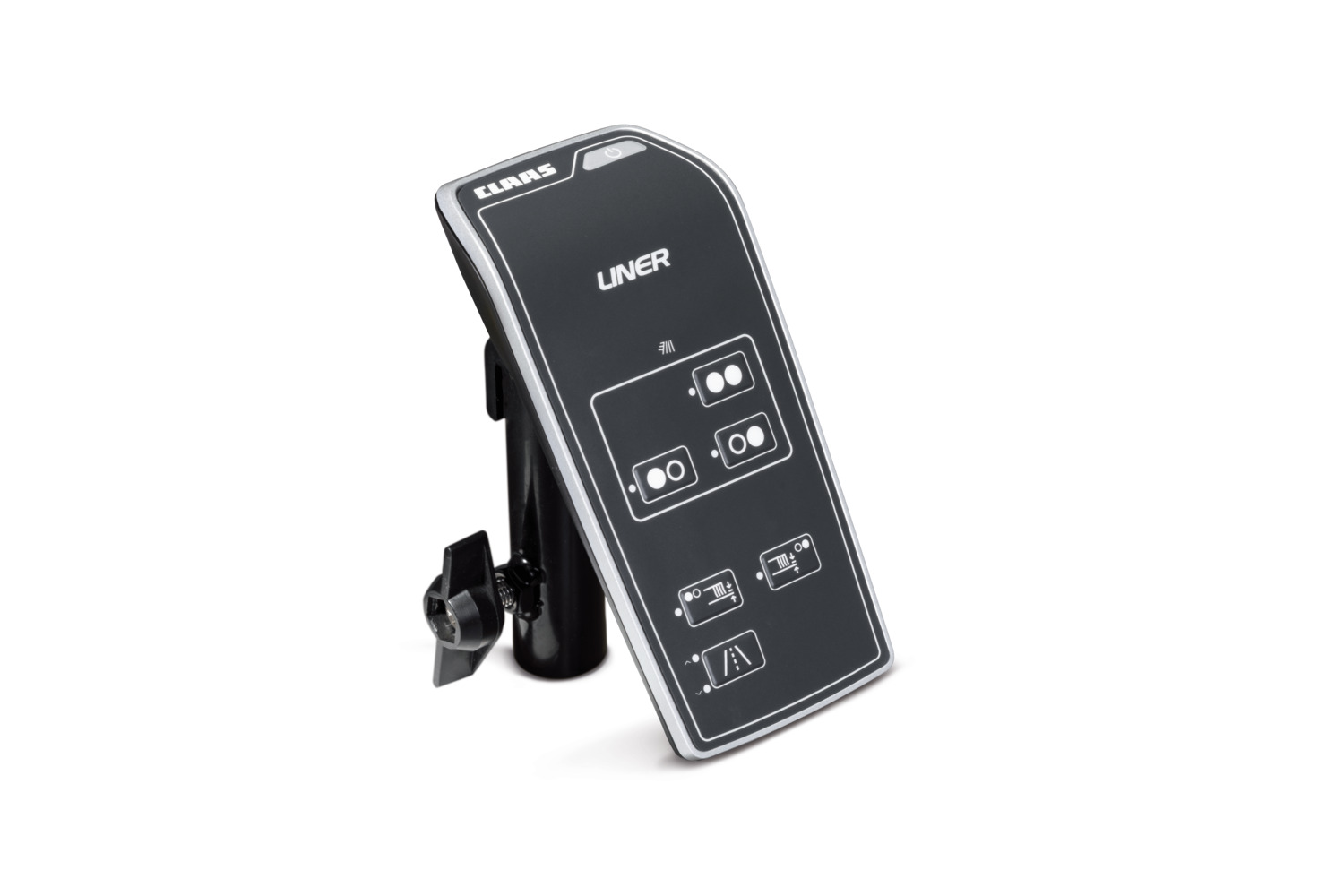

Convenient operation.

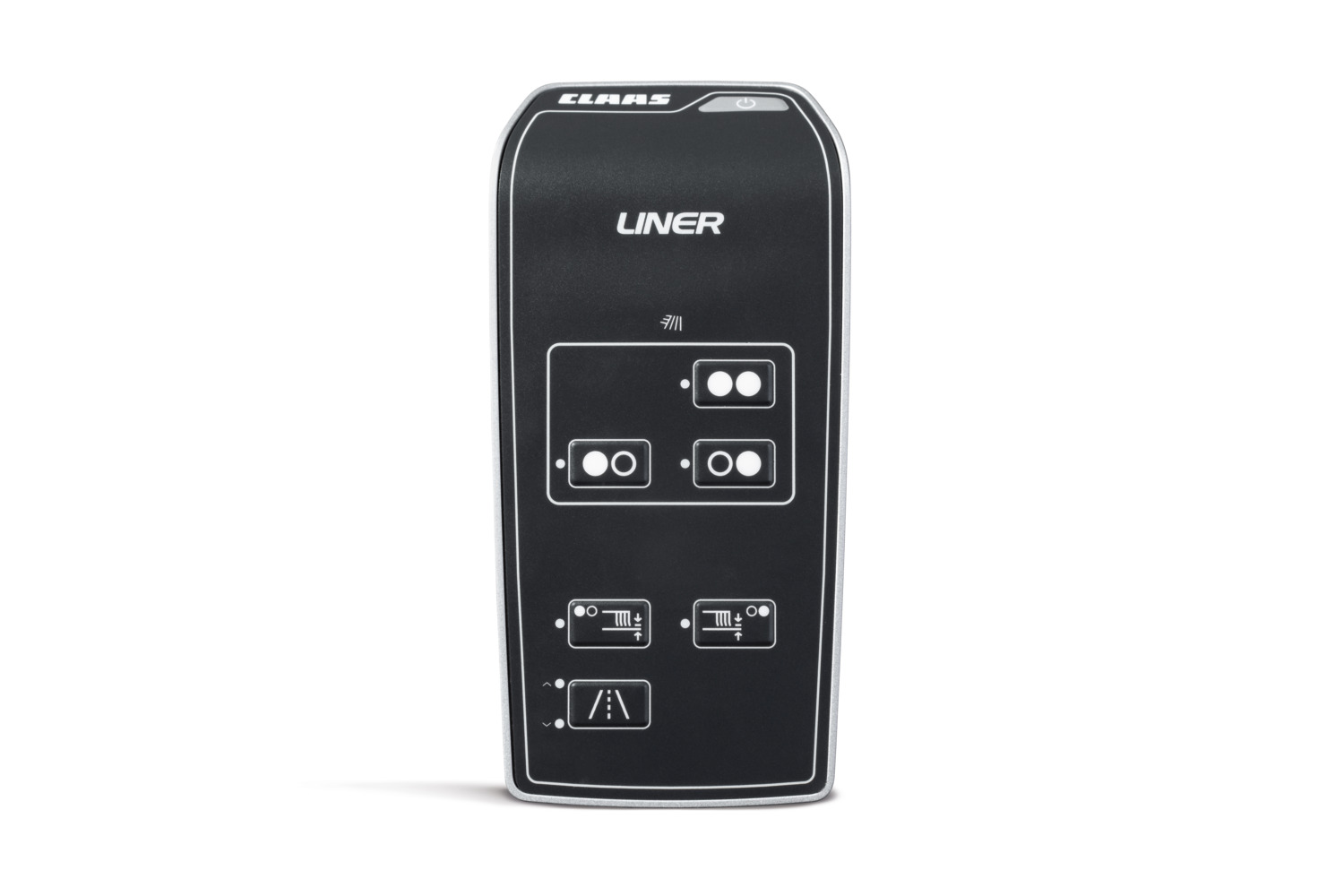

In the LINER 2900 and 2800 BUSINESS models, the transport position is controlled very easily by means of the CEMIS 10 terminal, and optionally the hydraulic rake height adjustment as well.

Hydraulics.

The basic machine requires two spool valves. One for folding and for headland or individual rotor lift, the other to operate the telescopic arm. An additional spool valves is needed if you choose the hydraulic rotor height adjustment option.

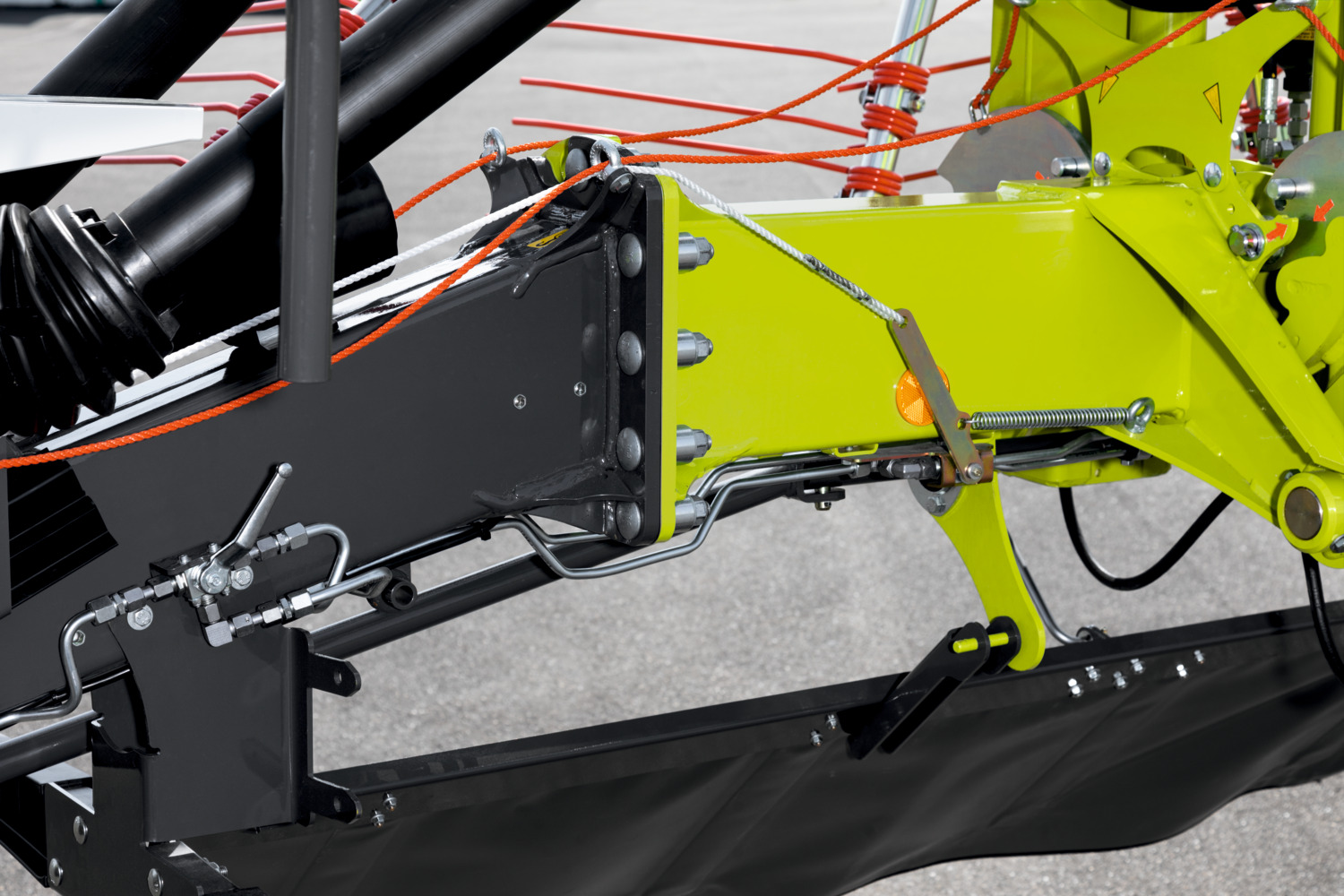

Swath curtain.

The machines are quipped with a swath curtain with automatic hydraulic folding as standard.

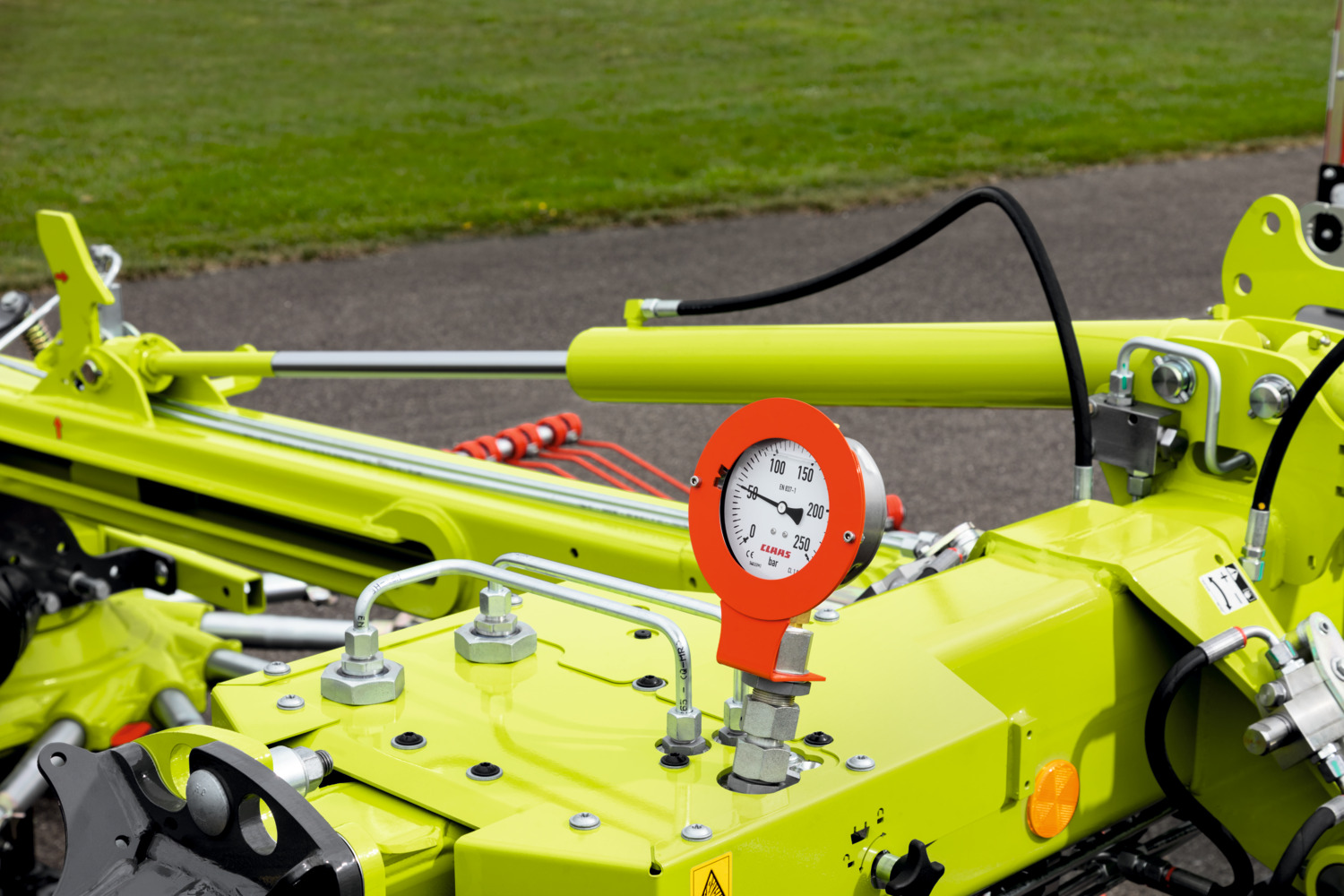

ACTIVE FLOAT.

The proven ACTIVE FLOAT system has been borrowed from the DISCO series and adapted for the LINER models. It provides individually adjustable hydraulic rotor suspension for even better ground-contour following.

TREND

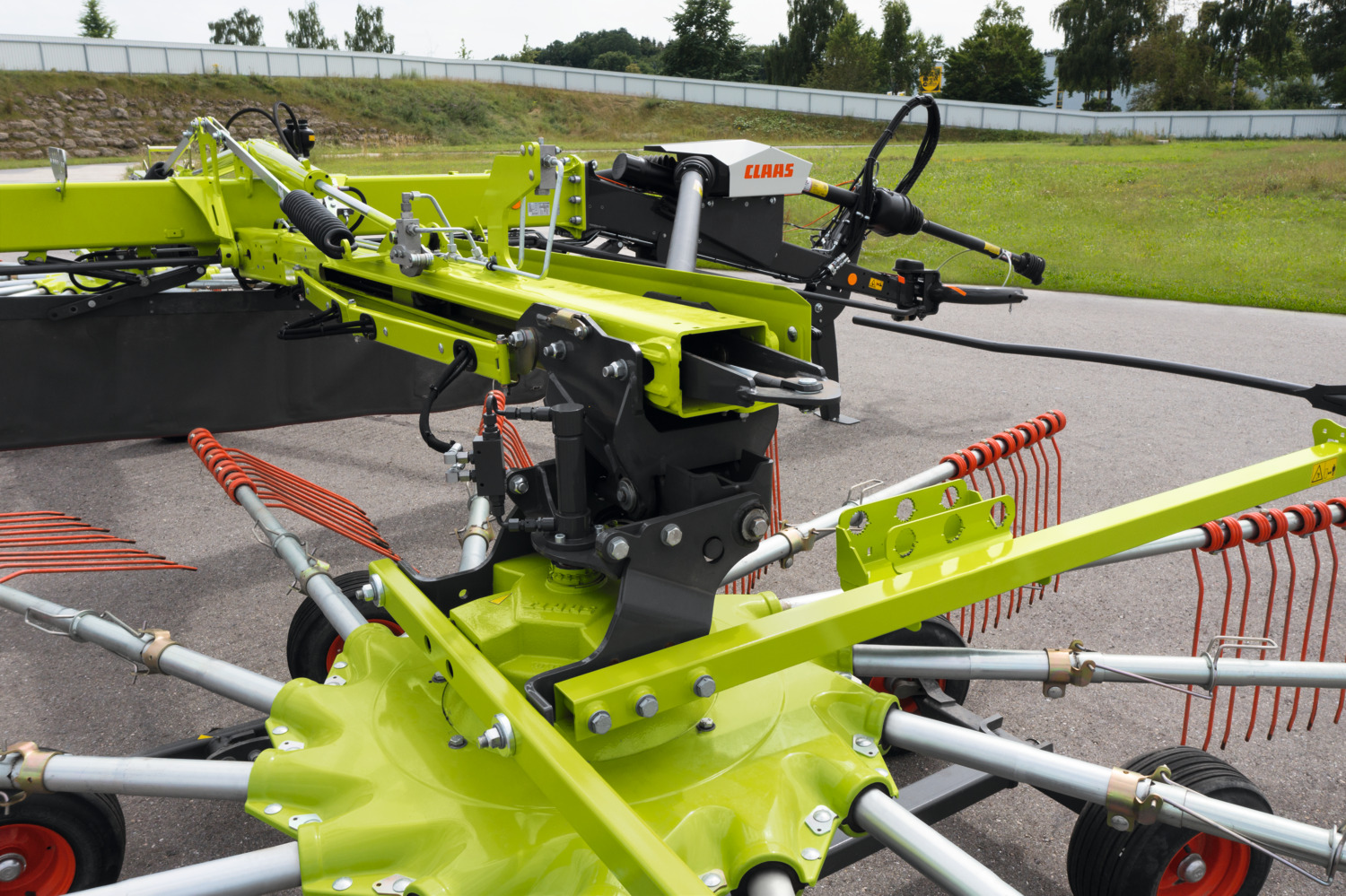

Individual rotor lift.

The optional individual rotor lift helps you do a really tidy job. There are two control options; either via a three-way valve and preselection or using a dual hose system with direct operation via the tractor spool valves.

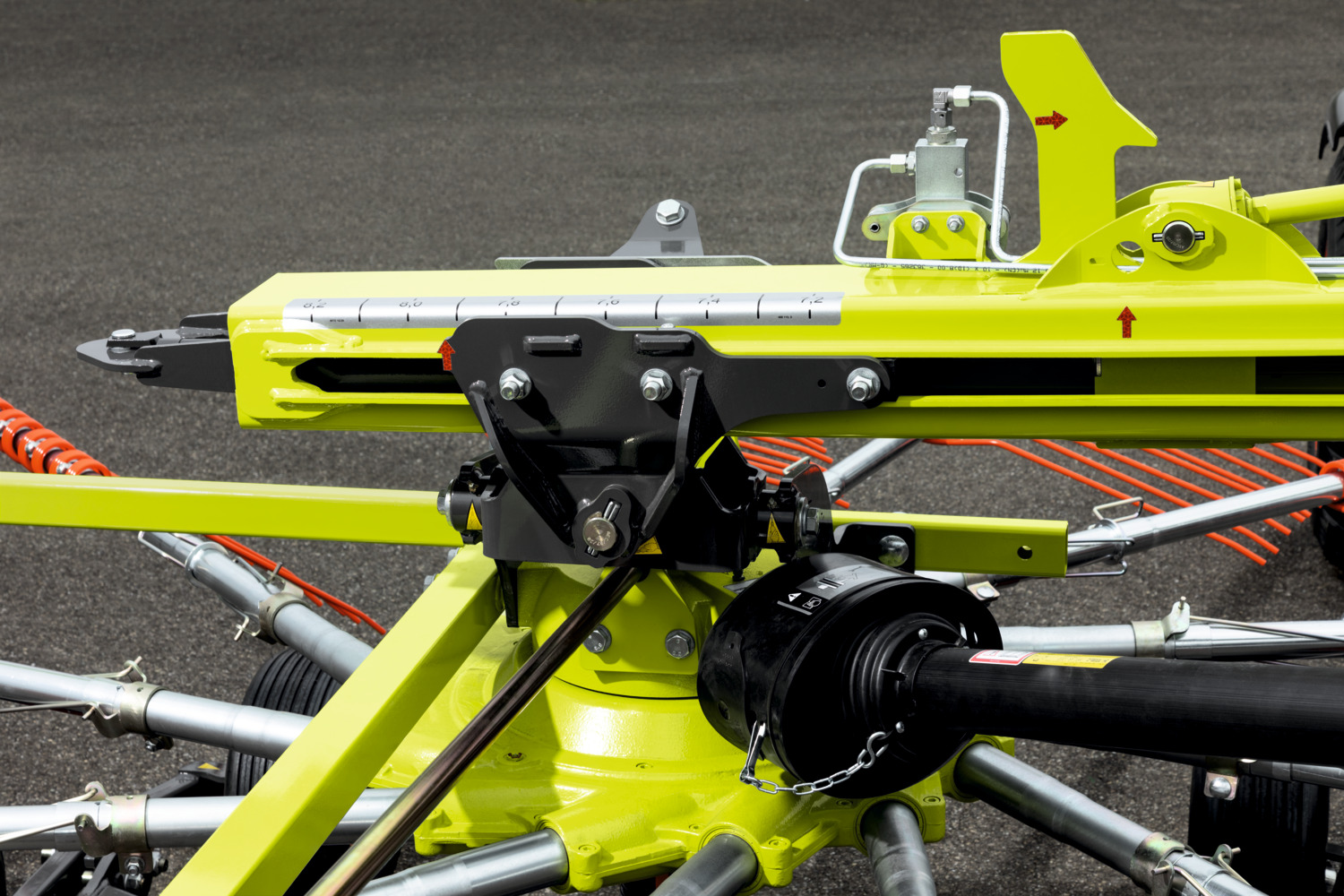

Rake height adjustment.

Hydraulic rake height adjustment is also available as an option. The side is selected by means of a pull-cable.

Technical data

Modèle	Working width (m)	Swathing rotor	Swathing rotor diameter (mm)	Tine bars per swathing rotor	Removable tine bar
3100 TREND	8.70-10.00	2	4,200	14	Yes (PROFIX)
2900 BUSINESS	8.20-9.00	2	3,800	14	Yes (PROFIX)
2900 BUSINESS	8.20-9.00	2	3,800	14	Yes (PROFIX)
2900 TREND	8-9	2	3,800	14	Yes (PROFIX)
2900 TREND	8-9	2	3,800	14	Yes (PROFIX)
2800 BUSINESS	7.50-8.20	2	3,500	12	Yes (PROFIX)
2800 BUSINESS	7.50-8.20	2	3,500	12	Yes (PROFIX)
2800 TREND	7.40-8.20	2	3,500	12	Yes (PROFIX)
2800 TREND	7.40-8.20	2	3,500	12	Yes (PROFIX)
2700 TREND	6.80-7.40	2	3,200	12	Yes (PROFIX)
2700 TREND	6.80-7.40	2	3,200	12	Yes (PROFIX)
2600 TREND	6.20-6.80	2	2,900	11	Yes
2600 TREND	6.20-6.80	2	2,900	11	Yes
