Shift once and never again?
Challenge accepted. With the new NEXOS 2 CMATIC.

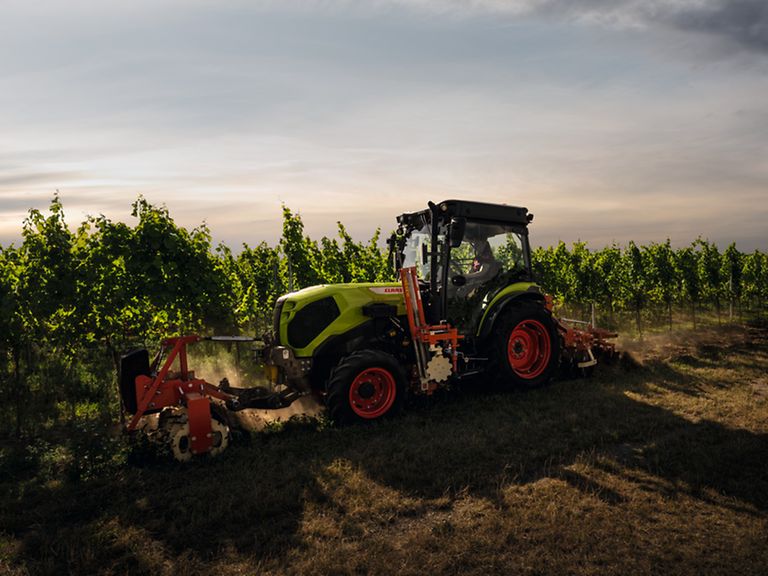

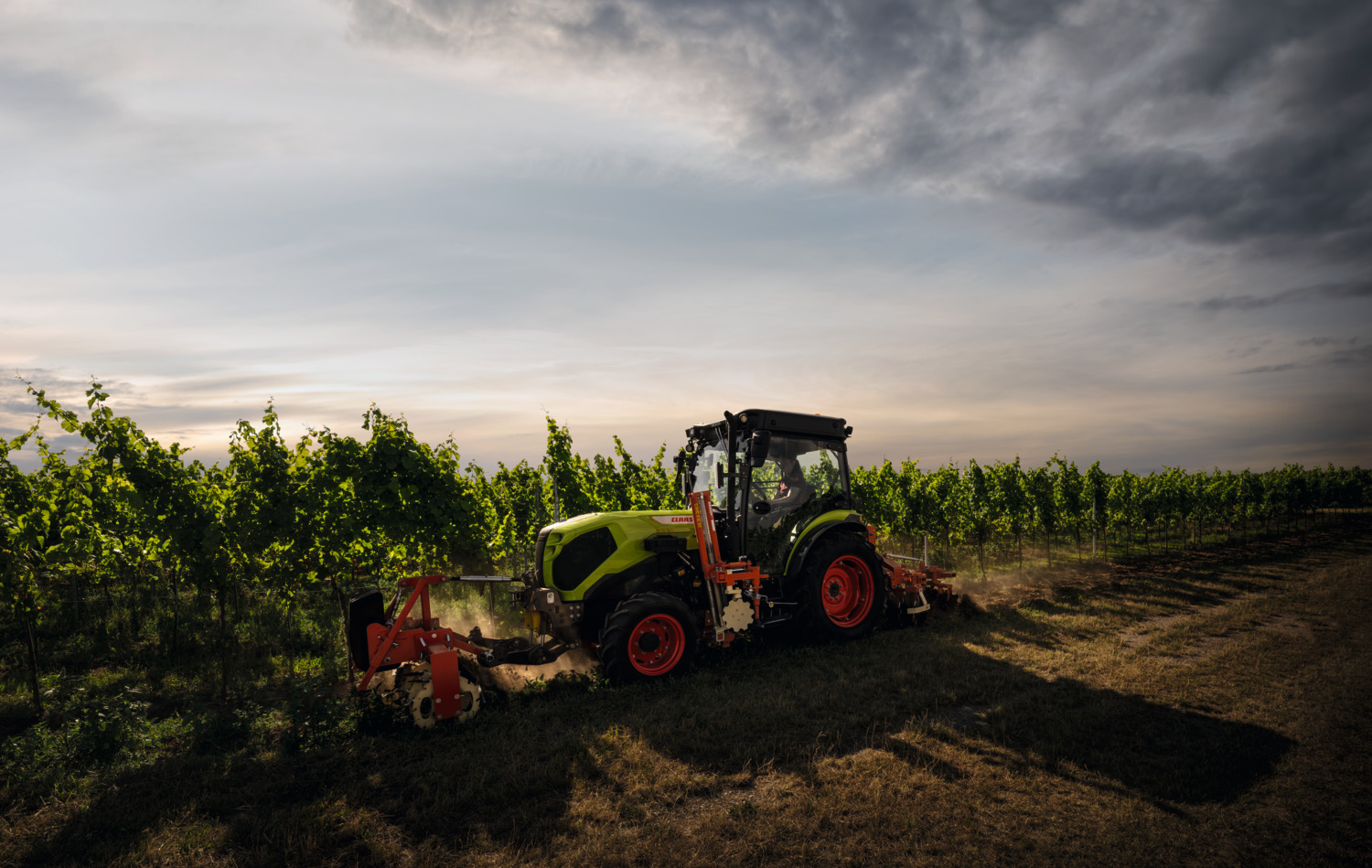

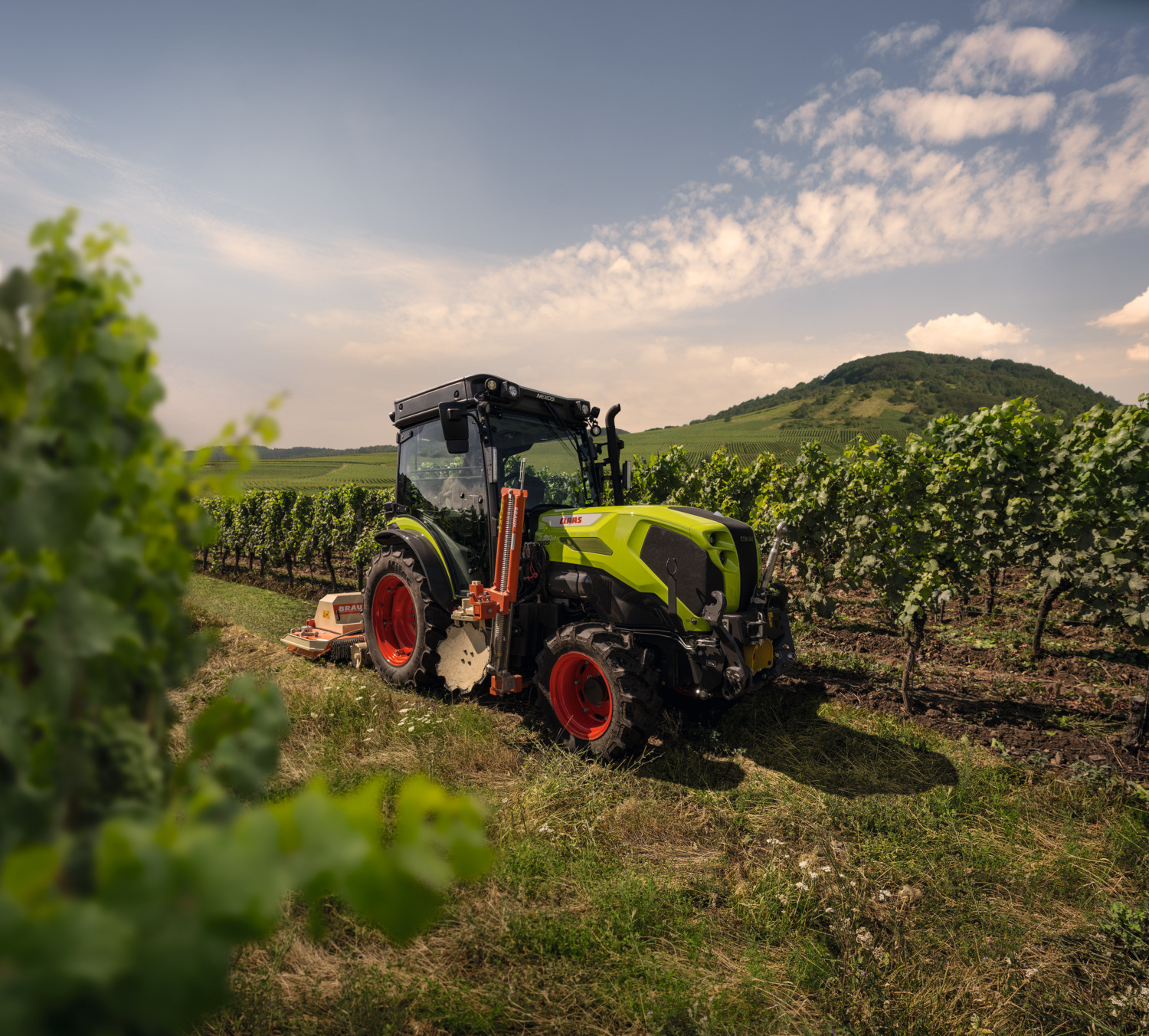

In vineyards and orchards it pays to be precise – day-in, day-out, in the narrowest of spaces. Anyone working here needs a tractor that offers more: more manoeuvrability, more comfort, more control. The new NEXOS 2 with CMATIC continuously variable transmission fits the bill perfectly. With its compact design, it can fit between the narrowest rows – without compromising on performance or equipment. With the latest continuously variable transmission technology, a significantly upgraded cab and an intuitive control concept, it has been refined to make day-to-day operations easier – from the first to the last row.

For everyone who achieves great things in small spaces.

Comfort: the NEXOS 2 CMATIC sets new standards in terms of comfort with the CMATIC continuously variable transmission, CMOTION multifunction control lever and an armrest with ELECTROPILOT.
Performance: a 3.6-litre 4-cylinder engine and an output of up to 120 hp ensure smooth running and a high level of performance. The 110 l/min load-sensing hydraulic circuit reliably supplies implements.
Versatility: With four width options from 1.00 to 1.55 m, the tractor can navigate the narrowest of rows with ease. Three mounting points with a wide choice of hydraulic, electric and ISOBUS interfaces allow several implements to be used simultaneously – so multiple passes can be combined in one.
Reliability: long engine oil change intervals of 600 hours and transmission oil change intervals of 1,200 hours keep downtimes to a minimum.

The NEXOS 2 CMATIC: more comfort for demanding tasks.

Switch to stress-free working.

High comfort.

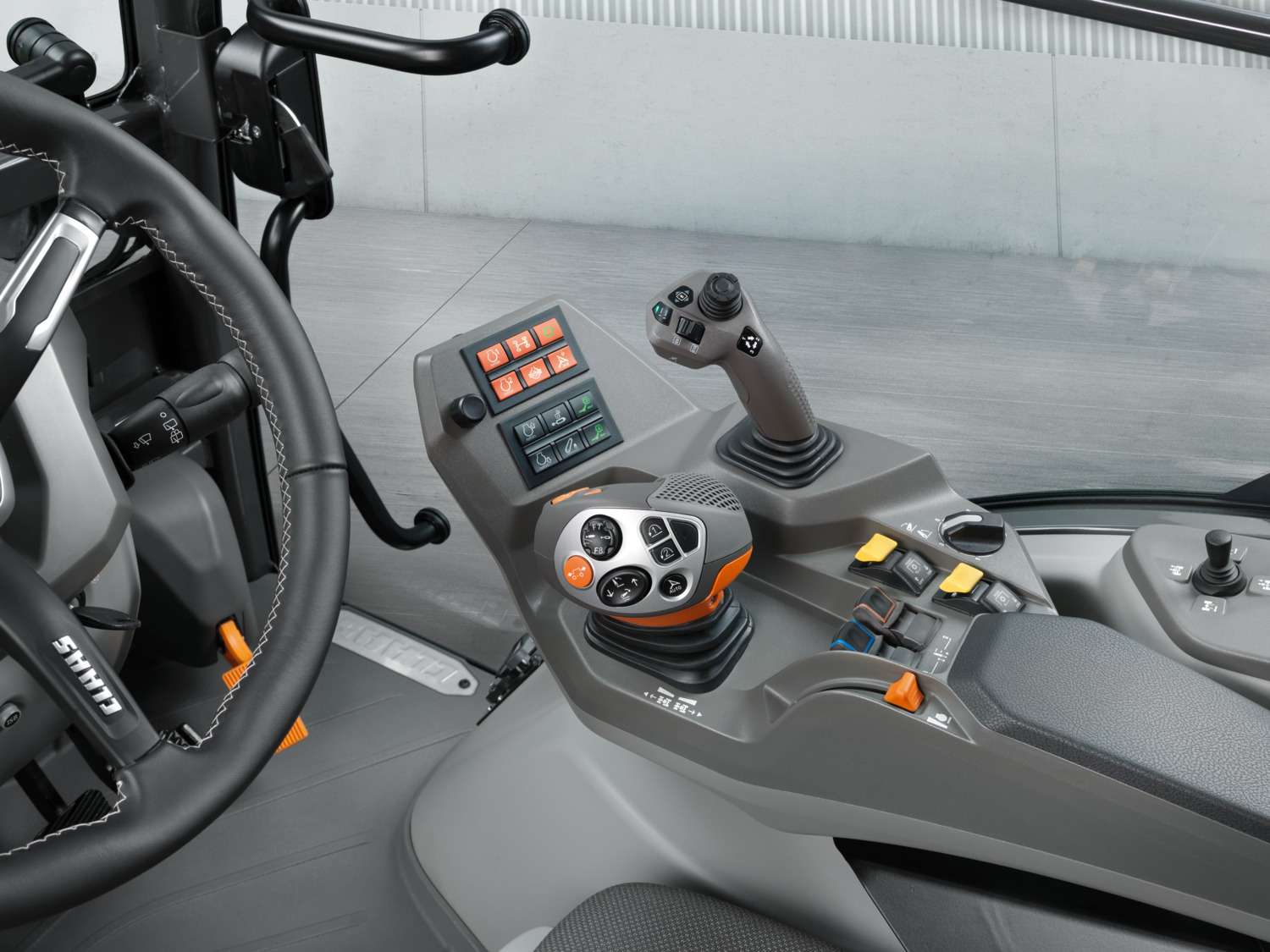

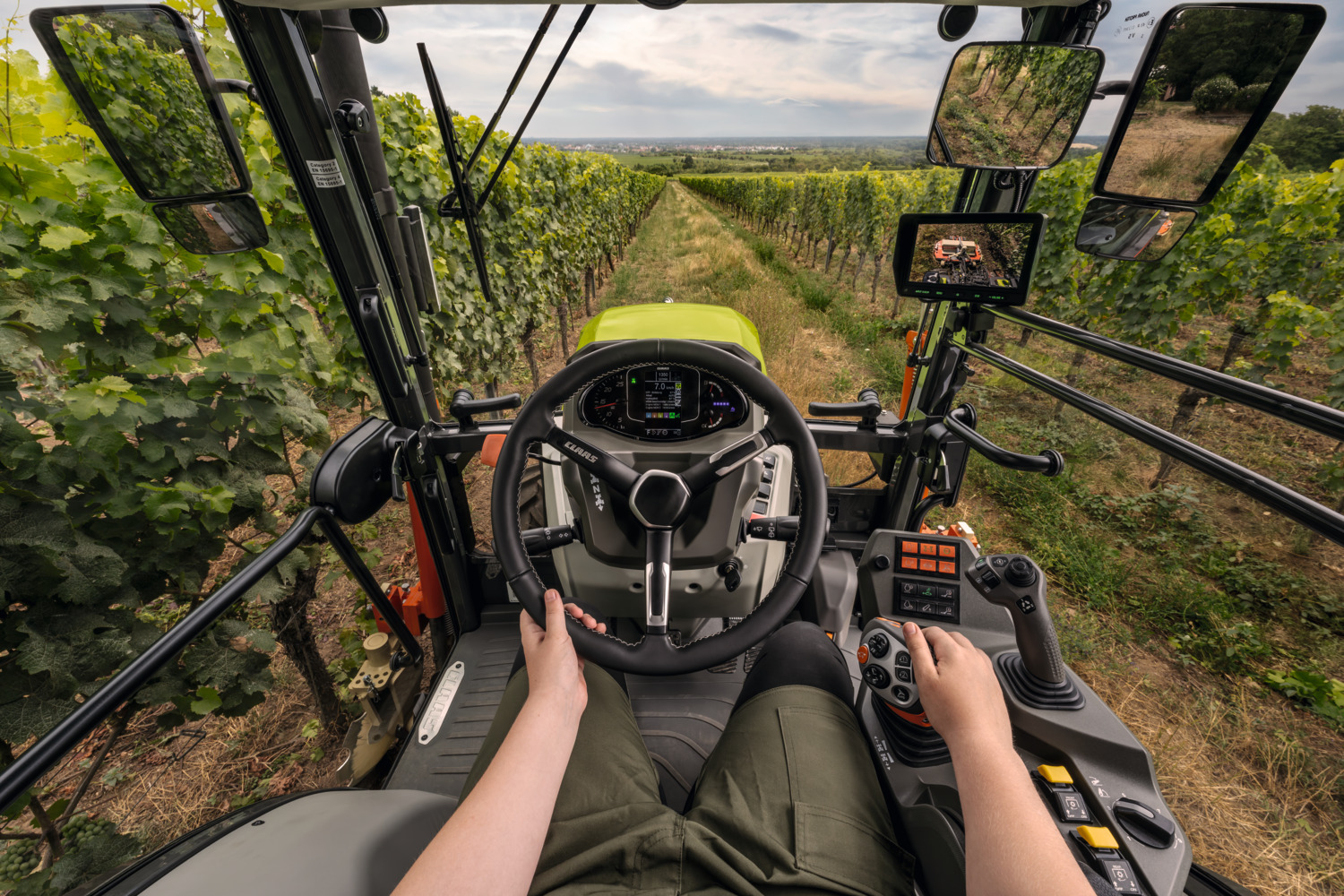

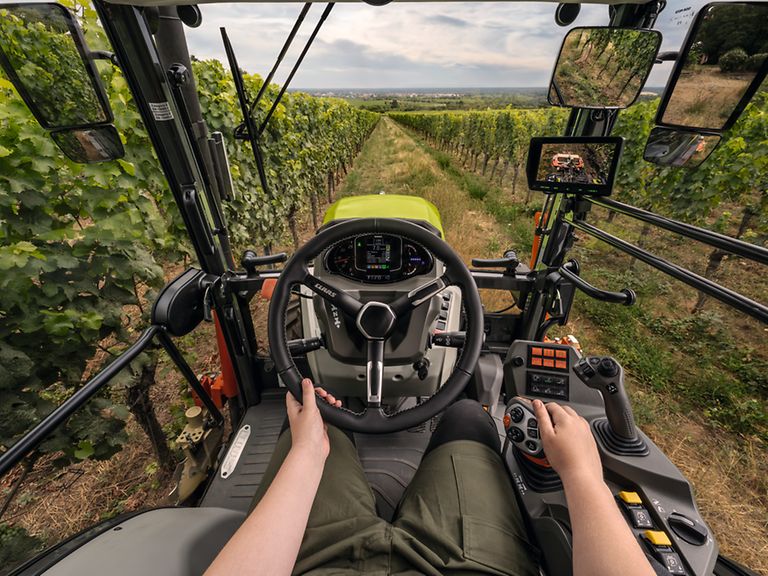

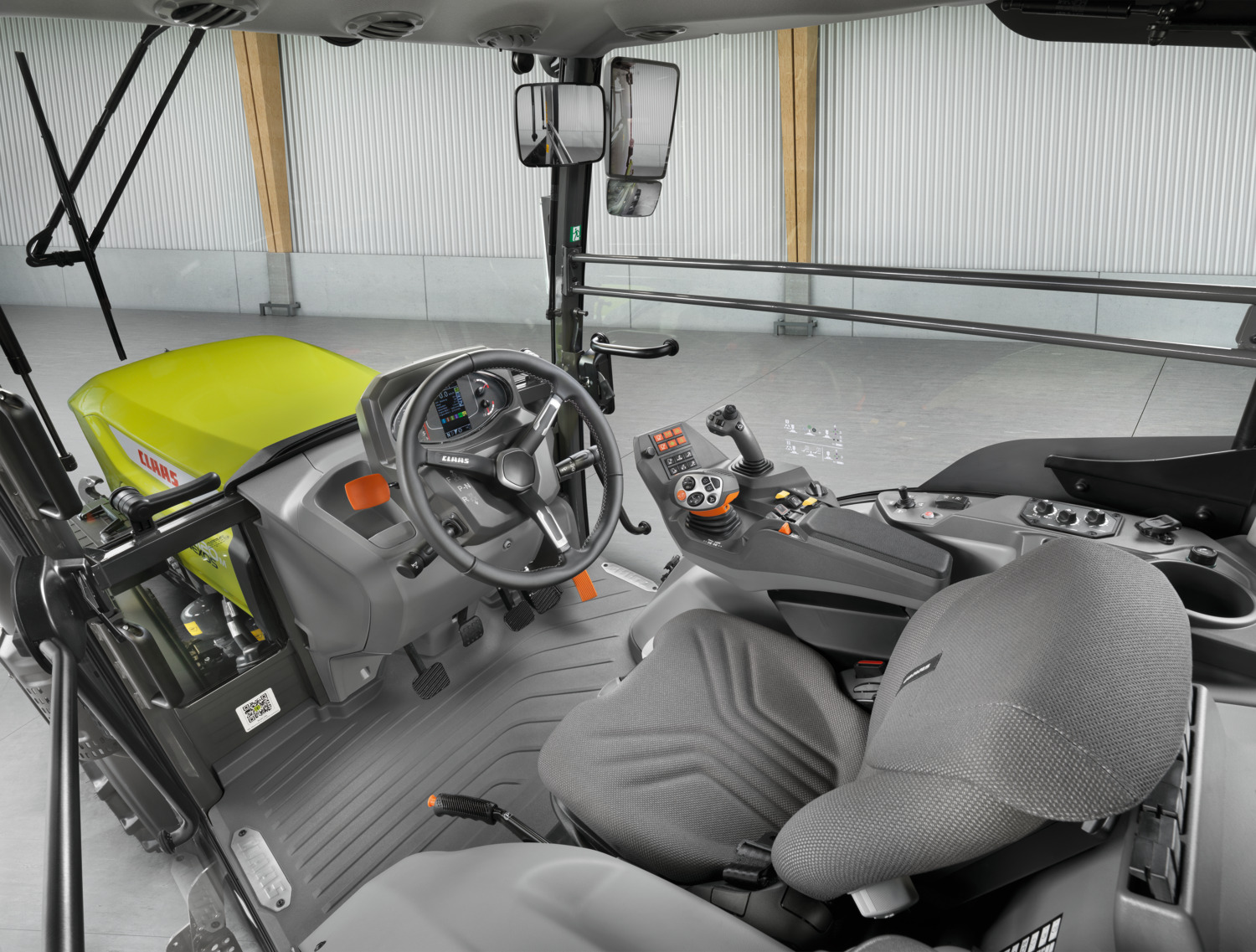

Premium comfort in narrow tracks – that's what you get with the NEXOS 2 CMATIC. With its unique CMOTION multifunction control lever with passive internal ventilation, sweaty hands and stiff joints are a thing of the past. The ELECTROPILOT joystick completes the ergonomic concept, comfortably controlling up to four electronic spool valves, including double duplicator. CMATIC continuously variable transmission reduces strain on the operator, while CLAAS SEQUENCE MANAGEMENT (CSM) makes work at the headland considerably easier.

Just look how comfortable the NEXOS 2 CMATIC is.

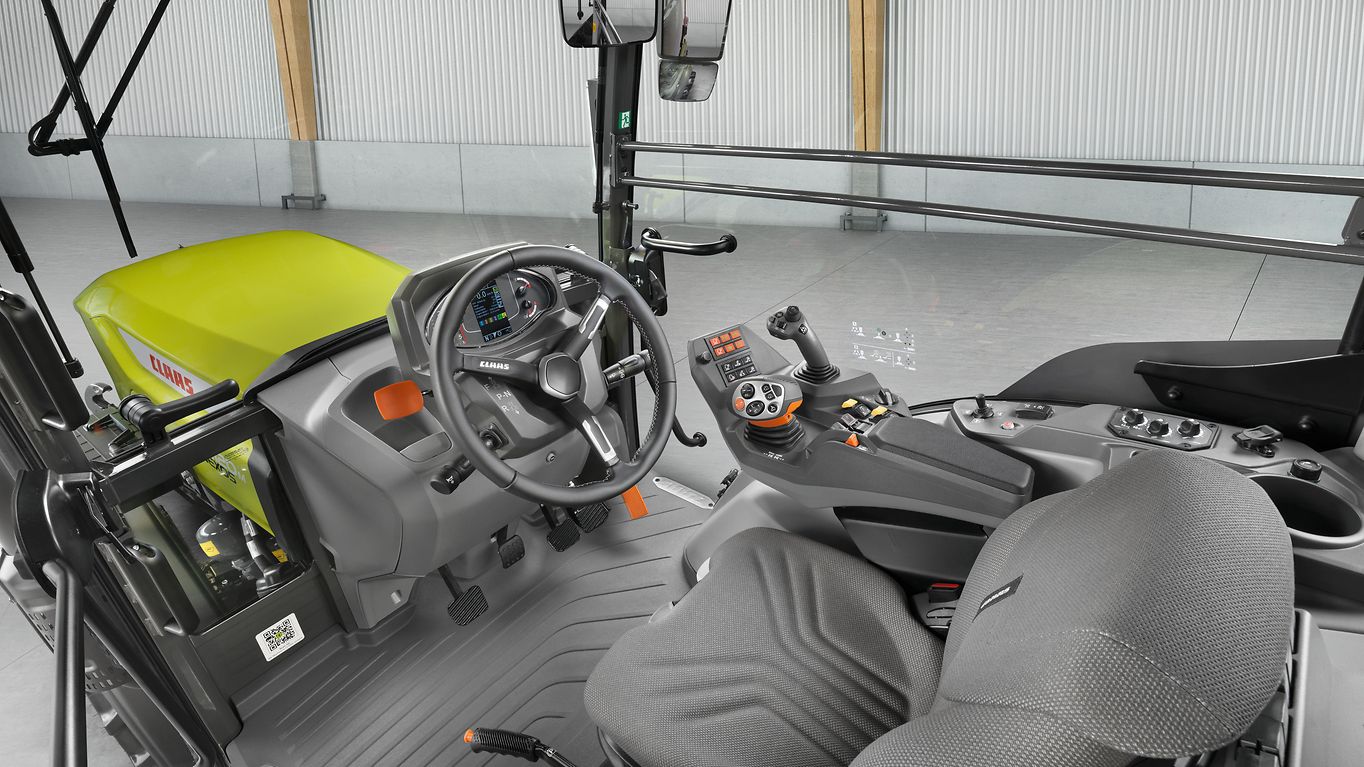

Intuitive operation: the NEXOS 2 CMATIC makes light work of any task. Instead of grappling with endless menus, you can control virtually every function directly via the clearly structured keys and control elements – logically arranged and easy to understand. So you'll be able to work productively right from the word go, with no need for a lengthy training period. It takes no time to activate and deactivate key functions, ensuring that the tractor always responds instantly. This means more comfort, less effort and noticeably easier working days.

CMATIC: relaxed, shift-free driving.

Continuously powerful.

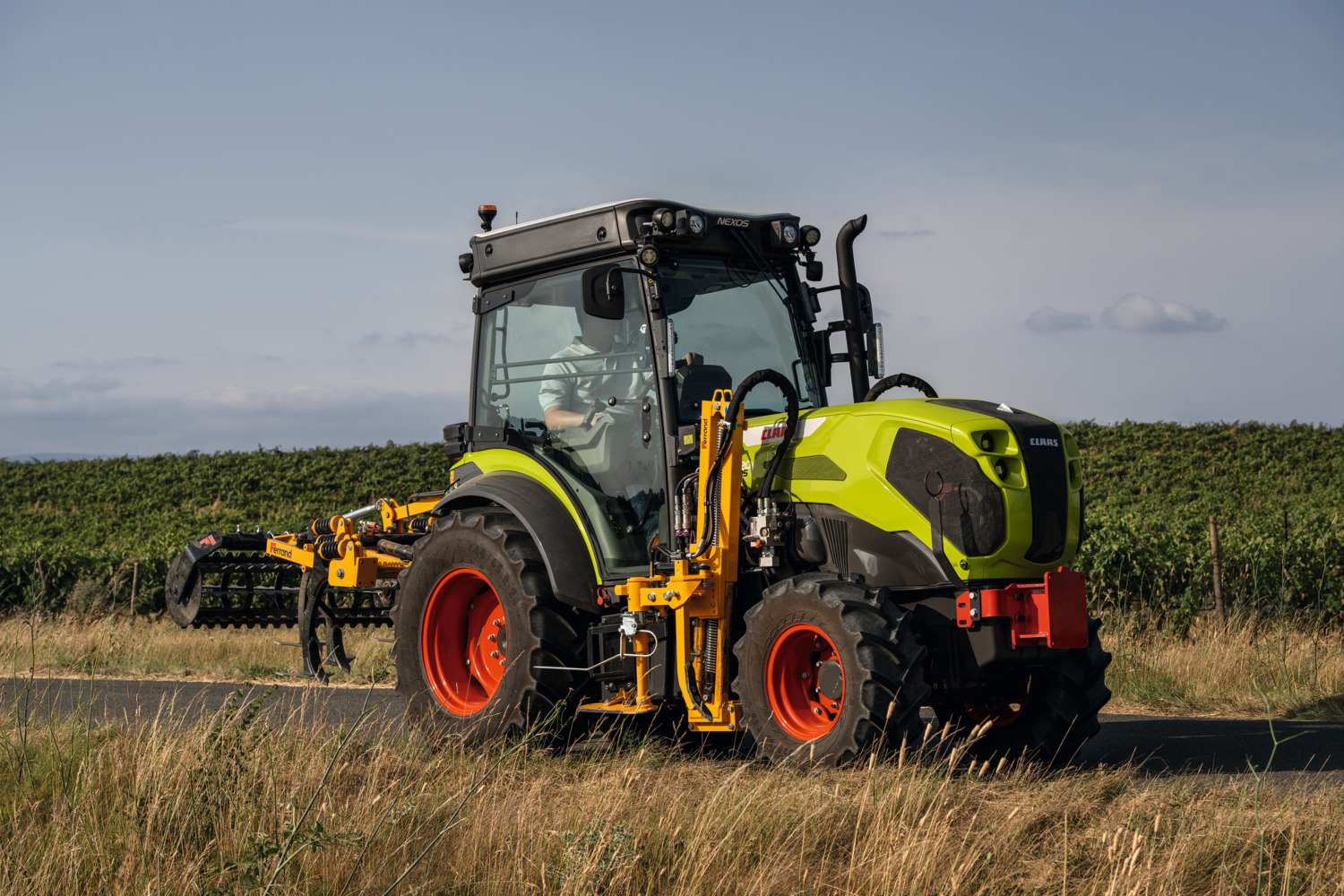

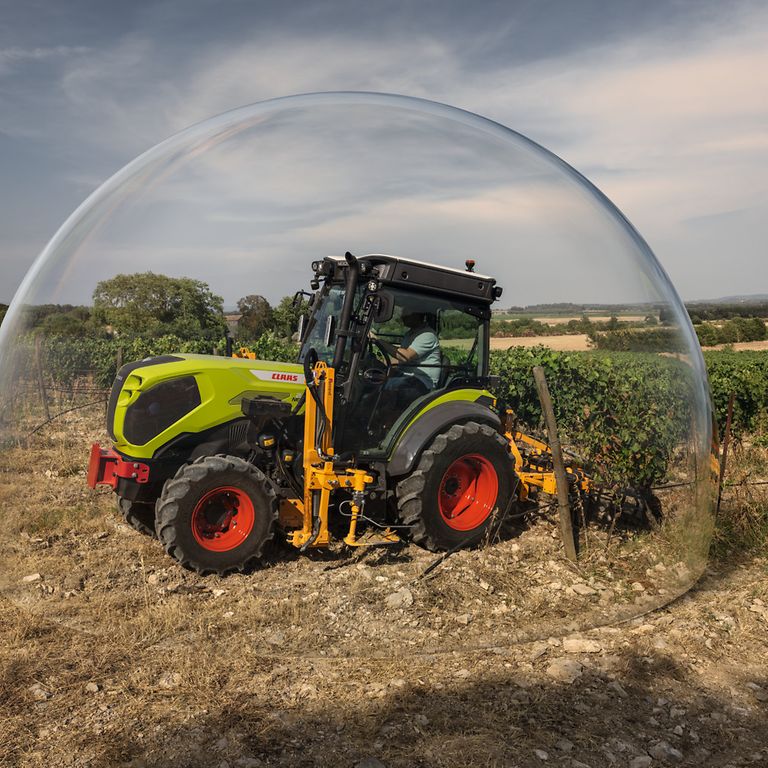

No more awkward gear shifting: with the CMATIC continuously variable transmission, the NEXOS 2 CMATIC accelerates smoothly – always in the optimal speed range and entirely without manual shifting. The engine runs at just 1,530 rpm at the top speed of 40 km/h, saving fuel and making work satisfyingly quiet. In 'auto' mode, the CLAAS drive controller automatically adjusts the engine speed and gear ratio to ensure efficient and comfortable operation at all times. Two drive modes for field and road enable precise speed control – accurate to 0.1 km/h. And even on slopes, CMATIC comes into its own: thanks to active powered zero, you can stop and start as safely and easily as you can on level ground.

Just look how powerful the NEXOS 2 CMATIC is.

Plenty of pep: the 3.6-litre 4-cylinder engine with an output of up to 120 hp ensures smooth running and plenty of pulling power.

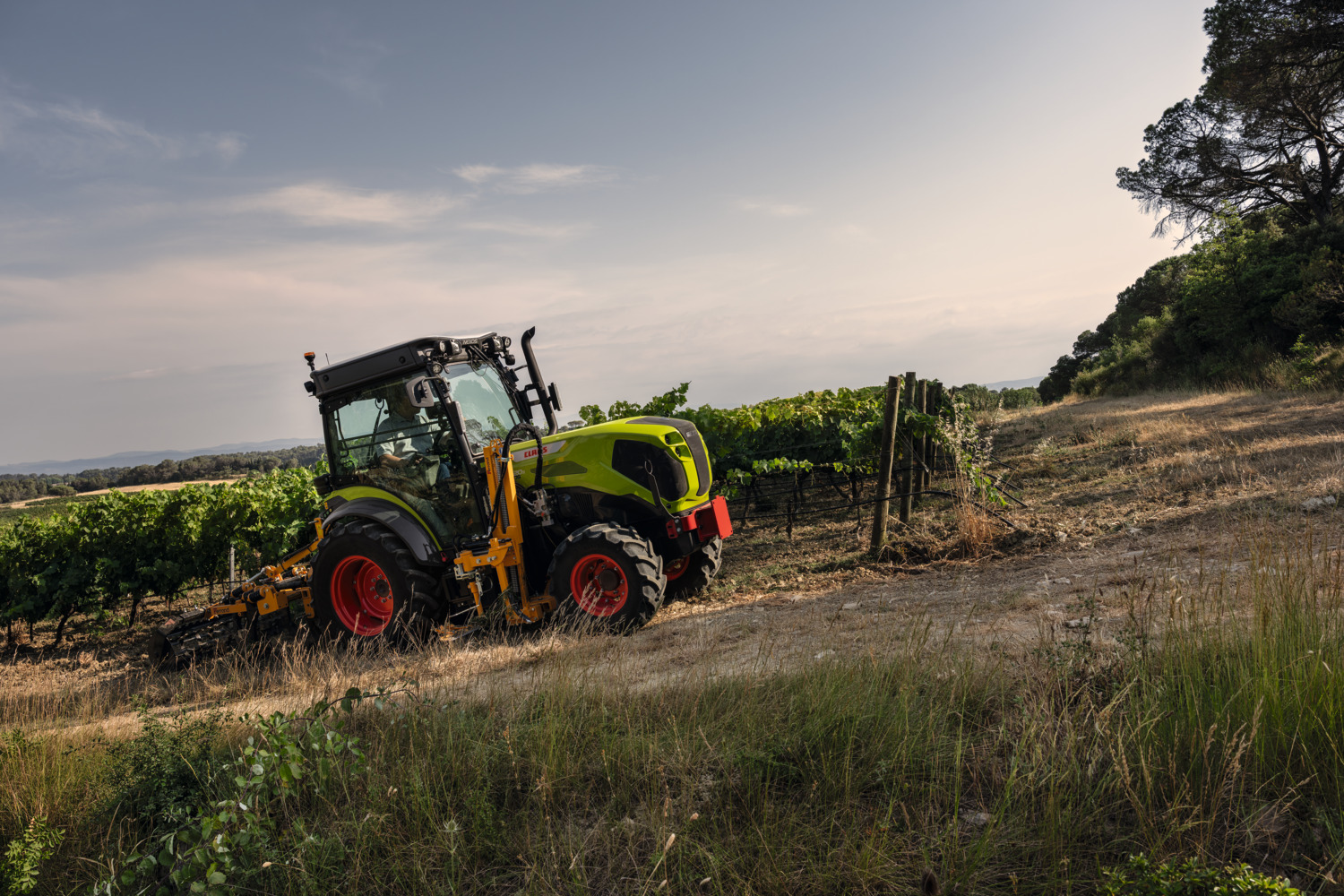

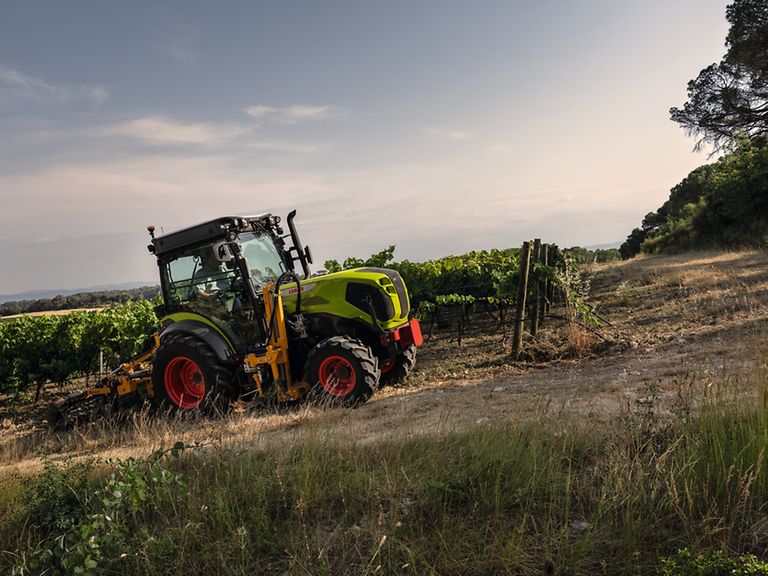

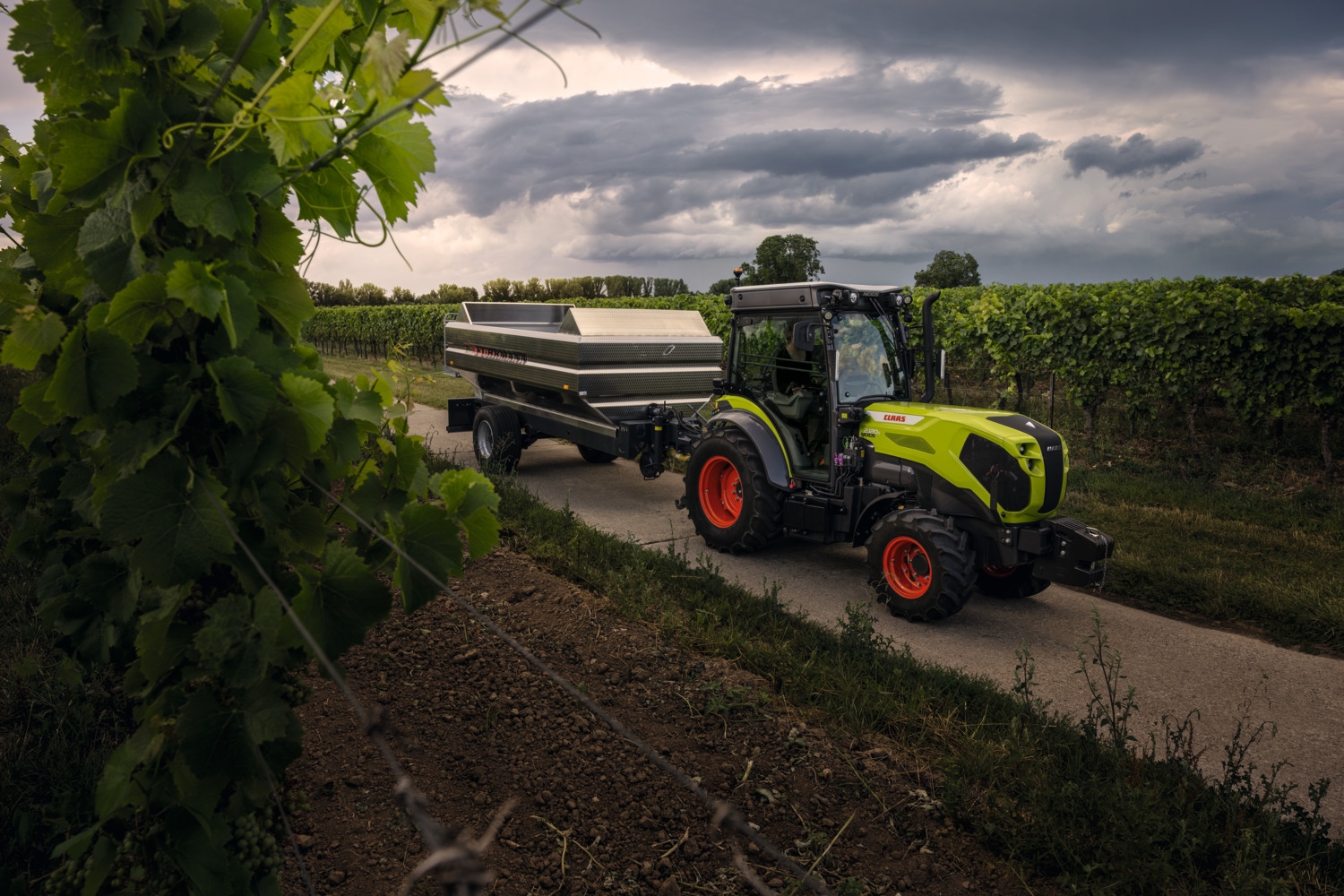

More tractive force: the NEXOS 2 CMATIC combines stability with maximum traction – even on sloping ground. Its low centre of gravity and optimised tyres ensure reliable transfer of power and performance whatever the conditions.
Ideally supplied: the load-sensing hydraulic circuit delivers up to 110 l/min and adjusts the flow rate to the demand – saving power and fuel.

Switch to ultimate flexibility.

True versatility.

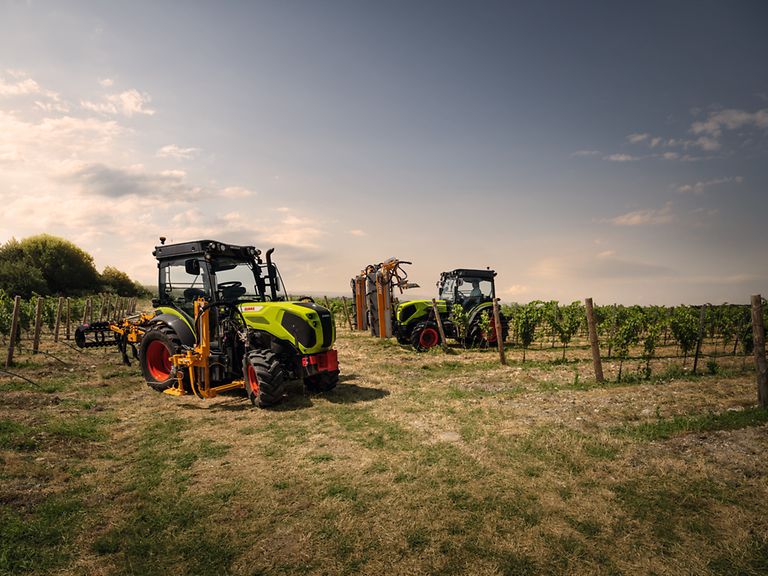

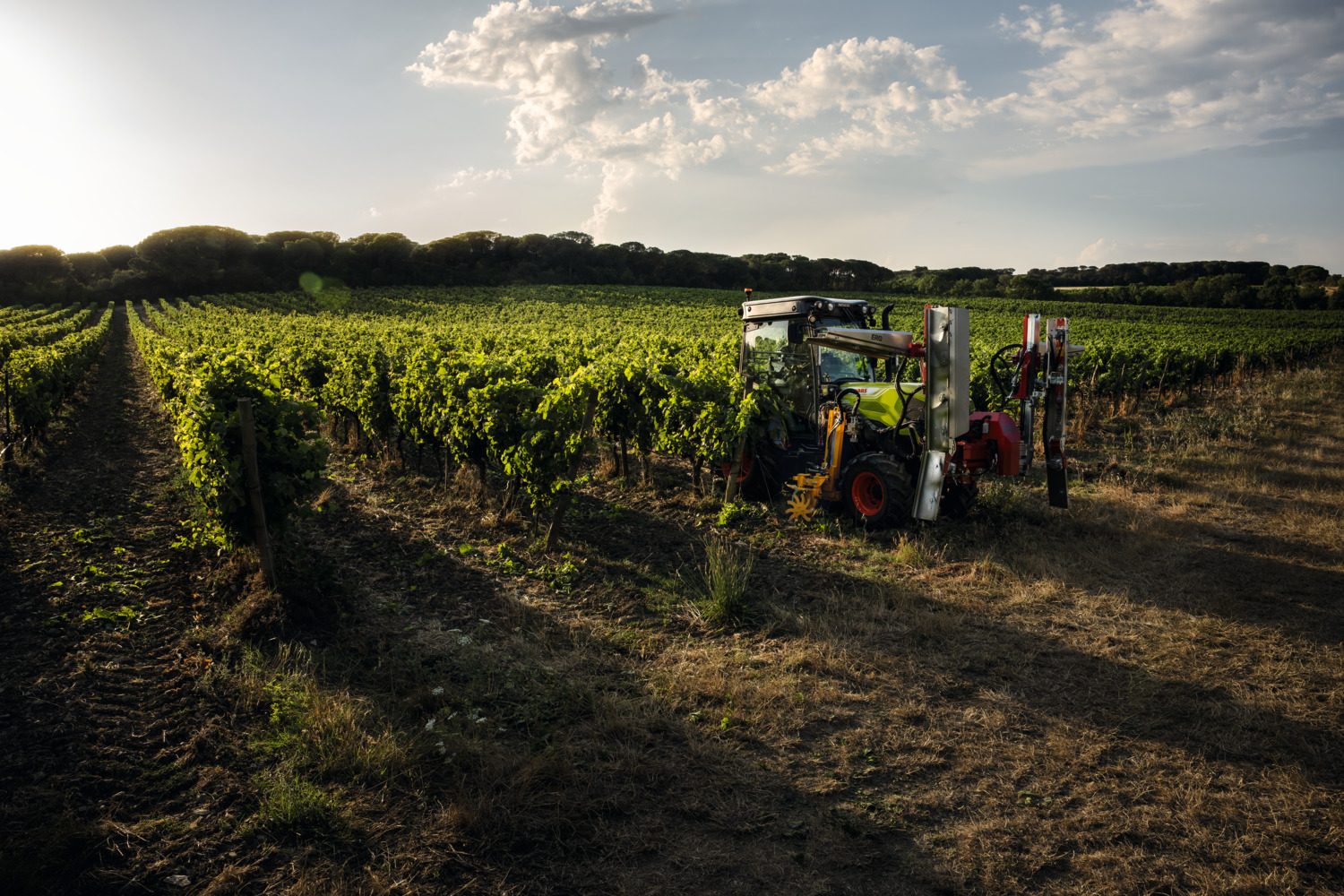

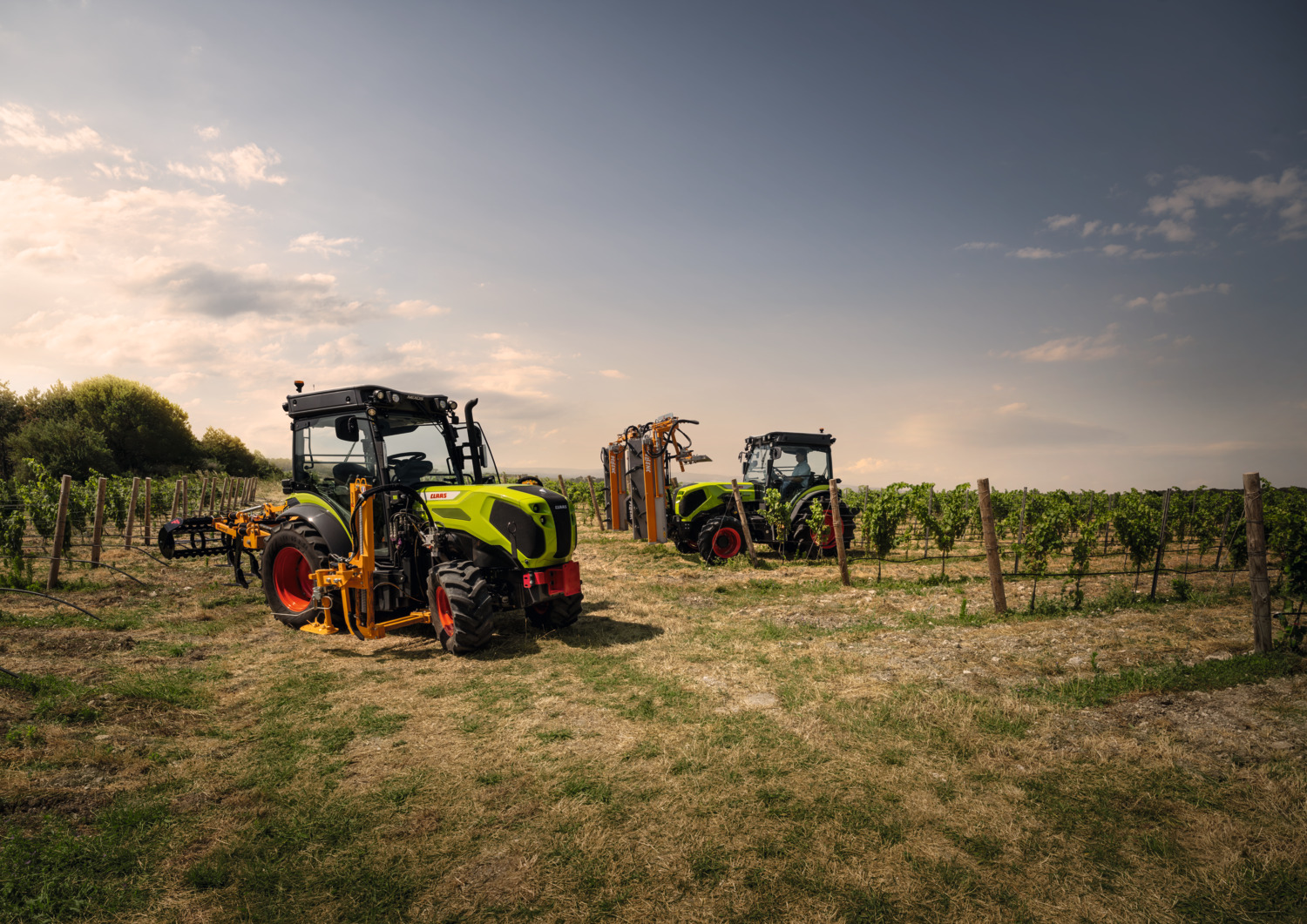

Flexibility and efficiency matters, whatever the task. The four variants of the NEXOS 2 CMATIC offer optimal flexibility for the varying demands of vineyards and orchards. Front, mid-axle and rear mounting areas allow several implements to be used simultaneously for greater efficiency. PTO speeds of 540 rpm, 540 ECO rpm, 1000 rpm and 1000 ECO rpm further enhance flexibility.

Just look how versatile the NEXOS 2 CMATIC is.

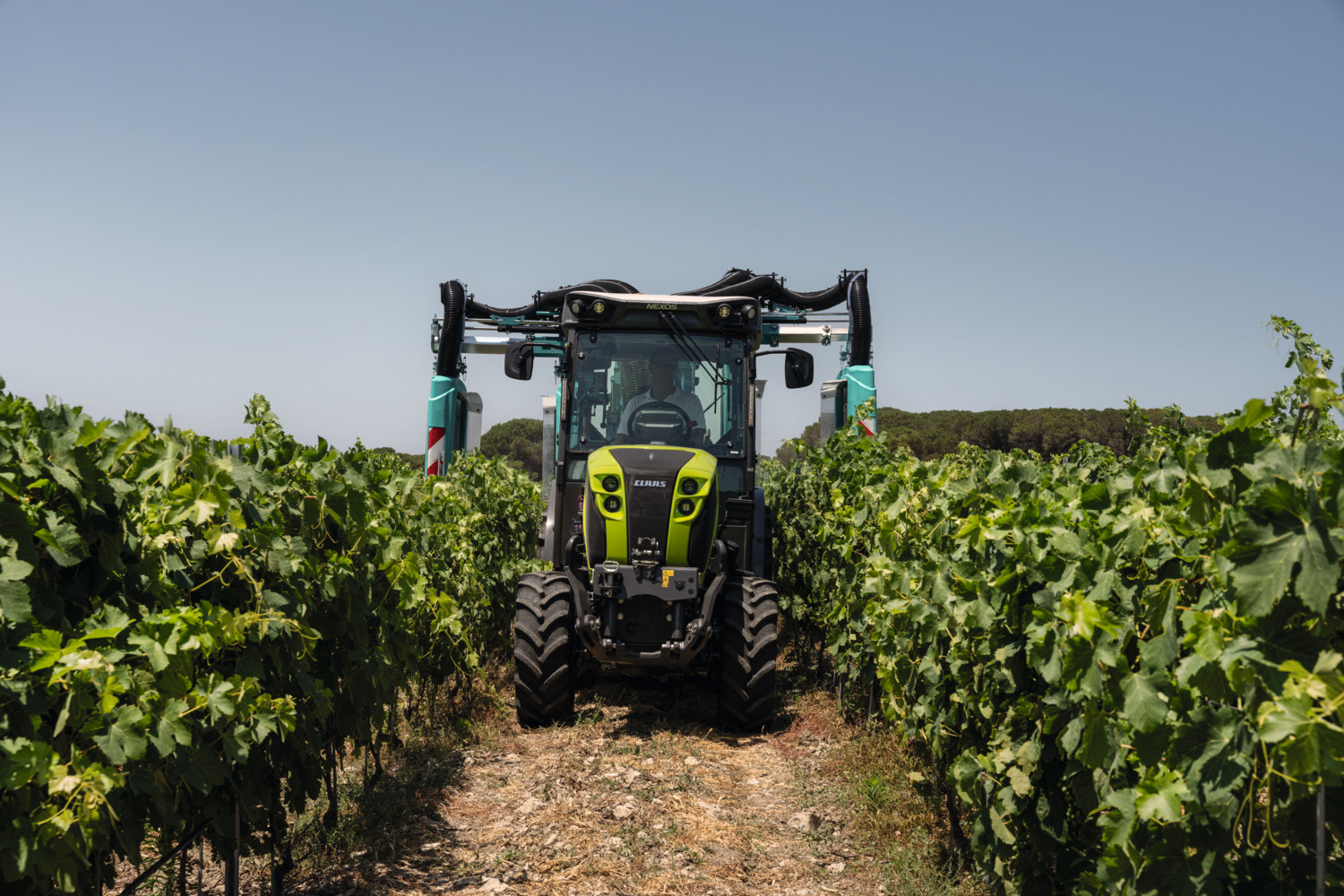

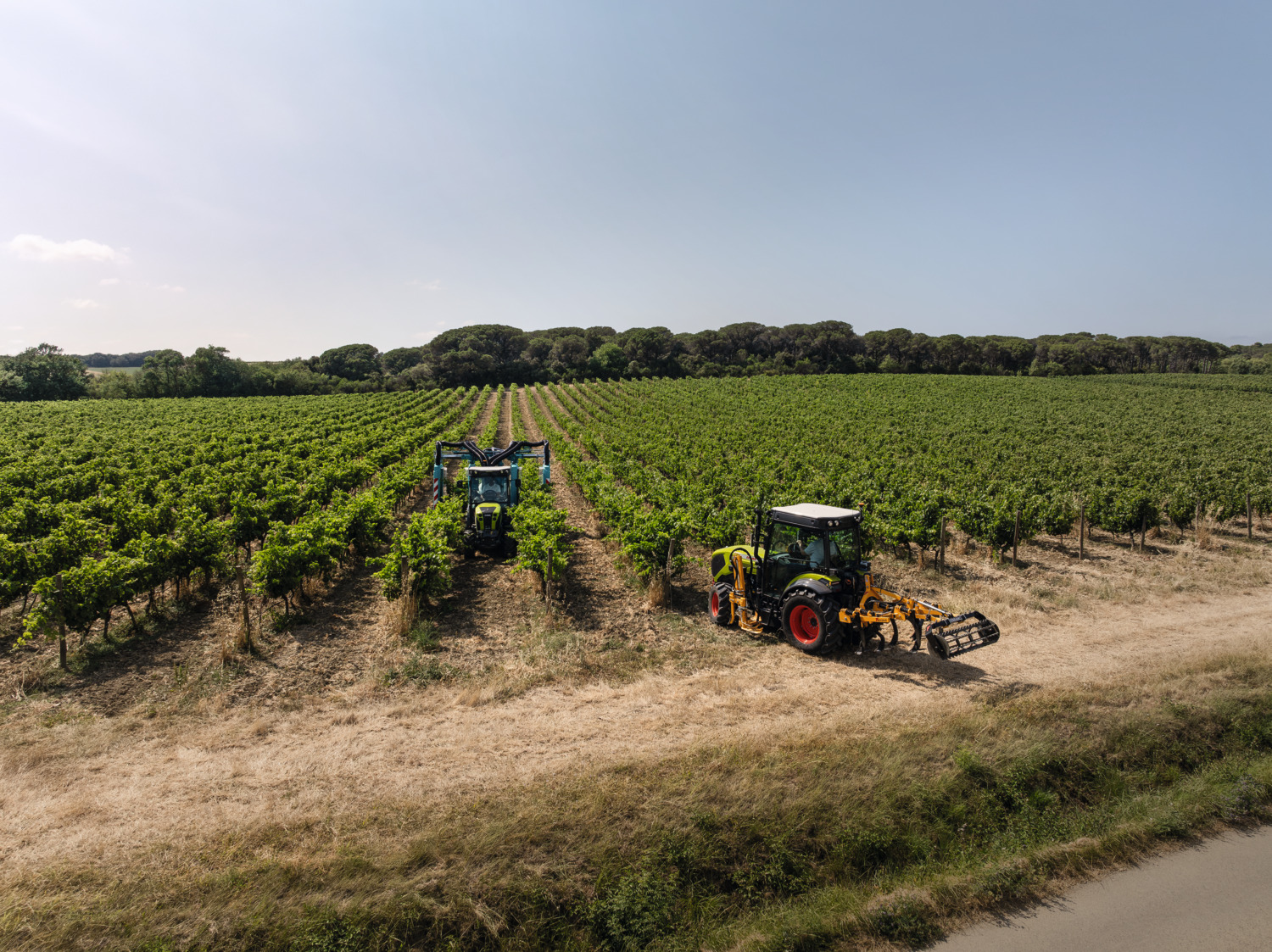

The perfect width: with four different narrow options (S / M / L / XL) and an overall width from 1.00 m / 1.25 m / 1.45 m / 1.55 m, the tractor can navigate the tightest of rows with ease.

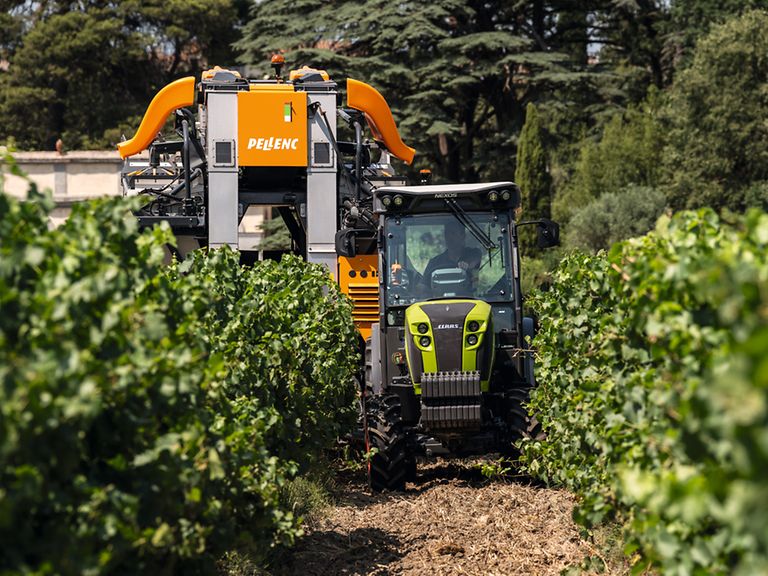

Compact and manoeuvrable: with its space-saving design and large steering angle, the NEXOS 2 CMATIC can master the tightest of turning manoeuvres with ease. Four-wheel drive can be automatically switched off at a specified steering angle to prevent the front wheels slipping and enable even smaller turning circles. Combined with dynamic steering, which notices reduces the steering effort, it protects the crop rows as well as the operator.

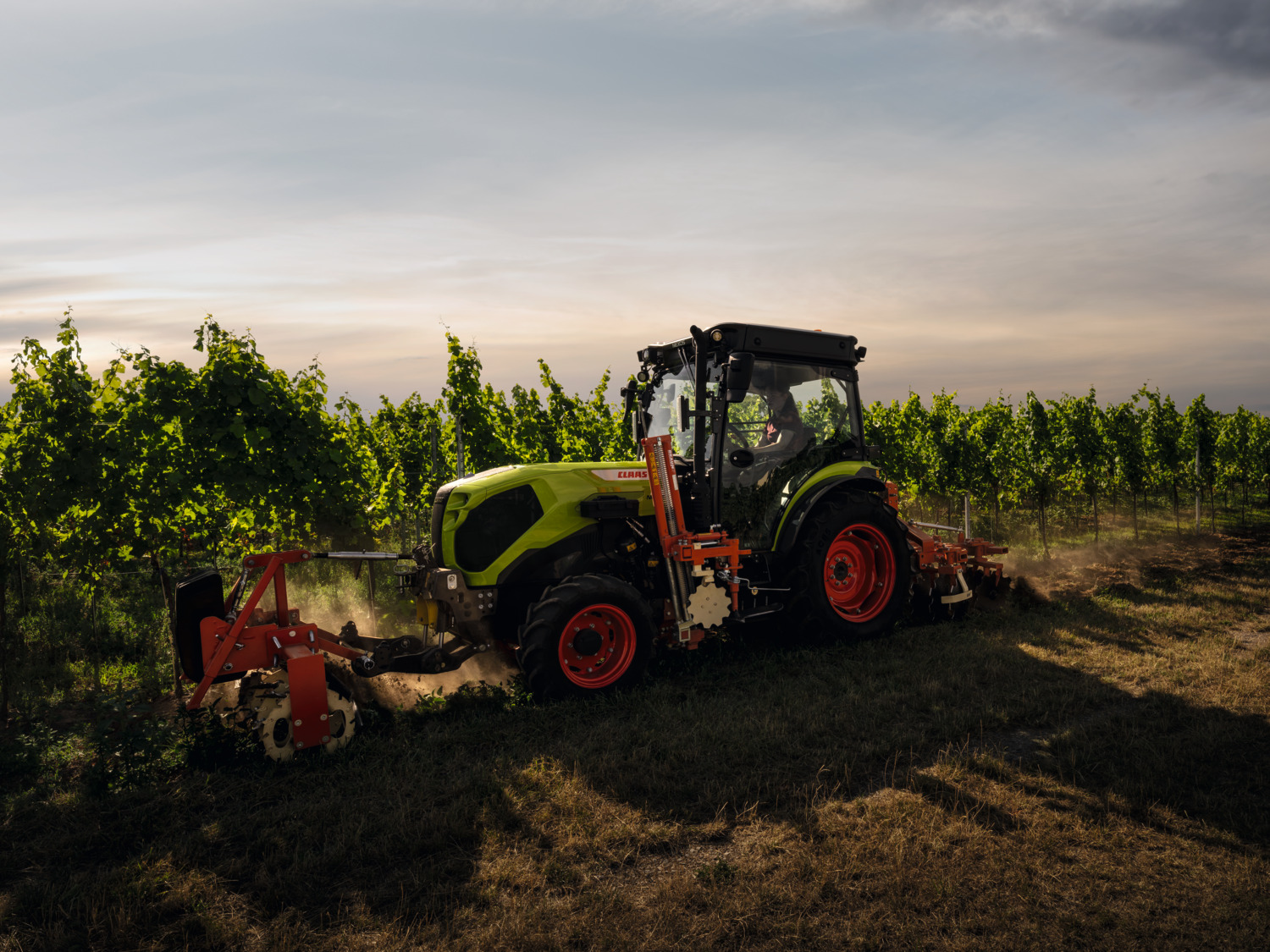

Extensive mounting options: up to four electronic spool valves including double duplicator and four selectable rear PTO speeds deliver the right power whatever the implement. Supplemented by a front PTO, the NEXOS 2 CMATIC is ideally equipped for a diverse range of applications.

A partner you can rely on.

Uncompromising reliability.

The NEXOS 2 CMATIC is designed for any task when downtime is not an option – reliable, flexible and always ready for action. An extensive dealer network and fast, competent CLAAS Service ensure that parts are rapidly available and problems are quickly resolved. The proven engine and components are engineered for ease of maintenance.

Just look how reliable the NEXOS 2 CMATIC is.

MAXI CARE – service that gives you peace of mind: Plan maintenance costs and protect against longterm risks with tailored MAXI CARE service agreements. Enjoy the benefits of financial security and ensure that your NEXOS 2 CMATIC is always in tiptop conditions and ready for work. In short: maximum availability, predictable operating costs and working days with no unpleasant surprises.
Maintenance made easy: daily maintenance tasks are fast and effortless in the NEXOS 2 CMATIC – thanks to easily accessible, tool-free maintenance points and a well-designed engine compartment. A compressed air lance stowed within easy reach under the bonnet enables effective cleaning of the radiator assembly. So you can bank on optimal cooling, extend the service life of your machine and save valuable time.

Technical Data

Model	Number of cylinders	Displacement (l)	Max. output ECE R 120 (CV)	Transmission	Min. overall width (mm)
2.120 CMATIC XL	4	3.60	120	CMATIC (CV transmission)	1,550
2.105 CMATIC XL	4	3.60	103	CMATIC (CV transmission)	1,550
2.120 L CMATIC	4	3.60	120	CMATIC (CV transmission)	1,450
2.105 CMATIC L	4	3.60	103	CMATIC (CV transmission)	1,450
2.120 CMATIC M	4	3.60	120	CMATIC (CV transmission)	1,250
2.105 CMATIC M	4	3.60	103	CMATIC (CV transmission)	1,250
2.120 CMATIC S	4	3.60	120	CMATIC (CV transmission)	1,000
2.105 CMATIC S	4	3.60	103	CMATIC (CV transmission)	1,000
