LINER dual-rotor swathers with side swathing
Flexibility is our strength.

As well as being consistently reliable, true champions in the hay and straw sector glide effortlessly over any kind of terrain.

For superior swathing: trailed 3D rotor suspension.

The innovative rotor suspension on a robust ball coupling mount allows the rotors to oscillate laterally and longitudinally independently of the main frame. The combination of maximum oscillation travel and outstanding stability provides optimum ground-contour following, even over rough ground.

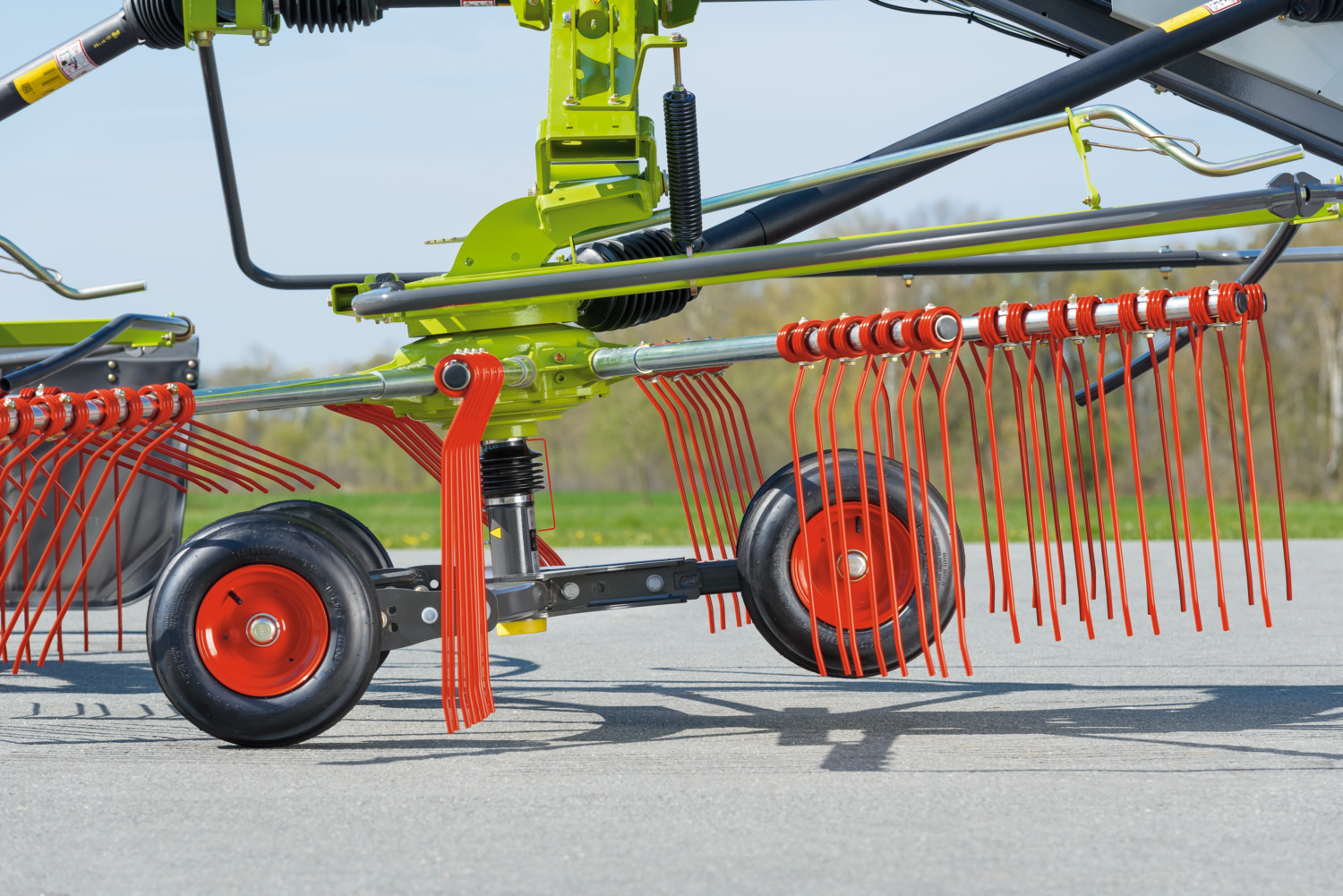

The rotor chassis is also designed for optimum ground-contour following, with the wheels positioned as close to the tines as possible. The optional six-wheel chassis even amplifies this effect in certain conditions. LINER rotor swathers produce perfect swathing results – at all times, whatever the terrain.

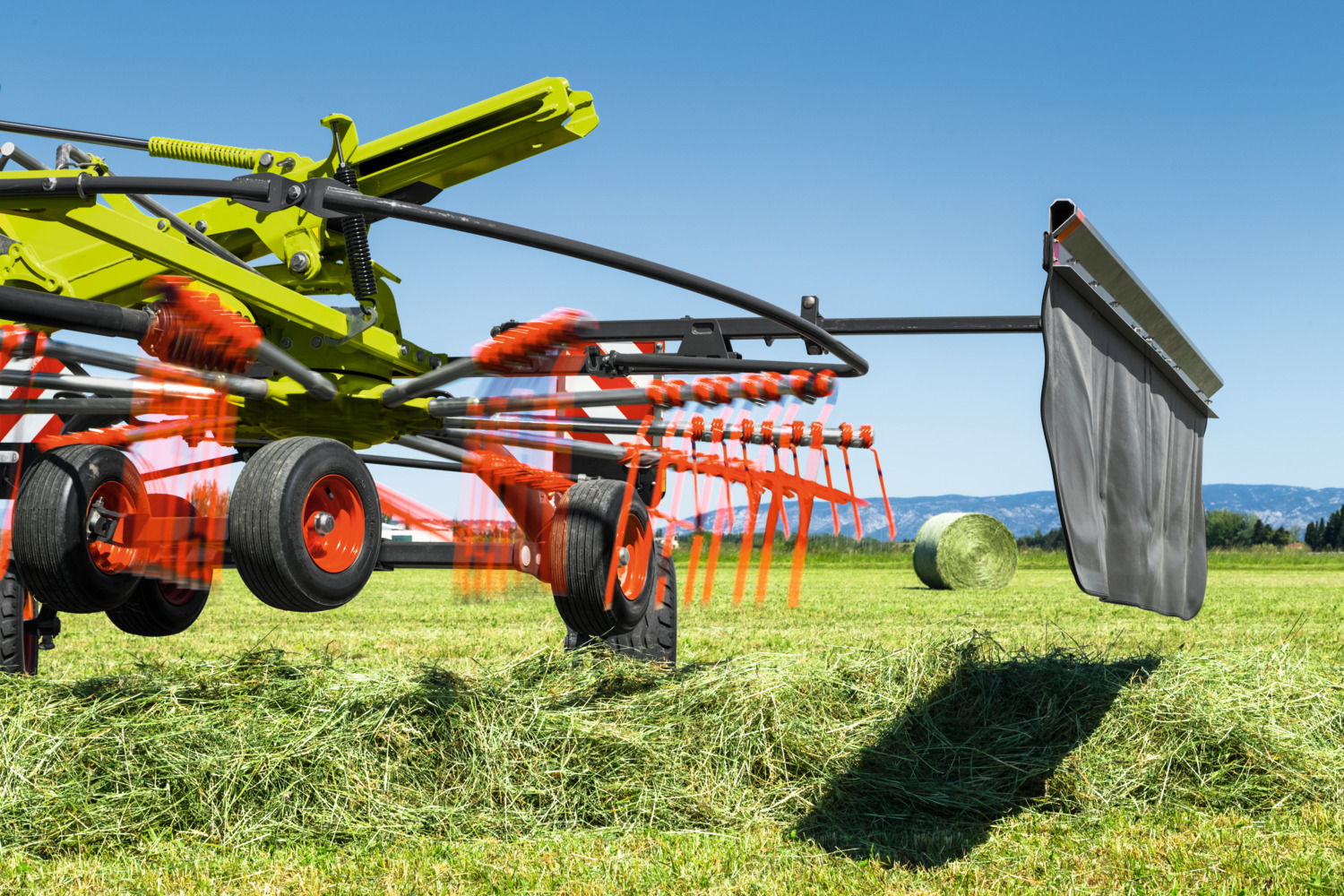

TWIN function.

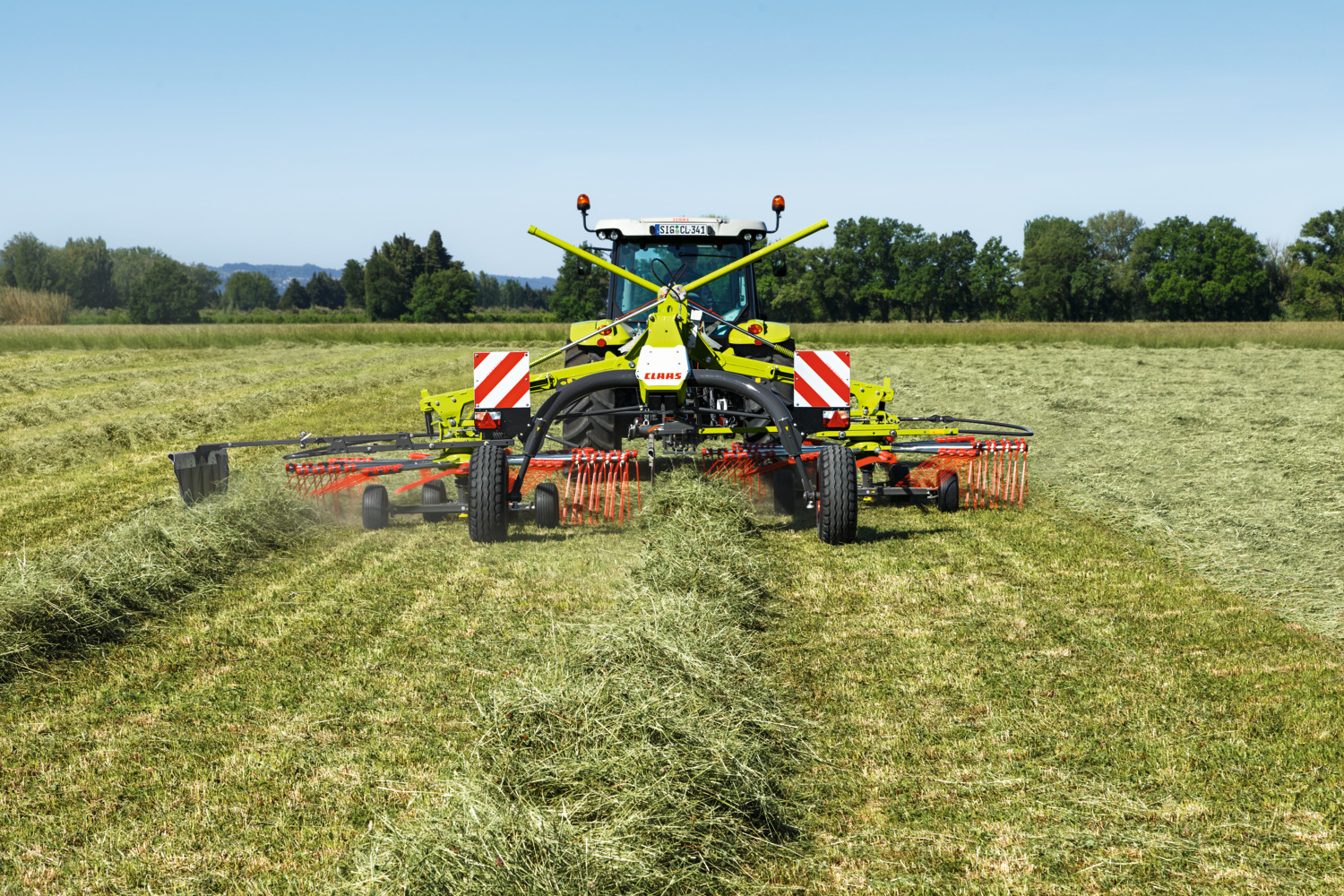

With the TWIN models, an additional swath curtain can be used to rake a double swath (overnight swathing).

During haymaking, for example, this protects already dry material from exposure to moisture at night, before it can be collected.

Rotor guidance for zero soiling.

Perfectly controlled rotor lift and lowering effectively prevents crop soiling – and elminates any risk of damage to the sward.

Impeccably shaped swaths, even after the machine has been through.

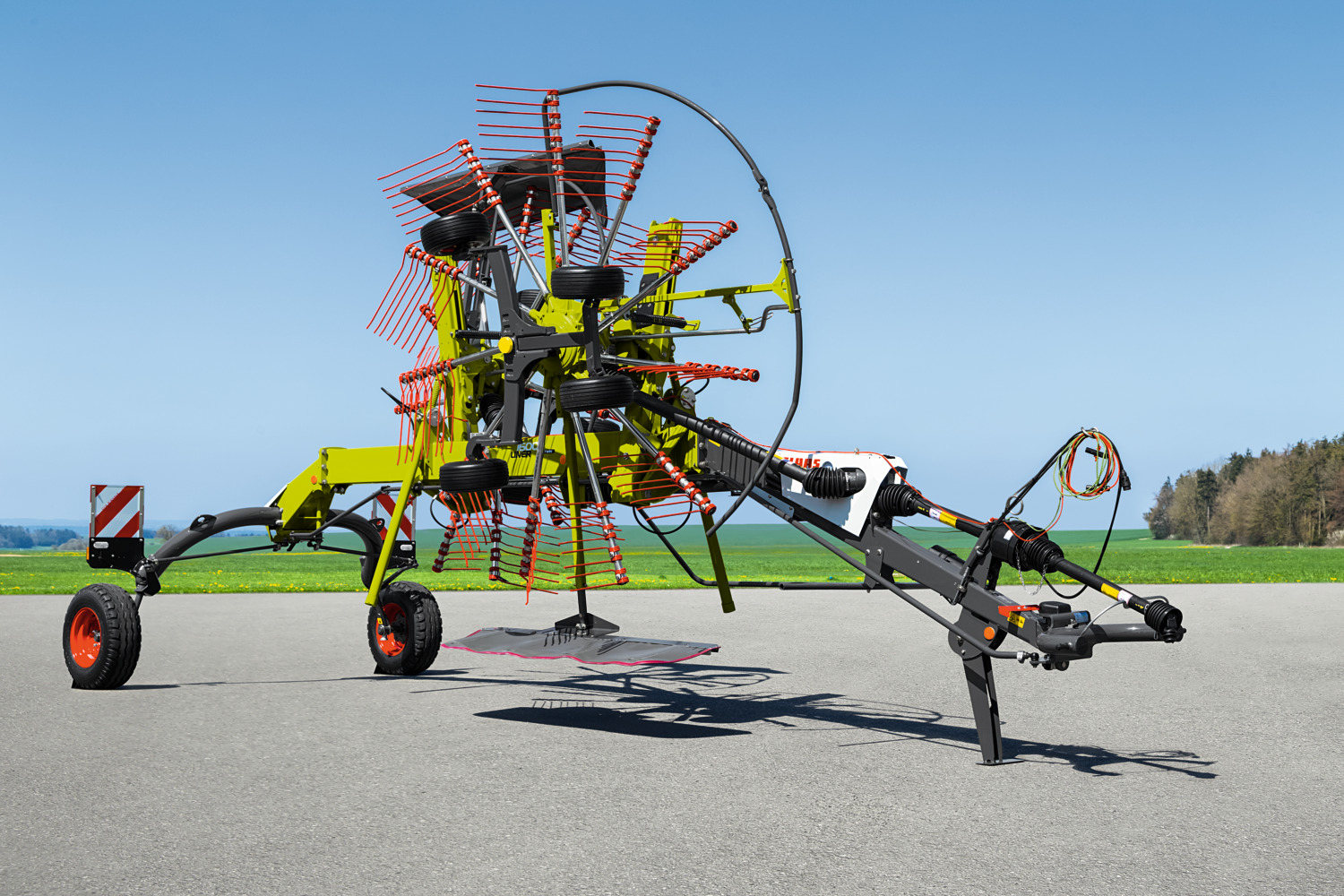

Optimum swath formation even at the headland, thanks to unparalleled lift heights of 50 cm for the LINER 1900 and LINER 1800, 53 cm for the LINER 1700 and 45 cm for the LINER 1600.

Switch from single to double swath.

The telescopic arm in the TWIN 1800, 1700 and 1600 models allows you to choose between single and double swathing. This is done by repositioning a bolt or releasing a lock, depending on the model.

Safe and low-maintenance.

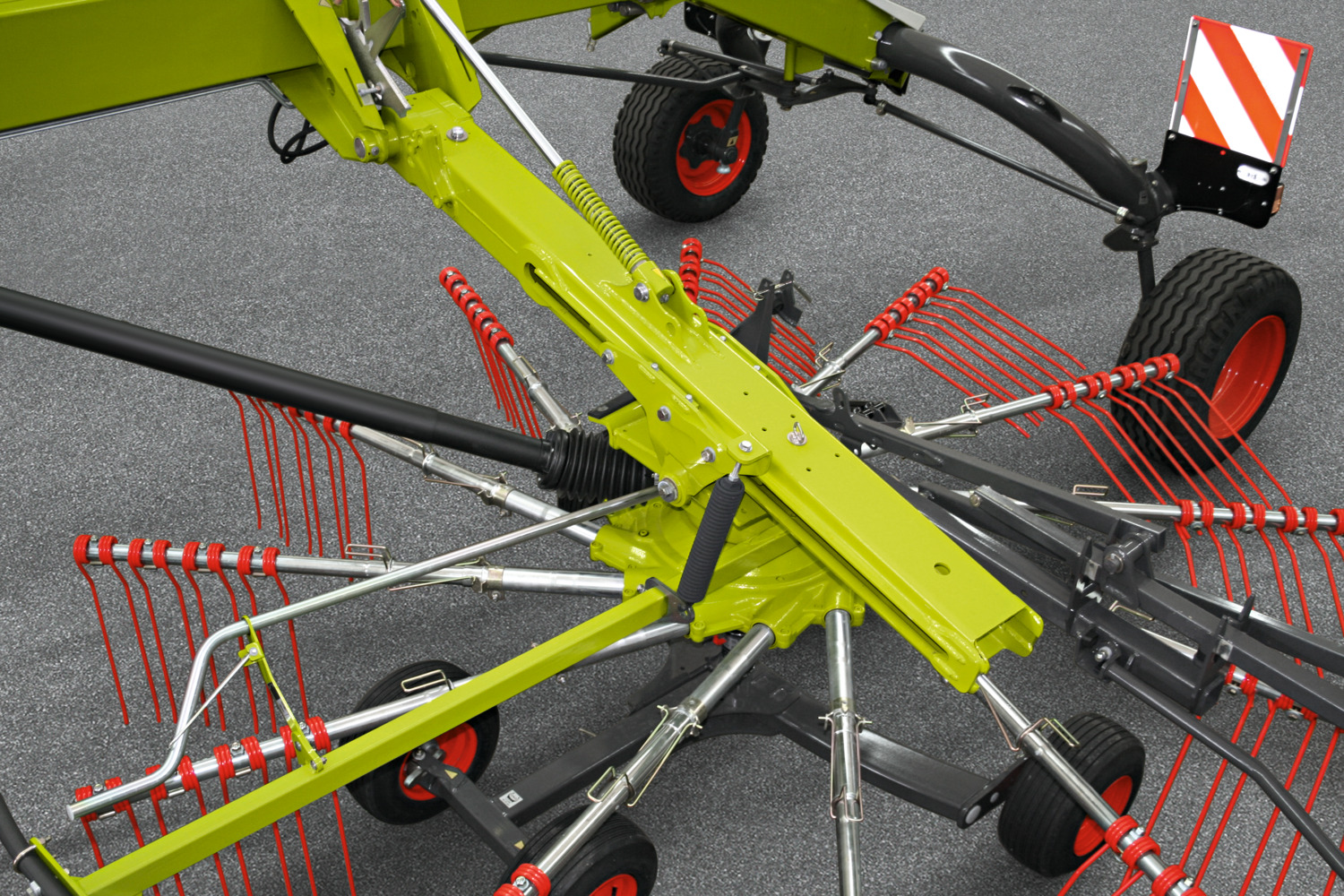

External drive train and individually secured rotors, low-maintenance 250-hour lubrication interval for the universal joints of the drive shafts.

The flexible inverted U-frame hitch with lateral oscillation allows a steering lock angle of up to 80°

Technical data

Model	Working width (m)	Swathing rotor	Swathing rotor diameter (mm)	Tine bars per swathing rotor	Removable tine bar
1900	8.05	2	3,800	14	Yes (PROFIX)
1800 TWIN	7.45-8.40	2	3,500	12	Yes (PROFIX)
1700 TWIN	6.70-7.85	2	3,200	12	Yes (PROFIX)
1700	6.60	2	3,200	12	Yes (PROFIX)
1600 TWIN	6.20-6.90	2	2,900	11	No
1600	6.20	2	2,900	11	No
700 TWIN	3.50-6.30	2	2,900	11	Yes (PROFIX)
