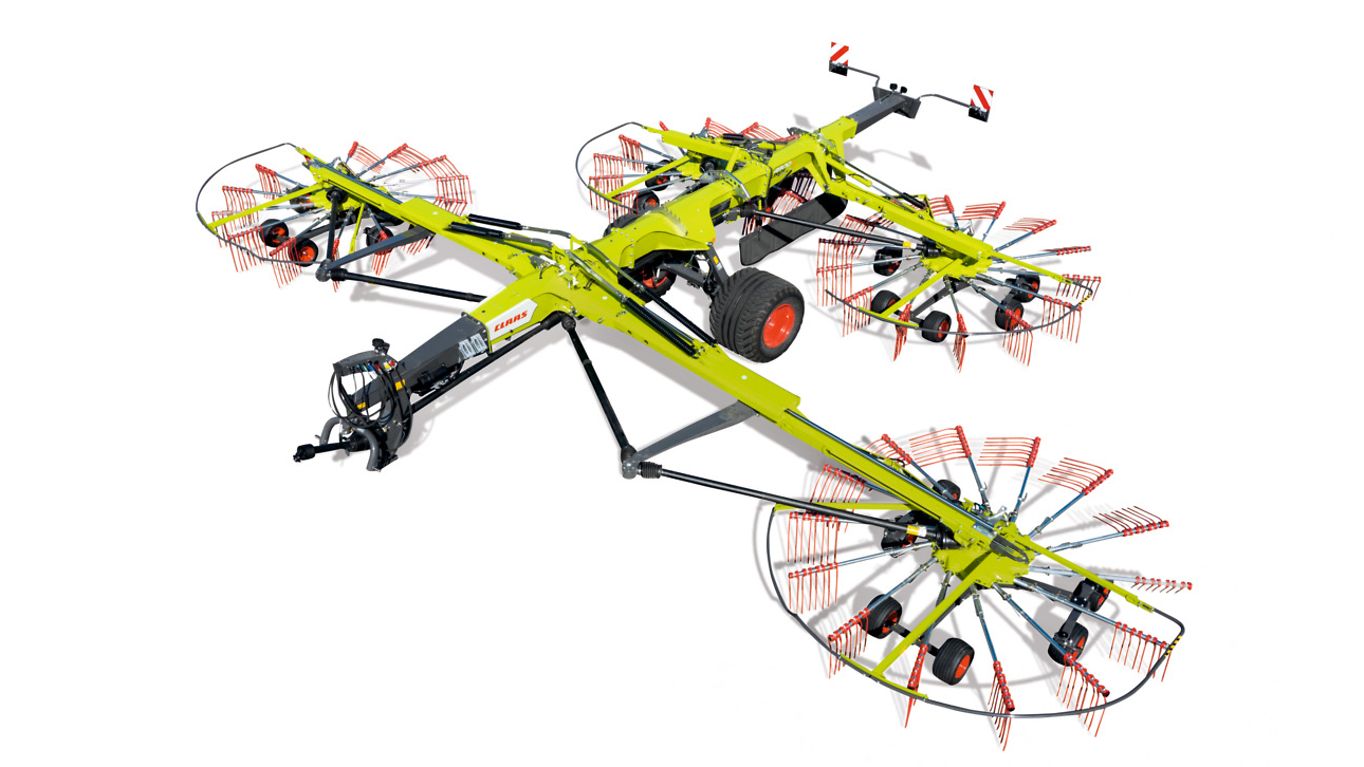

LINER four-rotor swathers

Reliability.

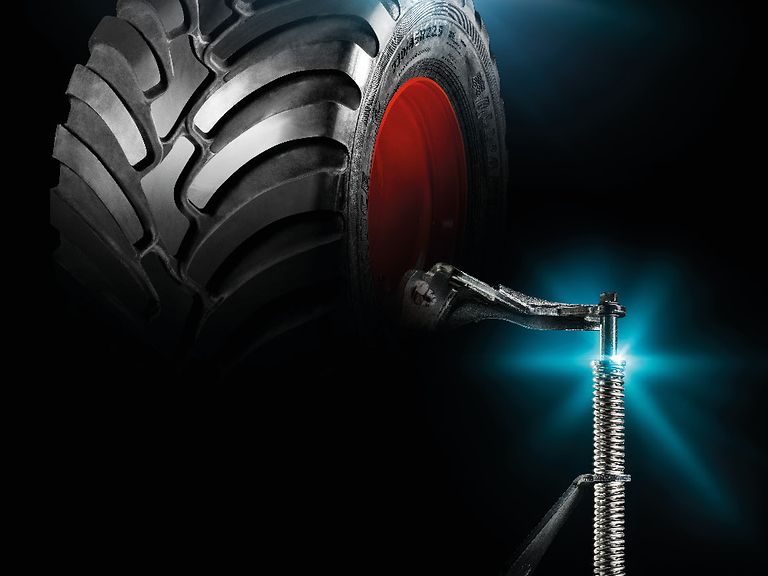

We understand the importance of doing a first-rate job and producing top-quality forage. So we offer not just the widest tyres on the market, but the largest choice of tyres to boot – not just for the main frame, but for the rotor chassis too. And there's an optional six-wheel version available for all four rotors.

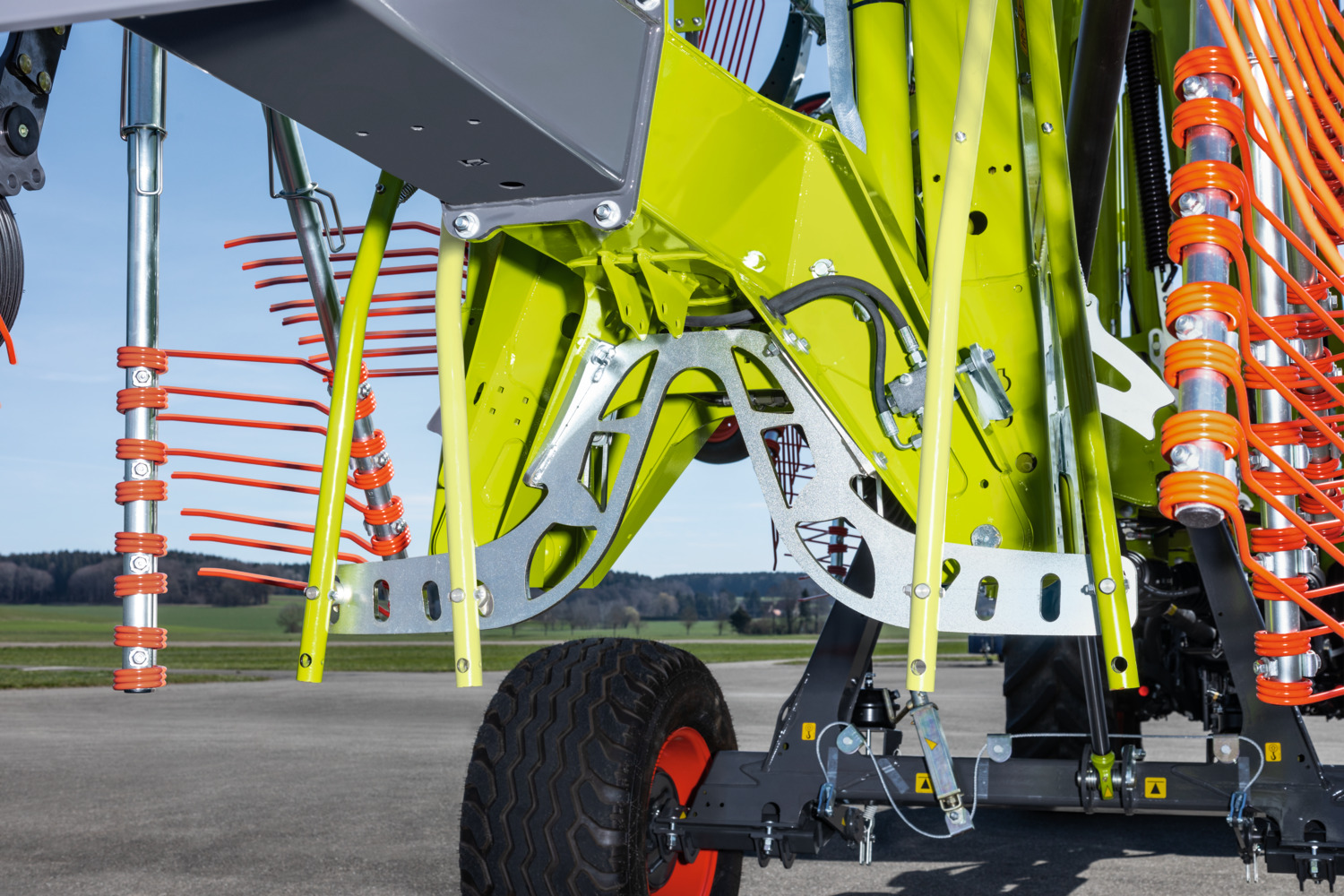

What's more, CLAAS is the only manufacturer to offer the patented fully floating cardan suspension. A dual spring enables quick and simple equalisation of the rotors to ensure ultra-smooth running – even at higher operating speeds.

Time is money. So we deliberately opted for a mechanical drive because it is simple, direct and efficient. The friction clutches we use provide outstanding power transmission and 'non-stop overload protection'.

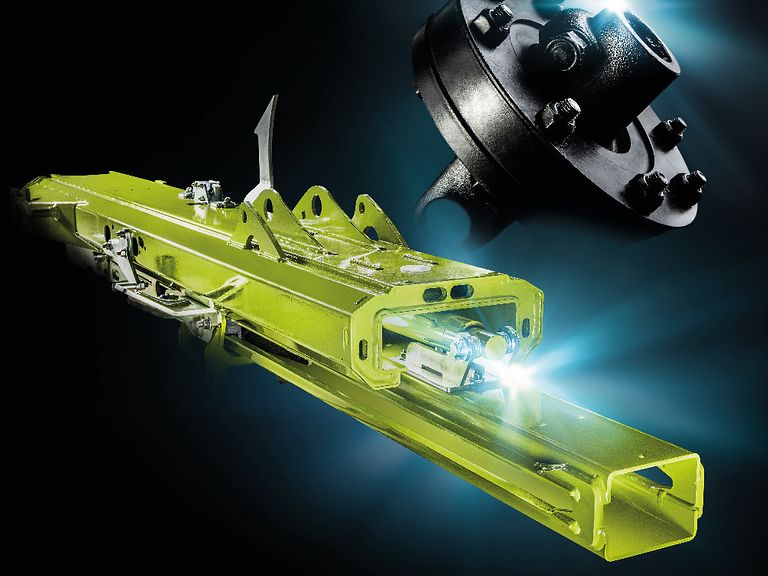

In addition, the patented design with double telescopic function and C-profile makes it incredibly easy to switch rapidly between working and transport position – and the working width can be adjusted from the comfort of the cab.

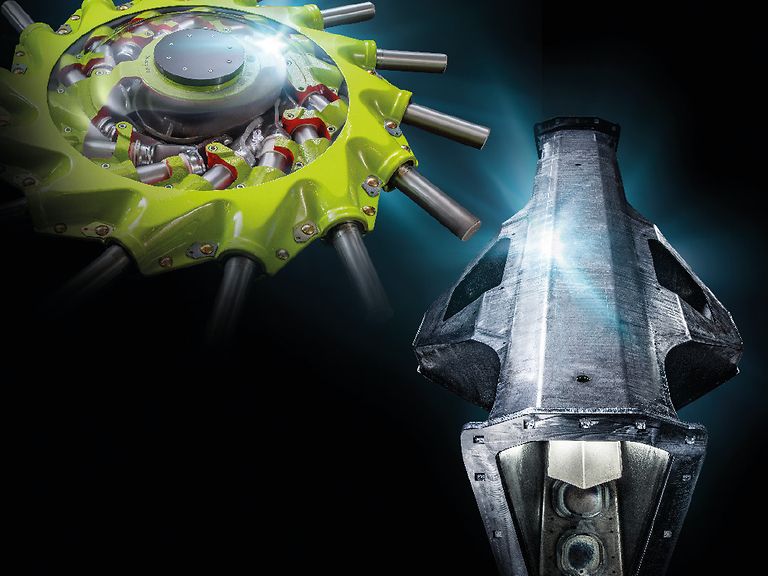

When it comes to the core component of the LINER, we naturally turned to our tried-and-tested rotor drive assembly for professionals. It runs in an oil bath for continuous lubrication to ensure maximum service life.

The main frame is the primary supporting element in the four-rotor swather, like a spinal column in a human. The enormous cross-section combined with the trapezoidal profile is designed to absorb forces evenly. The control block, electronics module and hydraulic valves are located on the inside, where they are well protected.

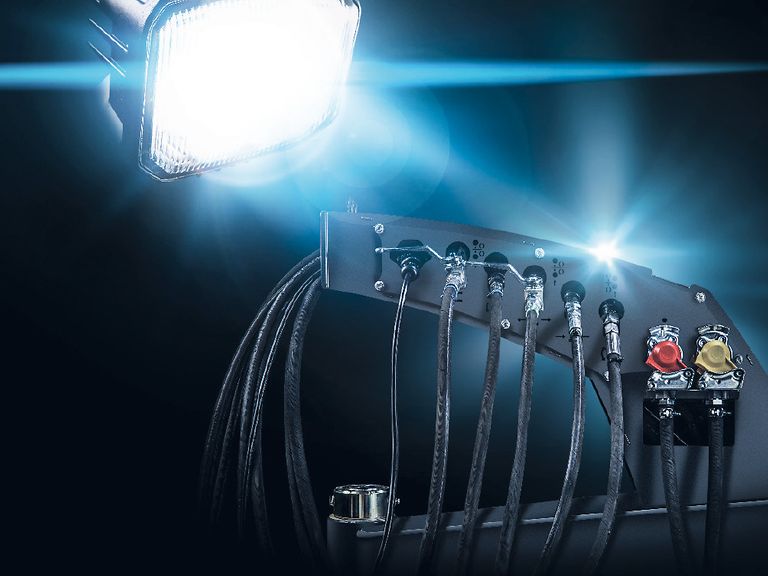

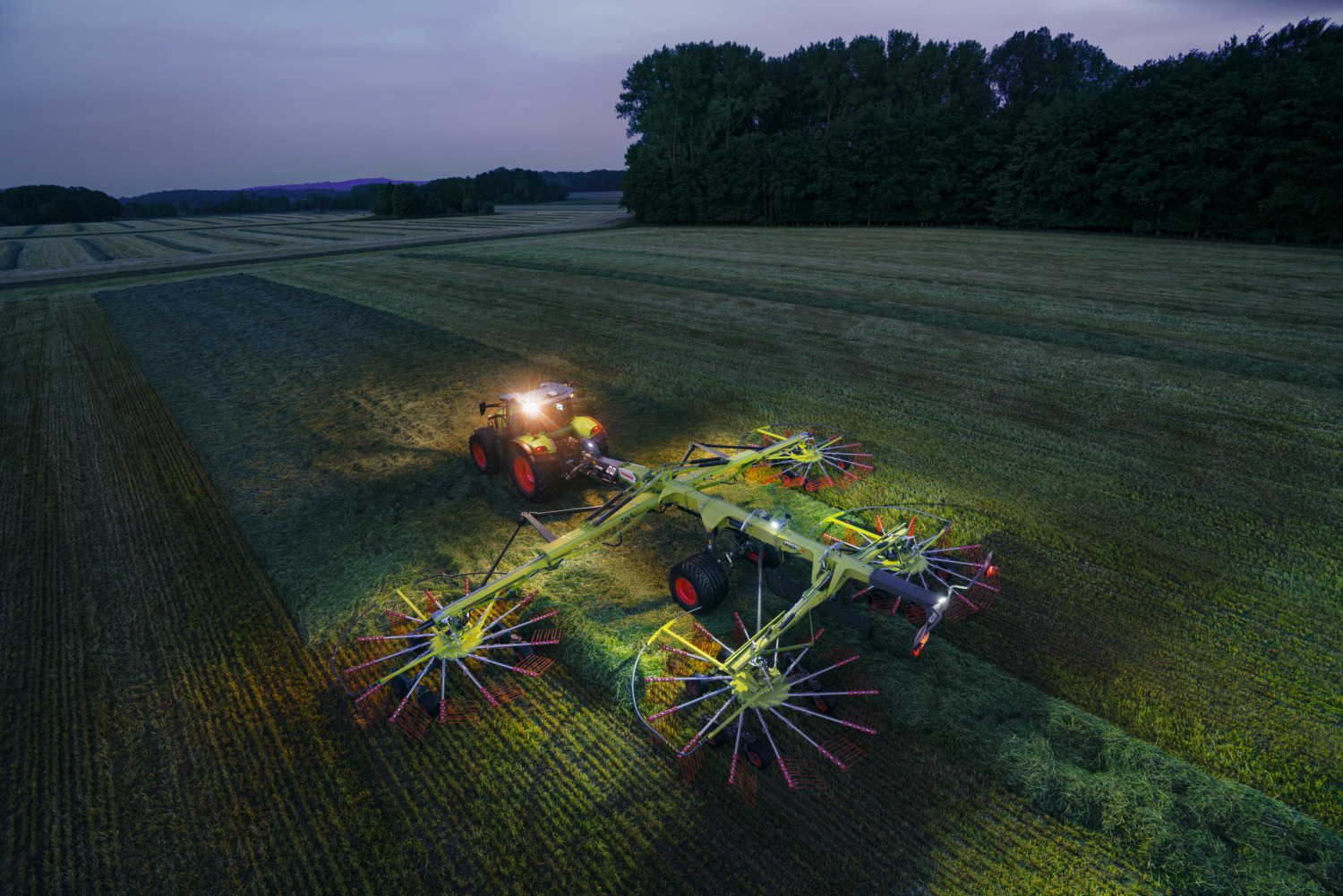

If you find yourself doing a night shift, you can still keep a close eye on everything. The six optional LED work lights provide a clear view of main working areas around the machine.

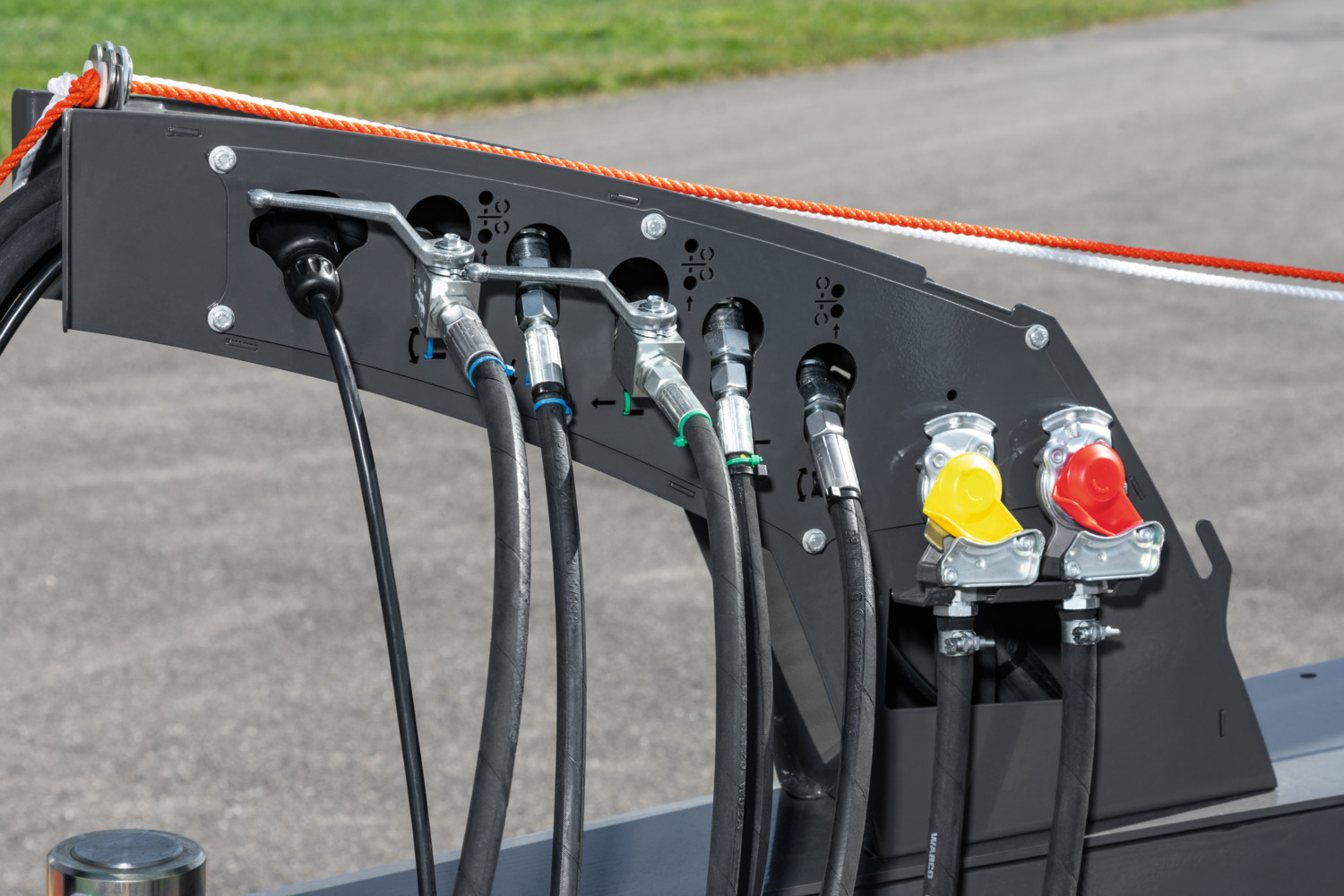

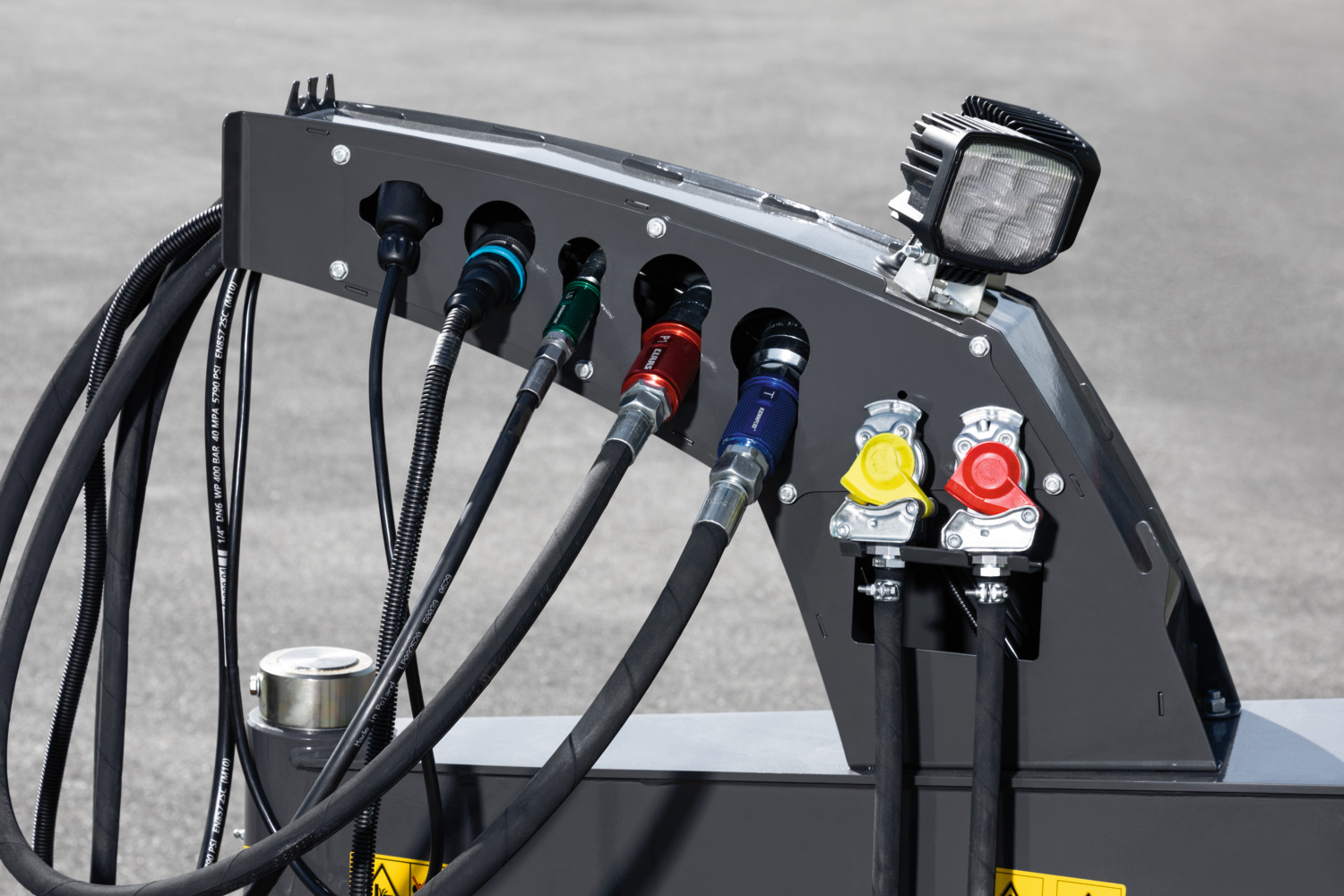

What's more, the machine is not just intelligently engineered – it also features a range of well-conceived solutions designed to make your job easier. For instance, all hose connections are tidily stowed in a special parking bracket. And the hoses are clearly marked to make it easy to attach them.
