Three versions with one unique build concept.
XERION TRAC, TRAC VC and SADDLE TRAC.

There is nothing quite like the XERION. You'd recognise it instantly: four equal-sized wheels on two steered axles, full-frame construction for carrying enormous loads, continuously variable transmission up to 530 hp and the intuitive operation that you only get from CLAAS.

TRAC – with fixed cab
TRAC VC – with rotating cab
SADDLE TRAC – with room for mounted implements

Power equals efficiency.

High on torque – power where you need it.
Exceptionally robust – built for extreme loads.
Comfortable – comfort and concentration go hand-in-hand.
Efficient – our drive system: the perfect interplay between optimal components.
Unlimited flow – hydraulics with up to 422 l/min oil flow
Cost-effective – rapid maintenance means more time in the field.

Always perfectly adjusted.

Optimise your machine settings to suit all conditions with CEMOS.

Power where you need it.

High on torque.

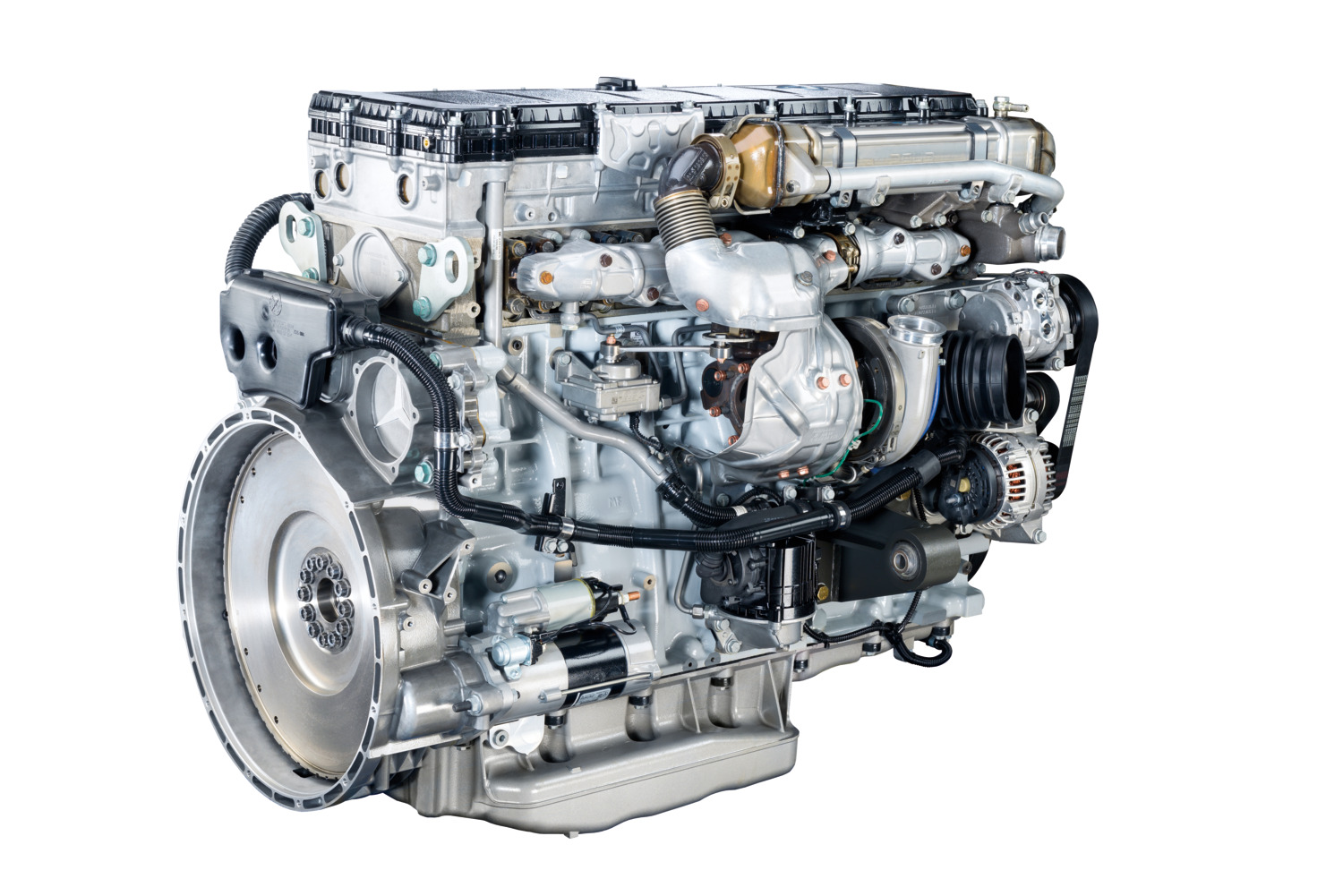

CLAAS POWER SYSTEMS combines powerful 6-cylinder Mercedes-Benz engines with a simple drive train. Enormous torque is available with all three machines even in lower engine speed ranges. The low-speed concept reduces the engine idling speed from 800 rpm to 730 rpm.

Designed to save fuel.

Latest generation engines.

6-cylinder in-line engines with 10.7 and 12.8 litre cubic capacity
Maximum output from 462 to 530 hp
2200 / 2400 and 2600 Nm maximum torque
Constant torque curve at high level
Intelligent cooling with fuel-saving fan speed control
Radiators can be cleaned on the move by pressing a button to reverse the fan wheel

Built for extreme loads.

Exceptionally robust.

The XERION is ideal for carrying heavy loads thanks to its unique frame construction. Bolted rather than welded crossbeams in the frame provide greater strength and load-carrying capacity. The heavy-duty axles are designed to carry loads of up to 15 t per axle at speeds of up to 50 km/h. Despite its size and weight, with two steered axles the XERION is remarkably agile and manoeuvrable.

The right steering for every job.

The two steering axles on the XERION can be steered in five different ways, and remain active at the headland.

Standard steering program
Four-wheel steering
Single-sided crab steering
Gentle mode (reduced crab steering)
Full crab steering

Our drive system: the perfect interplay between optimal components.

Efficient.

As well as being highly efficient, the drive assemblies are enormously robust, reliable under all operating conditions and have an impressively long service life. Thanks to the low input speed and low-speed concept, the XERION can work extremely efficiently in numerous applications. And since the front and rear axle drives are rigidly connected, no longitudinal differential is required.

Hydraulics with up to 422 l/min oil flow.

Unlimited flow.

Need even more hydraulic power to satisfy your increasingly powerful implements? No problem – thanks to the new pump transfer gearbox and a new optional hydraulic pump, our system can deliver a flow rate of up to 422 l/min, even at low engine speeds. That's enough for extra-wide seed drills or slurry tankers, for example. The XERION has the highest hydraulic output on the market.

Fast maintenance means more time in the field.

Cost-effective.

The XERION does whatever it can to minimise downtimes. The engine needs servicing just every 1,000 hours. When maintenance does become due, it can be carried out quickly and effortlessly. The engine oil filter and cab air filter are very accessible. The radiator assembly can easily be opened and cleaned by the driver as required. What's more, at the press of a button the driver can reverse the direction of the fan from the cab to blow dust and dirt away from the radiators in seconds.

Fresh air is always good.

Tractors are often surrounded by clouds of dust on long working days. The XERION has a particularly efficient system for precleaning the engine intake air. Cyclones separate out the coarse dirt which is then removed by the fan system. The PowerCore® engine air intake filter is extremely robust with high filtration performance.

Technical data

Model	Number of cylinders	Displacement (l)	Max. output ECE R 120 (hp)	Transmission	Min. overall width (mm)
4200 TRAC	6	10.70	462	CMATIC (CV transmission)	2,540
5000 TRAC	6	12.80	530	CMATIC (CV transmission)	2,540
4500 TRAC	6	12.80	490	CMATIC (CV transmission)	2,540
5000 TRAC VC	6	12.80	530	CMATIC (CV transmission)	2,540
4200 TRAC VC	6	10.70	462	CMATIC (CV transmission)	2,540
