PICK UP 380 / 300

Ever-increasing yields and more powerful forage harvesters make sense only if the crop can be collected cleanly and the technology is both robust and very easy to operate. The PICK UP 380 and 300 front attachments meet these requirements with a wealth of features.

Special strengths.

Ideal ground contour adaptation
Automatic speed adjustment
Twin roller crop press for optimal crop flow
Hydraulic auger elevation for optimal accessibility when searching for foreign objects
Automatic chain lubrication

New

PICK UP.

Wider covering net and new intake auger.

A new, wide covering net prevents losses and keeps dust out of the operator's field of view. This not only makes for a cleaner working environment, but also increases operational resilience. Less dirt on the radiator screen of the JAGUAR means that the need for cleaning is reduced and operating time is not compromised. A continuous crop flow increases harvesting efficiency. The robust, redesigned intake auger features flights with a shallow pitch and now has four paddles. Also redesigned, the intake auger of the CLAAS PICK UP is particularly rugged and protected with segmented wear rings. The four paddles ensure an even and reliable crop feed to the JAGUAR. Another advantage is the ease with which the wear plates on the paddles can be changed.

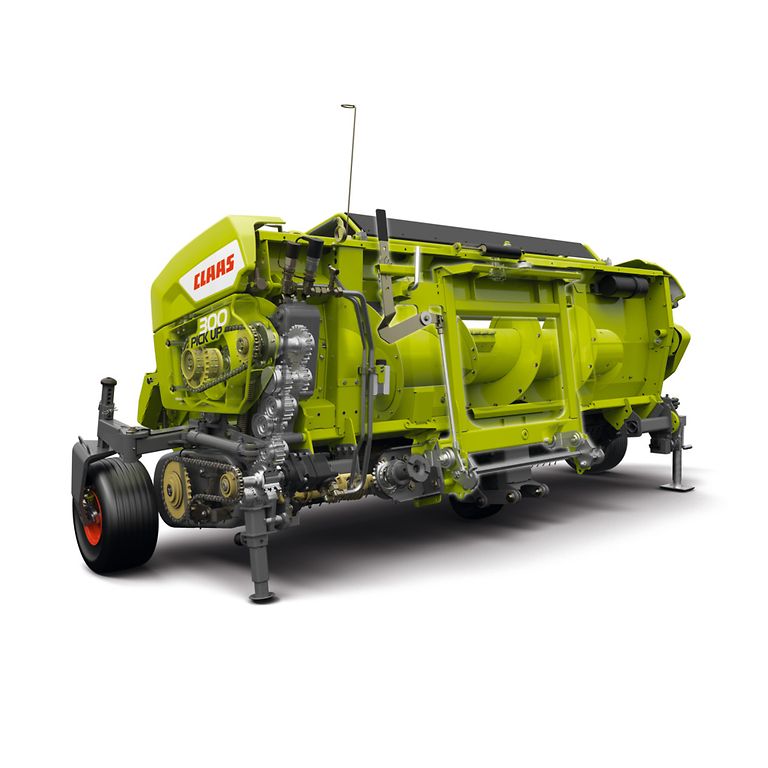

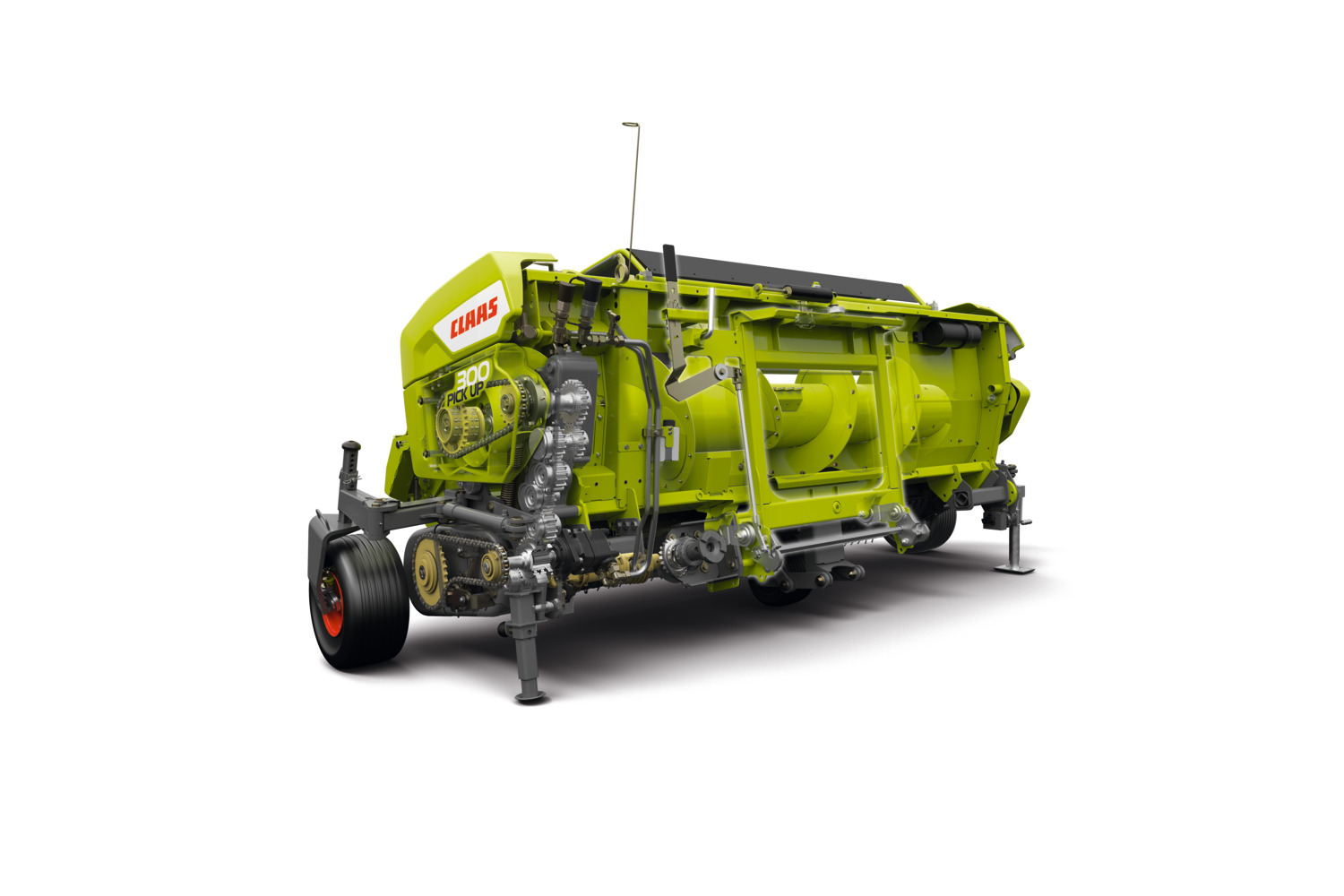

PICK UP with two variable and independent drives for the intake auger and pick-up reel.

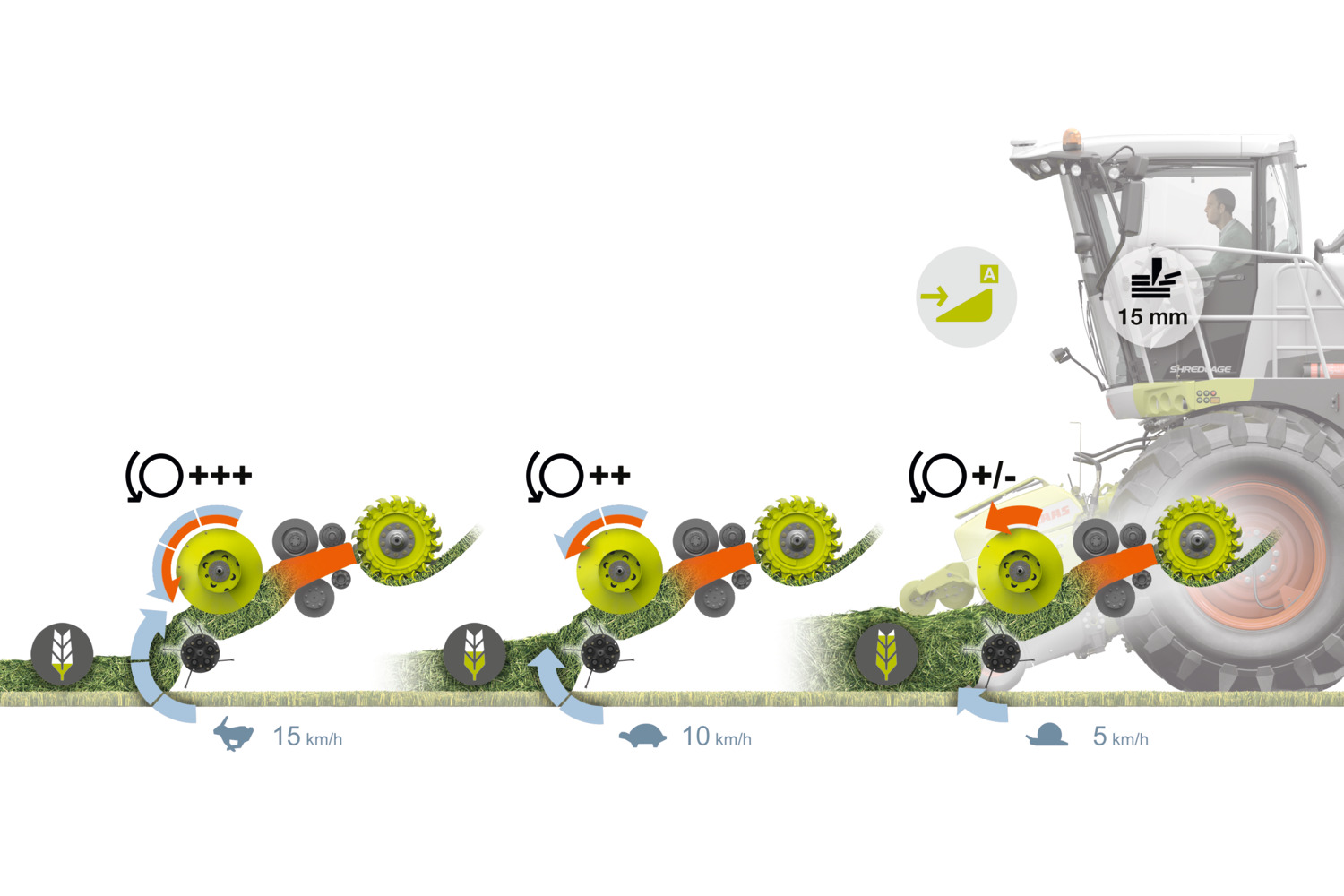

The pick-up reel is driven hydraulically. The independent adjustment of the reel speed to the ground speed enables an appropriate crop feed to the intake auger.

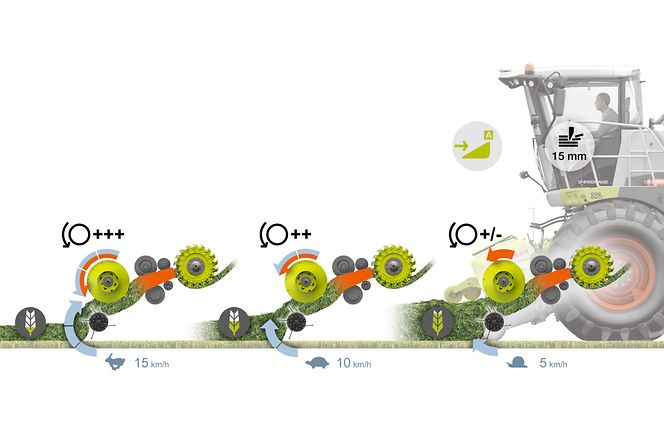

The drive for the intake auger is transmitted via the quick-release coupler. Speed adjustment is performed automatically in accordance with the set length of cut and, from 5 km/h, also in relation to the ground speed. The consistent crop transfer to the precompression rollers ensures optimal use of the capacity of the JAGUAR.

Recommended usage scenario: when it comes to delivering the highest standard of performance and maximum throughput in extreme conditions, the dual drive is the right solution; for example, when handling high yields at a very low ground speed or when operating at a high harvesting speed with low crop volumes.

Advantages:

Compared with the standard version, greater throughput is possible in extreme conditions. A very consistent crop flow and efficient crop collection are additional benefits provided by the automatic adjustment of the engine speed in accordance with the ground speed and the programmed length of cut.

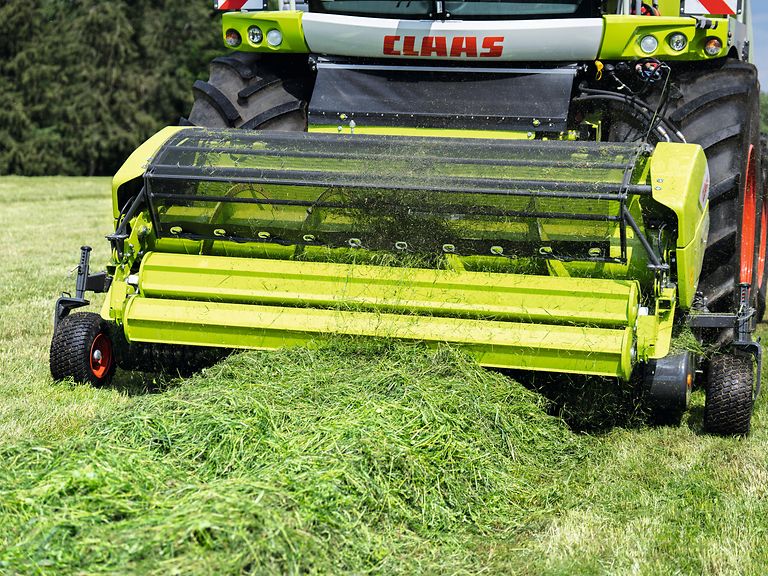

Crop flow.

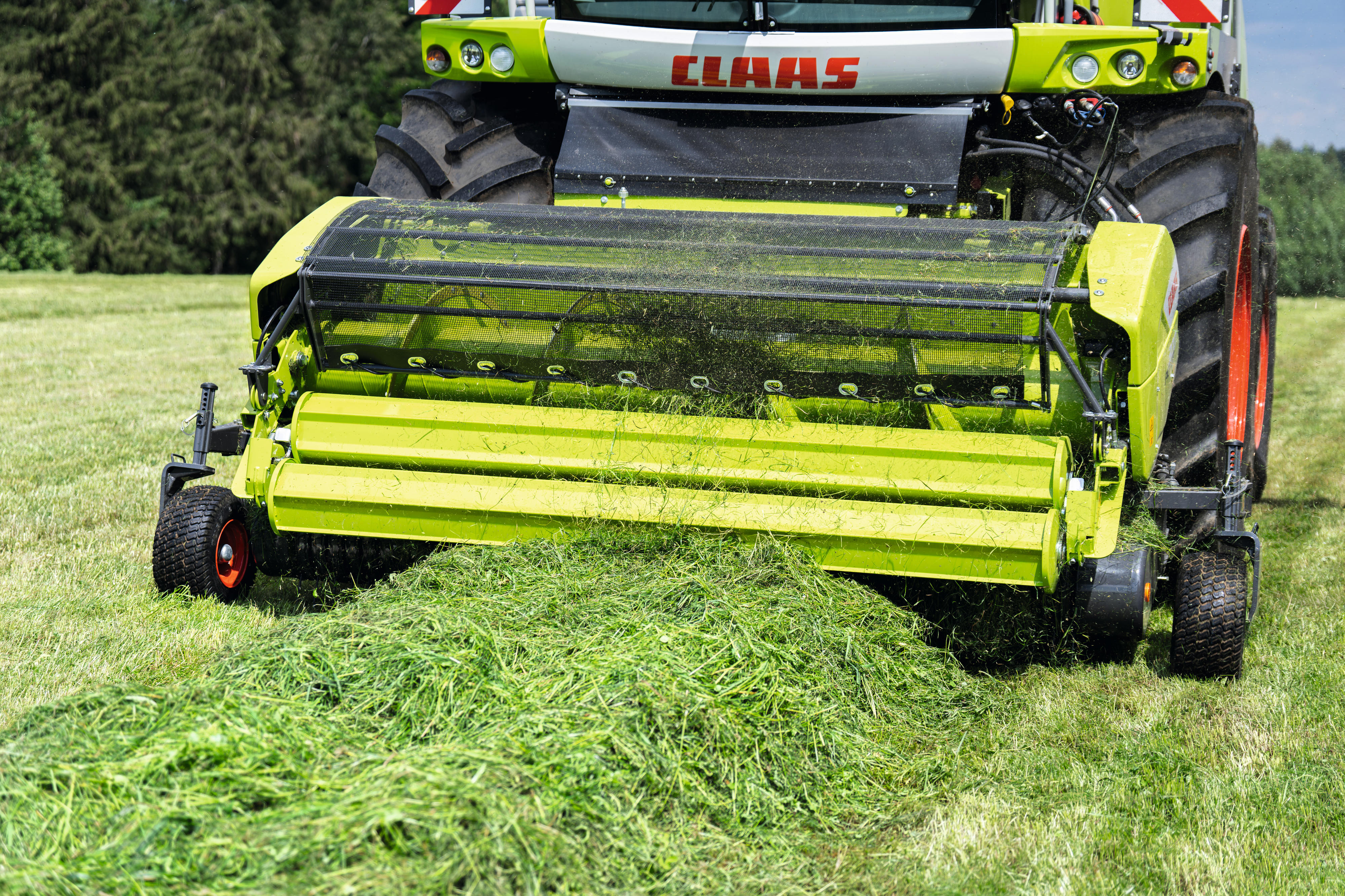

The powerful, controlled rake with four or five tine rows enables a clean crop pick-up. Furthermore, the guide wheels (which can be adjusted without tools) are fitted at the same height as the rake.

The double roller crop press and the large auger diameter ensure an excellent crop flow. The optional spring-loaded intake auger increases throughput when handling large swaths.

The auger speed is matched to the set length of cut by means of the 3-speed transmission or by substituting the sprockets. The variable front attachment drive allows the machine performance to be matched optimally to the field conditions.

Tilting frame for PICK UP 380 / 300.

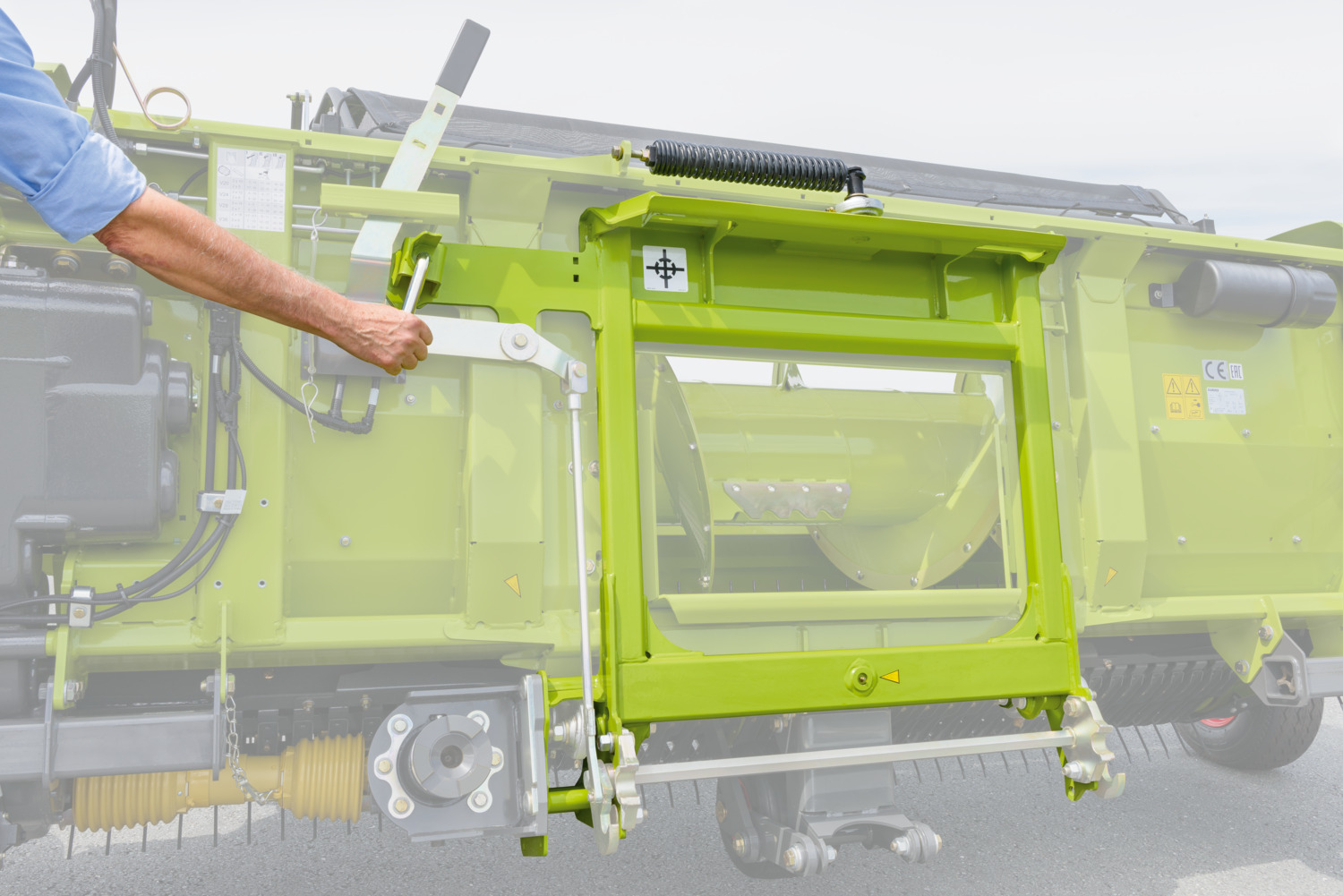

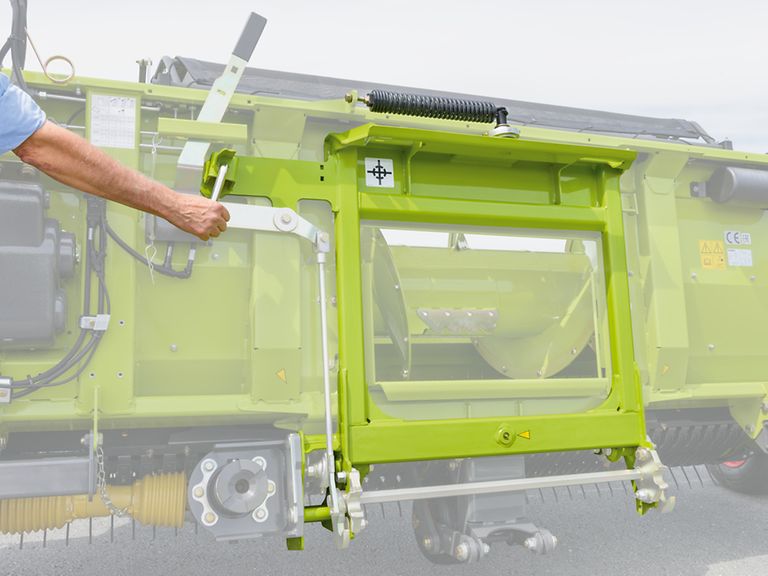

The main frame supports the torsion-suspended rake and the floating intake auger. The tilting frame is attached to the main frame by means of a central pin, three arms and a spring to return the frame to the neutral position. This arrangement enables ideal freedom of movement for optimal ground-contour tracking and high-performance crop pick-up.

ACTIVE CONTOUR.

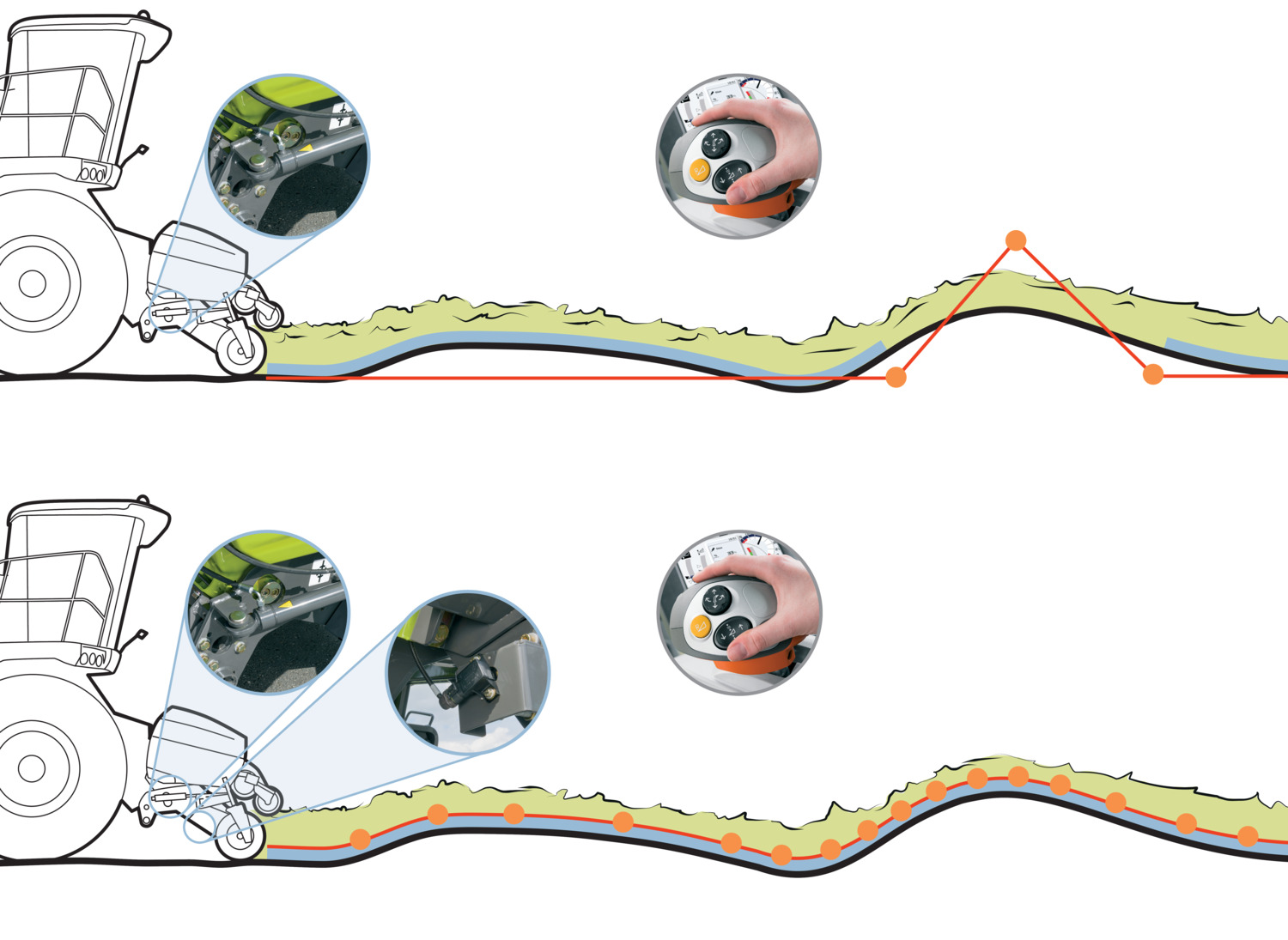

The proven CONTOUR system is available for clean crop pick-up. A new feature is active height control using potentiometers. The ACTIVE CONTOUR system enables fast operation while maintaining the rake at the correct distance from the ground.

Loss-free harvesting with the CLAAS CAM PILOT.

The CLAAS CAM PILOT takes control of the task of steering during the swath pick-up process – thereby making it possible to attain working speeds of up to 15 km/h without fatiguing the operator. Furthermore, the operator is able to concentrate much better on filling the transport vehicle for a loss-free harvest.

The CLAAS CAM PILOT detects the swaths in three dimensions and applies the appropriate steering correction automatically. As usual, it is activated via the control lever and deactivated by turning the steering wheel.

Technical data

Model	Working width (m)	Drive
380 PROFI CONTOUR variable	3.60	Variable
300 PROFI CONTOUR variable	2.62	Variable
380 PROFI CONTOUR	3.60	Standard-3-speed
300 PROFI CONTOUR	2.62	Standard-3-speed
300 PROFI	2.62	Standard-3-speed
300	2.62	Standard

Reliability.

Optional chain lubrication.

The optional chain lubrication system supports more intensive use and therefore enhanced reliability. Choosing this option also simplifies maintenance.

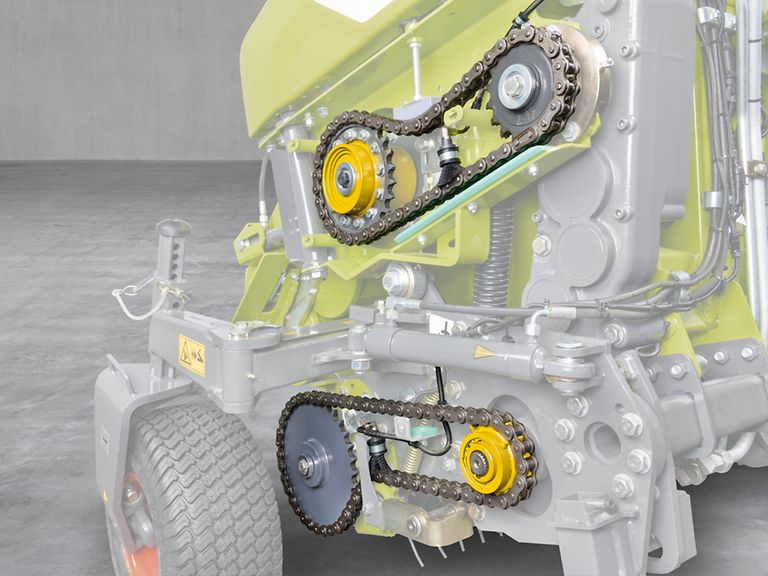

The drive chains and gears of the pick-up reel and intake auger are lubricated automatically. The 4-litre oil reservoir is sufficient for 180 hours of operation. With the front attachment switched on, lubrication is applied to the chains directly and continuously by means of two brushes.

Optimal accessibility.

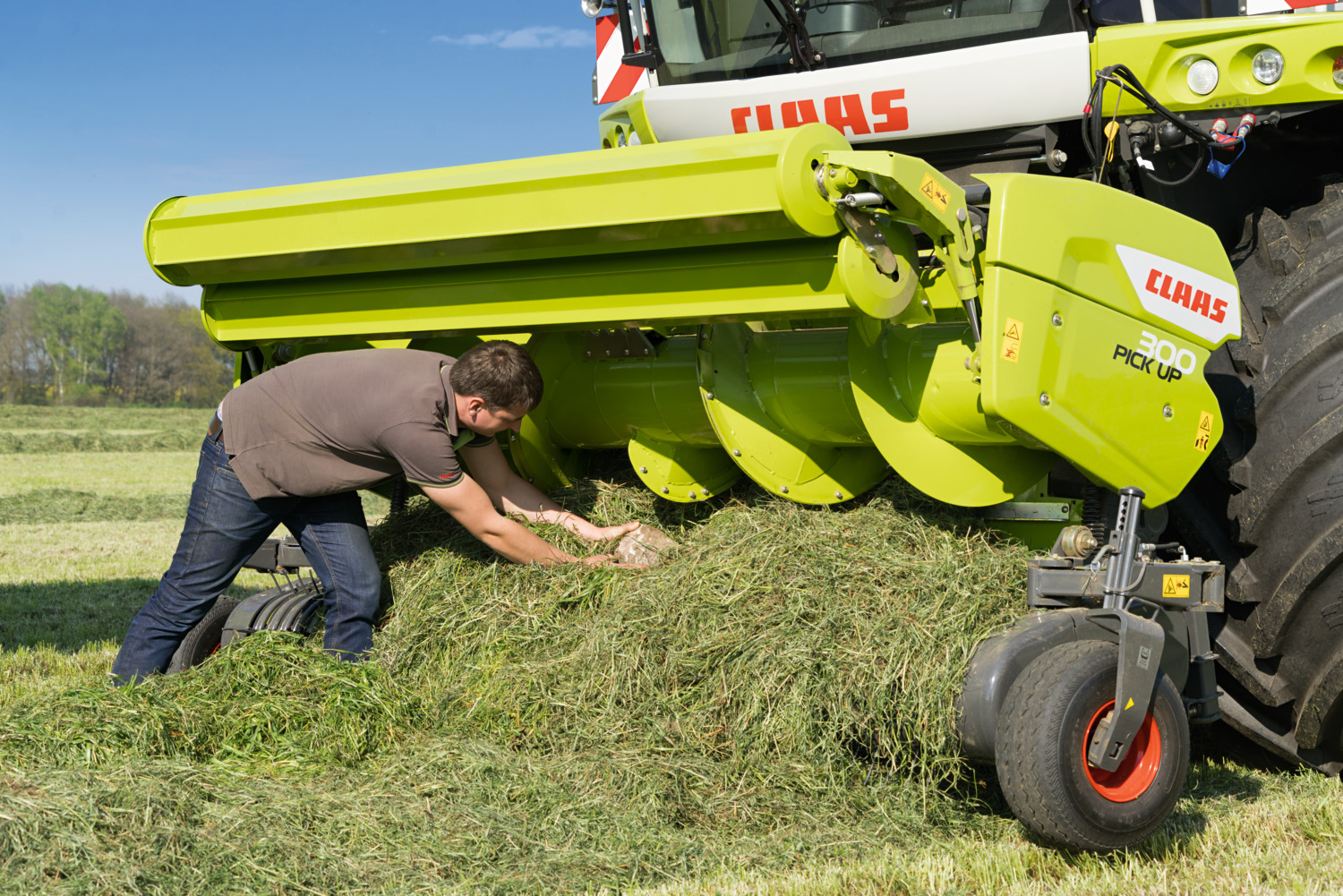

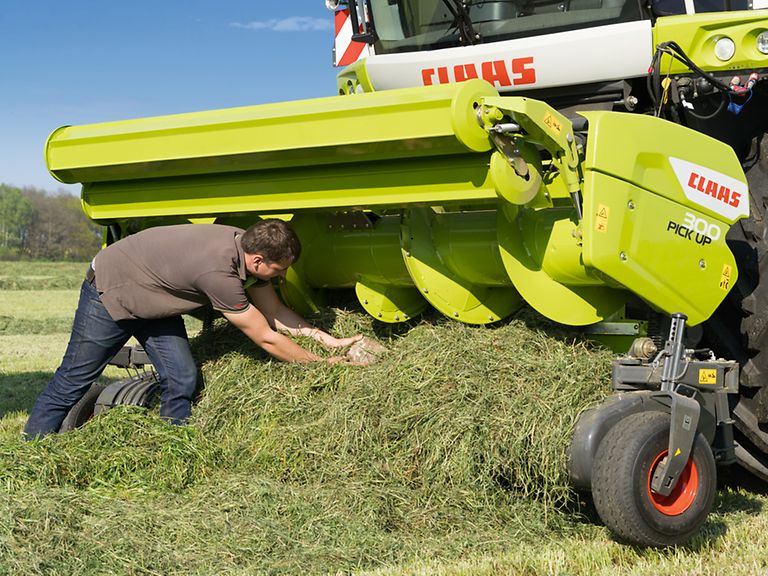

Excellent accessibility is one of the key characteristics of the PICK UP family. For example, during the reversing procedure after detection of a foreign object, the roller crop press is automatically raised hydraulically (optional raising of the intake is also possible). As well as making it easier to search for foreign objects after the presence of metal or a stone has been detected, this arrangement allows wear parts to be replaced easily.

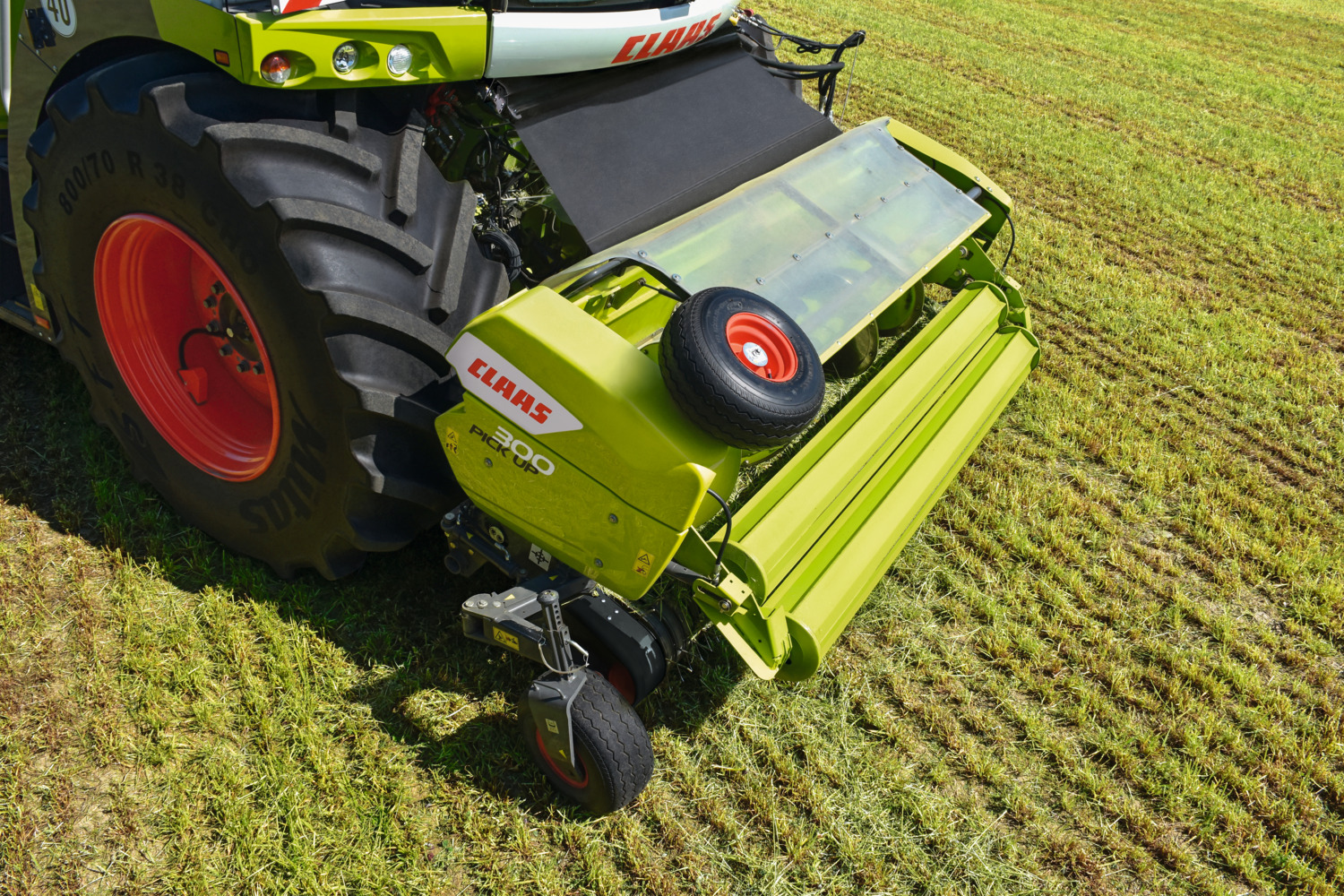

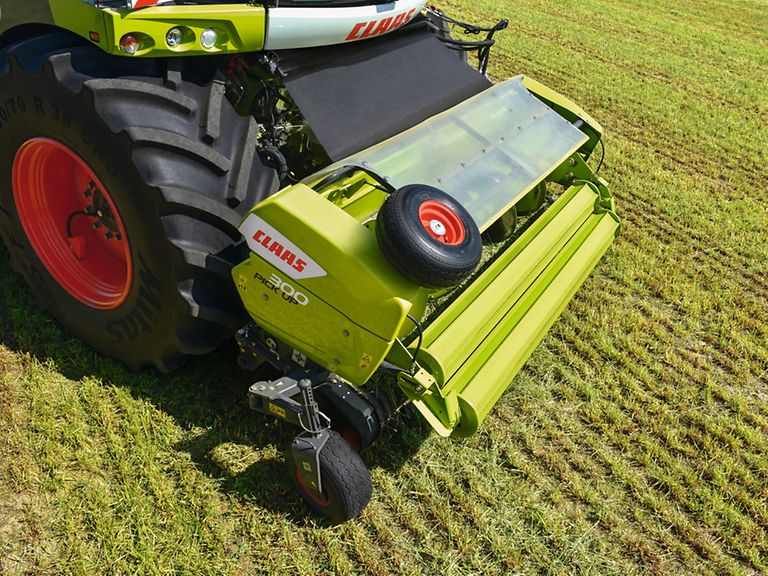

Spare wheel.

CLAAS offers a spare wheel carried with the PICK UP with a choice of mounting positions.
