Round baler with wrapping system.

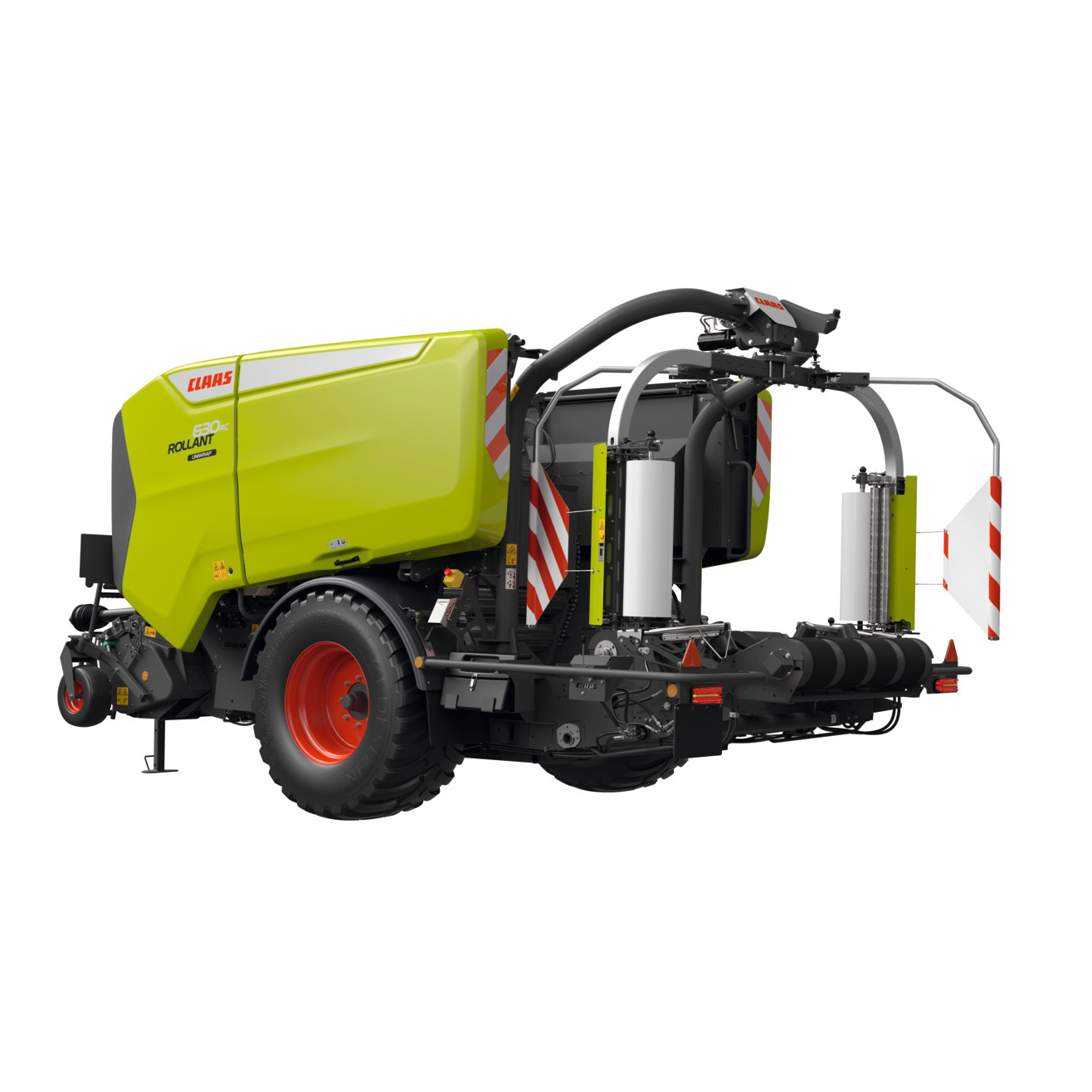

ROLLANT 630 UNIWRAP

ROLLANT 630 UNIWRAP

Experience, innovation and reliability.

With the new ROLLANT 630 UNIWRAP, you are opting for reliability and the best forage quality. Not only does the new pick-up deliver maximum throughput, it also ensures optimum ground contour following and ease of maintenance.

Individual strengths:

  • Perfectly shaped bales with an exact bale diameter of 1.25 m
  • Clean crop thanks to the excellent ground contour following of the new pick-up
  • Maximum throughput with the new HD pick-up with 20% higher raking frequency

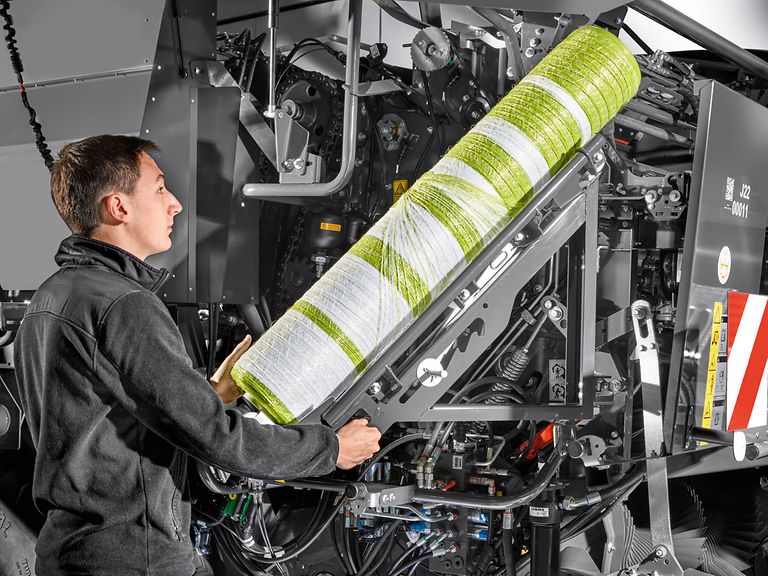

  • More convenient than ever – easy access to spare rolls and quick film roll changes reduce downtime and increase daily output

Pick-up.

Maximum throughput.

  • The 2.10-m working width ensures a huge pick-up capacity
  • Four or five (HD) rows of tines leave a thoroughly cleared field
  • The new cam track reduces wear by 20%
  • New chain tensioners and optimised lubrication reduce wear

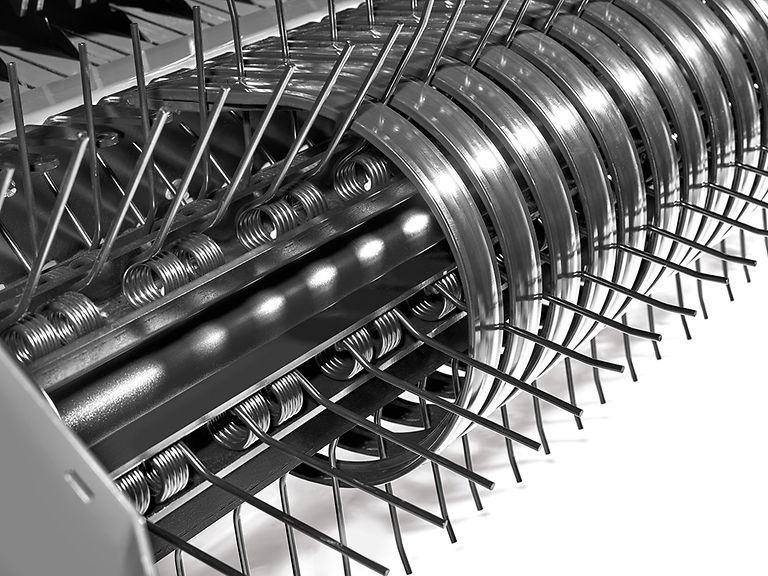

With a working width of 2.10 m, the pick-up collects even the widest swaths. The new standard pick-up is equipped with four tine bars, while the new HD pick-up has five. The spring tines are positioned close together and the flexible frame follows the ground perfectly. As a result, the new pick-up has enormous pick-up capacity. It leaves behind a thoroughly cleared field in all operating conditions.

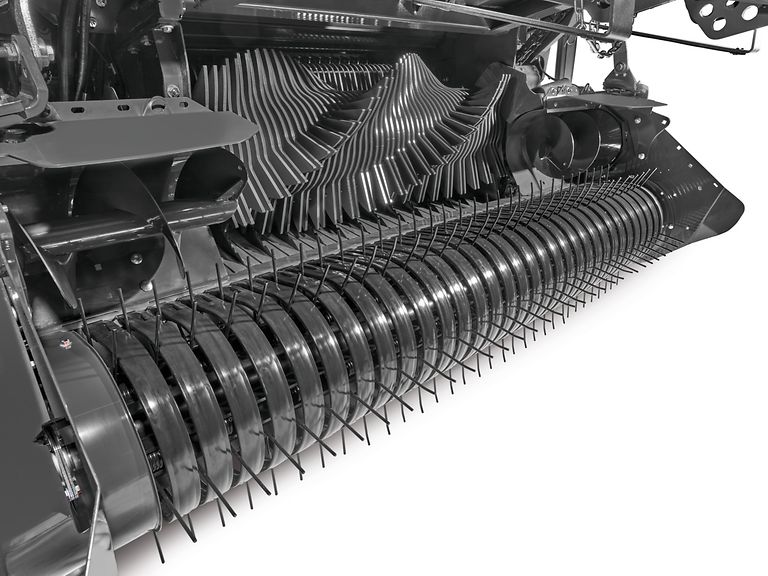

New HD pick-up with five tine bars for better raking quality.

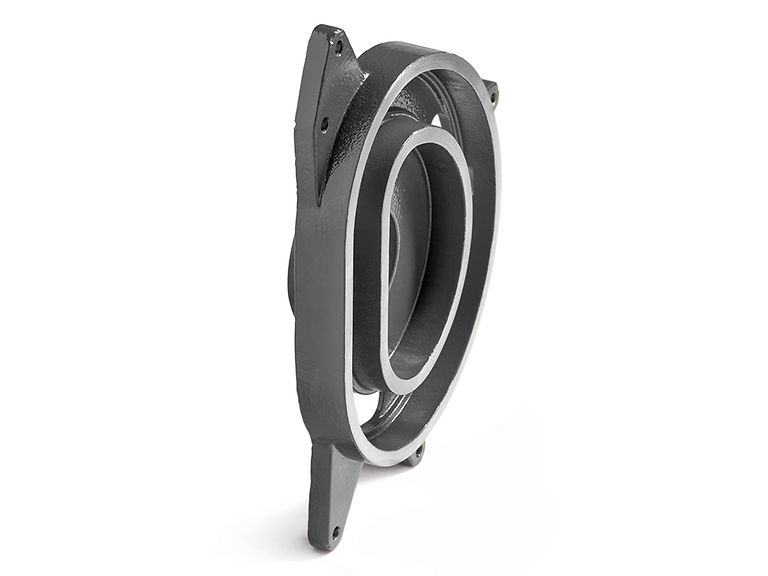

The shaft has been reinforced and the cam track updated. The new cam track reduces rollover forces by 20%, saving fuel. The newly developed lubrication system lubricates the chains continuously with brushes instead of applying individual drops of oil as previously. The chain is tensioned by a spring and is always in precise contact. All this reduces wear and doubles the service life of the pick-up compared to the previous model.

Tying.

Whichever type of wrapping or tying you choose, you always have a clear view of the process.

  • Clear view of the net wrapping process from the cab
  • Automatic wrapping
  • Automatic tailgate opening and closing

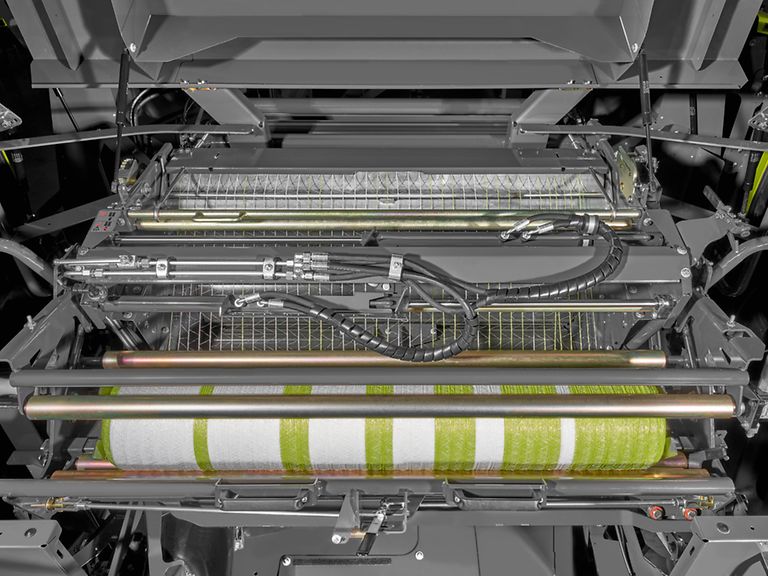

The comfort net wrapping.

The new CLAAS comfort net wrapping system on the ROLLANT is controlled via the in-cab ISOBUS control terminal. The cab also offers an excellent view of the net wrapping process while driving. Wrapping is started automatically, and the net is guided around the bale at a defined tension. To maintain optimum tension even in varying weather conditions, with different net qualities or with varying amounts of net remaining on the roll, you can actively adjust the wrapping process via the ISOBUS terminal. The result: optimum edge-to-edge stability with any bale size. A unique feature of this system is the automatic opening and closing of the tailgate: The tailgate opens automatically as soon as the bale is fully wrapped, and the bale promptly rolls to the ground. You can deactivate this function if you wish.
What’s more: You can adjust the number of wraps to suit individual crops directly from the in-cab control terminal, so you can always meet your customers’ requirements.

The net brake.A hydraulic brake on the first rubber roller of the ROLLANT 630 RC UNIWRAP slows down the unrolling of the net to ensure optimum net tension.

The ROLLATEX net wrapping.This wrapping system saves a lot of time by wrapping bales fully automatically in a matter of seconds. The ingenious net guidance system ensures that the net is tightly wrapped across the entire width of the bale and that the edges are firmly secured.

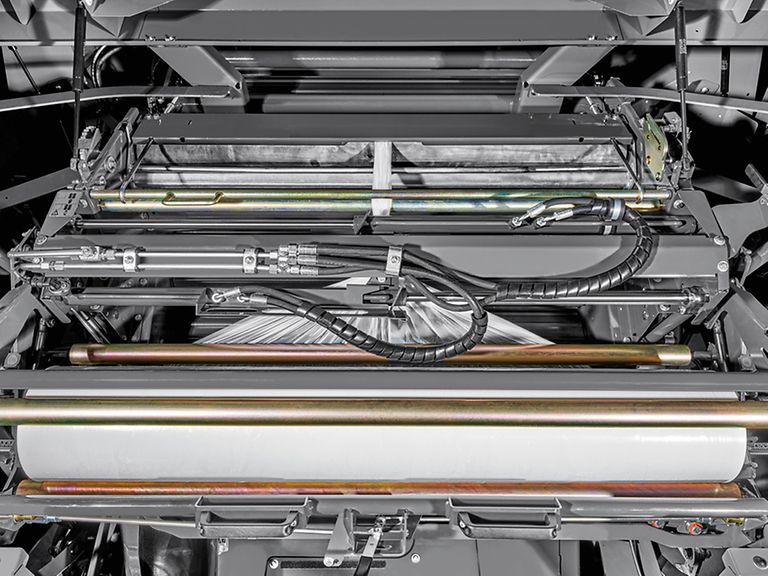

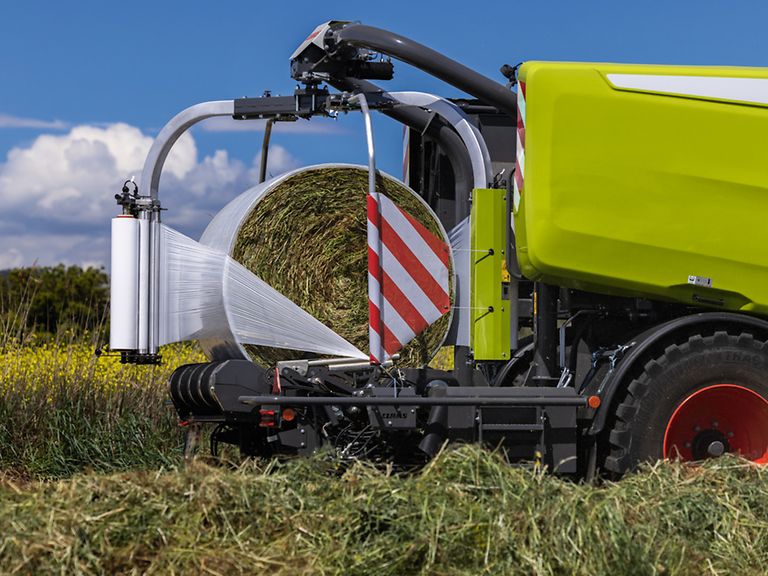

The film wrapping.

The ROLLANT 630 UNIWRAP offers the option of wrapping your bales with film instead of net. The film is pre-stretched and therefore fits tightly around the bale. This means you use less material, your bales are better sealed and your forage is optimally preserved. The result: excellent forage quality.

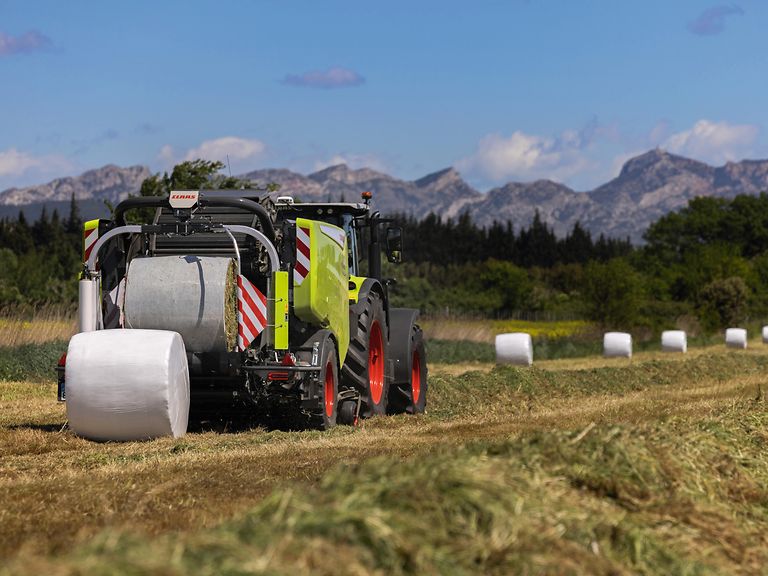

Wrapper.

Every moment counts when baling.

That is why our machine is designed to meet this challenge and deliver optimum results even in the most demanding conditions. Full capacity utilisation.

  • Only 23 seconds baling time per bale with six layers
  • Perfect compaction with MAXIMUM PRESSURE SYSTEM
  • High forage quality thanks to ROTO CUT with 17 or 25 knives
  • Reduced film consumption with the new hydraulic brake

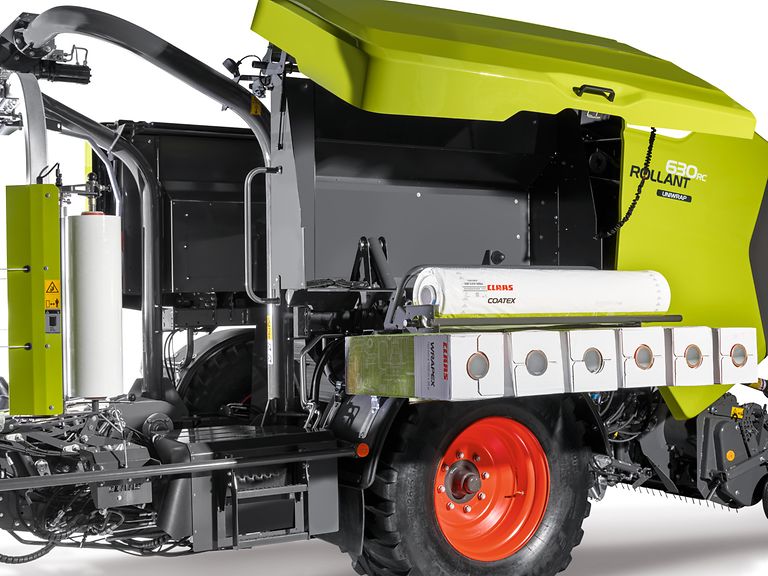

  • Space for 14 film rolls on the machine

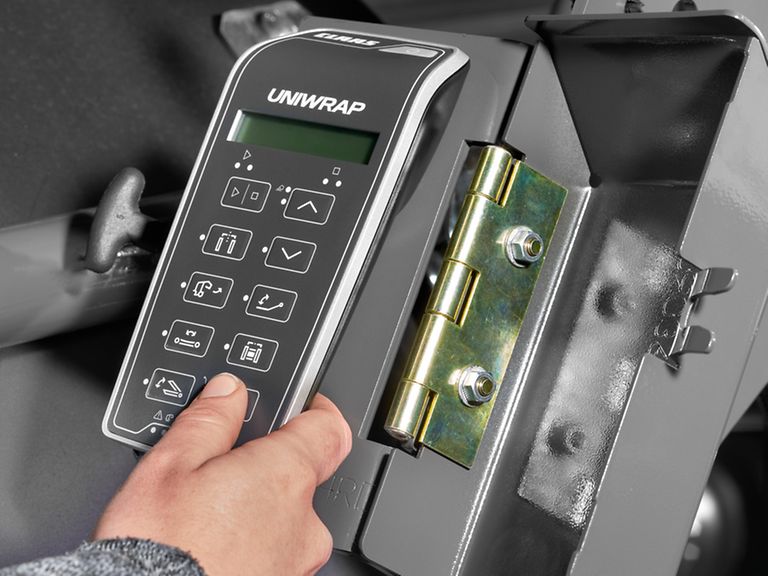

Intuitive operation.The new touchscreen of the CEMIS 700 and the ISOBUS terminal gives you even faster access to the menus. All functions are self-explanatory. The new CEMIS 100 is available as a rear-mounted terminal.

Tyres.

High driving safety.

The new tread pattern promotes self-cleaning, reduces wheel slip and provides better grip on slopes. The large 560/60 R 22.5 and 600/55 R 26.5 tyres protect the ground.

Specifications

Model
Bale chamber diameter (m)
Intake system
Number of rollers
Lowerable floor
ISOBUS-compatible
MPS II
630 RC UNIWRAP 1.25 ROTO CUT 16 Available Yes Available
