Just one rotor, but plenty of performance.

LINER single-rotor swathers

LINER single-rotor swathers

Outstanding technology.

Whether with three-point hitching or as a towed model – precise ground-contour following, high work rates and outstanding reliability are features that the LINER single-rotor swathers, with working widths of 12' - 15.5' (3.70 to 4.80 m), share with other members of the LINER family.

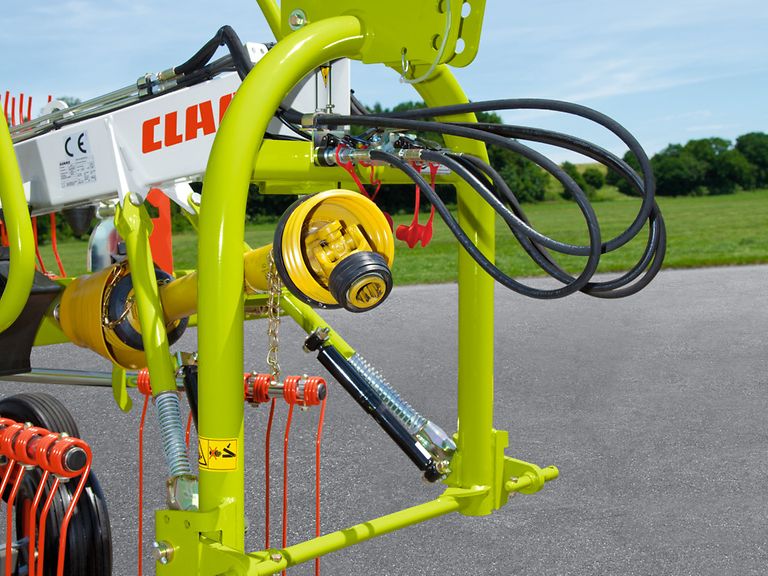

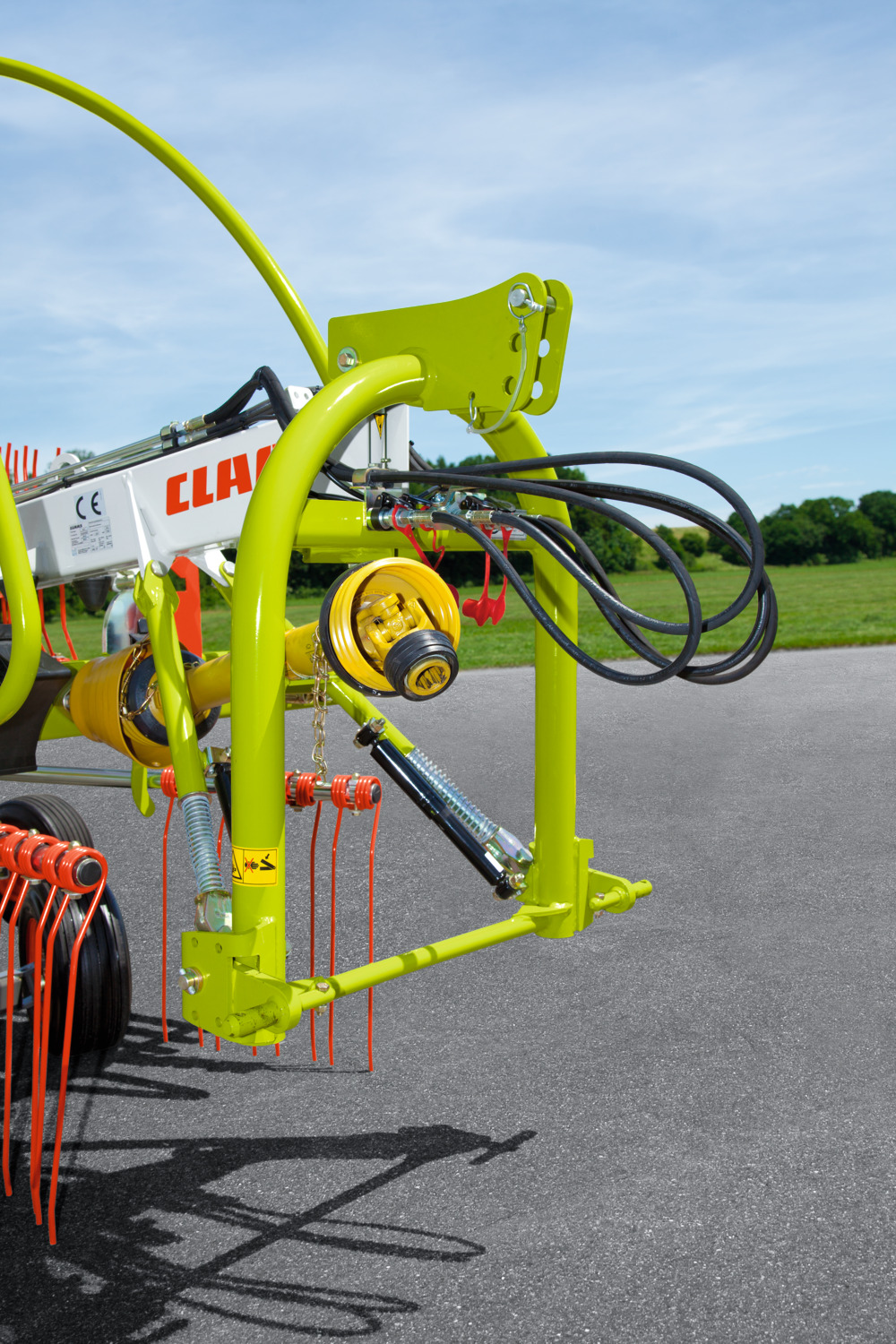

Attachment and removal.

All single-rotor swathers are easy to hitch and remove. As well as a handy parking position for the drive shaft, they also feature a parking stand which is very easy to operate.

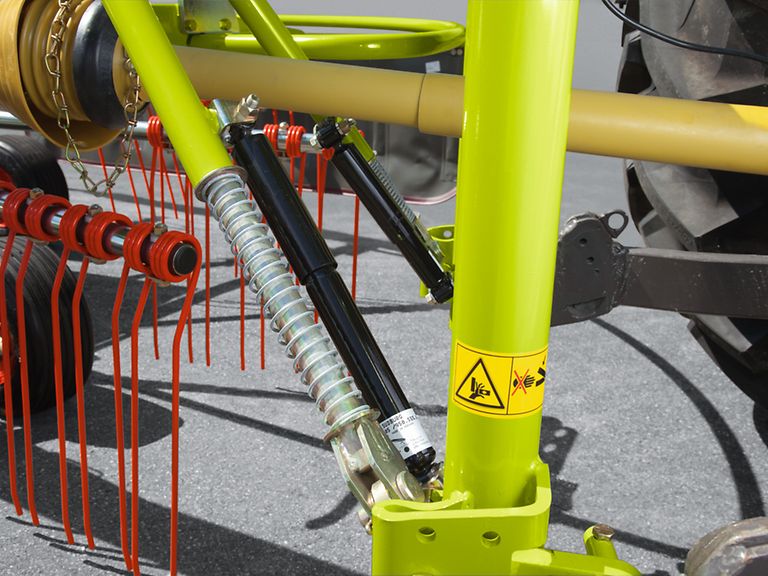

Stable on slopes and when cornering.

CLAAS power suspension prevents the machine from overrunning on slopes. It also provides suspension for the main frame, locks the three-point hitch for road travel and stabilizes the machine.

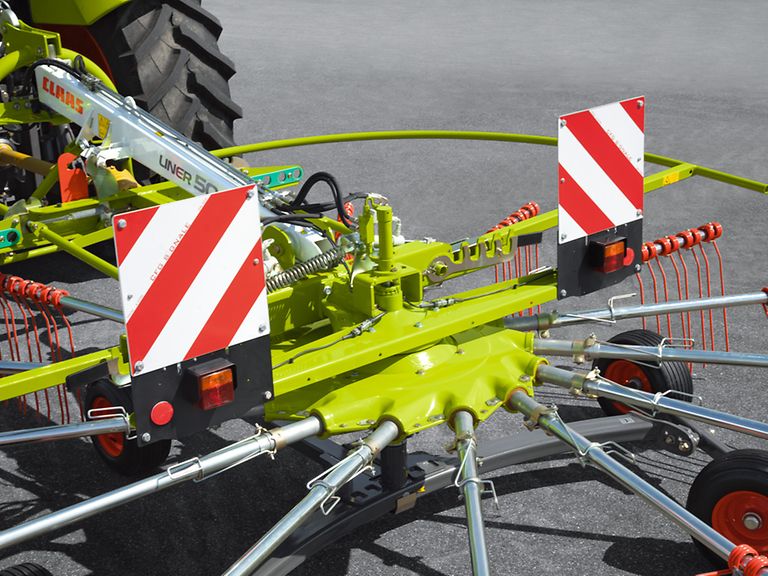

Everything revolves around the rotor drive housing.

The rotor drive assembly in the LINER runs in an oil bath to ensure continuous lubrication and exceptional reliability. Furthermore, the generously dimensioned spheroidal graphite cast iron cam track guarantees a long service life. In the event of a collision, the predefined bending points on the tine bars break off outside the rotor drive housing, providing optimum protection for the core element.

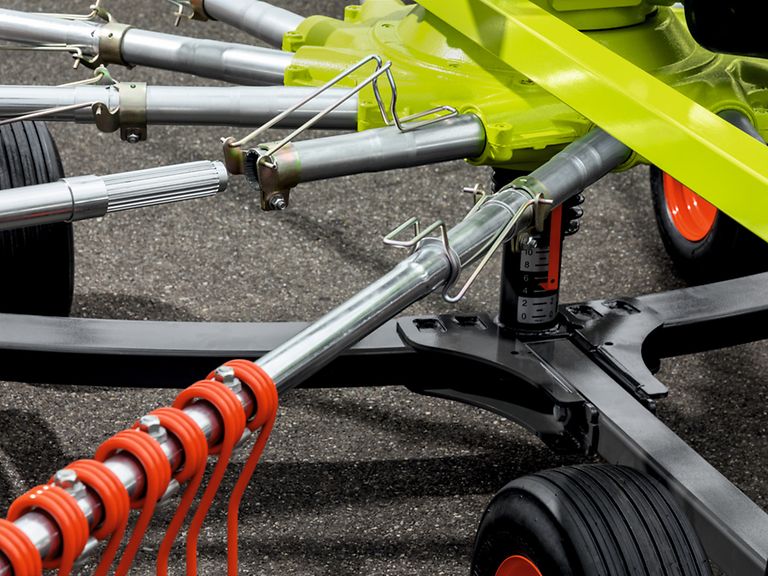

Speedy tine arm replacement.

The PROFIX tine arm attachment system allows you to prepare the machine for transport in next to no time – or minimize downtimes if a tine arm gets bent. The LINER 500-420 are equipped with this. In the LINER 370, the tine arms are secured by means of a tube linch pin.

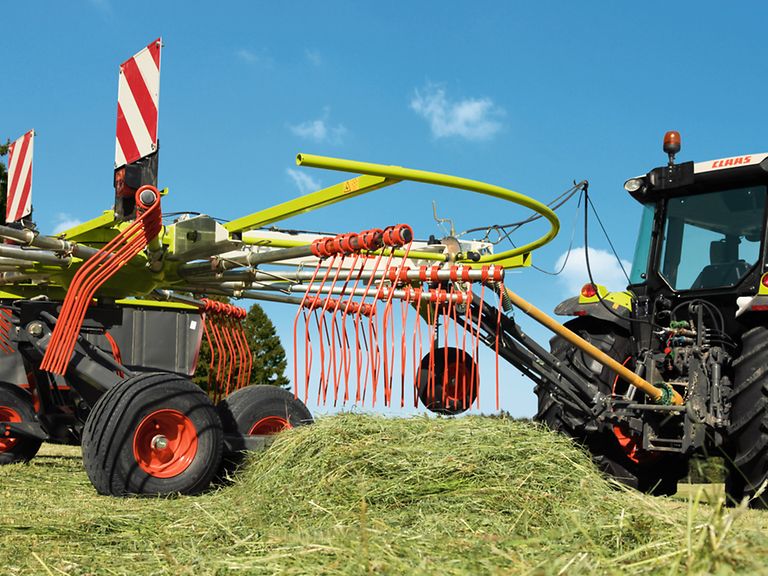

All the way up.

Lift heights of up to 1' 6" (50 cm) keep the swath intact at the headland even when using smaller tractors.

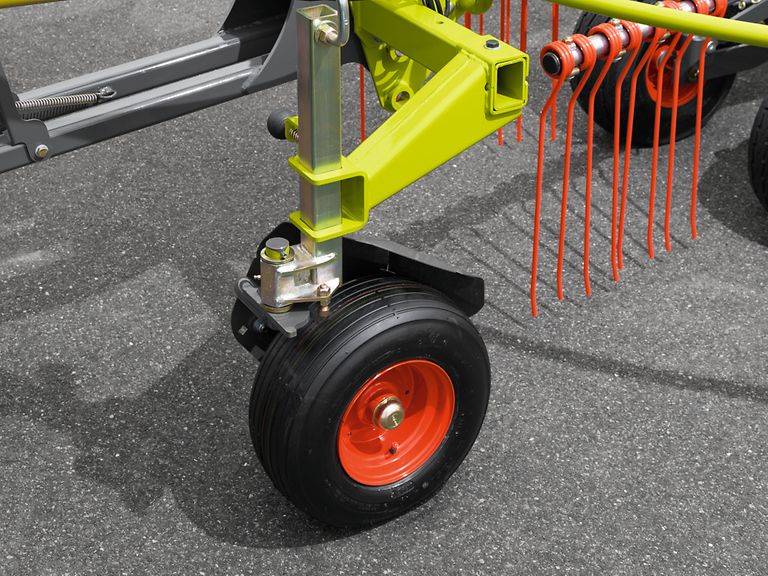

Precisely adjusted rake height with additional gauge wheel.

For some single-rotor swathers, a gauge wheel, with tool-free adjustment, is available as optional equipment. This assists in maintaining the correct height, particularly in hilly terrain, and keeps the rotor moving smoothly and cleanly over the ground.

Additional options.

For even greater convenience, the 500-420 single-rotor swathers can be equipped with optional hydraulic rake height adjustment, as well as safety frame and swath curtain folding.

T is for trailed.

CLAAS offers a high-performance trailed variant for farms that use smaller tractors: the LINER 450 T. This model stays in position behind the tractor even in hilly terrain, whether hitched to a linkage drawbar or swinging drawbar.

Specifications

Model
Working width (ft)
Swathing rotor
Swathing rotor diameter (ft)
Tine bars per swathing rotor
Removable tine bar
450 T NA 14.80 1 11.50 12 Yes (PROFIX)
370 T NA 12.10 1 9.50 11 Yes
