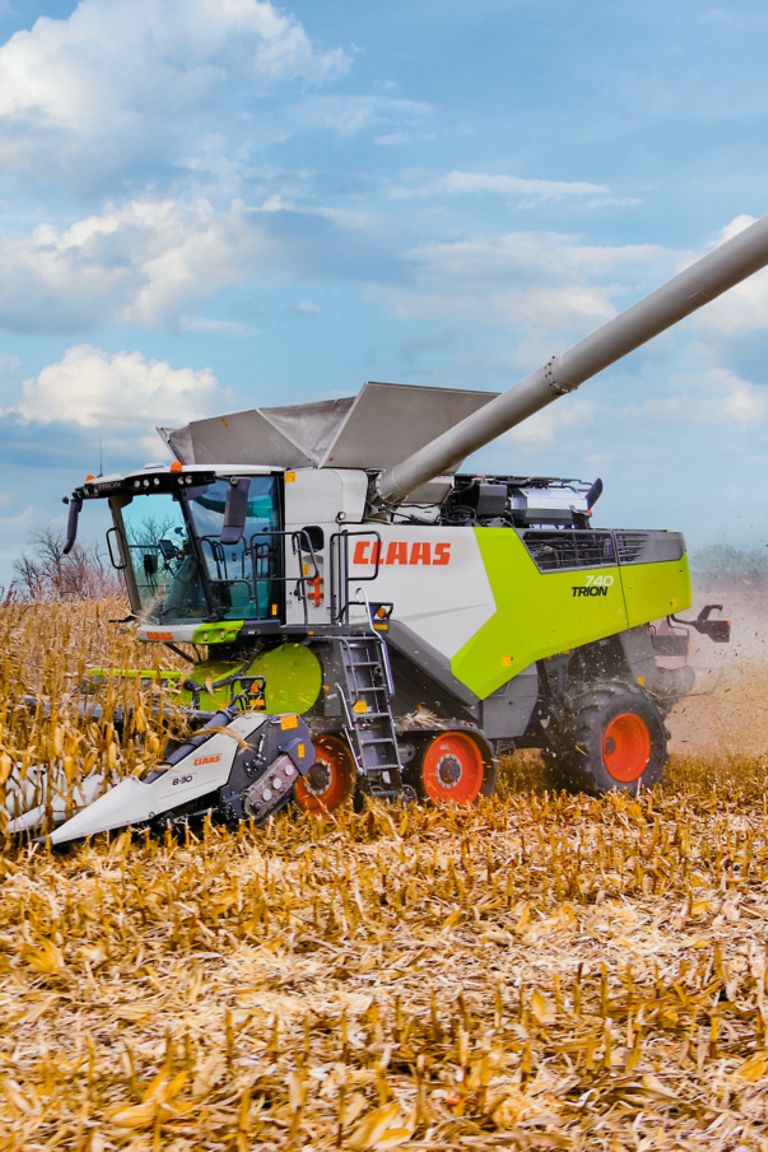

TRION 700

No time for compromises.

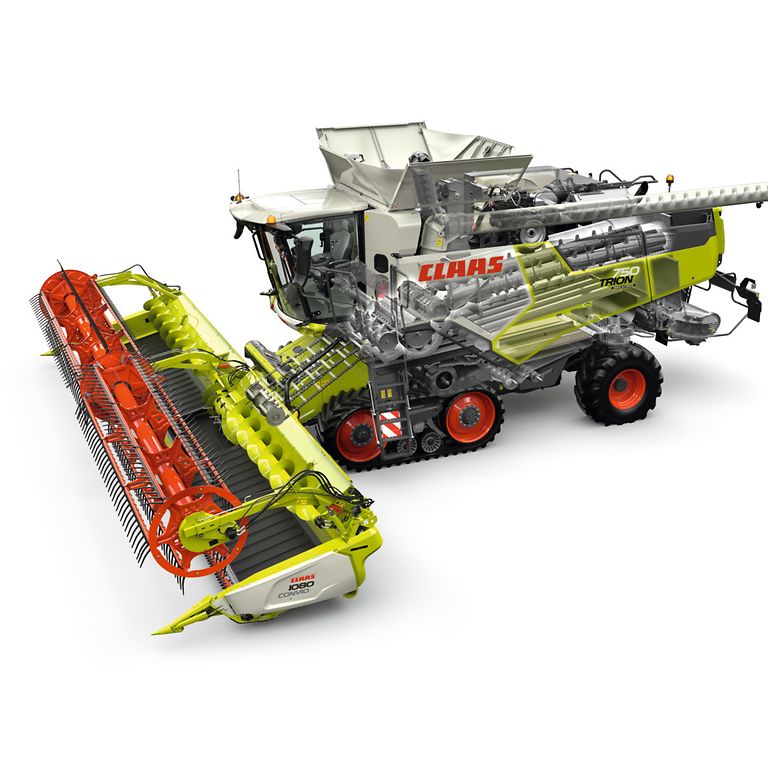

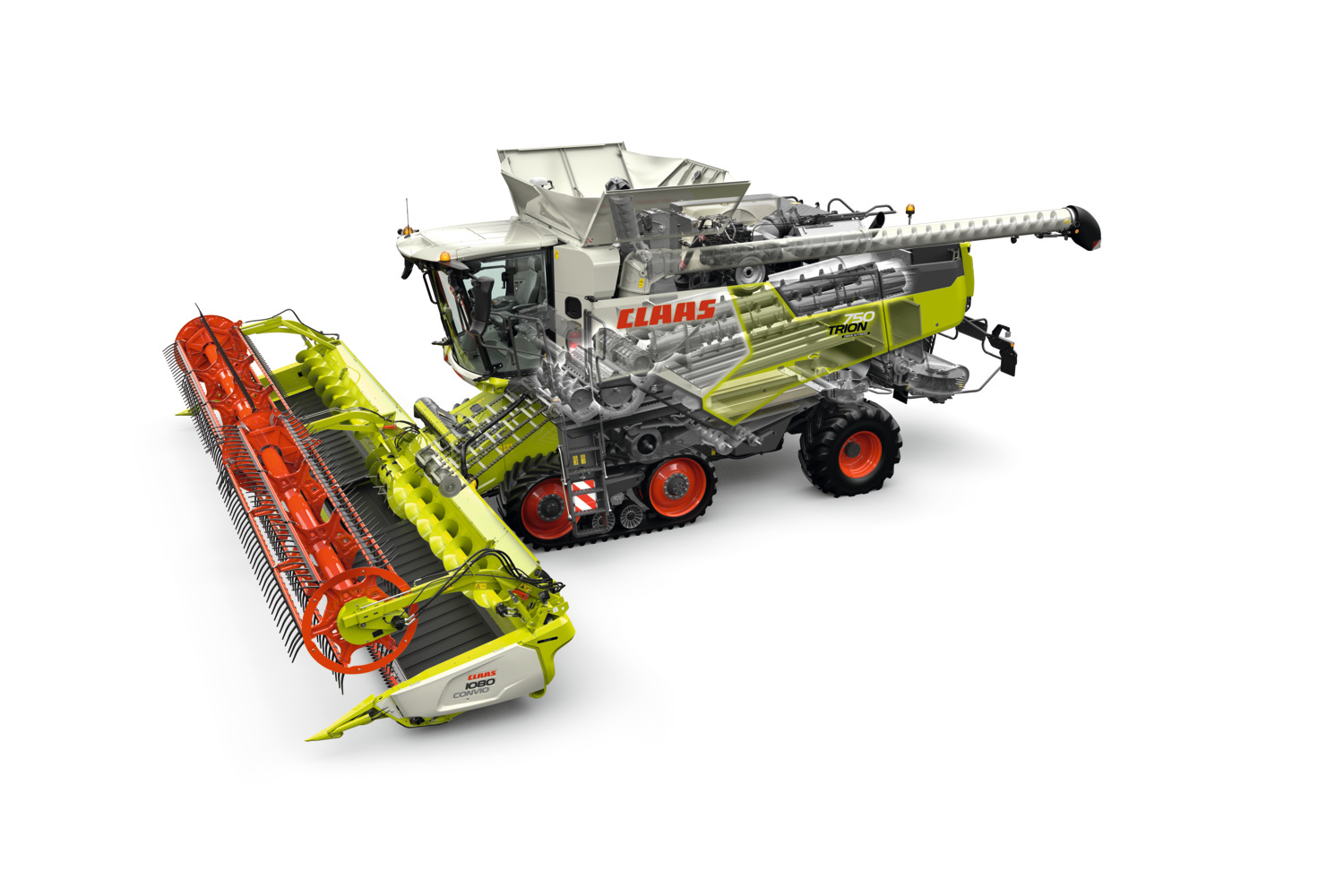

The TRION 700 features the APS HYBRID threshing system that has been setting throughput records with CLAAS combines for years. APS HYBRID combines two innovative technologies: the APS tangential threshing system and the ROTO PLUS axial separation system. Only CLAAS combines both systems in one machine.

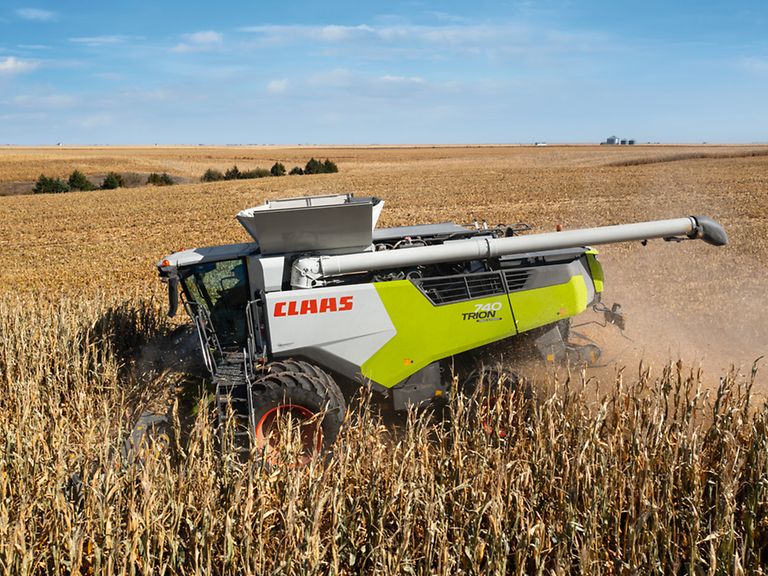

The TRION 740 has a single rotor. Compared to straw walkers, the APS HYBRID SYSTEM allows a 10 times higher crop flow rate between the rotors and the concave. The speed of the drums in the threshing system is adjusted independently of the speed of the rotors. All of this gives you a clear competitive edge. You get gentle threshing at high throughput, low fuel consumption and good straw quality. You can adapt the entire threshing process to changing harvesting conditions throughout the day.

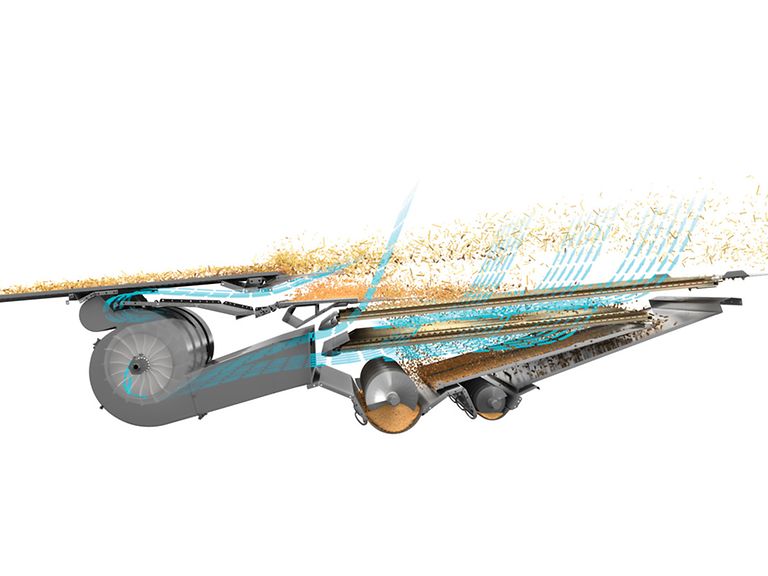

Clean grain is money in your pocket. The JET STREAM cleaning system with its hydraulic fan speed variator and high-performance returns is designed specifically to work together with the ROTO PLUS secondary separation unit. A dual-ventilated step enables intensive pre-cleaning.

JET STREAM is controlled conveniently from the cab. You no longer have to adjust anything manually. As an option, you can put the JET STREAM cleaning function under the fully automatic control of CEMOS AUTO CLEANING.

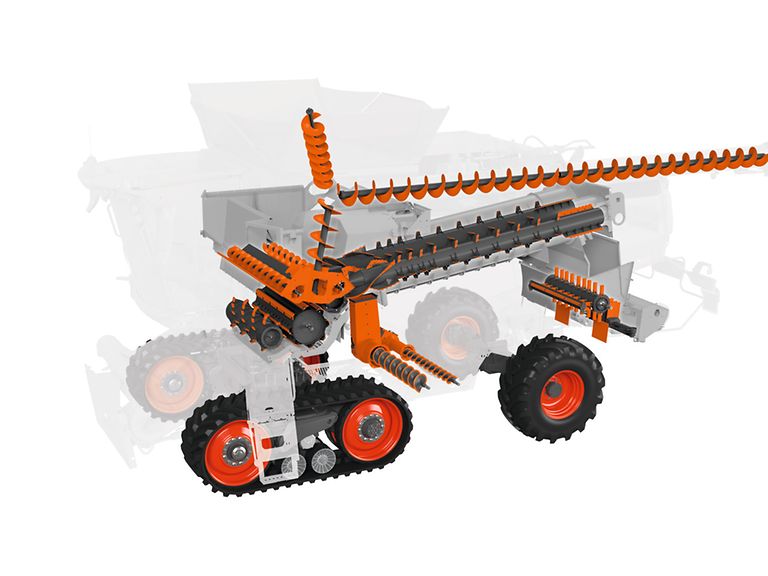

Once the threshing unit, secondary separation and cleaning systems have done their work, the cleaned grain is collected in the automatically expanding grain tank. Its capacity of up to 341 bu (12,000 liters) is matched to the high throughput of the TRION.

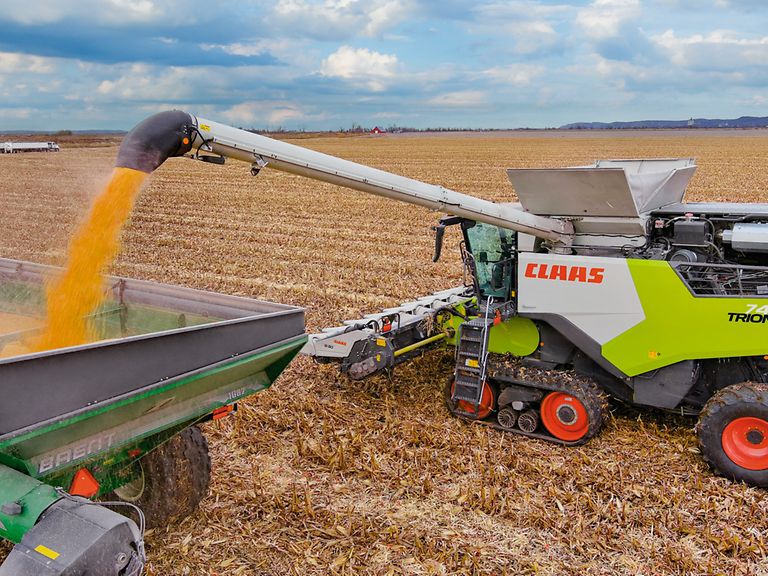

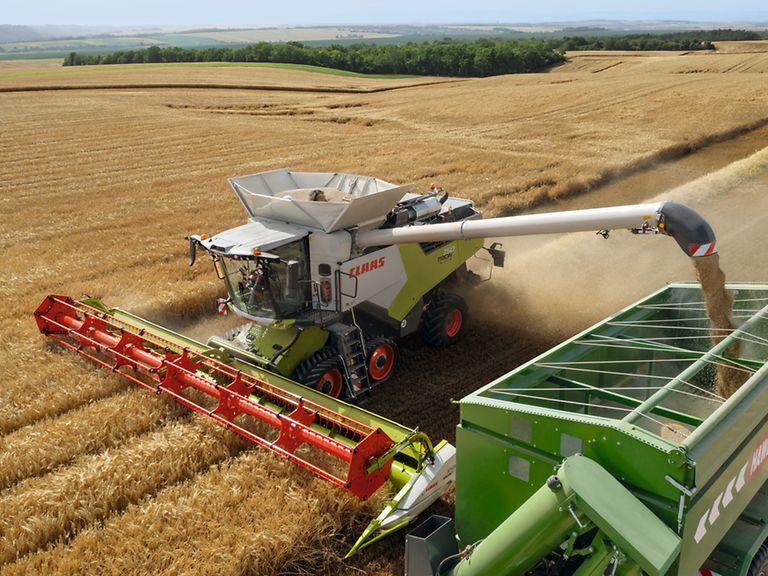

You can empty the grain tank at speeds of up to 2,060 gpm (130 l/s). The concentrated flow of grain makes it easier to reliably fill the grain tanker. The automatic closing flap at the end of the grain tank unloading tube ensures that nothing trickles out to prevent losses when unloading.

Cummins is the largest independent engine manufacturer in the world, producing more than 1.4 million engines annually. Cummins engines power more than 1,000,000 agricultural machines worldwide. They range from 55 to 4,400 horsepower. All TRION 700 models are equipped with the CUMMINS L9. This powerful engine meets the Stage V emission standard and provides high torque and efficient power transmission.

• In-line, 6-cylinder engine with 8.9 l displacement
• 367 hp (270 kW) to 435 hp (320 kW)
• Reduced rated engine speed: 1,900 rpm
• Common-rail technology with Stage V emission standard

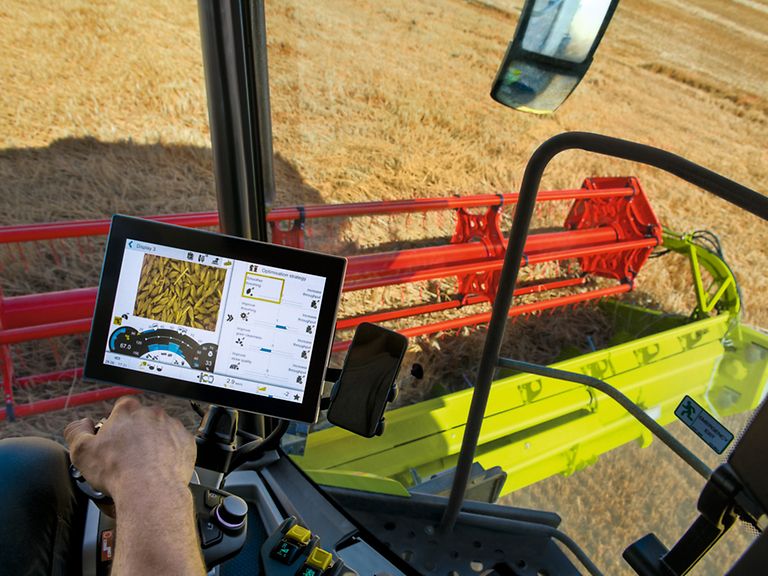

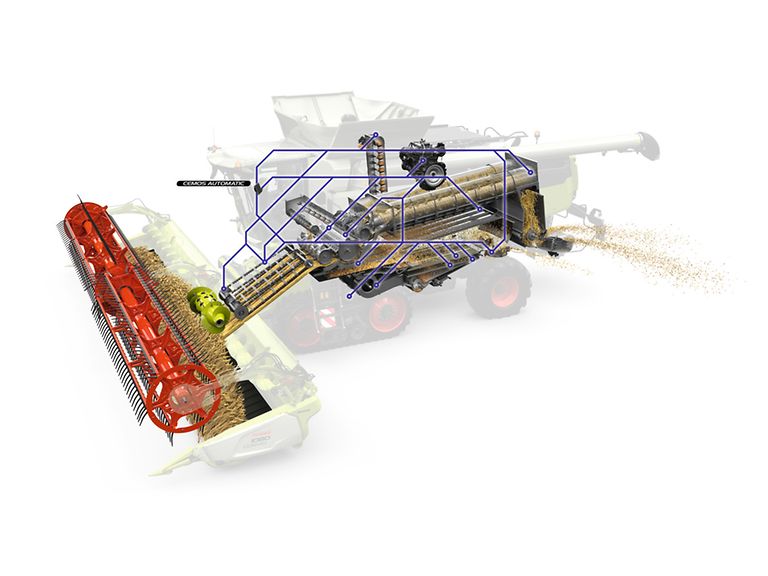

CEMOS AUTOMATIC is a self-learning operator assistance system that provides continuous, active support throughout the entire harvesting process. Based on the given harvesting specifications, such as grain quality, threshing quality, level of cleaning, straw quality and throughput, the system analyzes sensor feedback and settings during operation and optimizes your TRION to maximize its performance. Just enter your grain quality and loss level specs into the system, and CEMOS AUTOMATIC will do the rest. It’ll get the most out of the machine during harvesting to make sure it meets your exact criteria.

CEMOS AUTOMATIC at a glance:

• CEMOS DIALOG guides the operator to the best machine settings
• AUTO CROP FLOW protects the entire system against overload
• AUTO SLOPE controls the fan setting depending on the slope
• CRUISE PILOT actively controls the harvesting speed
• AUTO CLEANING optimizes sieve opening and fan speed
• AUTO SEPARATION optimizes rotor speed and rotor flap position
• AUTO THRESHING optimizes threshing concave clearance and threshing drum speed
• 4D cleaning controls the rotor flap position depending on the slope

Excellent straw management.

A user-friendly straw chopper drive, a power spreader for large working widths and automatic spreading direction adjustment—these are the three essential components of an effective straw management system.

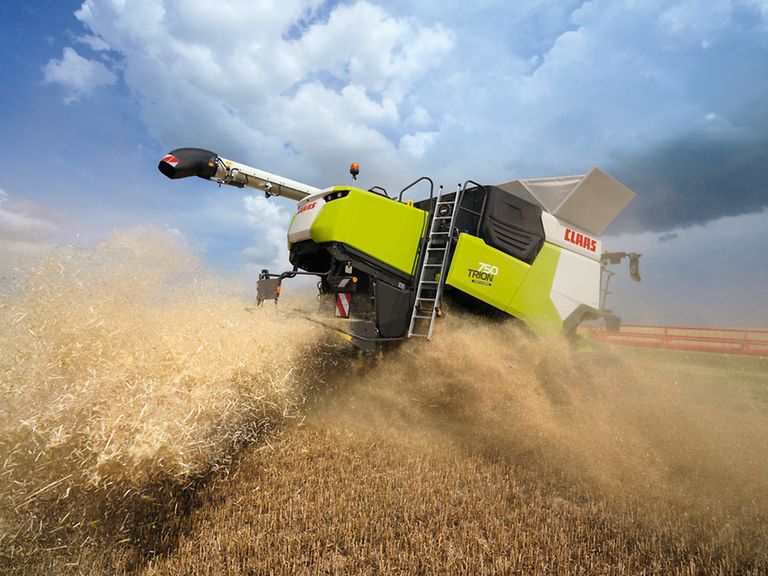

Deflector spreader up to 25 ft 3 in (7.7 m) working width.

Straw is fed directly into the chopper from the straw walkers. The intensity of the chopper can be adjusted to suit the working conditions. The STANDARD CUT has up to 64 knives and the SPECIAL CUT up to 88 knives, all sharpened on both sides. There's also a mechanically adjustable static knife for the right cut. The deflector spreaders can be adjusted without tools, and the spreading width and direction can be adjusted manually or hydraulically via CEBIS.

Precision power spreader.

The CLAAS power spreader ensures precise straw distribution, even with a large amount of straw, strong crosswinds or slopes. Comprising two spreading rotors turning in opposite directions at a constant speed, it takes both the chopped material and the chaff straight from the cleaning section, accelerates it further and spreads it evenly across the entire working width.

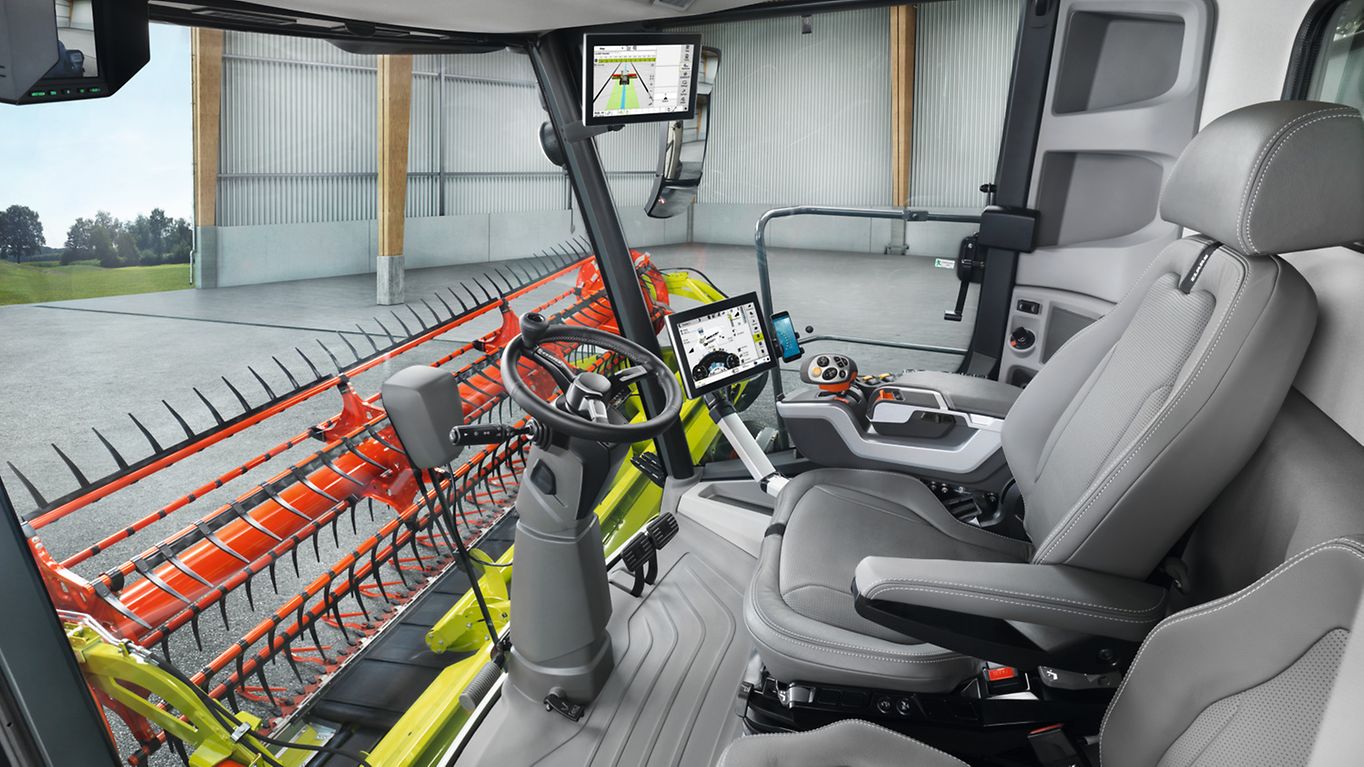

Steering systems are an essential tool in your everyday work. The TRION can be equipped with automatic steering systems, which you can employ depending on the job at hand: the digital AUTO PILOT or the satellite-based GPS PILOT CEMIS 1200.

• Machine connect shares machine data via the cloud.
• With CEMIS 1200 you can create and manage all your jobs directly on the machine.
• DataConnect allows you to process your machine data, regardless of manufacturer.
• Machine connect simplifies maintenance and service.
• CEMOS CONNECT links the machines in your fleet and allows you to share settings between them.

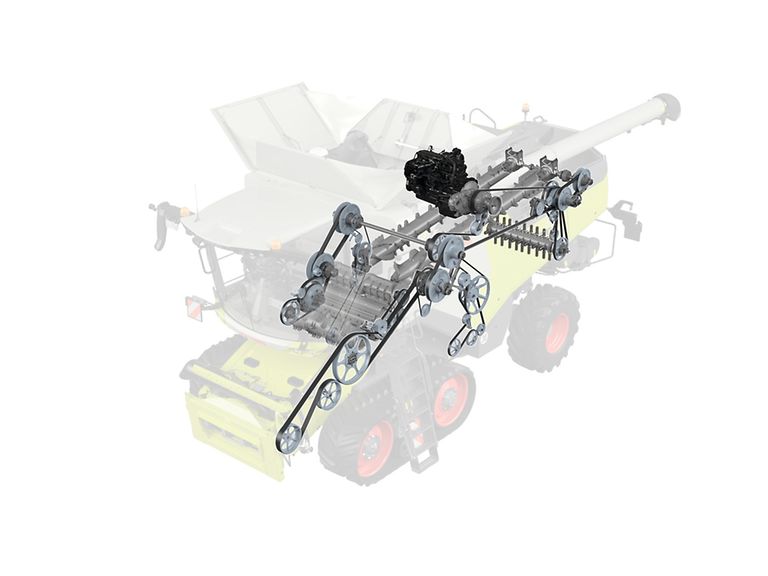

Power is distributed efficiently via belt drives. The drives engage quietly and with low wear. All drive components are designed for a long service life.

• Hydraulically actuated dry clutch
• Standardized, maintenance-free belt tensioners
• Up to six fewer belts
• Improved power transmission
• Lower maintenance costs

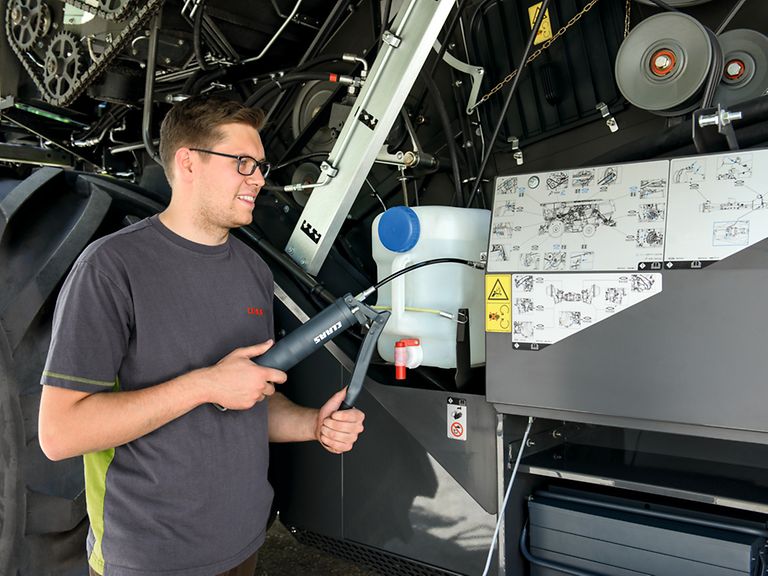

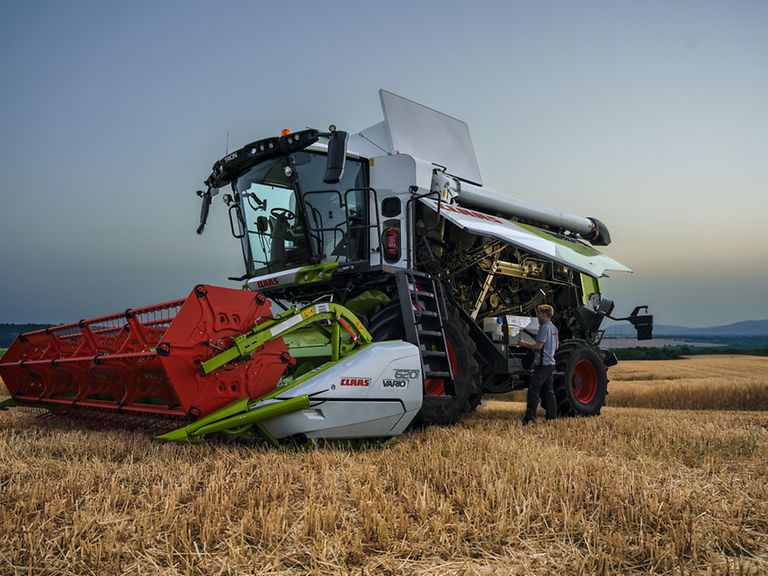

When it comes to maintenance, the TRION continues the legacy of its predecessors as an exceptionally low-maintenance machine. Maintenance intervals are long, with the working hydraulics requiring an oil change only every 1,000 hours. Daily maintenance is quick and easy, and all major service points are easily accessible.

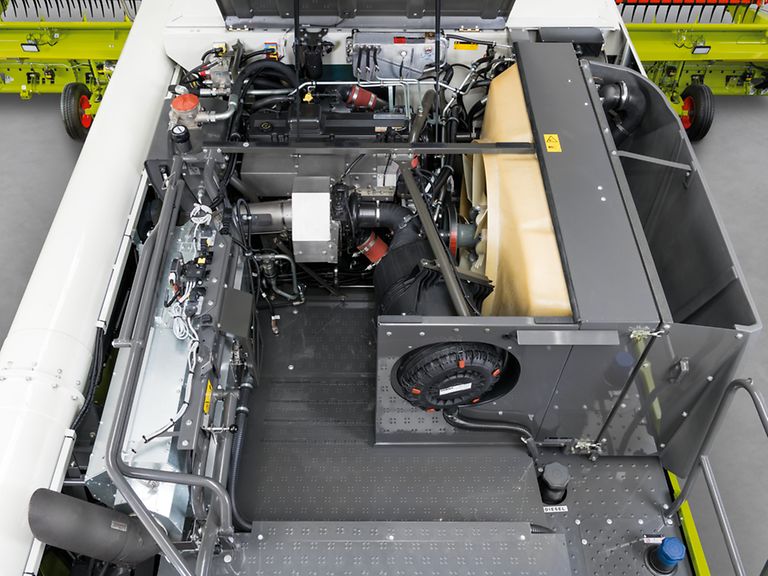

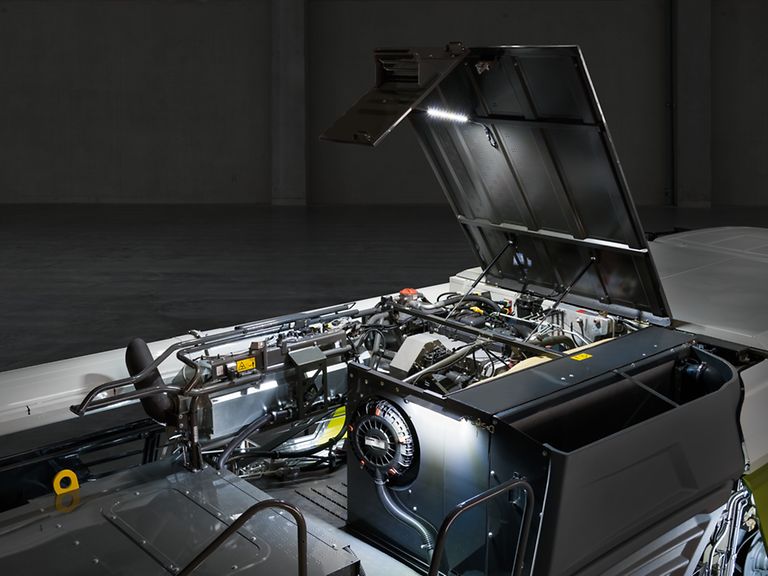

The robust engine compartment cover makes it even easier to access the grain tank and to perform any necessary maintenance tasks. It’s slip-resistant and designed to be walked on. Handrails and a folding step provide additional safety.

• All the maintenance points around the machine are easily accessible.
• Contact points for the mobile ladders enable safe access for maintenance and cleaning.
• The side panels, steps and engine compartment are brightly lit.

All components subject to heavy wear and tear in the crop flow are also available in PREMIUM LINE quality on request. These are the right choice when you have to harvest under extreme conditions which are particularly hard on your combine harvester. PREMIUM LINE components are extra resistant to wear and corrosion and have a very long service life. Even with intensive annual use or when used on difficult-to-harvest crops, these parts will not usually have to be changed until after several harvest seasons. The increased durability is a result of special manufacturing processes, high-quality materials and special coatings.

MAXI CARE Plus is a combination of service level agreements tailored to your individual requirements for maximum operational reliability and predictable cost management. For example, you can combine MAXI CARE Protect, the extended warranty, with the CLAAS MAXI CARE Maintenance.

As part of the MAXI CARE Maintenance contract, all defined maintenance work is carried out by your CLAAS service partner. Of course, only CLAAS ORIGINAL spare parts and operating supplies are used, which gives you full cost transparency and a high resale value.
