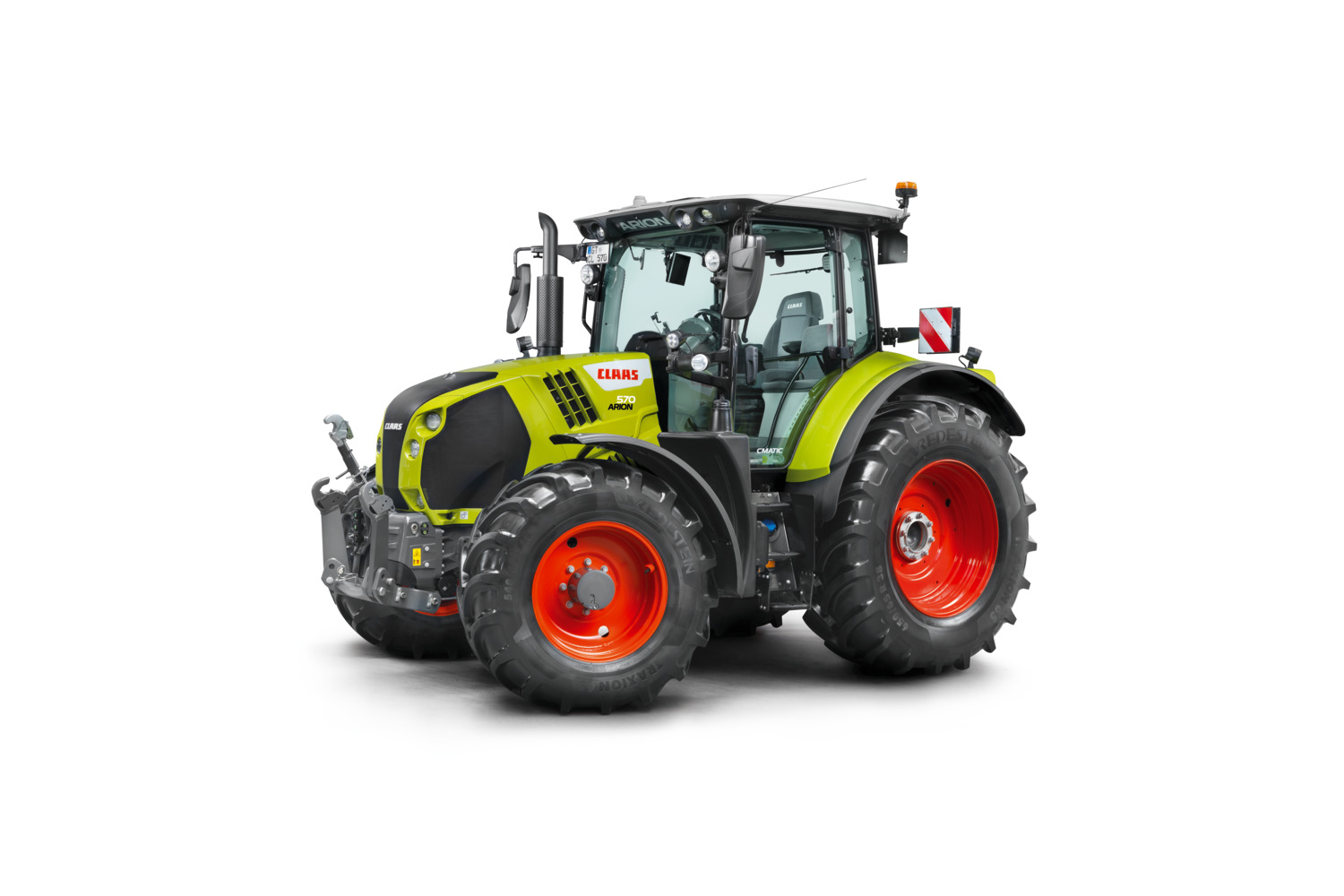

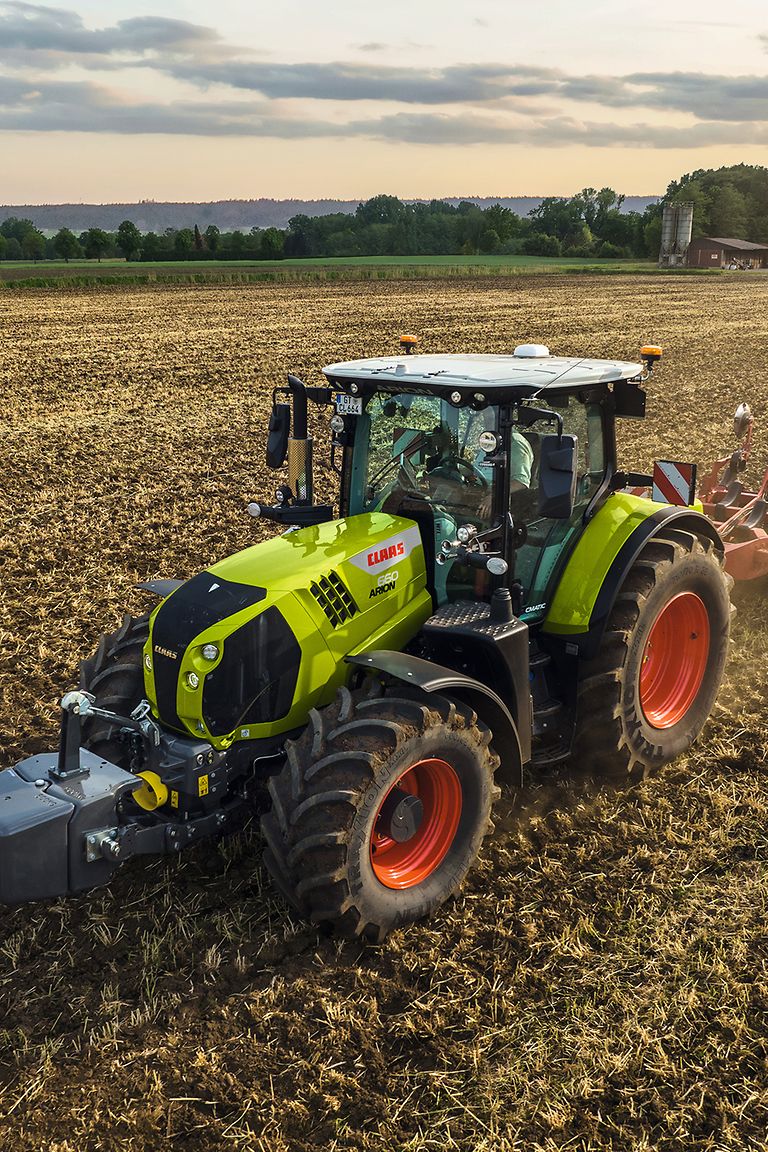

ARION 600 / 500
Assisting you wherever it is needed.

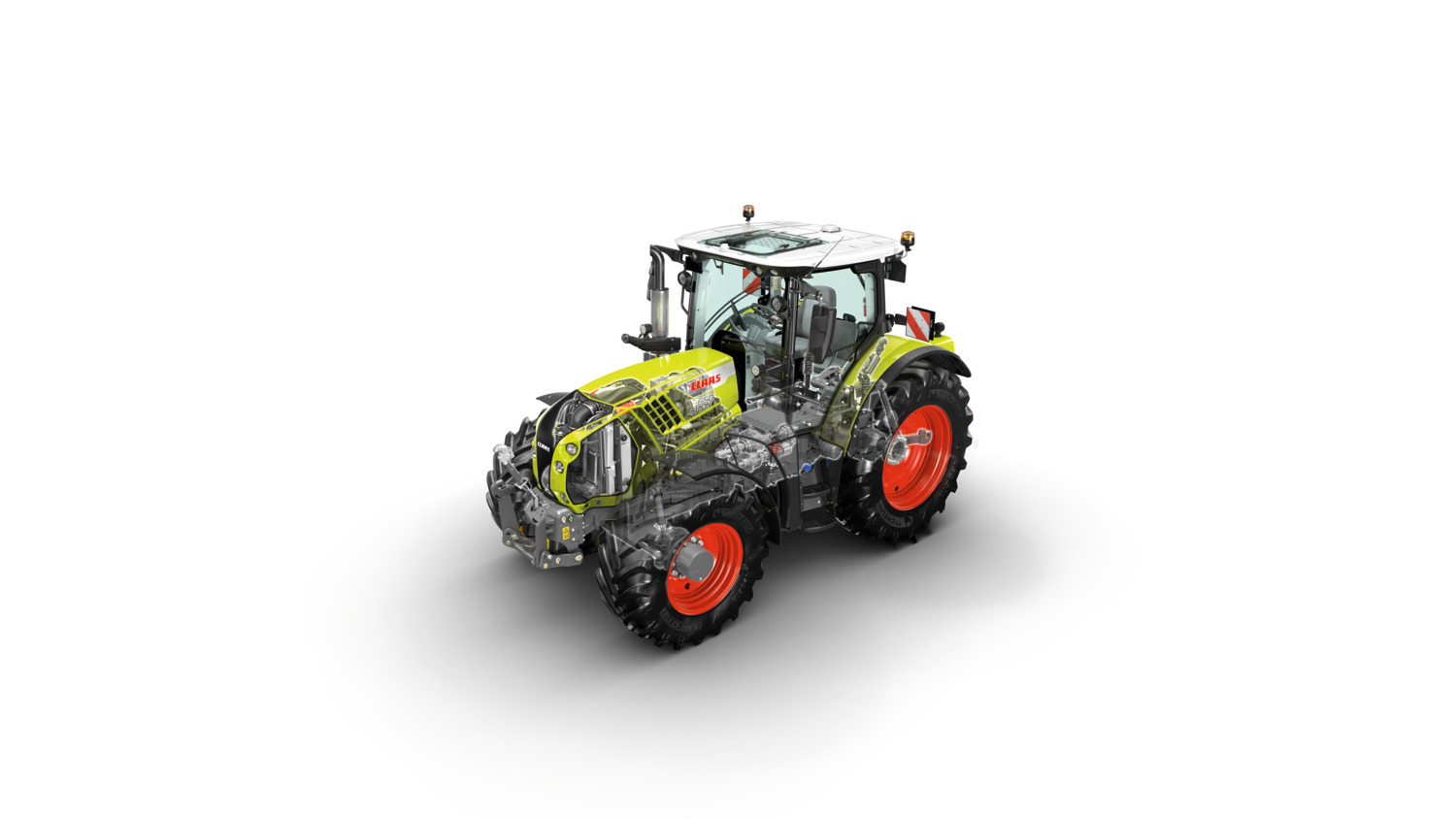

The ARION 660 features a host of new functions developed by our engineers in consultation with ARION drivers. These factors earned the ARION 660 CMATIC a place in the finals of the Tractor of the Year Midpower Award 2024. When you drive to the fields everyday, you know exactly what you want.

Simply convincing.  An impressive list of features.

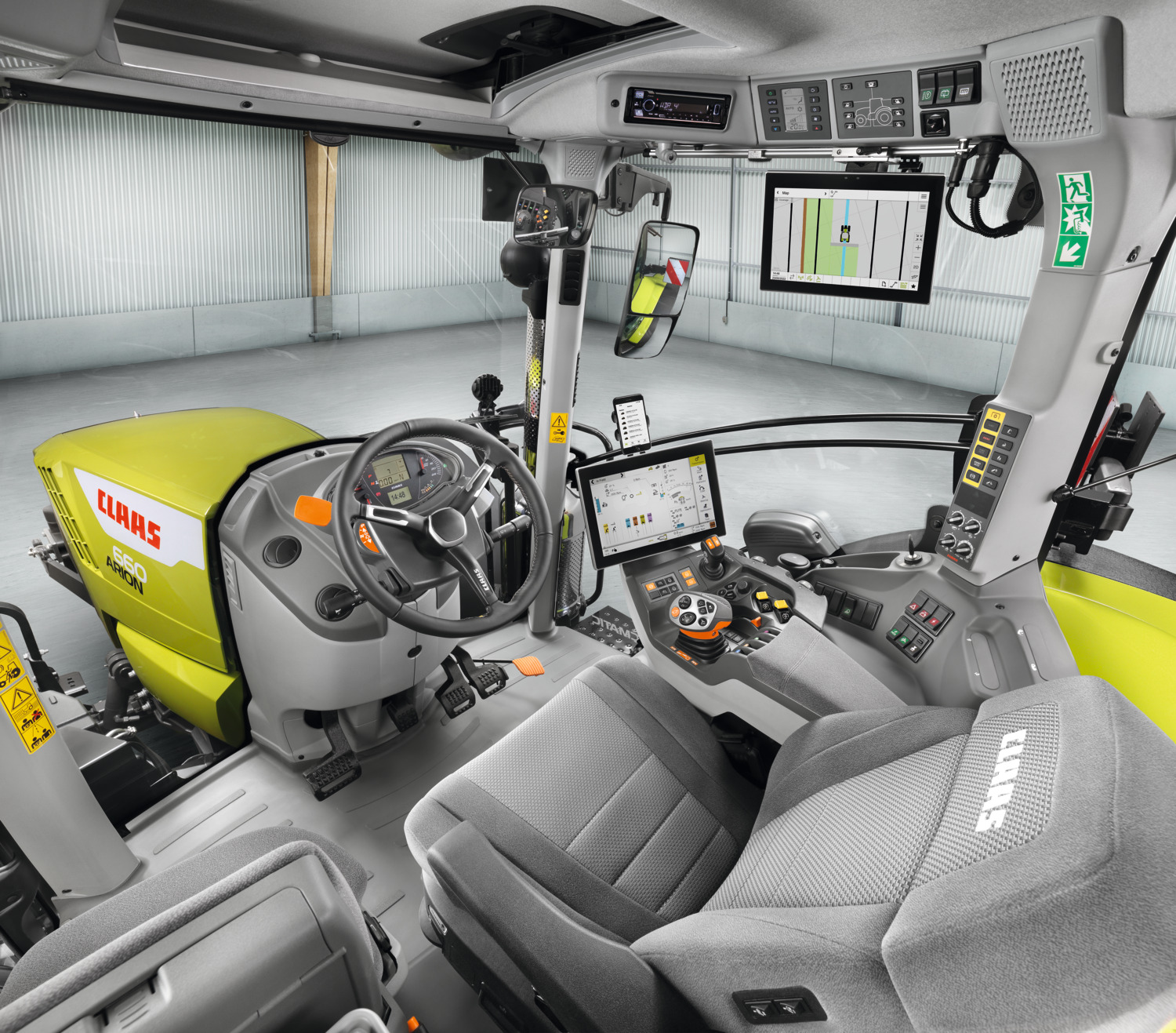

Comfort concept with 4-point cab suspension protects driver and machine.
CEBIS version features user-friendly navigation and enhanced automatic functions to boost your productivity
CMATIC continuously variable transmission from CLAAS will change your mind forever.
The ARION with HEXASHIFT powershift transmission and CIS+ specification combine efficiency with simplicity.
Get more done with operator assistance systems like CEMIS and CEMOS, and data management

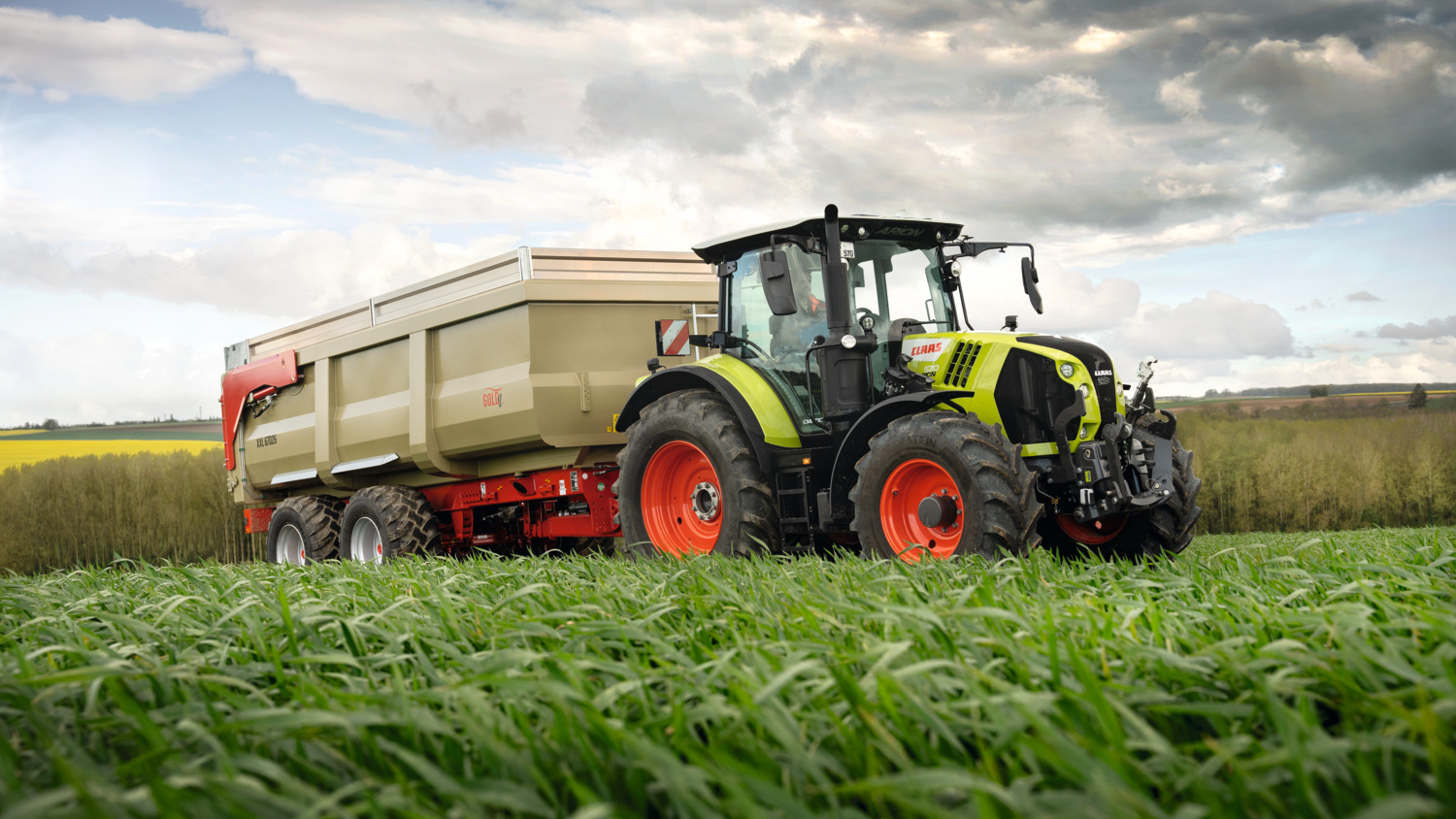

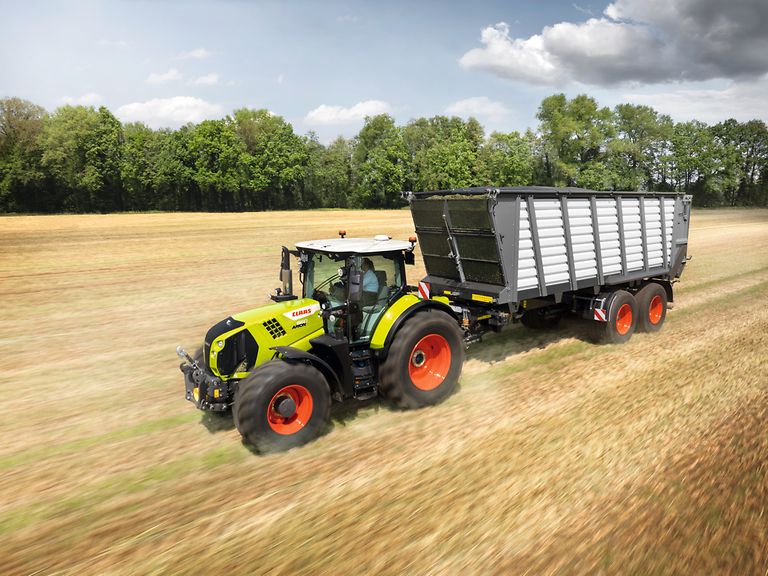

ARION 570

4 cylinders, 180 hp, endless possibilities?

The ARION 570 CMATIC – the largest 4-cylinder tractor from CLAAS – combines reliable efficiency with remarkable manoeuvrability and exceptional comfort. Its output of 180 hp is always available and effortlessly replaces even small 6-cylinder tractors. It feature a soil-friendly kerb weight averaging 7.8 t, high performance and higher efficiency for partial load operations. The innovative wheel-loader mode takes front loader work to a completely new level, making it ideal for mixed farms with diverse requirements.

DLG Powermix and profi tractor test.

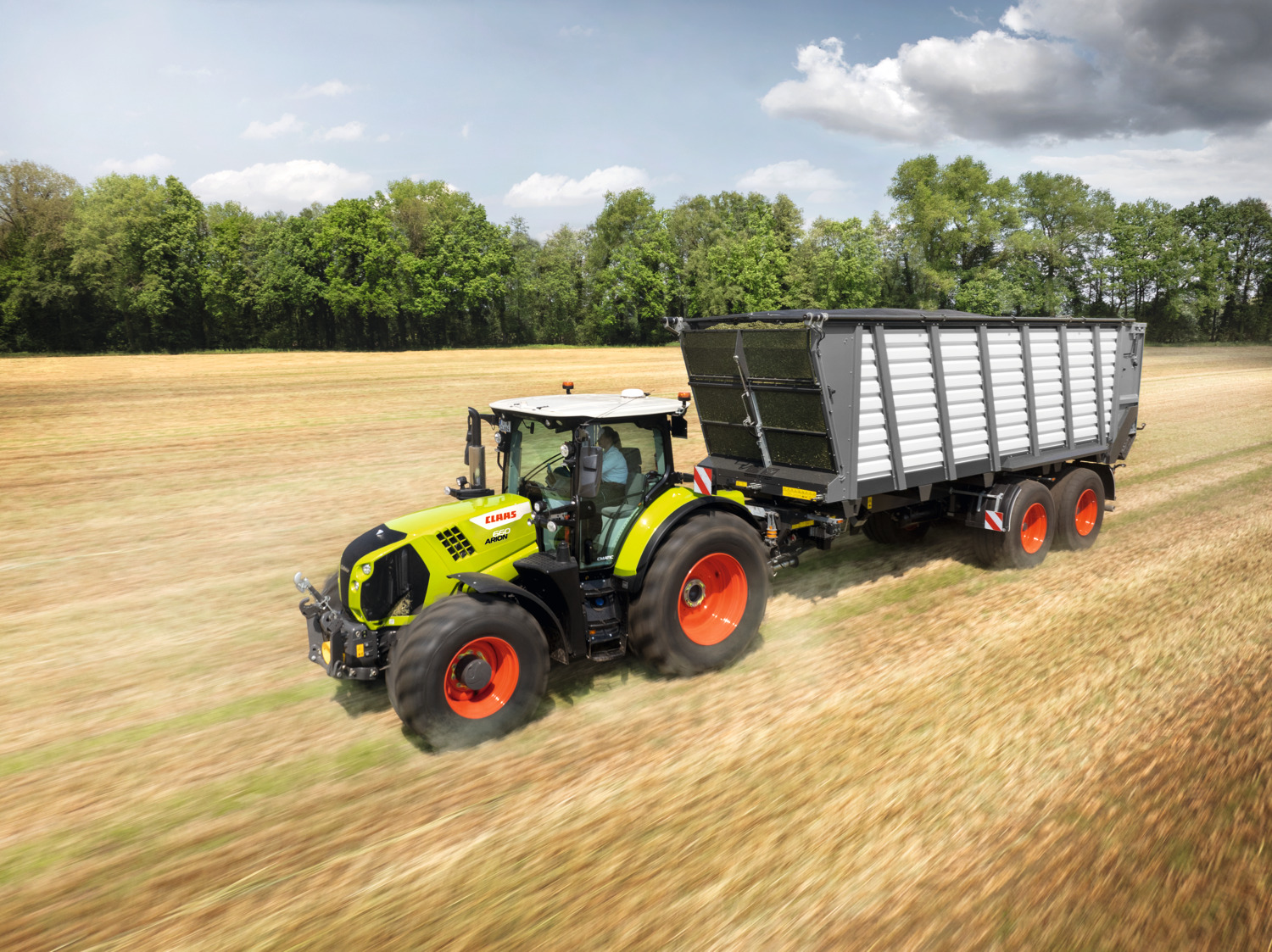

Twice tested: ARION 660 is fuel-efficient, comfortable and versatile.

The ARION 660 scored highly on power and economy in the DLG Powermix test thanks to CMATIC transmission and 205 hp. The trade journal profi judged it to be an economical and extremely well-connected all-rounder in the field, around the yard, and on the road.

To the DLG Powermix test

To the profi test report

To the topagrar Austria test report

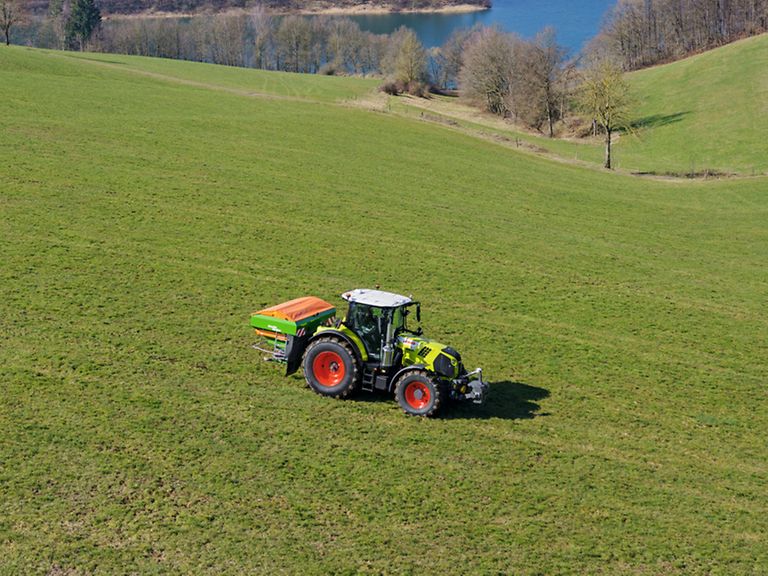

Always perfectly adjusted

Optimise your machine settings for all conditions with CEMOS.

Protects both driver and machine.

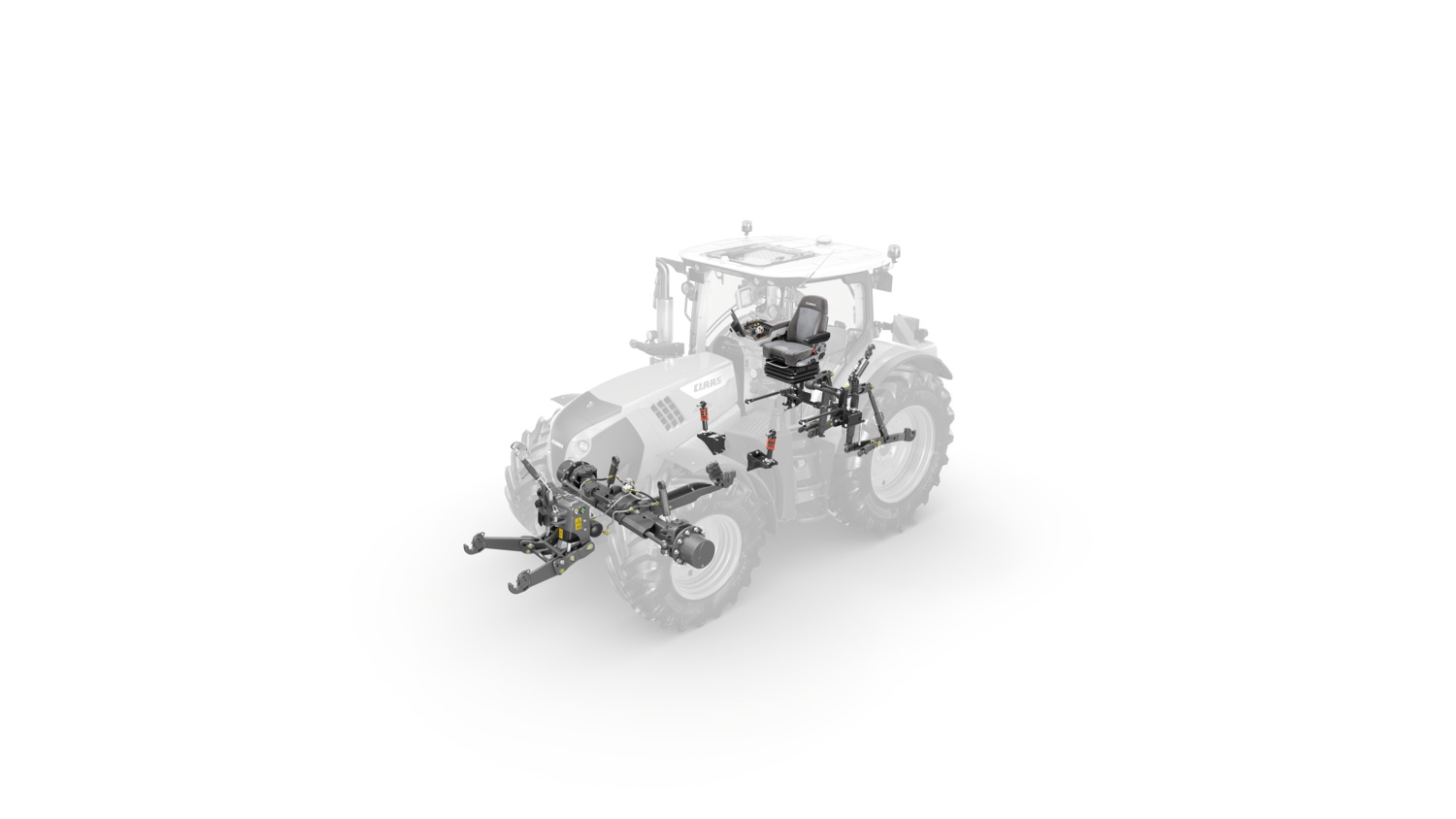

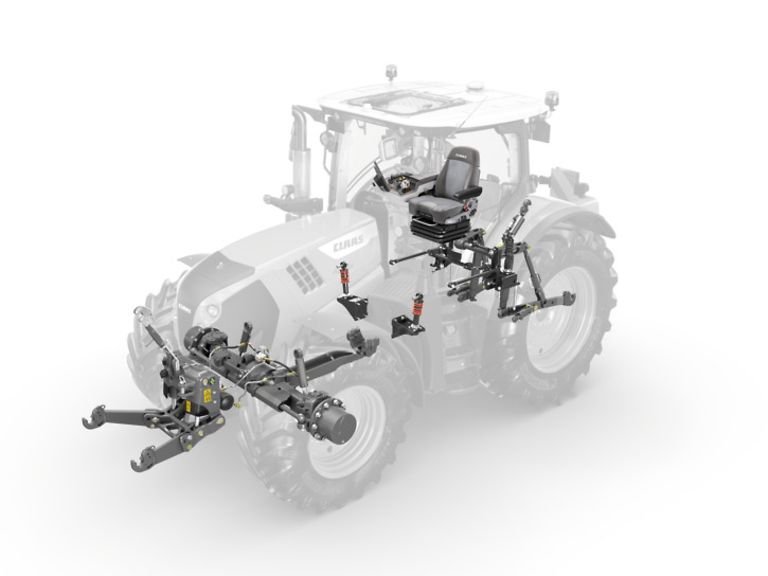

The suspension.

Full suspension. Four suspension points mean that the cab is fully isolated from the chassis, preventing impacts and vibration from reaching the driver. Longitudinal and lateral struts join the suspension points and keep the cab stable when turning corners or braking. An adjustable torsion strut allows you to choose between three different suspension hardnesses. The entire suspension system is completely maintenance-free.

PROACTIV front axle suspension: CLAAS suspension kinematics in ARION 600 / 500 tractors produce outstanding drive characteristics. Widely spaced suspension cylinders and roll stabilisation on bends guarantee vehicle stability and safety, while the double-acting suspension with load change compensation and 100 mm suspension travel deliver outstanding ride comfort.

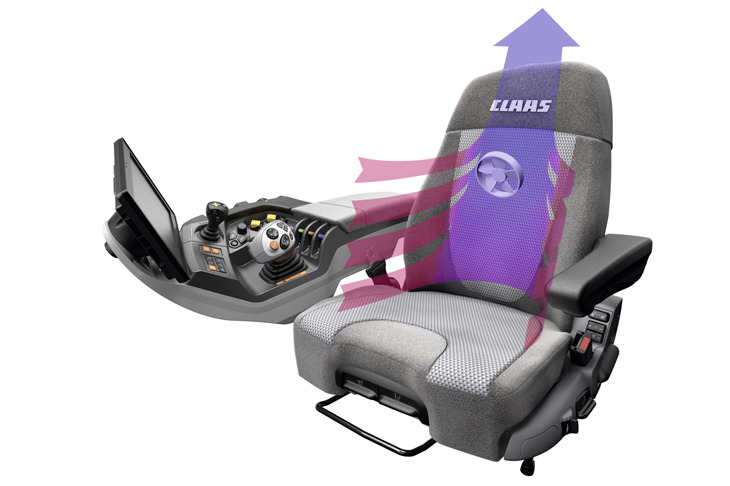

The premium seat.

Warm and ventilated.

The range of Sears and Grammer seats includes a ventilated premium seat.

Active seat ventilation and heating make the seat feel comfortable whatever the weather
Semi-active suspension adjusts automatically to the weight of the driver
Longitudinal and lateral horizontal suspension

Shift your mind.

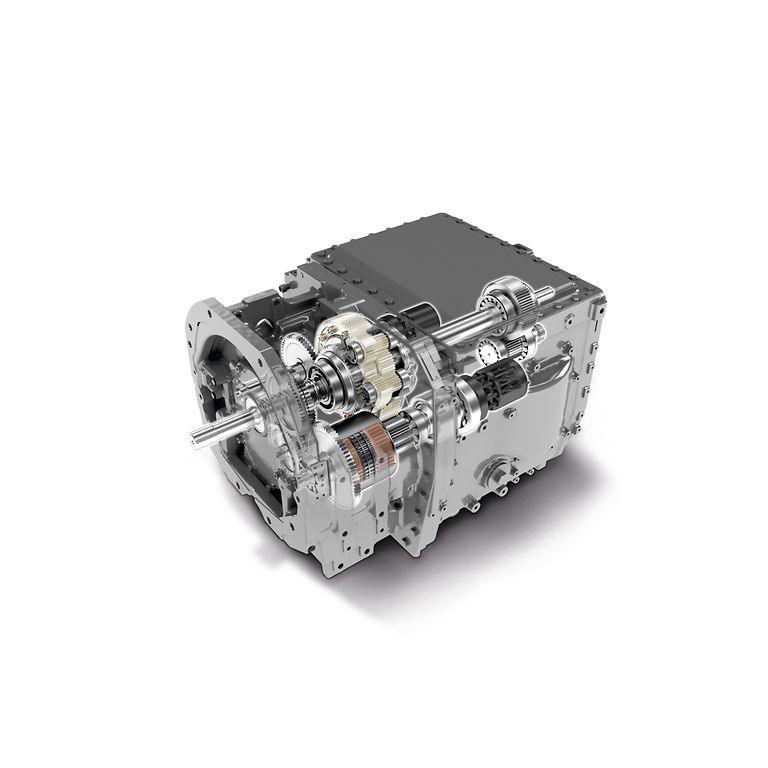

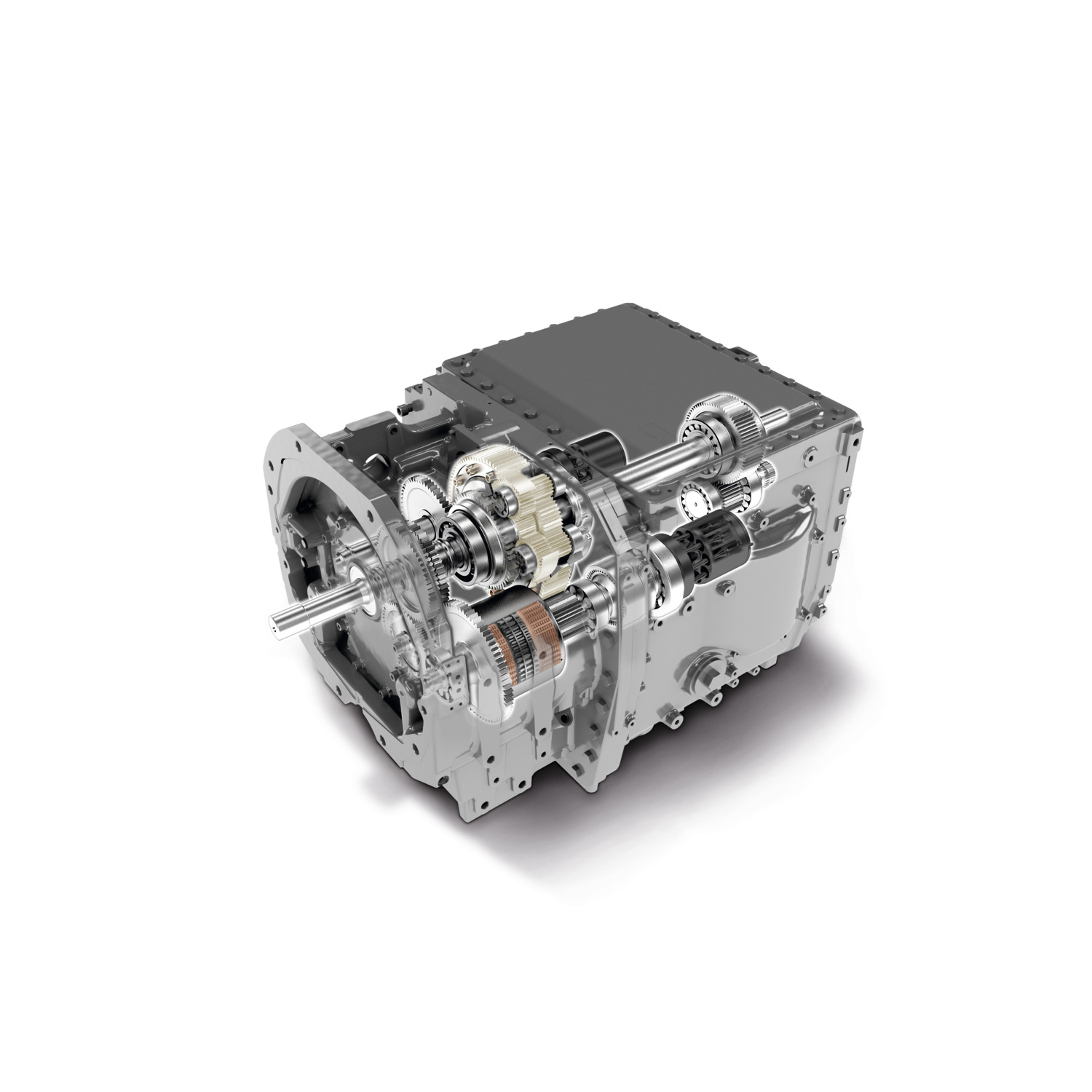

CMATIC continuously variable transmission

Forget everything you thought you knew about continuously variable tractor transmissions. CMATIC from CLAAS will change your mind forever.

Our continuously variable transmission increases your efficiency. The machine operates at the optimum speed at all times, autonomously – ensuring genuinely impressive ride comfort, yet simple operation. So you can focus all your attention on the job in hand and benefit from long-lasting transmission quality.

Efficient and user-friendly.

CMATIC

CMATIC delivers a consistently high level of efficiency in every application and in all speed ranges. Fully automatic transmission control is simple and convenient.

The benefits for you:

Completely smooth acceleration from 0 to 50 km/h (or 40 km/h), even under maximum load
Low fuel consumption on the road as maximum forward speed is reached at just 1,500 rpm
Powered zero mode makes it easy to stop on slopes and start off again without using the service brake
Two drive ratios which change the power flow and processes within the transmission
Drive ratio changes smoothly and automatically to optimise work without the driver having to intervene
Consistently high efficiency levels for low fuel consumption and maximum versatility in all applications

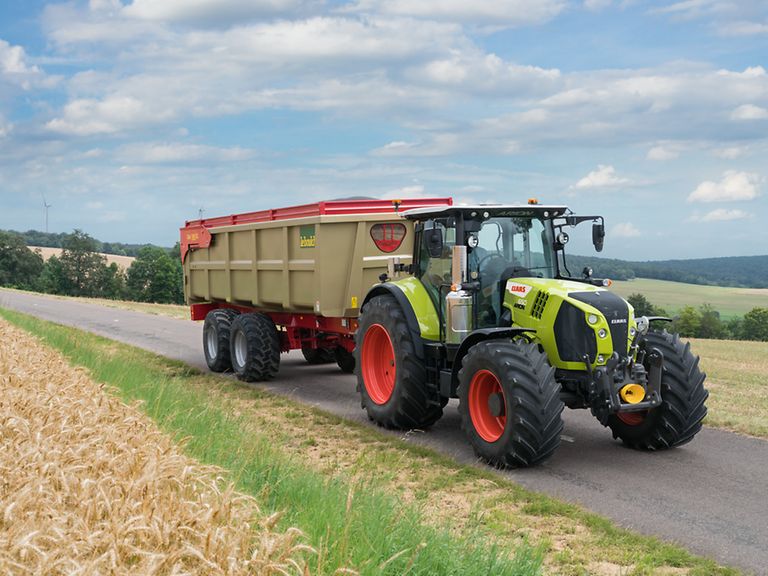

Efficient powershift transmission.

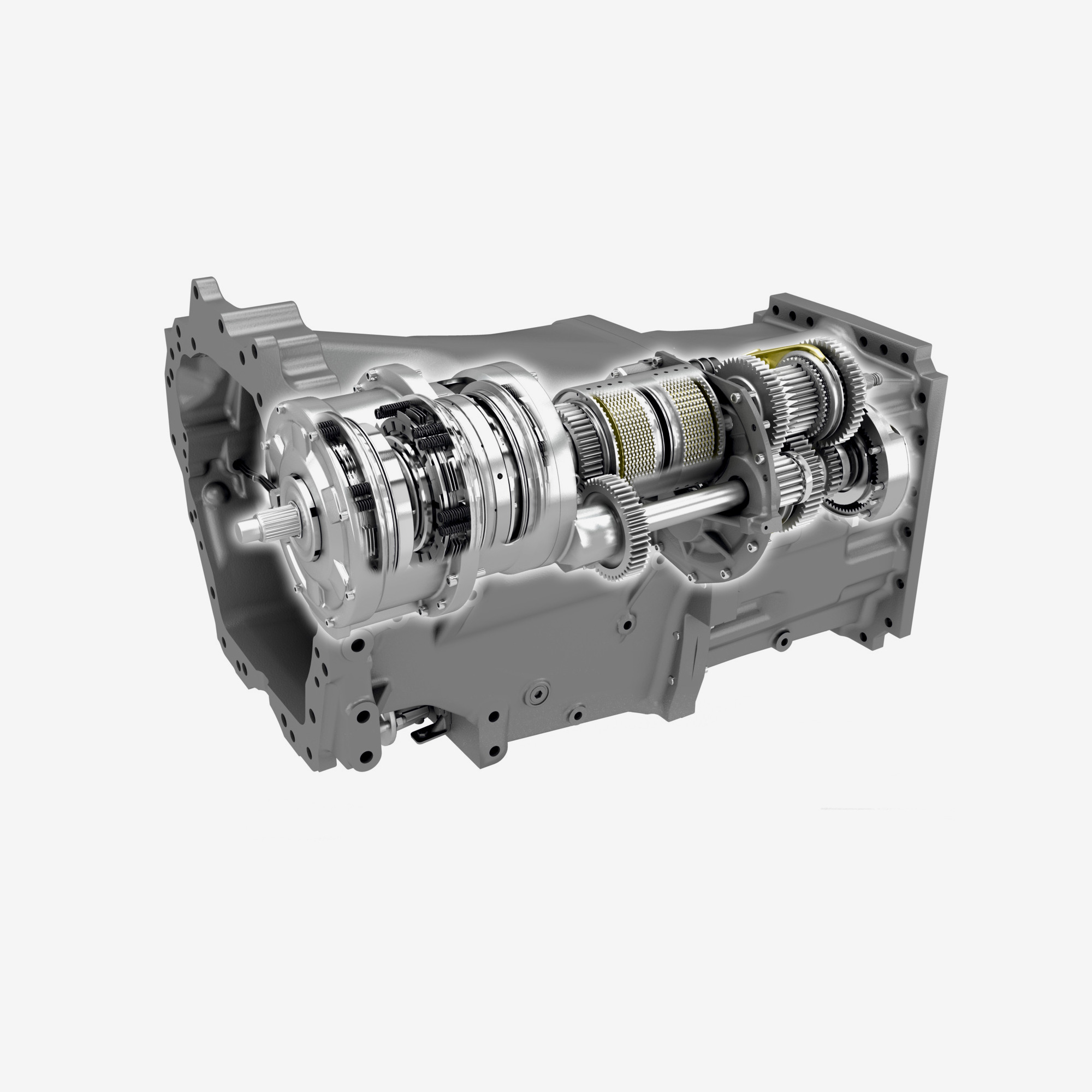

HEXASHIFT

With HEXASHIFT you can shift effortlessly through all six powershift speeds and the four automatic ranges using your fingertips, or you can shift automatically using the HEXACTIV auto-shift function.

Overlapping powershift speeds allow the full output potential of the engine to be utilised and provide smooth range shifting on the road.

Clear benefits:

No need to use the clutch when changing range
Excellent efficiency in the field and on the road for low fuel consumption
CLAAS powertrain management for smooth changes in range and powershift operations
SMART STOP: stop with the brake pedal without using the clutch
HEXACTIV auto-shift function with cruise control
Disable cruise control and engine speed memory using the throttle pedal
Super ECO 40 km/h at 1,650 rpm

Simply more.

CIS+

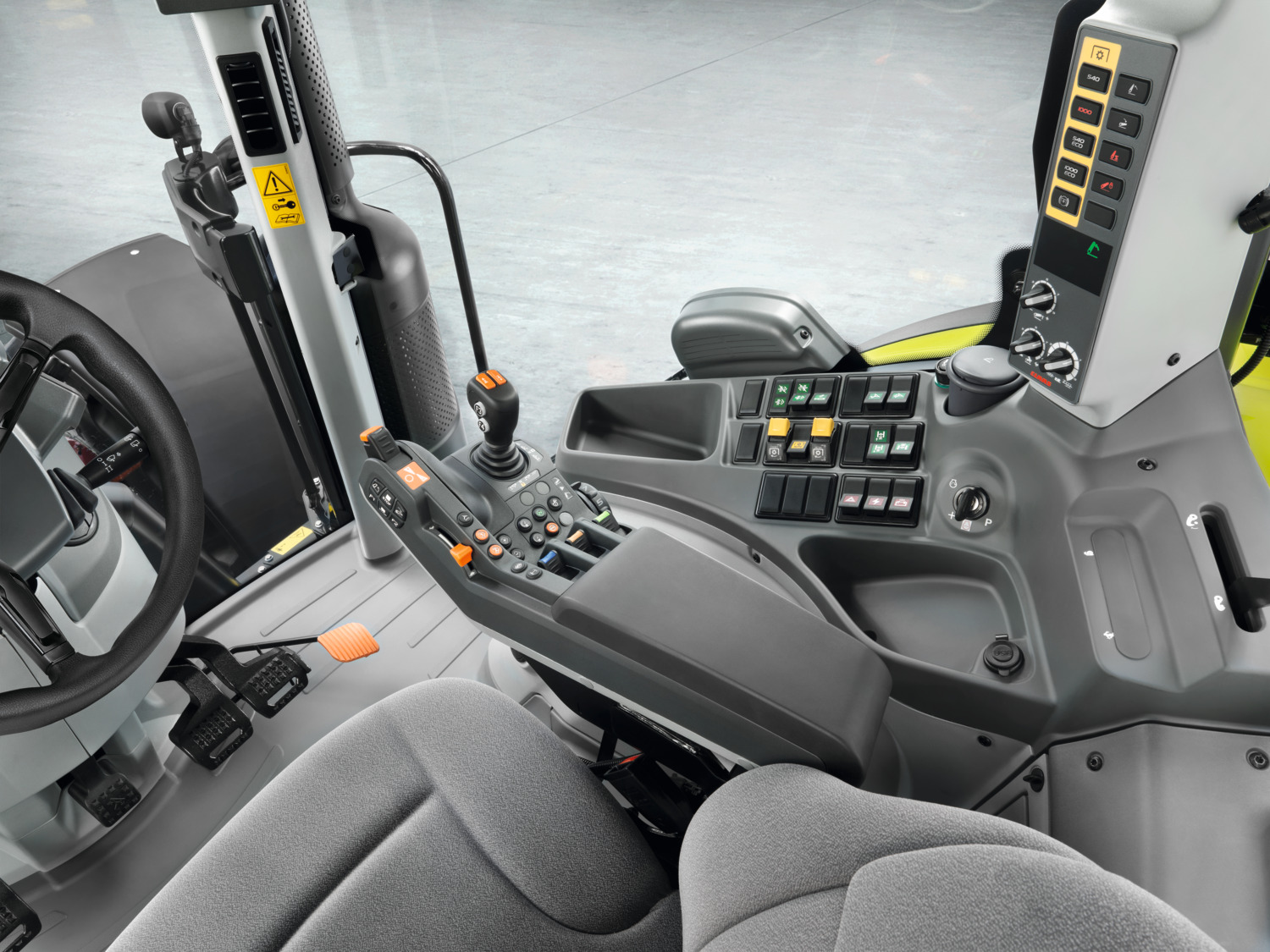

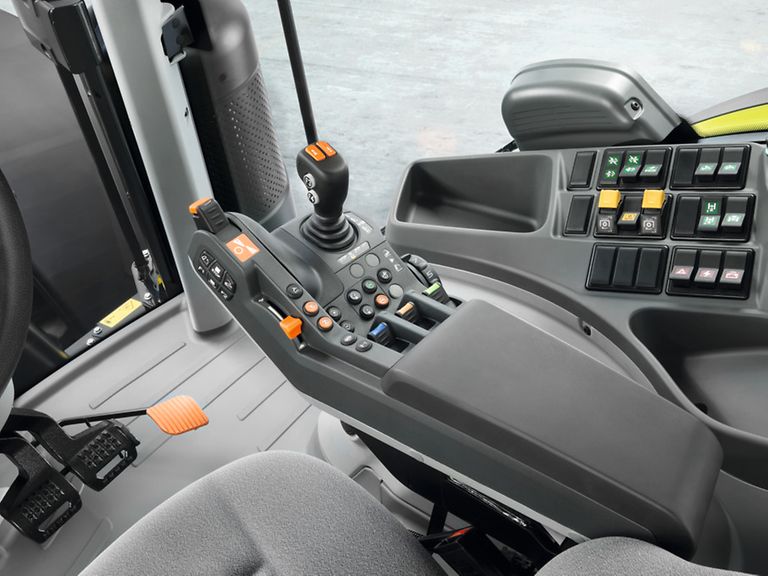

CIS+ offers impressive ease of use and an intuitive design. Despite its pleasing simplicity, it has all the necessary functionality and the automatic functions needed for effective, effortless operation. The 7" CIS colour display built into the A-pillar combines display and setting options for the transmission, electronic spool valves, F buttons and CSM headland management.

Get more done.

Operator assistance systems and data management.

There is no substitute for your experience. It's what allows you to respond quickly and appropriately to the challenges you face in your daily work. When you're dealing with difficult terrain or changing soil conditions, you have to make decisions very quickly to get the job done to the right standard.

Data has long since become an indispensable resource. To profit from its full potential, you should take just as good care of your data as you do your machinery fleet. And that includes making sure all systems, machines and processes are meaningfully connected and the data generated is sent to the appropriate place for analysis.

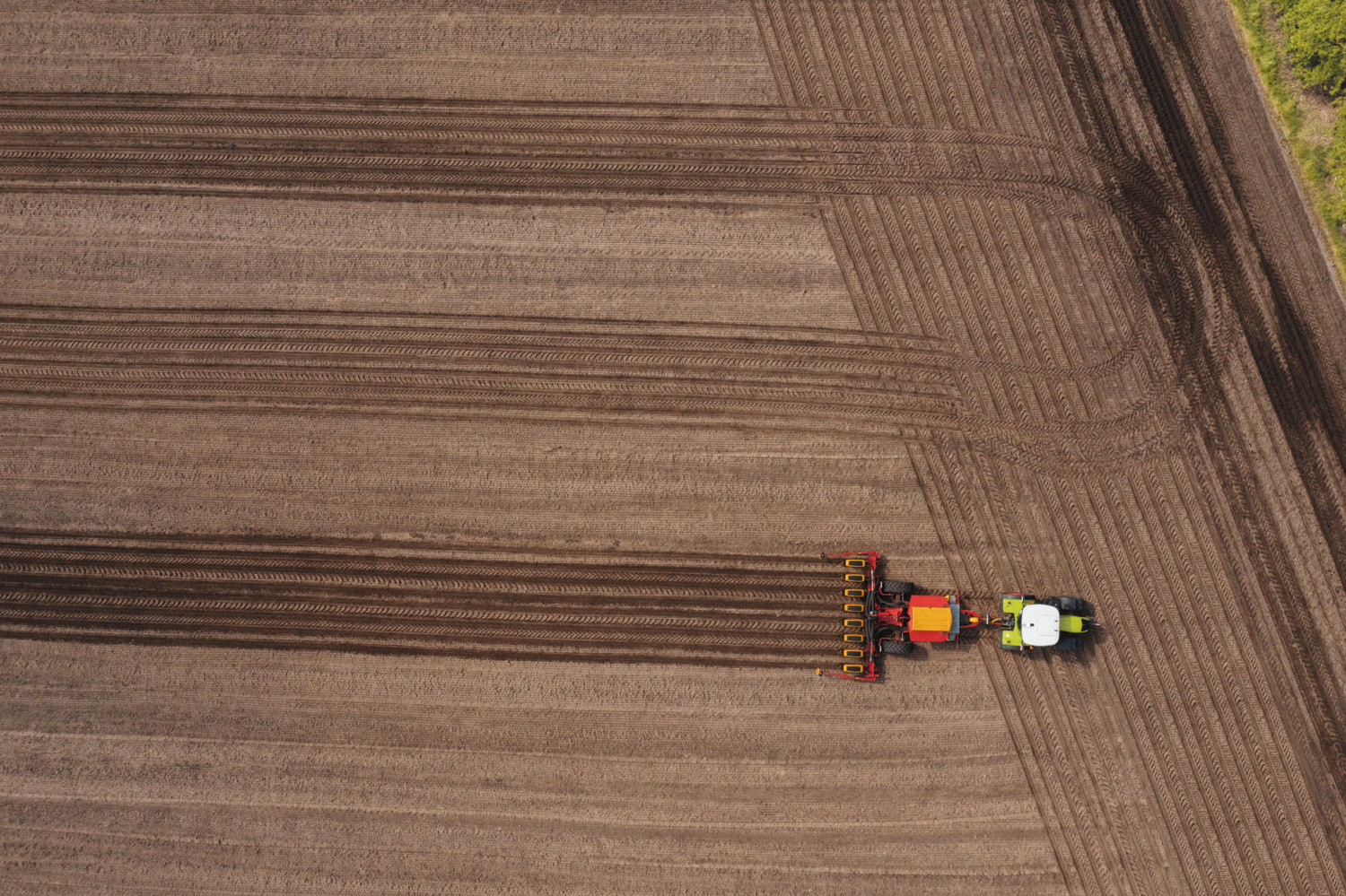

Precision farming made easy.

GPS PILOT CEMIS 1200.

Improve the profitability of your farm and simplify day-to-day operations – step into the future with the CEMIS 1200 terminal.

With the GPS PILOT automatic steering system, your machine will seem like it's running on rails: always on the right track, using the full working width with no overlapping. There's no need for a long induction course.

You'll be surprised how easy it is to operate an automatic steering system using the intuitive CLAAS user interface.

Thanks to ISOBUS and standard data exchange formats, the CEMIS 1200 is the way forward for more precision in farming.

Up to 16.8% lower fuel consumption.

CEMOS drivers are unbeatable.

CEMOS is the most comprehensive operator assistance system for tractors on the market. It helps you find the optimum settings for the tractor and implement. In a benchmark test, independent test institute the DLG confirmed that CEMOS increased the work rate (ha/h) by up to 16.3% and decreased fuel consumption (l/ha) by up to 16.8%.

Technical data

Model	Number of cylinders	Displacement (l)	Max. output ECE R 120 (unece.unit.HJ)	Transmission
660 CMATIC	6	6.80	205	CMATIC (CV transmission)
630 CMATIC FIRST CLAAS	6	6.80	165	CMATIC (CV transmission)
630 CMATIC	6	6.80	165	CMATIC (CV transmission)
570 CMATIC	4	4.50	180	CMATIC (CV transmission)
550 CMATIC	4	4.50	165	CMATIC (CV transmission)
530 CMATIC	4	4.50	145	CMATIC (CV transmission)
