ARION 640-620 C.
Built to handle anything.

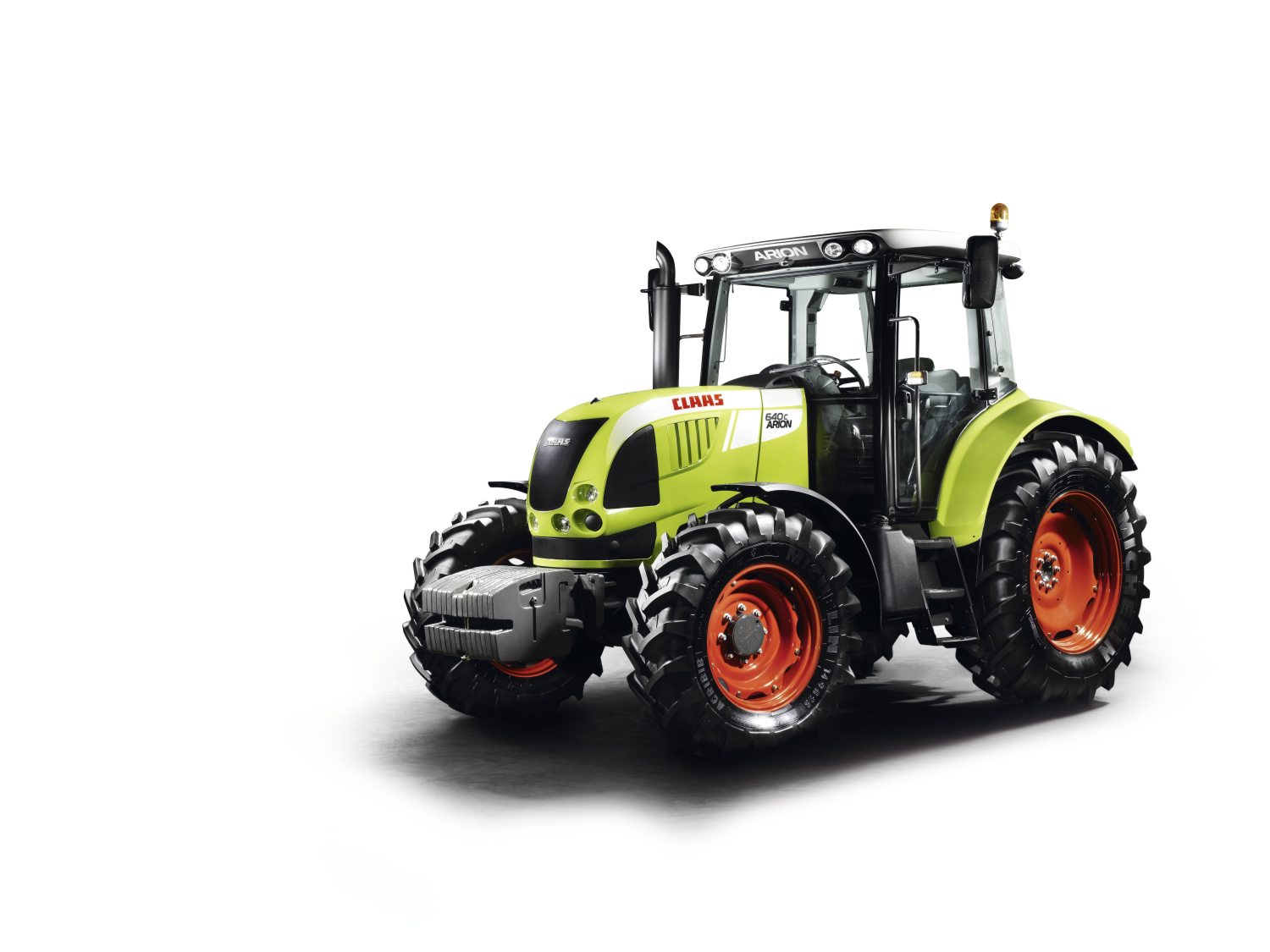

Meet the ARION 600 C – one of the most versatile tractors in the 140 to 170 hp class. Powerful, manoeuvrable and economical, the ARION 600 C has everything you could wish for from a machine that can tackle any task with confidence.

ARION 640-620 C.

The benefits for you.

DPS 6.8 l six-cylinder engines with common rail injection system
Max. output 140–165 hp to ECE R 120
QUADRISHIFT transmission with four powershift speeds
Clutchless shifting with the +/- and shift buttons on the hand throttle
Open-centre hydraulic circuit with 60 or 98 l/min output
PTO speeds 540, 1000 und ECO (optional)
CLAAS comfort concept with 4-point cab suspension

Technical data	Max. output (ECE R 120¹)	Max. torque (ECE R 120¹)
	kW/hp	Nm
ARION 640 C	121/165	667
ARION 630 C	114/155	633
ARION 620 C	103/140	580

^{1 meets ISO TR 14396}

Engine + Transmission.

Power wherever it's needed.

You don't need a shift lever or clutch pedal to operate the ARION 600 C. Just touch the buttons on the hand throttle with your fingertips to shift effortlessly through all four powershift speeds and ranges.

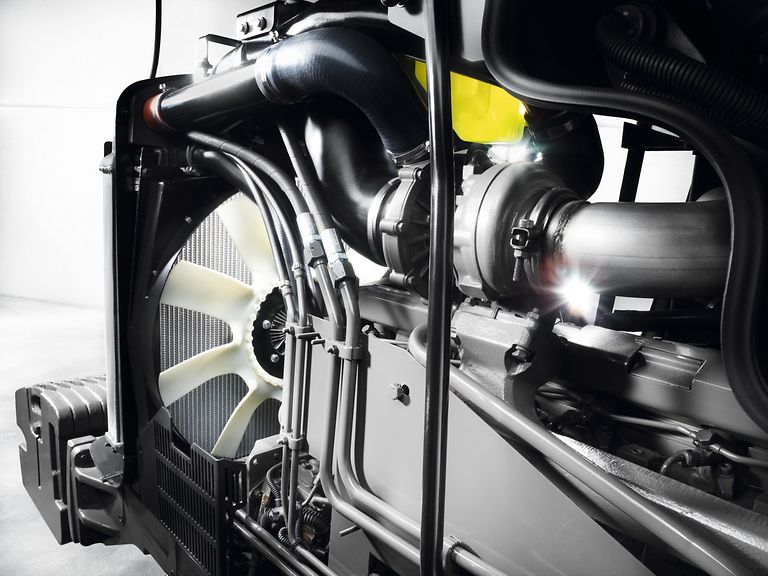

Our engineers are continuously developing solutions to help make your work even more efficient, reliable and cost-effective than before. State-of-the art 6.8 l six-cylinder engines with turbocharger provide the ARION 600 C with impressive torque and enormous torque increase.

Engine + Transmission.

6.8 l six-cylinder from 140 to 165 hp (ECE R 120): strong pulling power even at low speeds
Electronic common rail injection system: the right amount of diesel at the right time
QUADRISHIFT transmission with four powershift speeds: the right gear for every situation
REVERSHIFT electrohydraulic clutchless reverser: for easy, rapid turning manoeuvres
24-gear creep gear from 460 m/h: especially useful for horticultural work

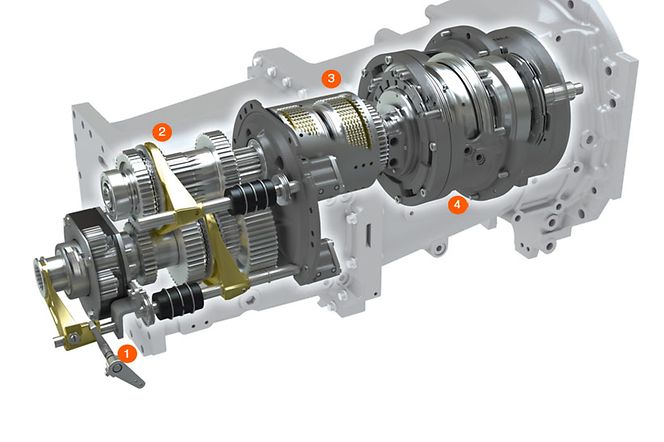

Creep gears
four hydraulically controlled ranges
REVERSHIFT clutchless reverser
QUADRISHIFT: four powershift speeds

Four powershift speeds save you having to shift between ranges in many cases.

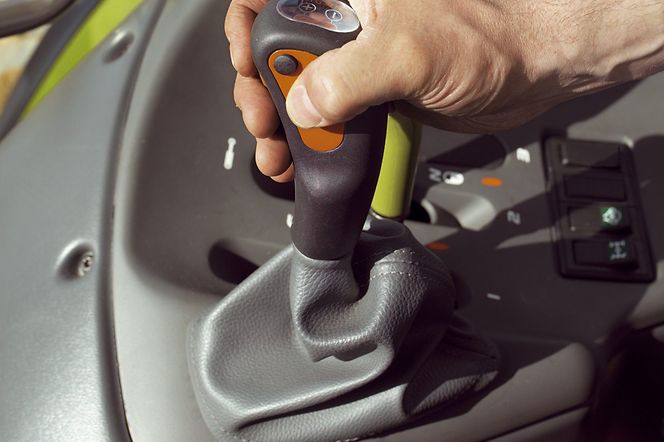

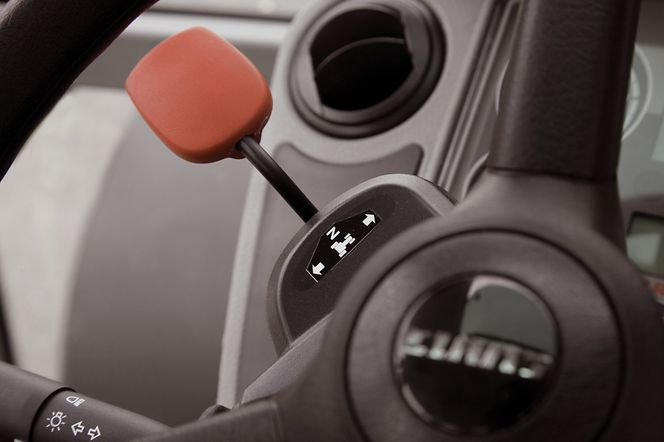

Operate the REVERSHIFT clutchless reverser with your fingertips.

Construction.

Designed for long, hard days

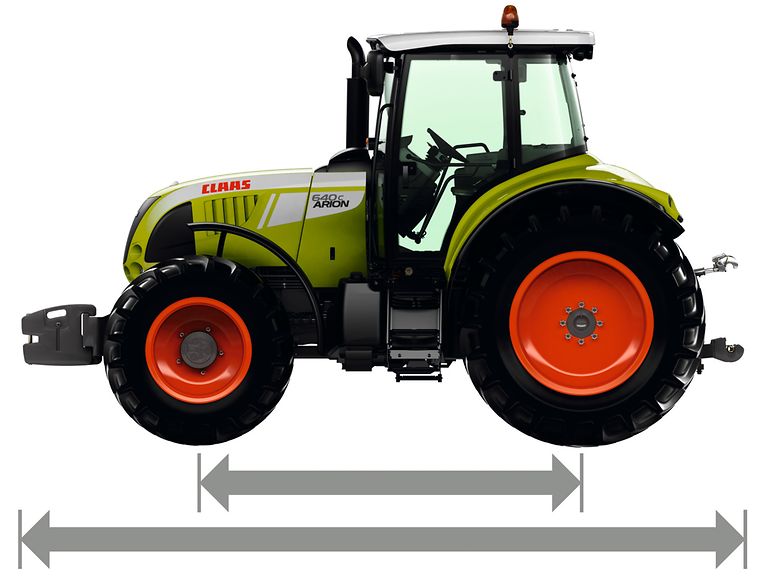

You need a reliable tractor on your farm that can pull anything and remain stable. Two factors are crucial to this: the wheelbase and the weight distribution. The ARION 600 C features a long wheelbase of 2.82 m and almost equal weight distribution, with 53% at the front and 47% at the rear. This delivers the impressive tractive power and stability that make the ARION range so popular.

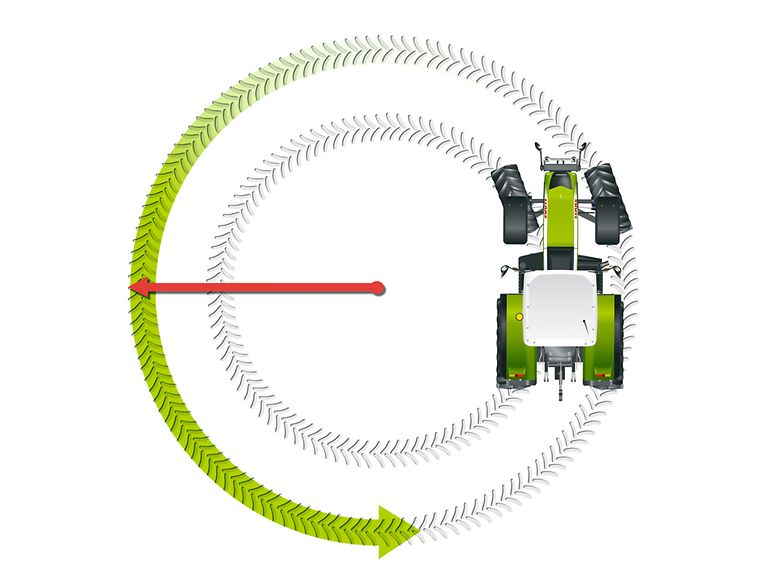

The tight turning radius saves valuable centimetres and precious time.

Short overall length ensures excellent manoeuvrability.

Intelligent weight distribution guarantees stability and tractive power.

Construction.

Turning radius of just 4.85 m: steering lock up to 55° for outstanding manoeuvrability
Overall length of just 4.72 m: good visibility and short trailer combination on the road
Intelligent weight distribution of 53% at the front and 47% at the rear: excellent stability with attached implements
Long wheelbase of 2.82 m: unrivalled driving comfort and safe road handling

Hydraulics.

Sufficient power at front and rear.

When you need to get the job done, you can rely on the ARION 600 C. The hydraulics system has two selectable circuits and up to three auxiliary spool valves. The wide range of hitching options – for example a swinging drawbar or Piton Fix – offers great flexibility.

The rear linkage can handle max. 6.9 t at the ball ends and is digitally controlled. The 98-l hydraulic pump enables you to use a hydraulic spool valve and the rear linkage at the same time. So you can equip your ARION 600 with various implement combinations to increase your work rate and significantly reduce working hours and costs.

The front linkage is fully integrated and equipped with folding lift arms. With reduced spacing between the ball ends and front axle, it is ideal for any task requiring precision ground tracking. In combination with the front PTO shaft, the front linkage offers exceptional versatility.

Sufficient power at front and rear.

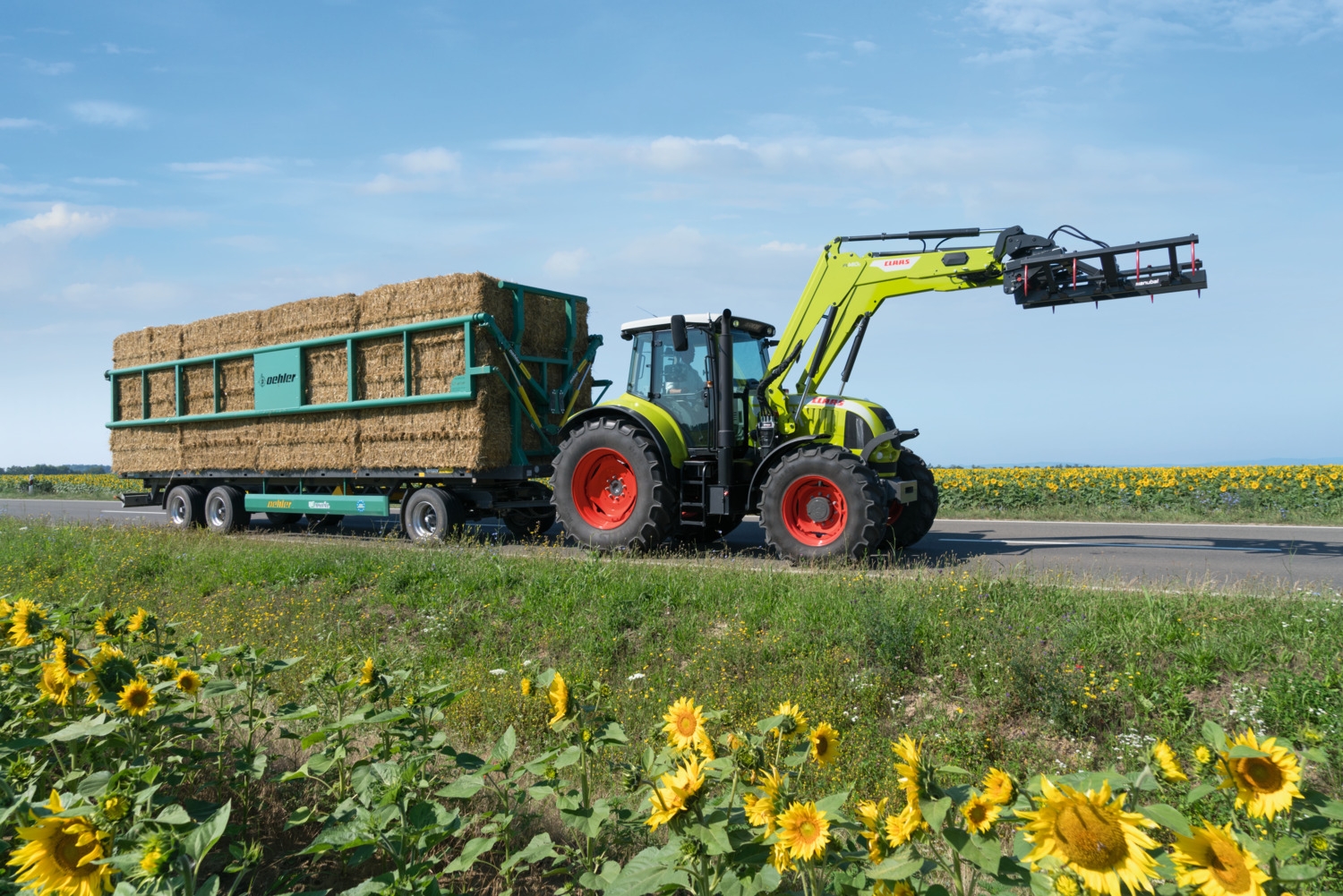

Discover how CLAAS front loaders significantly increase the scope and versatility of your tractor.

With a choice of over 18 models in three series, you'll be ideally equipped whatever the job.

frontloader.claas.com

Front and rear linkage.

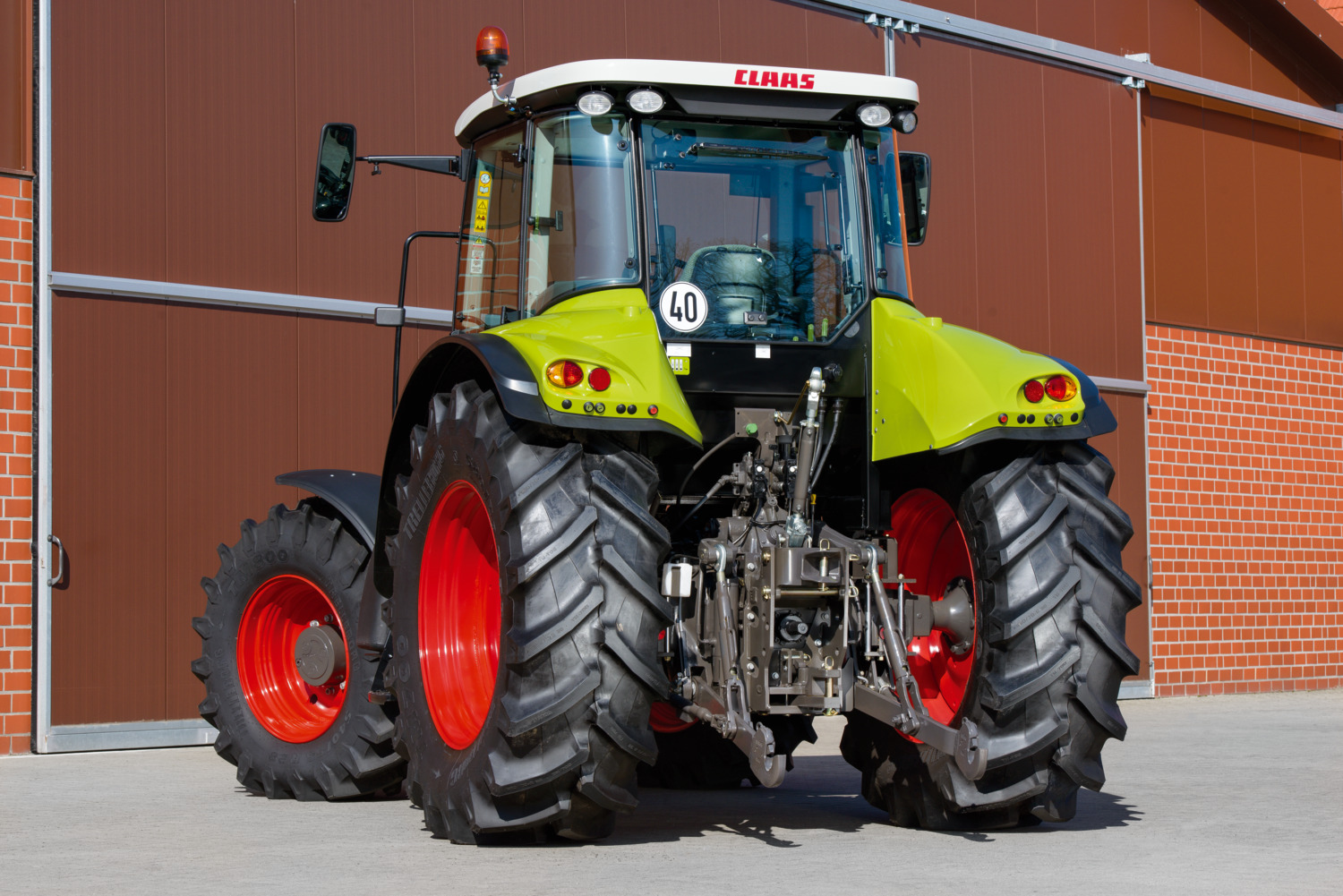

6.9 t lift capacity at the rear: the ARION can easily handle your large implements and seed drills
TCE 15 T electronic rear linkage control: precision for optimum comfort and high-quality work
98 l/min hydraulic output at the rear: to suit your high-performance attached implements and equipment combinations
540 / 1000 / ECO (optional) PTO: allows you to cut diesel consumption and noise levels at reduced engine speed
Spool valve blocks are easily accessible for quick connection and disconnection
3.8 t lift capacity at the front: enough power for implements and ballasting
1000 front PTO: extends your range of applications and saves time and costs

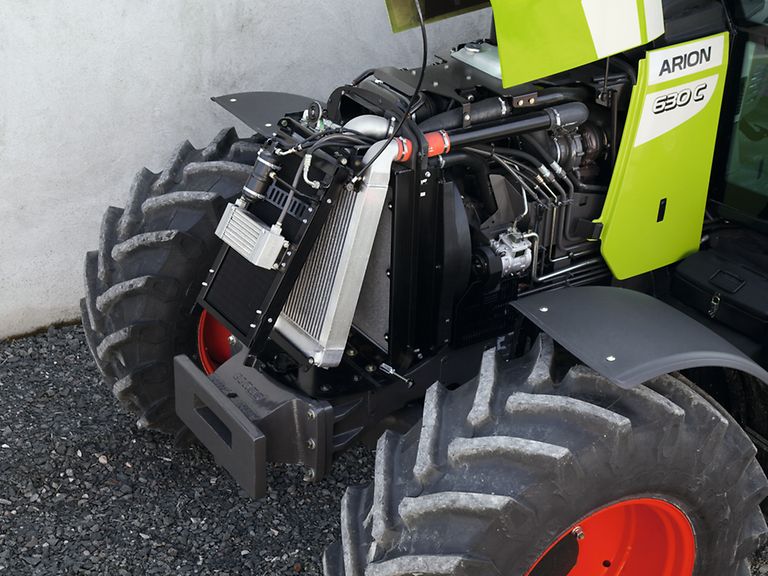

All set for speedy maintenance.

Daily maintenance work should be as straightforward as possible – because we know from experience that nobody enjoys doing things that are complicated or inconvenient. With the ARION 600 C, you can access all the relevant areas in no time at all. Engine, air filter, radiator and cab filter are easy to reach. What's more, the ARION 600 C can be refuelled just like a passenger car, and the tank holds a generous 280 litres of fuel.

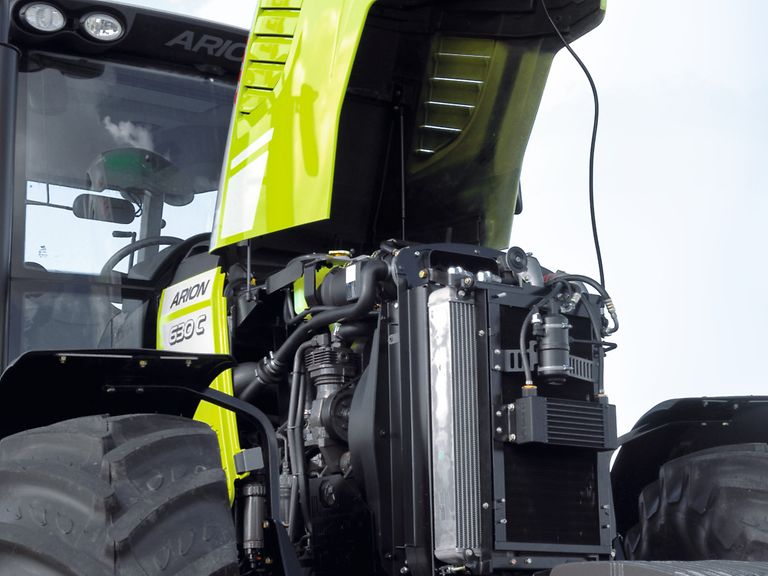

The bonnet can be opened in a few simple steps, giving you easy access to all maintenance points
Tool-free daily maintenance: perform simple maintenance tasks effortlessly yourself
Engine oil change every 500 hours, transmission and hydraulic oil change every 1,500 hours: long maintenance intervals allow you greater operational flexibility
PowerCore air filter with coarse dirt particle extraction: save valuable maintenance time during filter cleaning

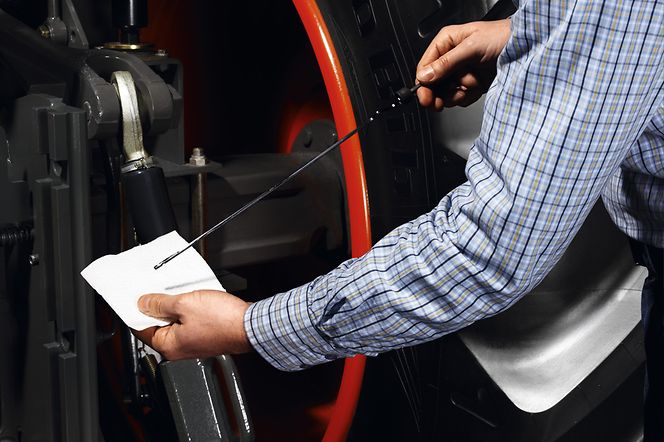

It's easy to check the transmission oil level at the rear.

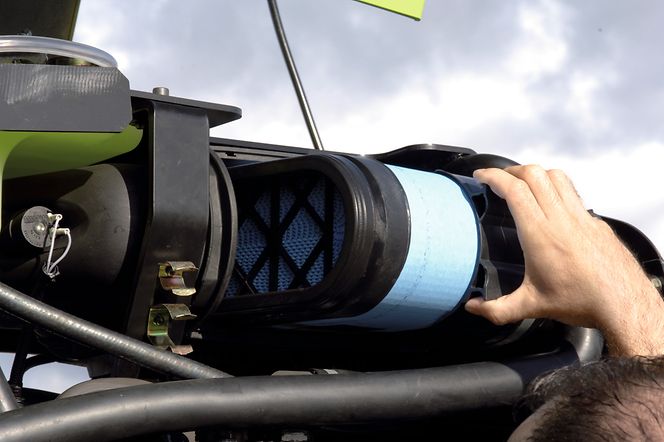

The generously sized air filter is designed for a long service life.

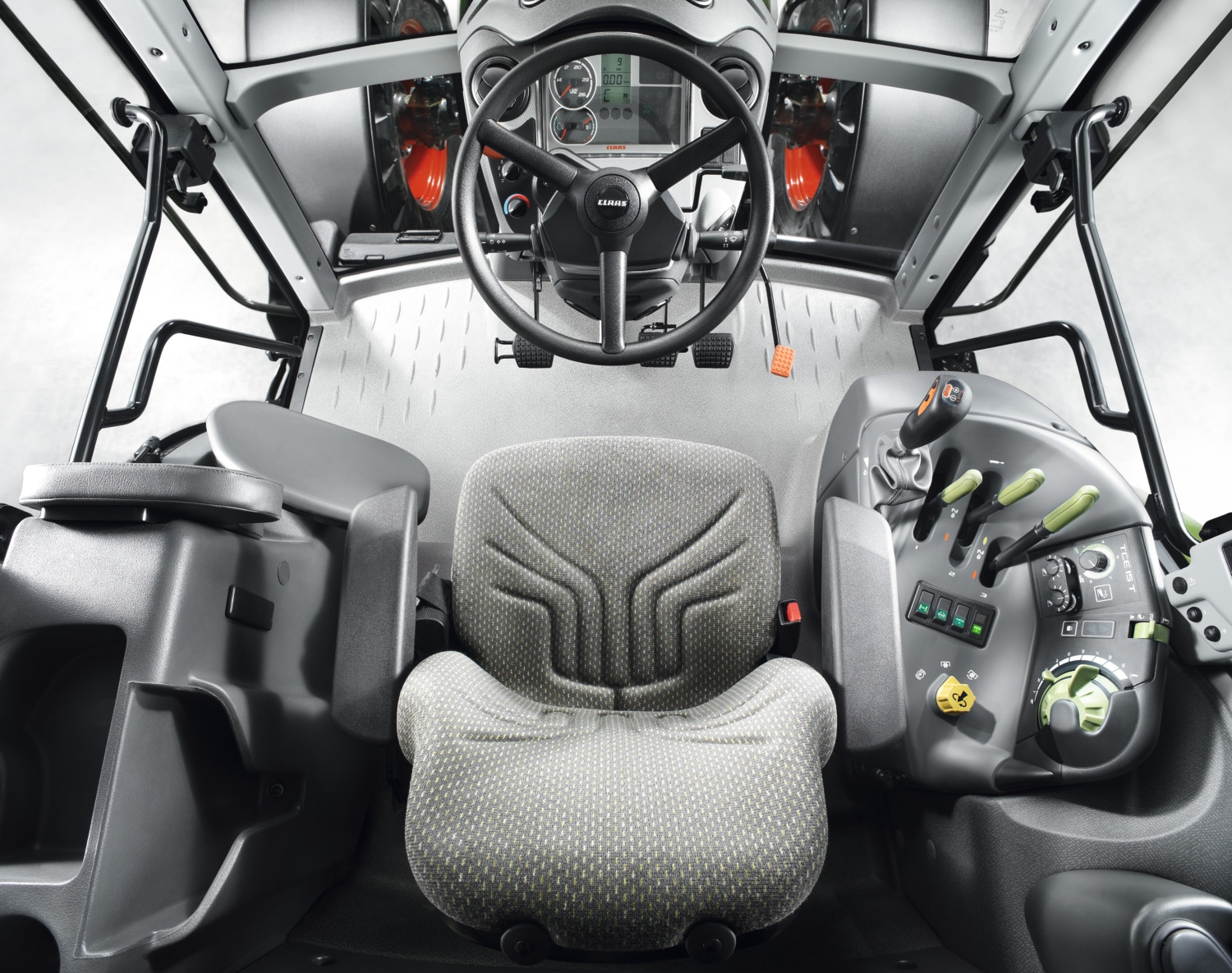

Cab.

Well-planned interior for maximum concentration.

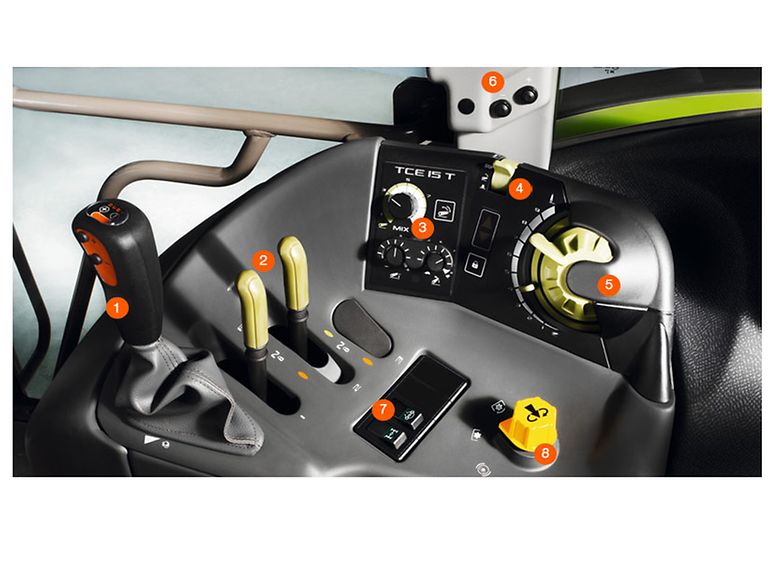

Multifunction control lever to operate hand throttle and transmission
Two or three mechanical spool valves
Rear linkage: vibration damping, lift-height limiter, drop rate, draught and position control
Rear linkage: lower, raise, quick implement entry
Rear linkage: set the working depth
+/- buttons to operate the transmission are duplicated on the B-pillar
Activate four-wheel drive and differential lock
Activate rear PTO

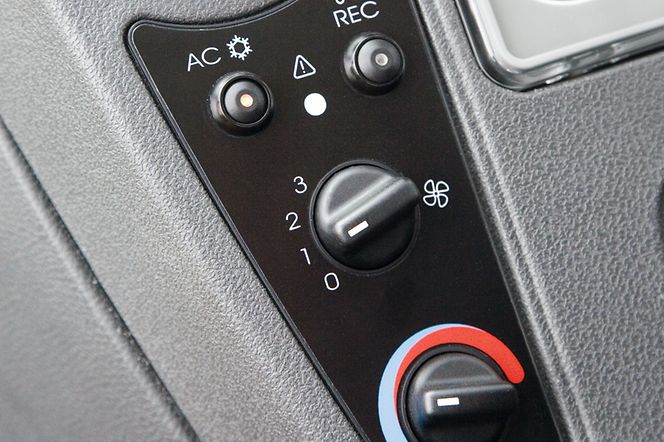

Work in comfort on hot summer days.The controls for the efficient air-conditioning system are in easy reach to the left of the instrument panel. The fan has four speed settings so you can adjust it to suit the conditions. The cooler compartment can hold a 1.5 l bottle.

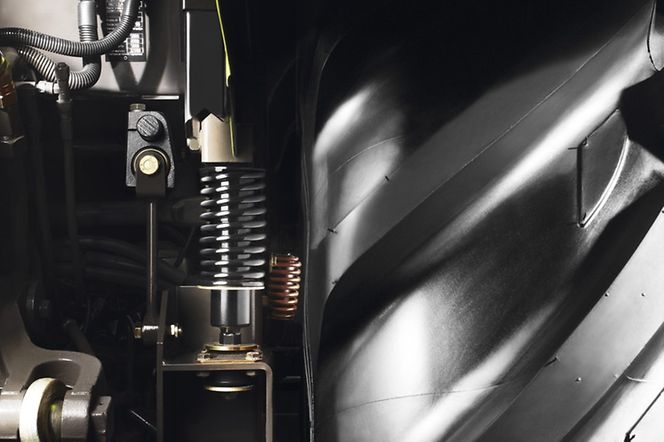

Four-way suspension. Four suspension points mean that the cab is fully isolated from the chassis. Longitudinal and lateral struts join the suspension points and keep the cab stable when turning corners or braking. Undistracted by jolts and bumps, the driver can focus fully on the job in hand.

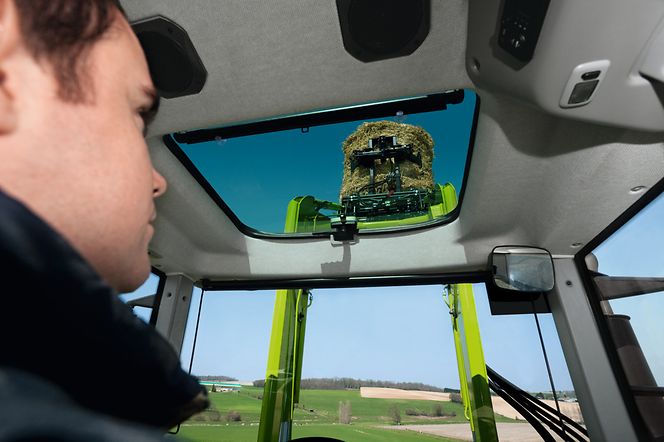

Excellent view of the front loader.The optional transparent roof gives you an unimpeded view of the working area during front loader work, allowing you to operate safely and with precision. For all other tasks, you can open the transparent roof outwards to let fresh air into the cab.

Vibration damping for a smoother rideHeavy implements mounted on the front or rear put a strain on you and your tractor. With the ARION 600 C, both the front and rear linkage are equipped with vibration damping to compensate for peak loads during transport operations and when the attached implement is raised.

Operator assistance systems.

ISOBUS.

Thanks to ISOBUS-enabled terminals from CLAAS, you can control different ISOBUS implements from the comfort of your cab. There's no need to change the terminal when changing implement – it stays safely in the tractor cab and each implement is controlled via a dedicated screen on the monitor.

The three mobile terminals offered by CLAAS provide flexible solutions for your steering and ISOBUS systems. You can easily transfer the terminals from one machine to another depending on the season or the task. You can choose the factory-fitted or retrofitted system for your ARIO 600 C which best suits the needs of your farm.

Steering systems take the pressure off the driver.Steering systems improve the quality of your work by automatically steering your tractor along the best possible path. This helps to eliminate errors and overlapping and allows you to make savings on diesel fuel, machine costs, fertiliser and crop protection products.

Discover many good reasons to invest in GPS steering systems here. For example, greater precision can cut your overall costs per hectare by 5%.
