AXION 900.
Ready to take on those really big challenges.

The AXION 900 has always been ready to take on those really big challenges: with powerful engines delivering up to 445 hp, continuously variable CMATIC driving comfort and enormous tractive power, which we have stepped up yet again. Now the AXION 900 TERRA TRAC has arrived – the first half-track tractor with full suspension.

Simply convincing.  An impressive list of features.

Comfort concept with 4-point cab suspension protects the operator and the machine
CEBIS features exceptionally user-friendly operation and automatic functions to boost your productivity
CMATIC continuously variable transmission from CLAAS will change your mind forever
AXION 900 TERRA TRAC with 15% more traction and 50% less soil pressure
Get more done with operator assistance systems such as CEMIS and CEMOS and data management

Always perfectly adjusted.

Optimise your machine settings to suit all conditions with CEMOS.

The half-track tractor with full suspension.

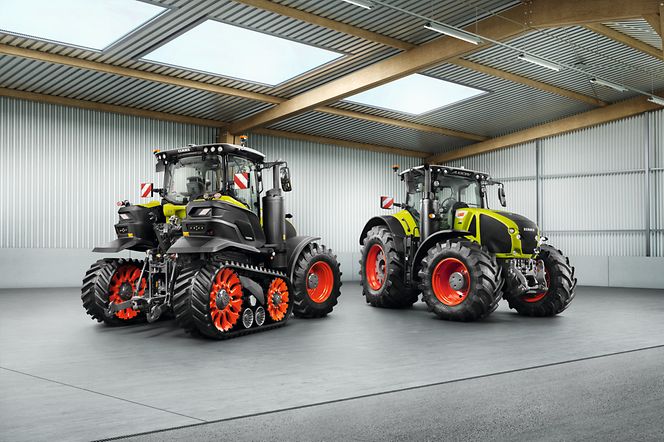

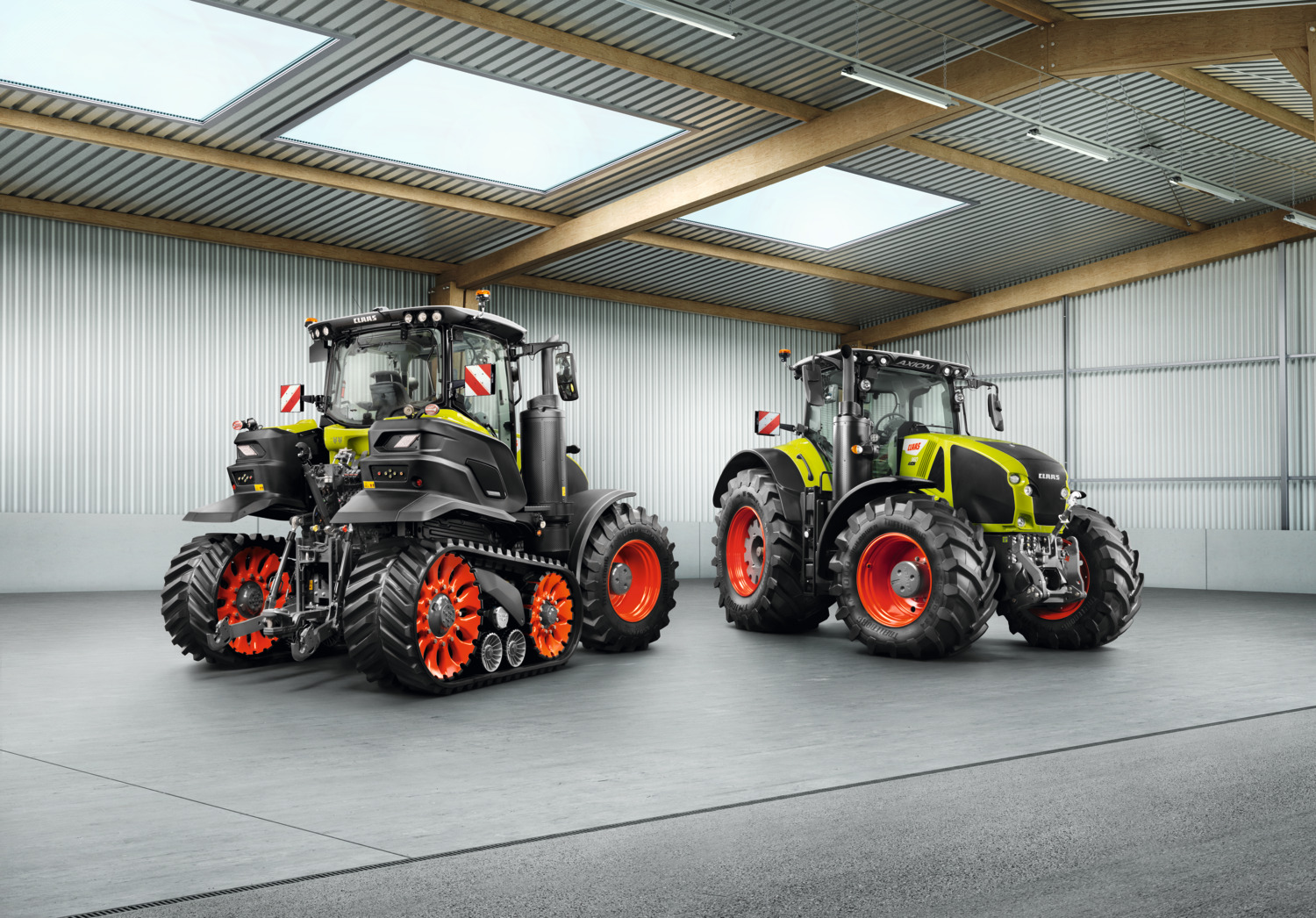

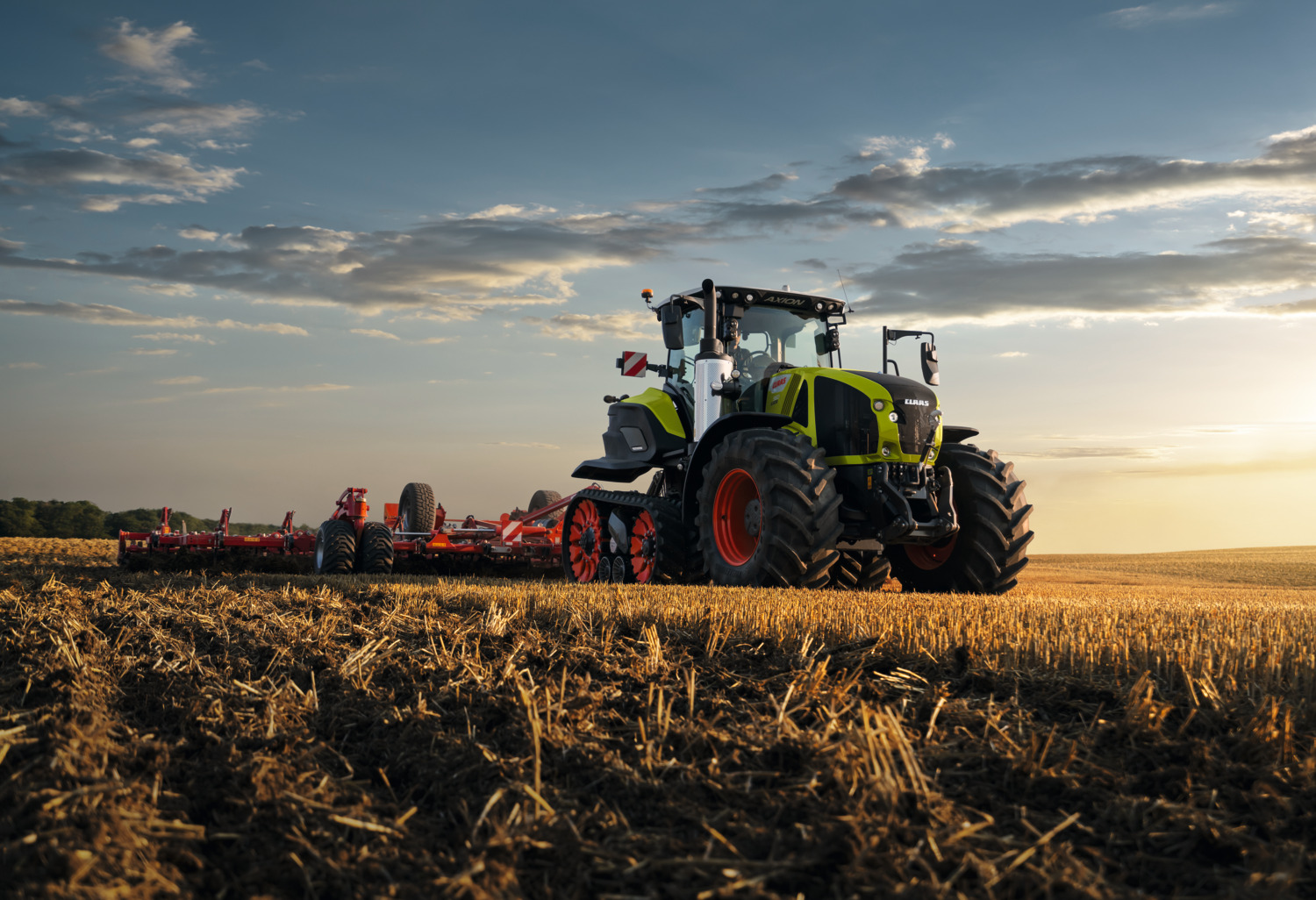

AXION 900 TERRA TRAC

The AXION 900 TERRA TRAC combines the advantages of a tracked tractor in terms of traction and soil protection with the more comfortable drive characteristics of a conventional tractor.

15% more traction
100% driving comfort
35% more contact area
50% less soil pressure
100% flexibility

Make the most of the TERRA TRAC concept.

AXION 900 TERRA TRAC.

Powerful traction.The long wheel base and front axle provide effective directional stability. Both crawler track assemblies deliver their full traction potential at all times, even under varying soil conditions.

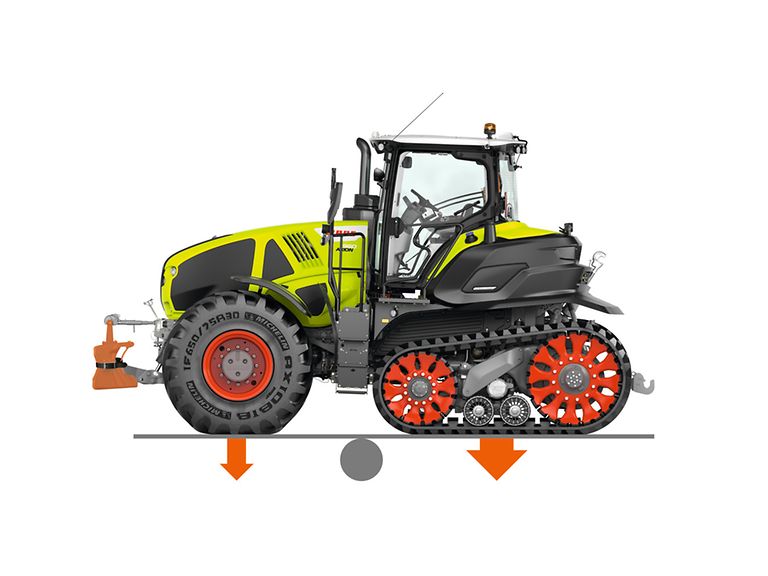

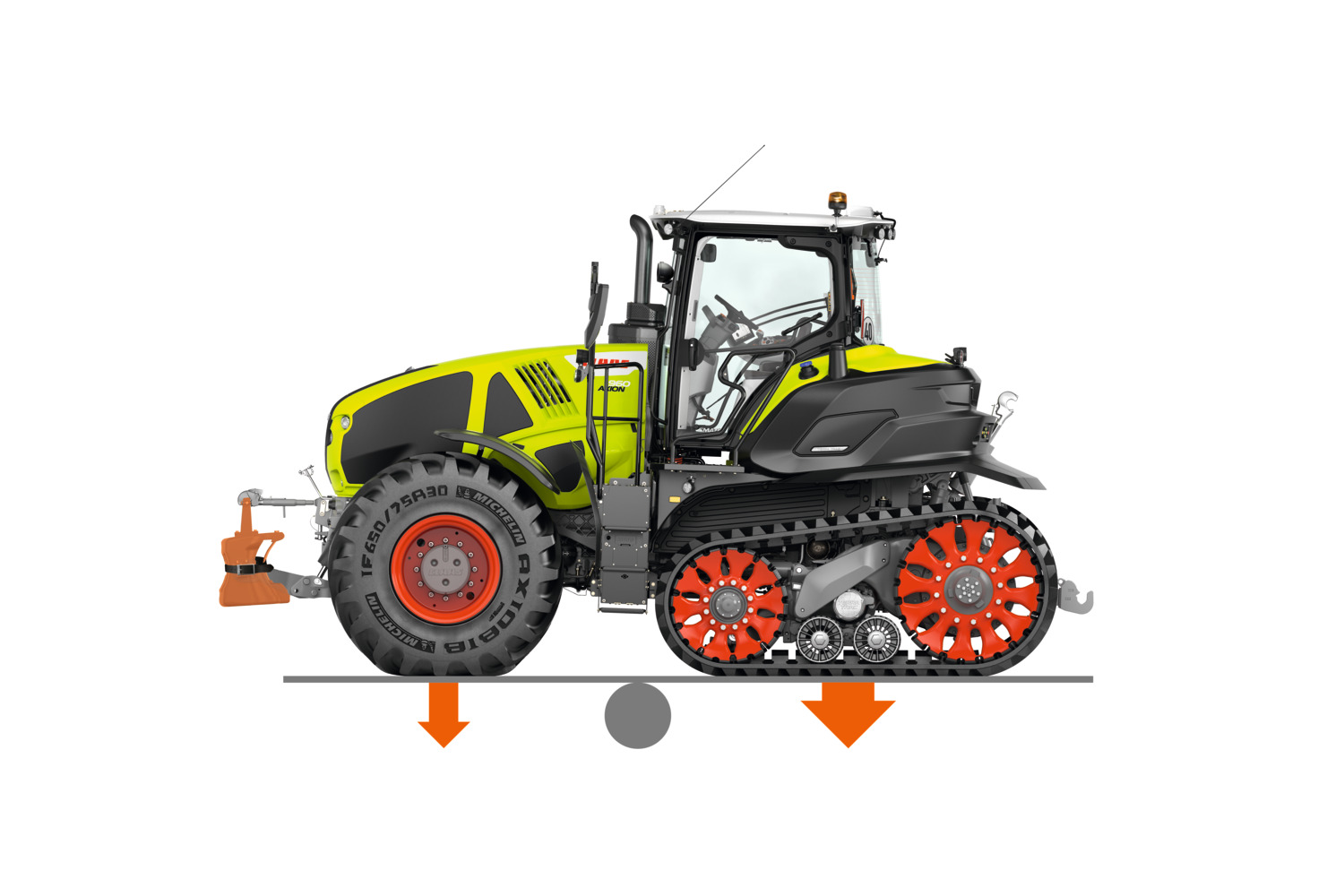

Uniform pressure.The vehicle's weight distribution and the implement's drawbar load have no effect on the behaviour of the TERRA TRAC crawler track units. Their oscillating motion keeps the track parallel to the ground whatever the working conditions.

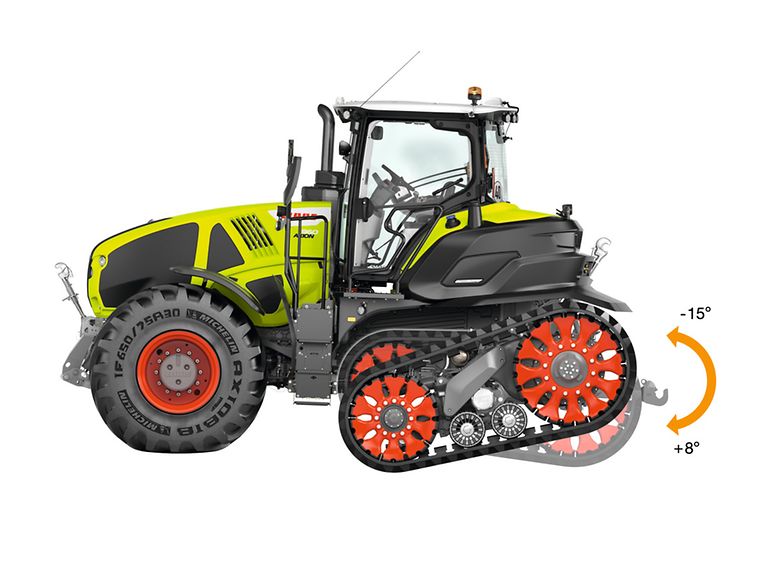

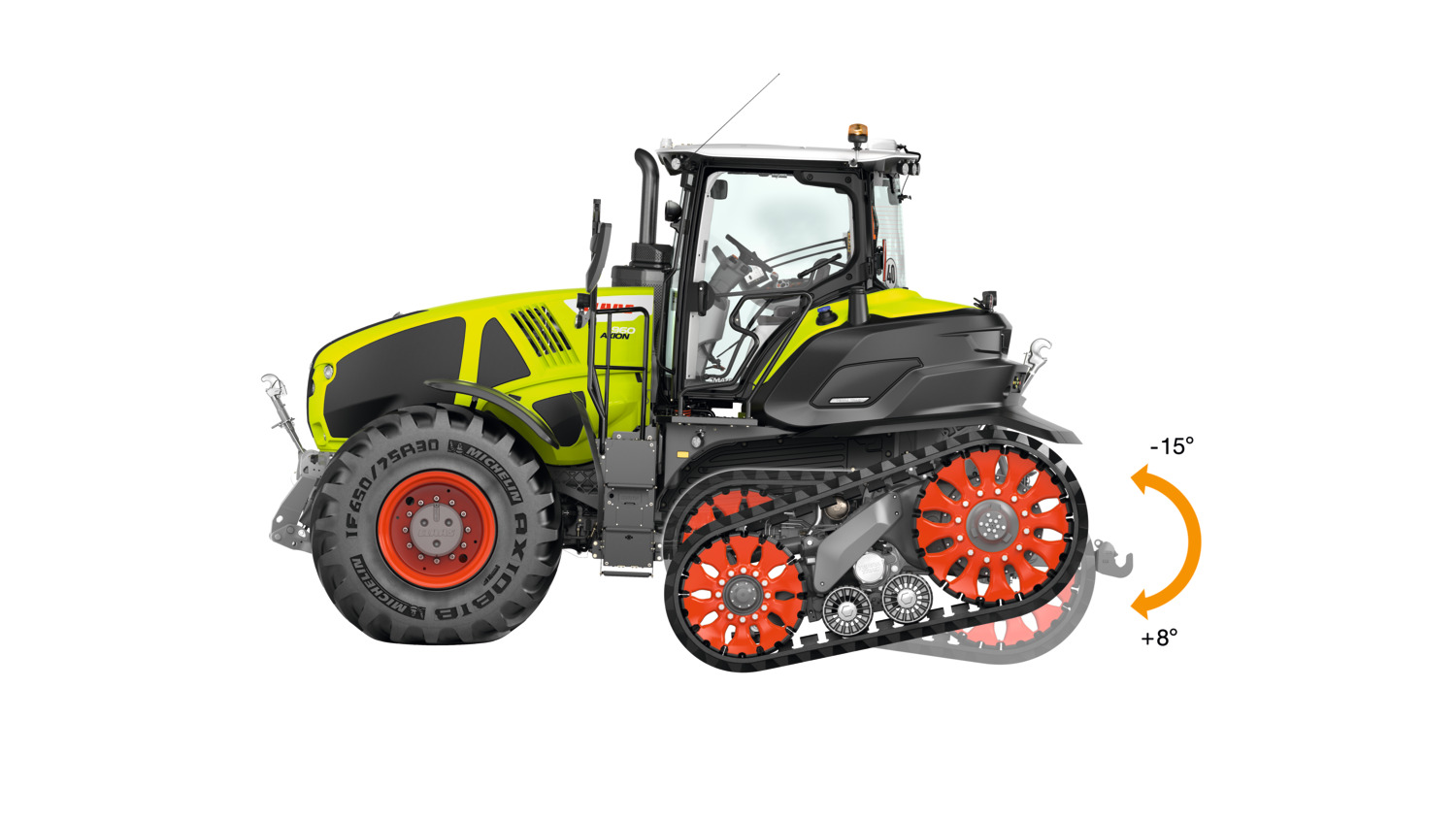

Optimum stability.The front axle and the crawler track unit with a large angle of oscillation easily cope with very uneven ground on farm tracks and at field entrances. So the vehicle remains stable even when using heavy implements.

Even with mounted implements.Since the steering does not generate any lateral movement at the rear of the tractor, no sideways load is transmitted to attached implements. So you can use any implements you wish, even mounted ones.

More soil protection at the headland.Even during tight turning manoeuvres at the headland, the crawler tracks do not drift – so the soil remains level.

Protects both operator and machine.

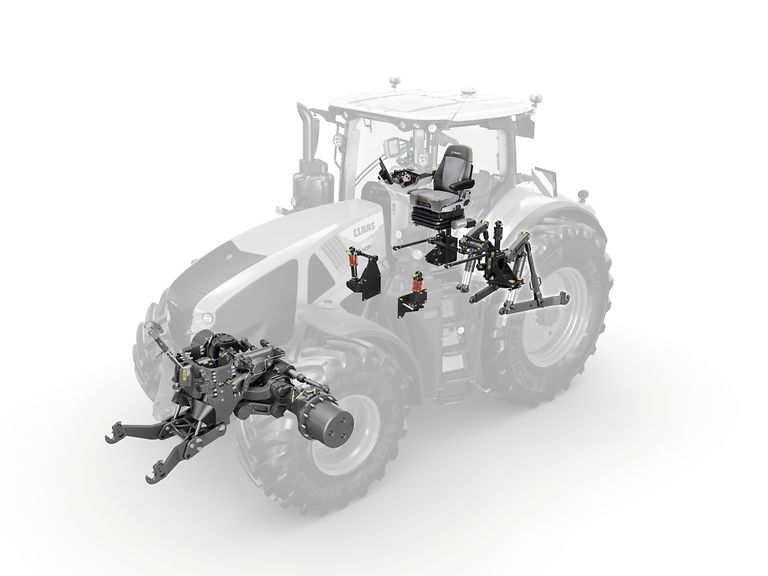

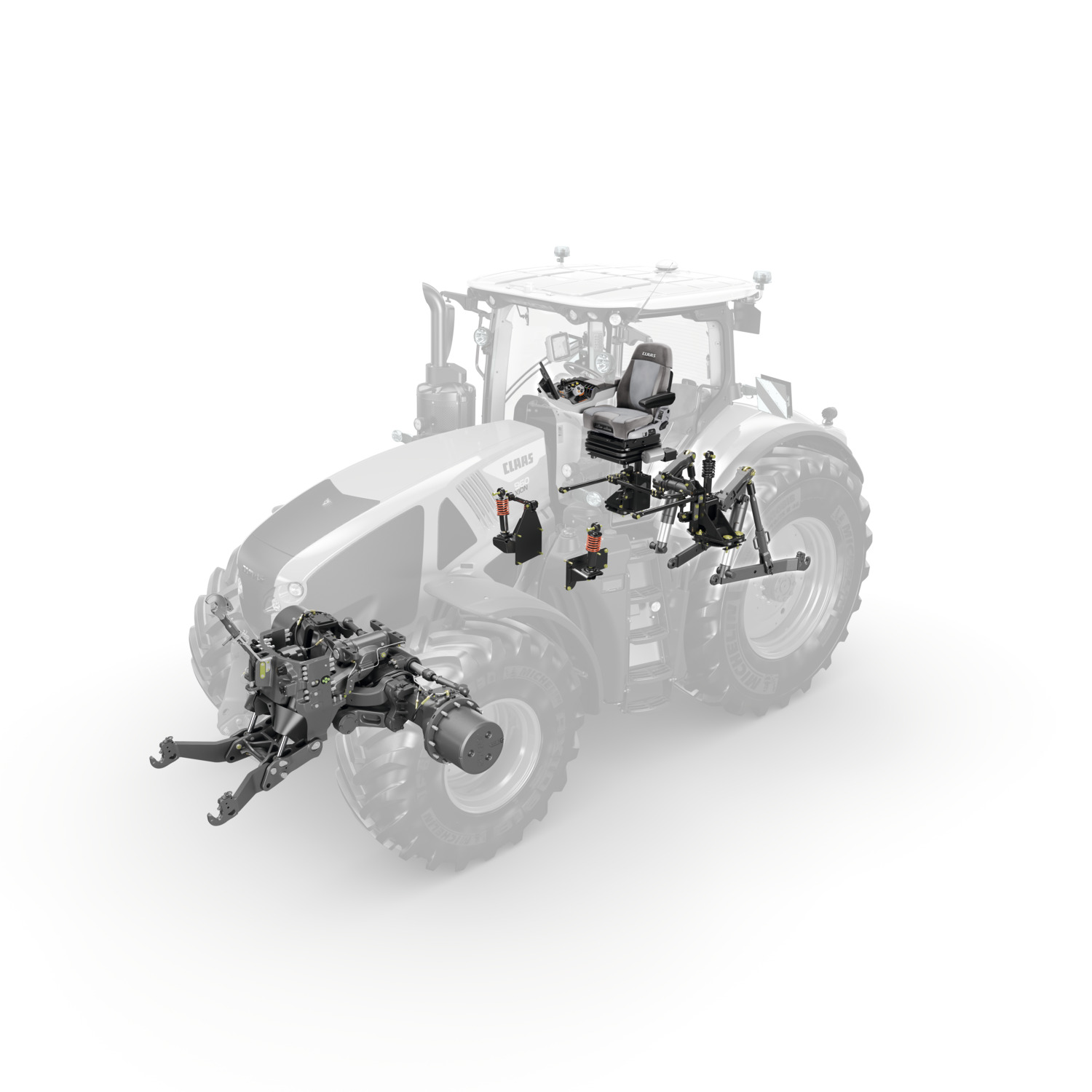

The suspension.

Full suspension. Four suspension points mean that the cab is fully isolated from the chassis, preventing impacts and vibration from reaching the operator. Longitudinal and lateral struts join the suspension points and keep the cab stable when turning corners or braking. The entire suspension system is completely maintenance-free.

PROACTIVE front axle suspension – complete comfort, automatically. The suspension adjusts to tractor loading and automatically remains in the central position. Changes in load due to braking and turning manoeuvres are also compensated. Parallelogram axle suspension and 90 mm spring travel guarantee a smooth ride.

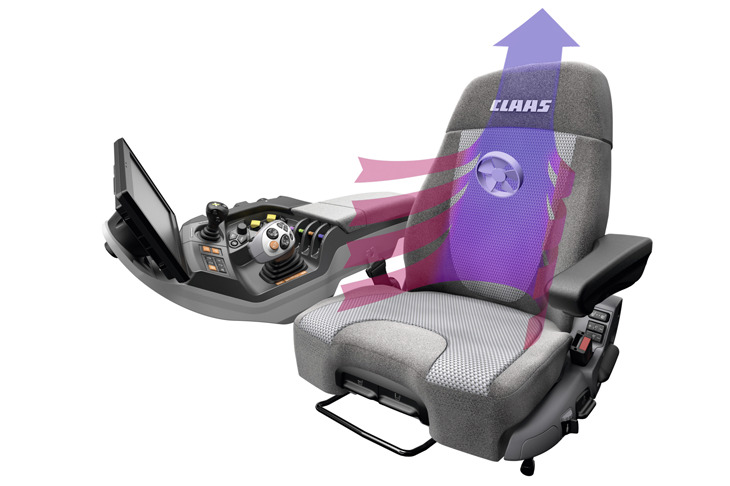

The Premium seat.

Warm and ventilated

The range of Sears and Grammer seats includes a ventilated premium seat.

Active seat ventilation and heating make the seat feel comfortable whatever the weather
Semi-active suspension adjusts automatically to the weight of the operator
Longitudinal and lateral horizontal suspension

Shift your mind.

CMATIC continuously variable transmission.

Forget everything you thought you knew about continuously variable tractor transmissions. CMATIC from CLAAS will change your mind forever.

Our continuously variable transmission increases your efficiency. The machine operates at the optimum speed at all times, autonomously – ensuring genuinely impressive ride comfort, yet simple operation. So you can focus all your attention on the job in hand and benefit from long-lasting transmission quality.

The available drive power can be used effectively at speeds from 0.05 to 50 km/h. The high level of mechanical power transmission also delivers outstanding driving force in reverse. What's more, every gear ratio can be used at every engine speed, giving AXION 900 tractors enormous potential for use all year round.

With engine speeds of 1,600 rpm at a top speed of 50 km/h and 1,400 rpm at 40 km/h, the AXION 900 also demonstrates its capabilities in transport operations. If the accelerator is not depressed, the transmission is in powered zero mode and maintains its position without creeping or rolling. This means that the tractor can start up safely and easily at steep field entrances or road junctions, even with a full load.

Technical data

Model	Number of cylinders	Displacement (l)	Max. output ECE R 120 (hp)	Transmission	Min. overall width (mm)
960 CMATIC FIRST CLAAS	6	8.70	445	CMATIC (CV transmission)	2,506
960 CMATIC	6	8.70	445	CMATIC (CV transmission)	2,506
950 CMATIC	6	8.70	410	CMATIC (CV transmission)	2,506
930 CMATIC FIRST CLAAS	6	8.70	355	CMATIC (CV transmission)	2,506
930 CMATIC	6	8.70	355	CMATIC (CV transmission)	2,506
