ARION 400 COMFORT.
More comfort on attractive terms?

Challenge accepted. Tackle your day-to-day challenges with ease with the new ARION 400 COMFORT. More comfort, more innovation and DLG-certified efficiency.

ARION 400 COMFORT highlights.

Precise and comfortable HEXASHIFT transmission
Front axle and cab suspension for a pleasant working environment
Small turning circle for more agile manoeuvring
SMART STOP and powerful hydraulics for productive workflows
Cooled drinks compartment for refreshing breaks

Always perfectly adjusted.

Optimise your machine settings to suit all conditions with CEMOS.

Precision farming made easy.

GPS PILOT CEMIS 1200.

Improve the profitability of your farm and simplify day-to-day operations – step into the future with the CEMIS 1200 terminal.
With the GPS PILOT automatic steering system, your machine will seem like it's running on rails: always on the right track, using the full working width with no overlapping. There's no need for a long induction course. You'll be surprised how easy it is to operate an automatic steering system using the intuitive CLAAS user interface.

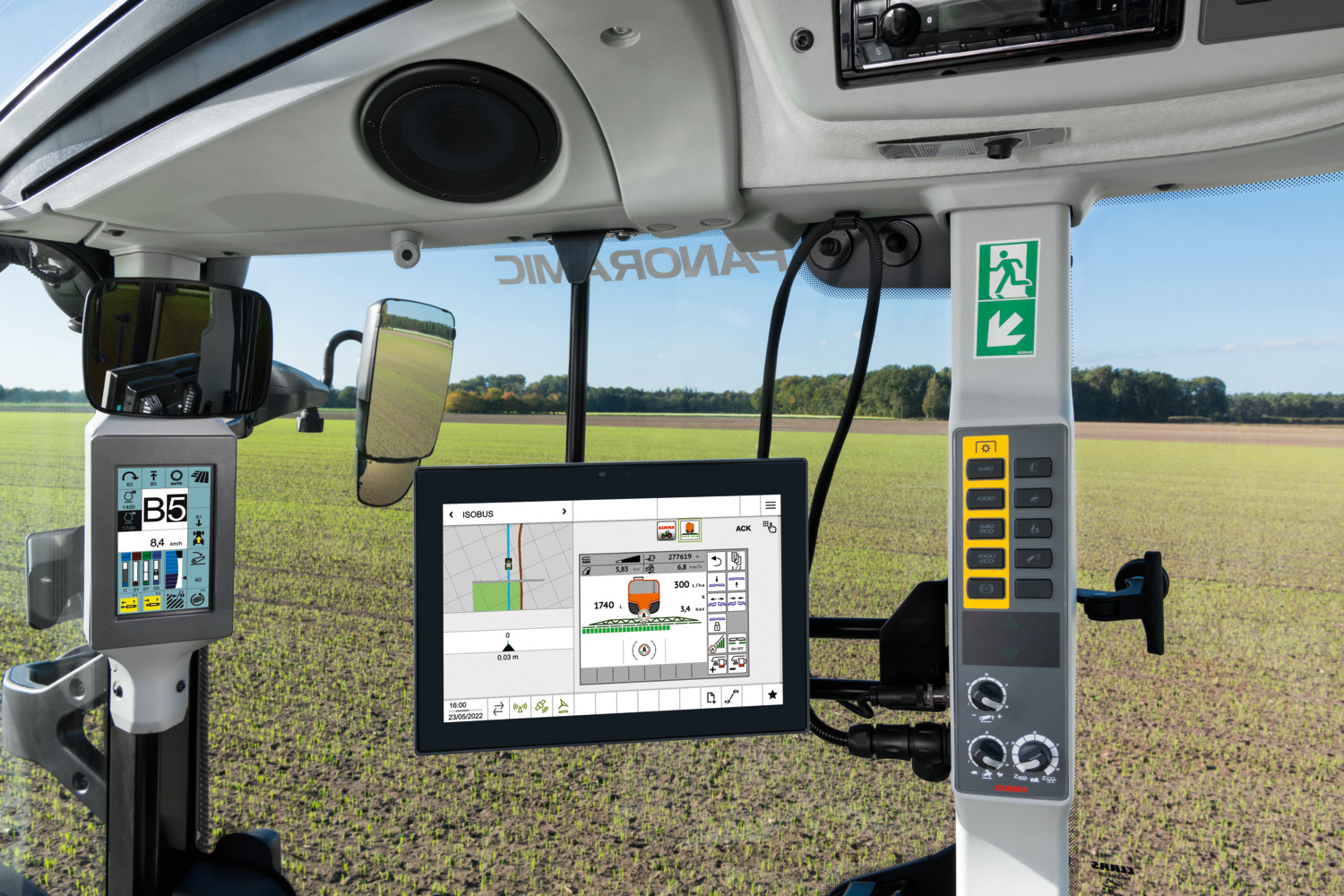

ISOBUS implement control via the CEMIS 1200 terminal.

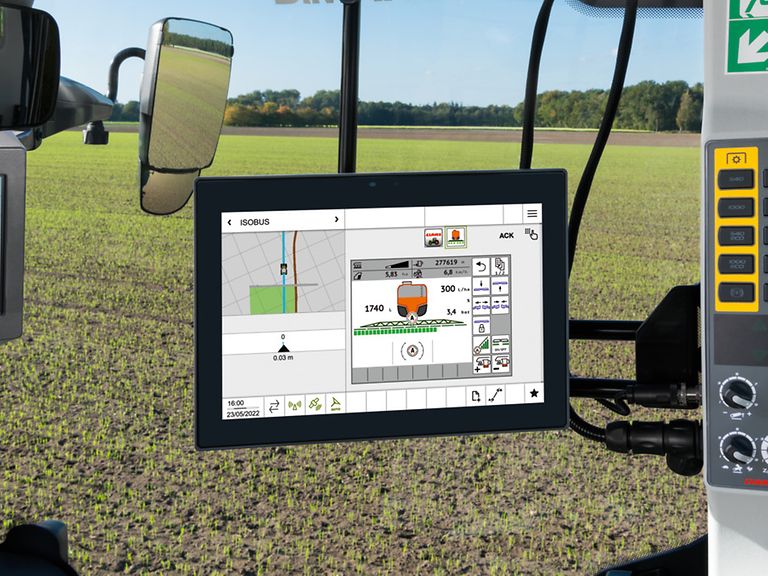

ISOBUS Universal Terminal (ISO UT).

The ISO UT implement view can be displayed in the main work screen or in the smaller implement screen. This enables you to customise the display settings to suit your needs. The AUX-N allows functions to be assigned to physical function keys, for example on the CLAAS multifunction control lever.

Take it up a level.

CLAAS POWER MANAGEMENT.

Power and ease of handling make the ARION more versatile than ever. The intelligent CLAAS POWER MANAGEMENT (CPM) electronic control system delivers an additional 10 hp in the 470-440 models, e.g. for PTO or transport work. This increases the maximum output to 155 hp. Combined with an unladen weight of just 5.3 t (ARION 470), this gives the tractor a power-to-weight ratio of only 34 kg/hp.

Steering angle-dependent four-wheel drive.

More agile than ever.

In addition to speed-dependent automatic four-wheel drive, the ARION 400 features a steering angle-dependent mode which you can deploy as and when required.

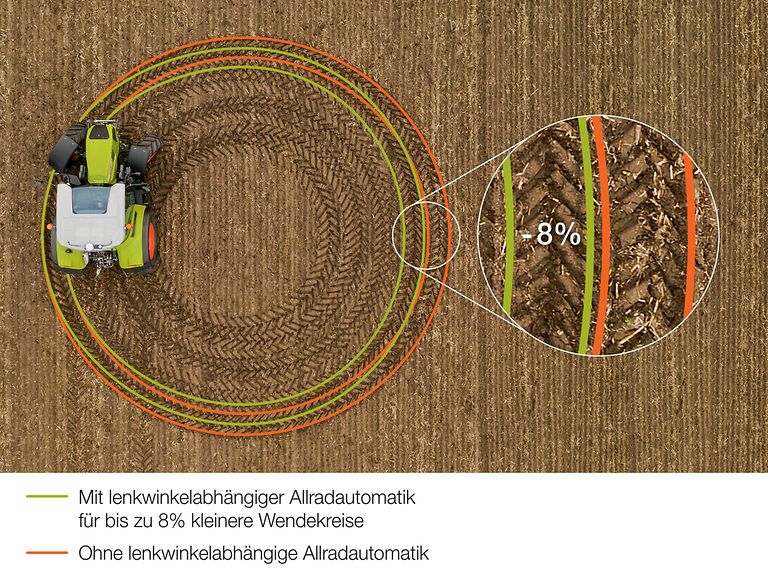

During field work when soil conditions are dry, steering angle-dependent automatic four-wheel drive can reduce the turning circle by up to 8% (shown in green on the diagram), allowing you to negotiate the headland more efficiently and reduce tyre wear. It also enables you to go easier on the grass sward and your crop during grass harvesting and field work.

Push the boundaries.

Hydraulic output of up to 150 l/min.

Load-sensing systems which deliver a hydraulic output of 110 l/min or 150 l/min are available for the CIS and CIS+ version of the ARION. The variable hydraulic pumps supply only the volume of oil that is actually needed for the task, avoiding any surplus.

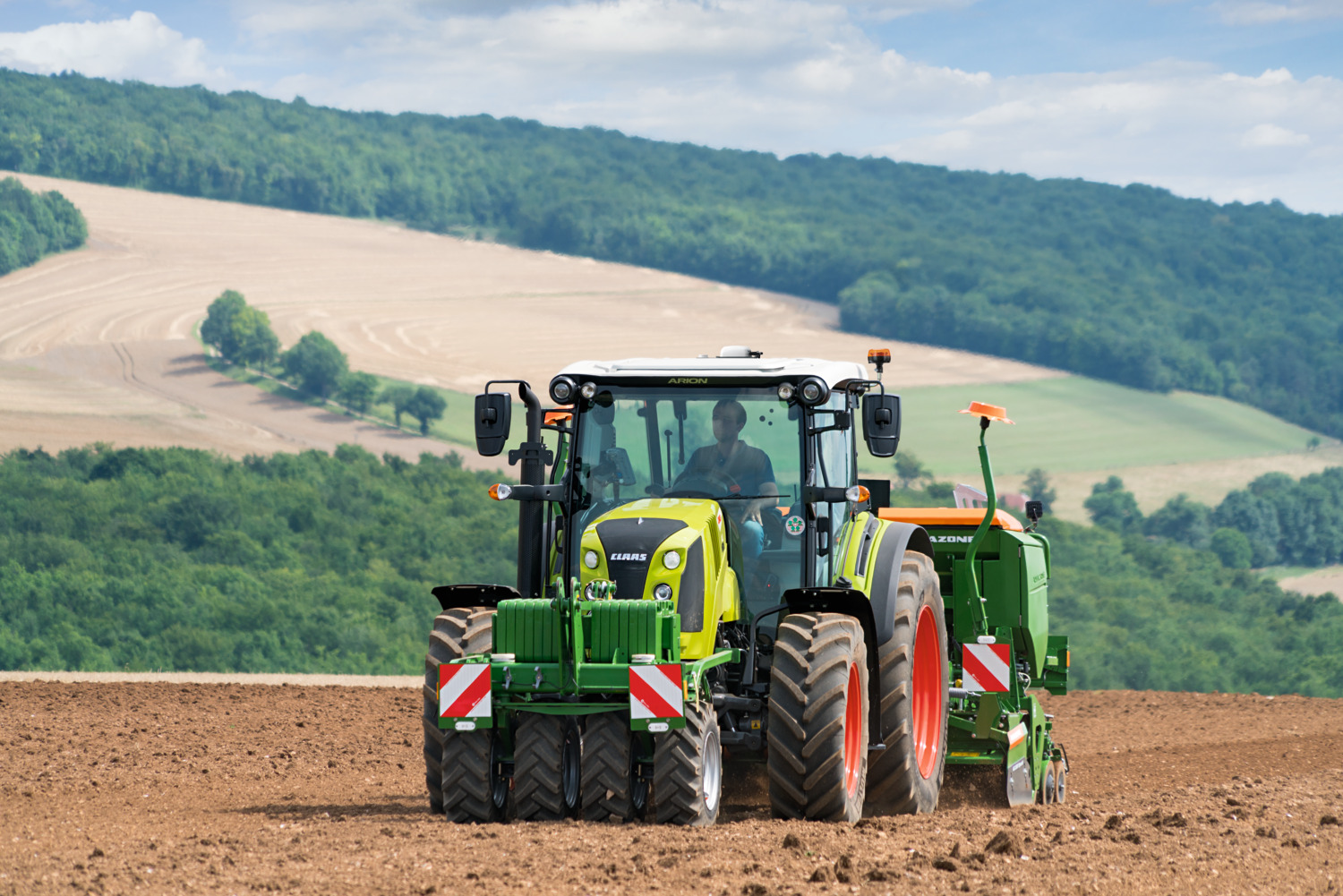

The 150 l/min circuit is enough to satisfy even large hydraulic consumers such as pneumatic seed drills effortlessly and powerfully. And when you don't need maximum hydraulic power, you can drive the ARION 400 at reduced engine speed and save valuable fuel.

High specification.

Rear linkage.

The electronic rear linkage has a maximum lifting capacity of 4.50, 5.75 or 6.25 t, making it capable of handling any implement. The external controls for the rear linkage, an electronic spool valve and PTO are conveniently located on both mudguards. Practical holders for the lower link balls are also provided at the rear.

Agile diesel saver.

The ARION 400 is one of the most popular tractors in the CLAAS programme. And now we know why, having tested the top-of-the-range ARION 470 with maximum 114 kW/155 hp.

Field report – ARION 470

"I went for a test drive and bought one on the spot."

For Christophe Dejonghe, the CLAAS ARION 470 has become the mainstay of his 100-hectare farm. Its comfort and agility combined with 155 hp makes the ARION the perfect machine for his work.

Christophe Dejonghe
59670 Hardifort (France)
60 dairy cows and 170 cattle overall
100 hectares of arable land
Wheat, potatoes, peas, maize silage and grass
ARION 660 CMATIC, ARION 640, ARION 470, ARION 450

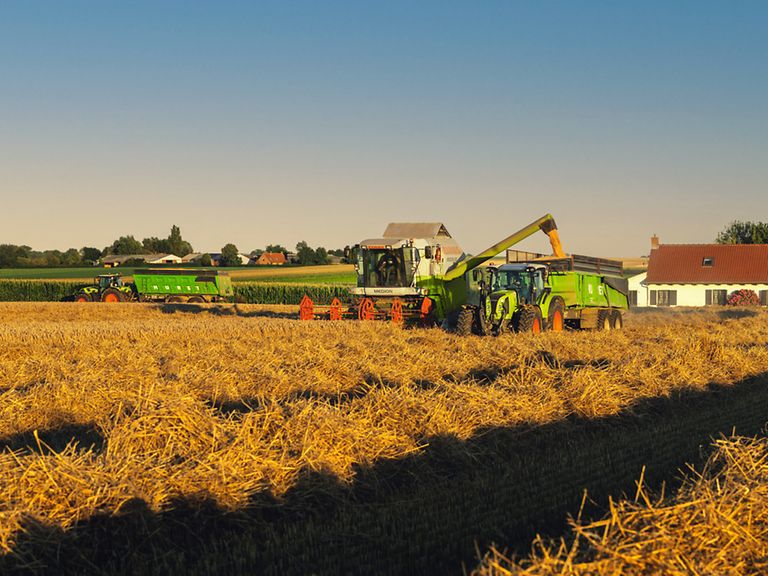

At his two sites he grows around 35 hectares of wheat, 20 hectares of potatoes and between six and eight hectares of peas. On top of that, he has 170 dairy and beef cows. To manage all this, Christophe needs compact yet powerful machines that can reduce his workload. For this, and to shuttle the ten kilometre stretch between the two sites, he relies on the ARION 470.

The farmer already knew a thing or two about CLAAS tractors before making the purchase – he's been driving an ARION in the 400 series for years. "But I wanted more power and responsiveness," said the 52-year-old. Christophe didn't take long to reach a decision. After a short demonstration of the ARION 470, his mind was made up. "I went for a test drive and bought one on the spot."

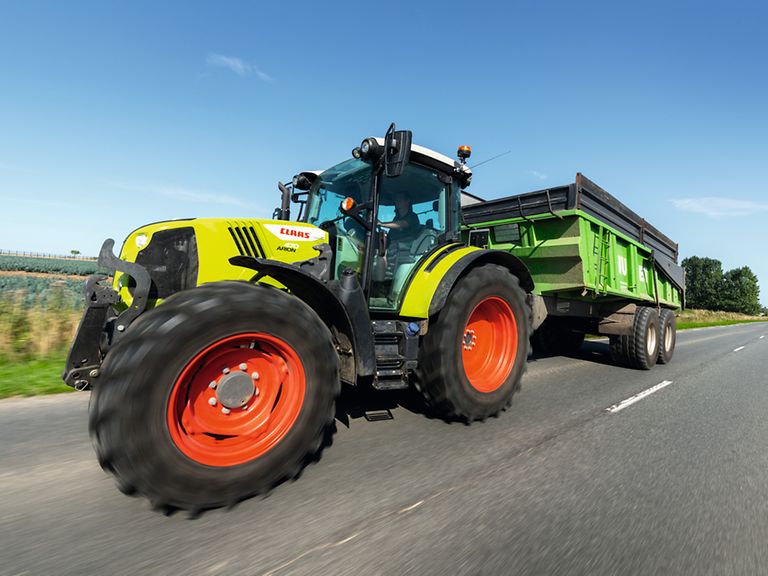

Today Christophe uses his ARION 470 mainly for transport in combination with an 18-tonne tipper, a three-axle bale trailer and a fertiliser spreader – work previously done by a 6-cylinder tractor. With the increased power of the new ARION 470, Christophe can also use it for deep tillage in his potato fields.

When you're hard at work in the field each day, you know that power is not everything. What Christophe likes best about his CLAAS ARION 470 is comfort and ease of operation. "I really like the 24-gear HEXASHIFT transmission.

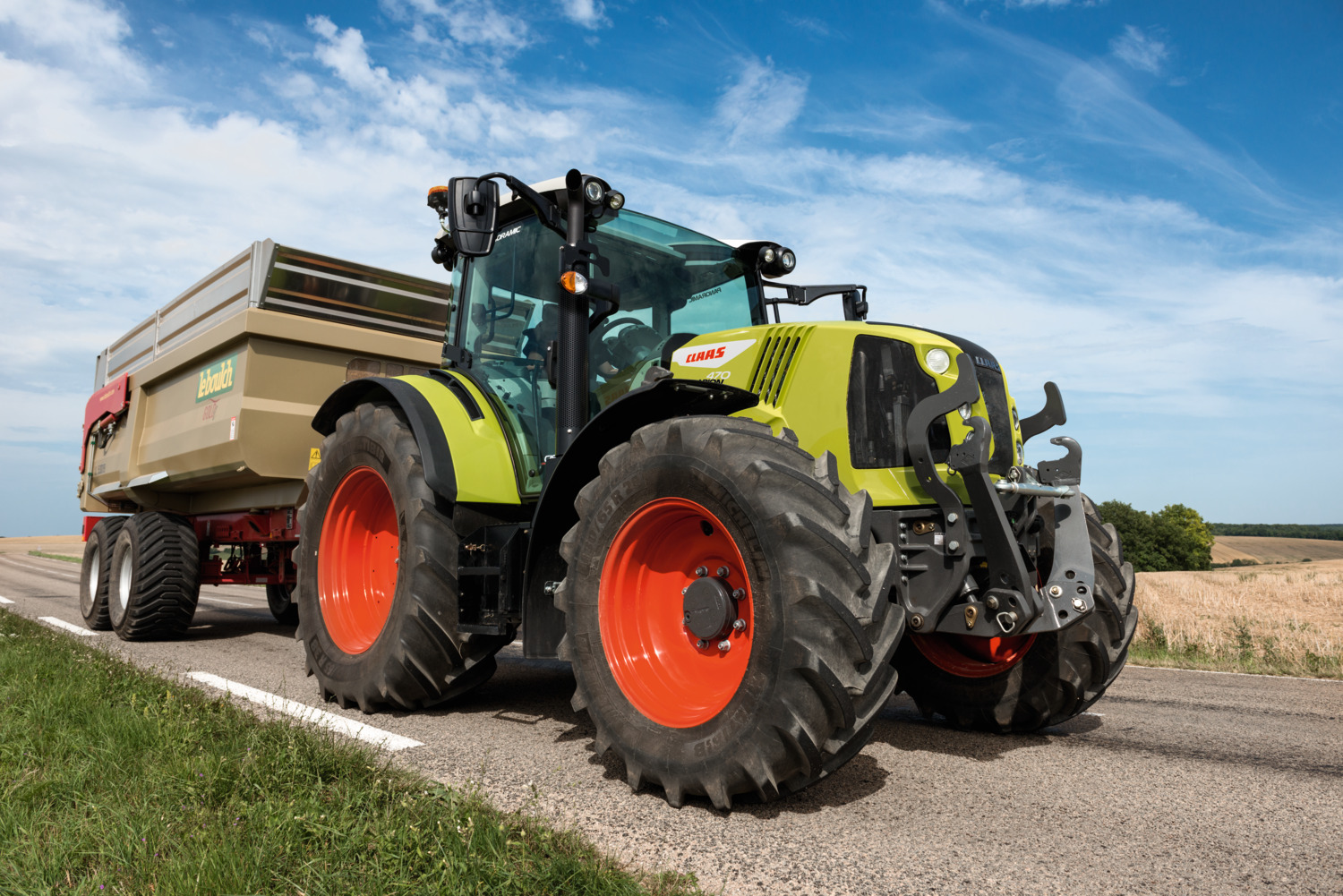

The tractor shifts so smoothly – especially the reverser." And the innovative front axle suspension makes driving the ARION 470 much more comfortable, particularly when Christophe is moving between sites: the machine travels effortlessly at 45 km/h on the road.

A compact, manoeuvrable tractor, responsive and easy to drive – is how Christophe sums up the ARION 470.

The high level of comfort and reliability have convinced the farmer hands down: "It's a very good fit for my farm. That's why I decided to buy a second ARION 400."

Technical data

Model	Number of cylinders	Displacement (l)	Max. output ECE R 120 (hp)	Transmission
470	4	4.50	155	48/48 HEXASHIFT (6 powershift speeds / 4 electronically controlled groups) + creeper range + REVERSHIFT-16/16 QUADRISHIFT (4 powershift speeds / 4 electronically controlled groups) + REVERSHIFT-24/24 HEXASHIFT (6 powershift speeds / 4 electronically controlled groups) + REVERSHIFT
470	4	4.50	155	48/48 HEXASHIFT (6 powershift speeds / 4 electronically controlled groups) + creeper range + REVERSHIFT-16/16 QUADRISHIFT (4 powershift speeds / 4 electronically controlled groups) + REVERSHIFT-24/24 HEXASHIFT (6 powershift speeds / 4 electronically controlled groups) + REVERSHIFT
460	4	4.50	145	48/48 HEXASHIFT (6 powershift speeds / 4 electronically controlled groups) + creeper range + REVERSHIFT-16/16 QUADRISHIFT (4 powershift speeds / 4 electronically controlled groups) + REVERSHIFT-24/24 HEXASHIFT (6 powershift speeds / 4 electronically controlled groups) + REVERSHIFT
450	4	4.50	135	48/48 HEXASHIFT (6 powershift speeds / 4 electronically controlled groups) + creeper range + REVERSHIFT-16/16 QUADRISHIFT (4 powershift speeds / 4 electronically controlled groups) + REVERSHIFT-24/24 HEXASHIFT (6 powershift speeds / 4 electronically controlled groups) + REVERSHIFT
450	4	4.50	135	48/48 HEXASHIFT (6 powershift speeds / 4 electronically controlled groups) + creeper range + REVERSHIFT-16/16 QUADRISHIFT (4 powershift speeds / 4 electronically controlled groups) + REVERSHIFT-24/24 HEXASHIFT (6 powershift speeds / 4 electronically controlled groups) + REVERSHIFT
440	4	4.50	125	48/48 HEXASHIFT (6 powershift speeds / 4 electronically controlled groups) + creeper range + REVERSHIFT-16/16 QUADRISHIFT (4 powershift speeds / 4 electronically controlled groups) + REVERSHIFT-24/24 HEXASHIFT (6 powershift speeds / 4 electronically controlled groups) + REVERSHIFT
430	4	4.50	115	48/48 HEXASHIFT (6 powershift speeds / 4 electronically controlled groups) + creeper range + REVERSHIFT-16/16 QUADRISHIFT (4 powershift speeds / 4 electronically controlled groups) + REVERSHIFT-24/24 HEXASHIFT (6 powershift speeds / 4 electronically controlled groups) + REVERSHIFT
430	4	4.50	115	48/48 HEXASHIFT (6 powershift speeds / 4 electronically controlled groups) + creeper range + REVERSHIFT-16/16 QUADRISHIFT (4 powershift speeds / 4 electronically controlled groups) + REVERSHIFT-24/24 HEXASHIFT (6 powershift speeds / 4 electronically controlled groups) + REVERSHIFT
420	4	4.50	100	16/16 QUADRISHIFT (4 powershift speeds / 4 electronically controlled groups) + REVERSHIFT
