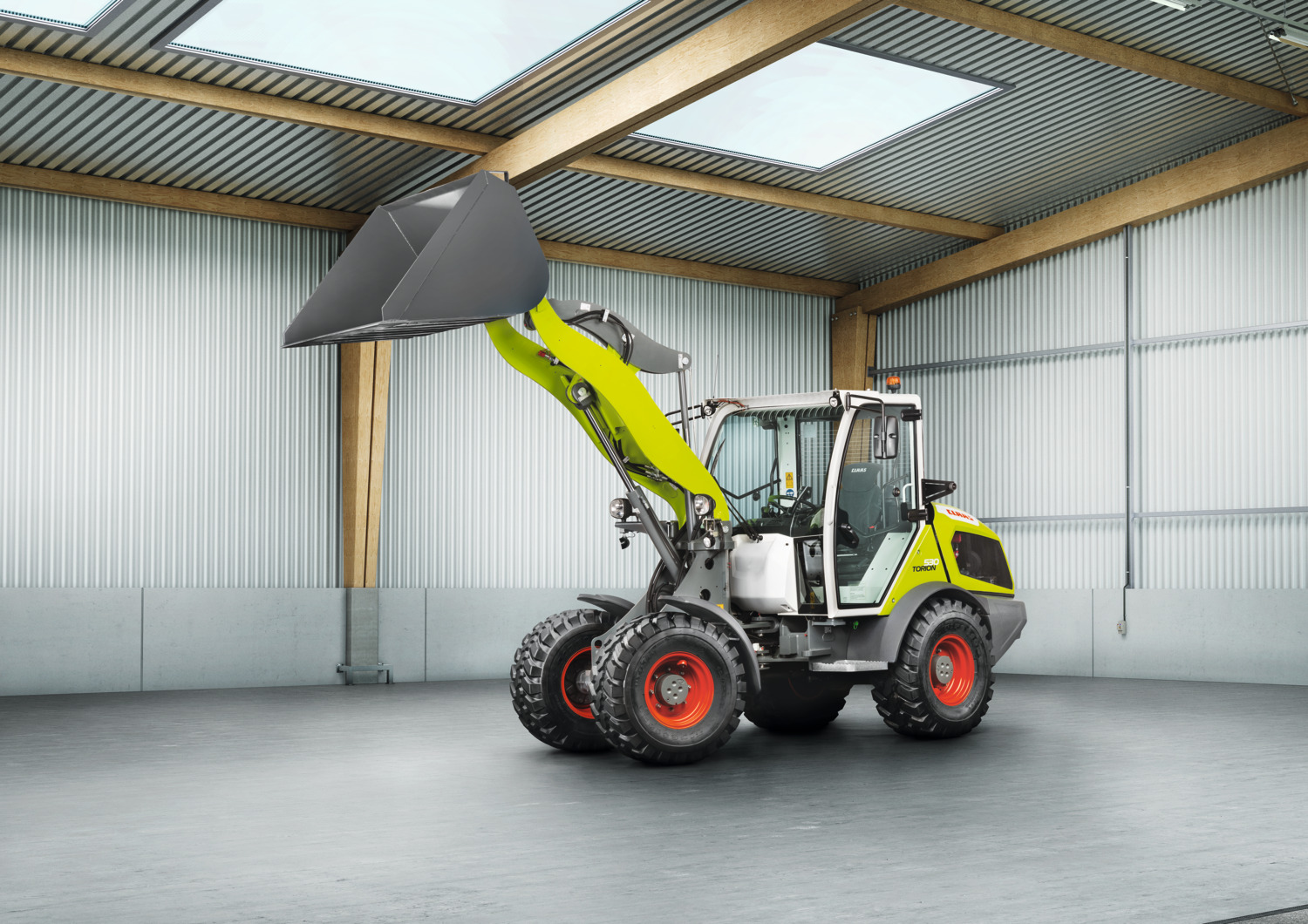

The small wheel loader for people with great plans.
TORION 639-530

The models in the small TORION series lift 3.9 t fully articulated to a maximum height of 3.56 m at the bucket pivot point. Their hydraulic system mobilises powerful forces. The Z-kinematics slightly tilts the fork as it is raised to lift pallets safely. The conical mast provides for an unrestricted view of the implement carrier in any position.

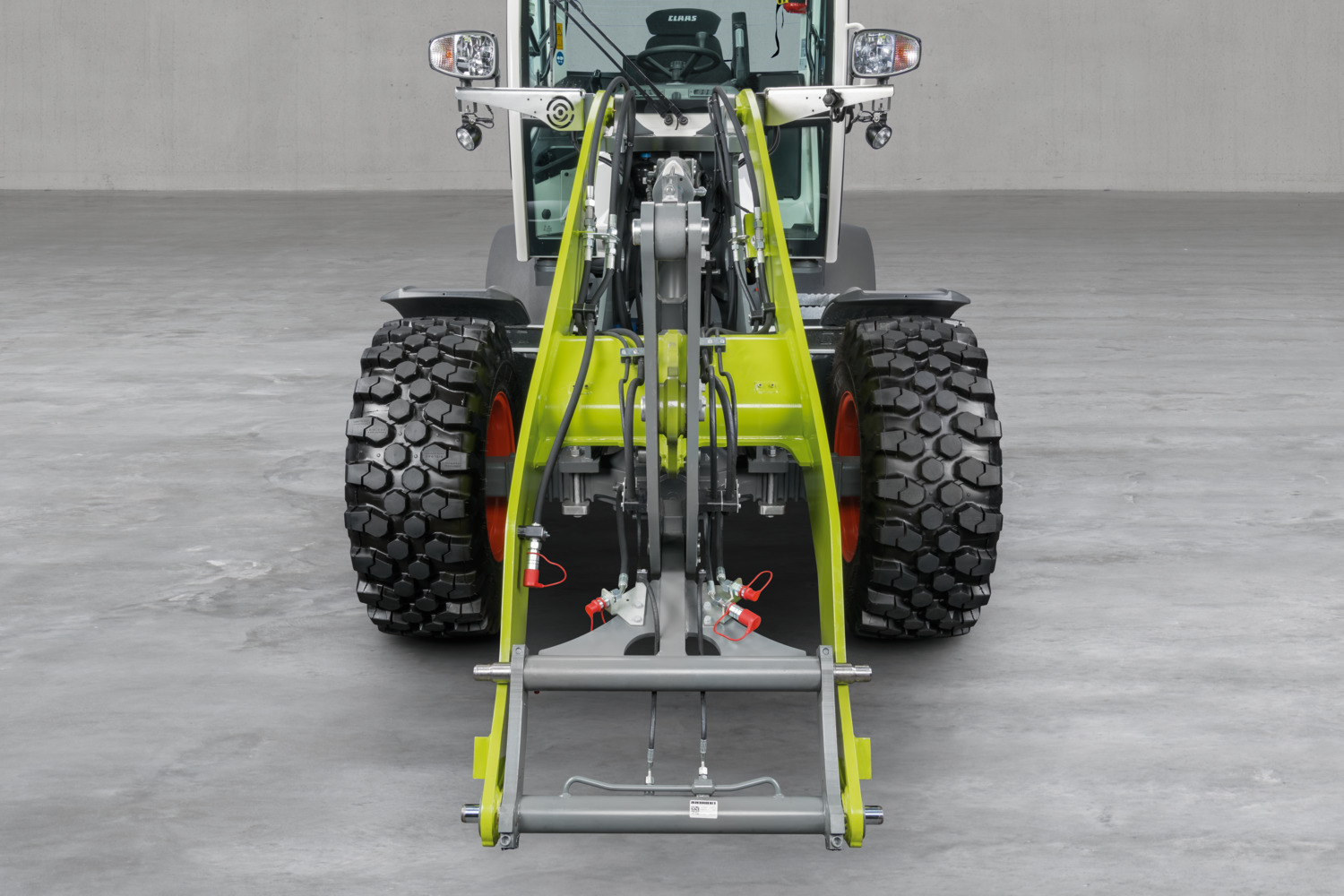

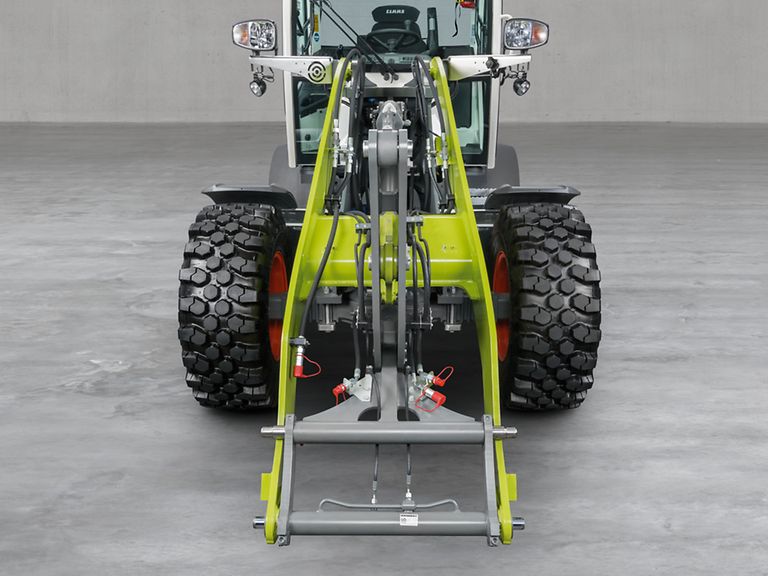

Mast.

Increase your materials handling capacity.

The robust implement carrier impresses with high lifting and breakaway forces

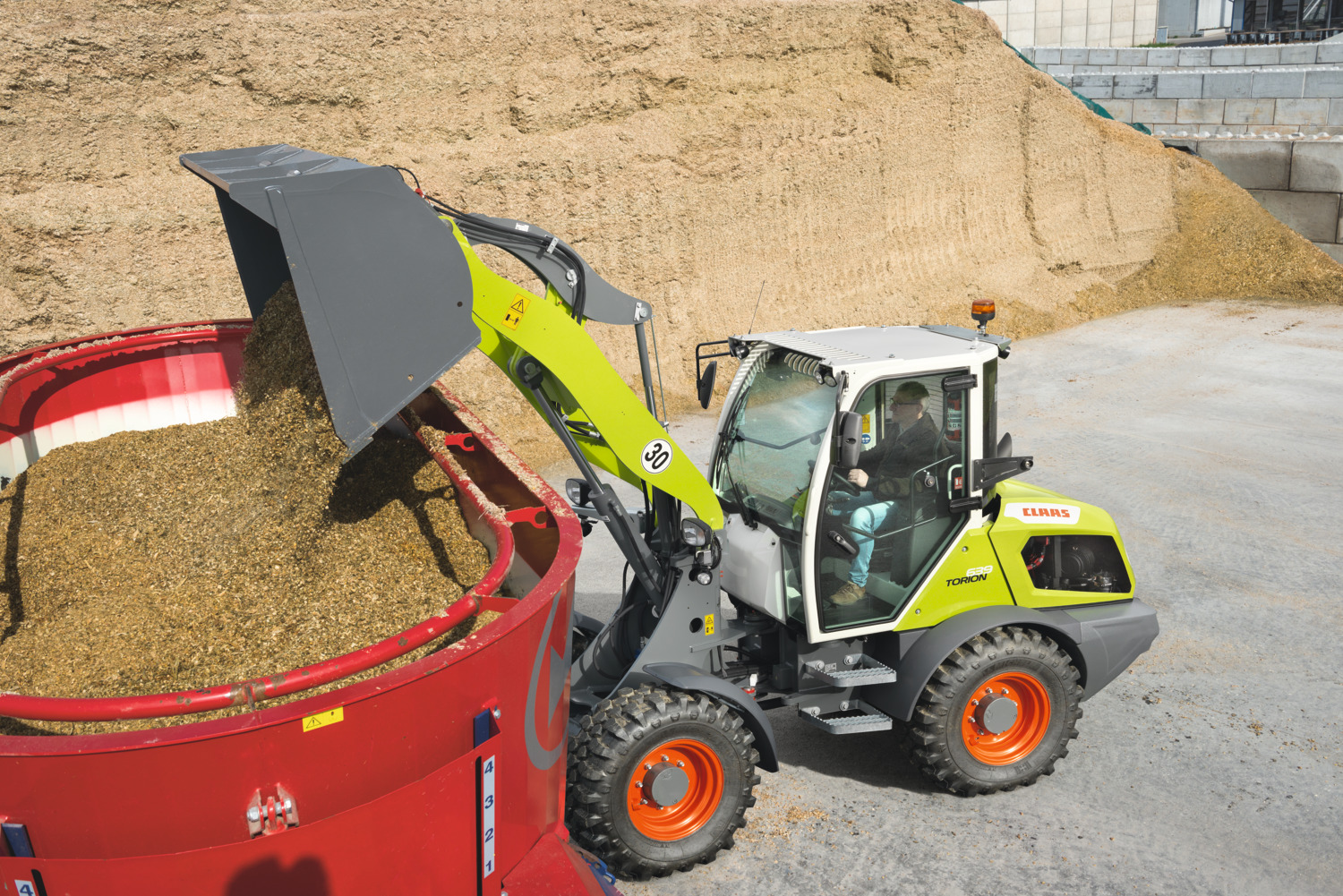

Fitted with an earthmoving bucket, the conical mast and optional high-lift kinematics give you a maximum dump-over height of 3.18 m

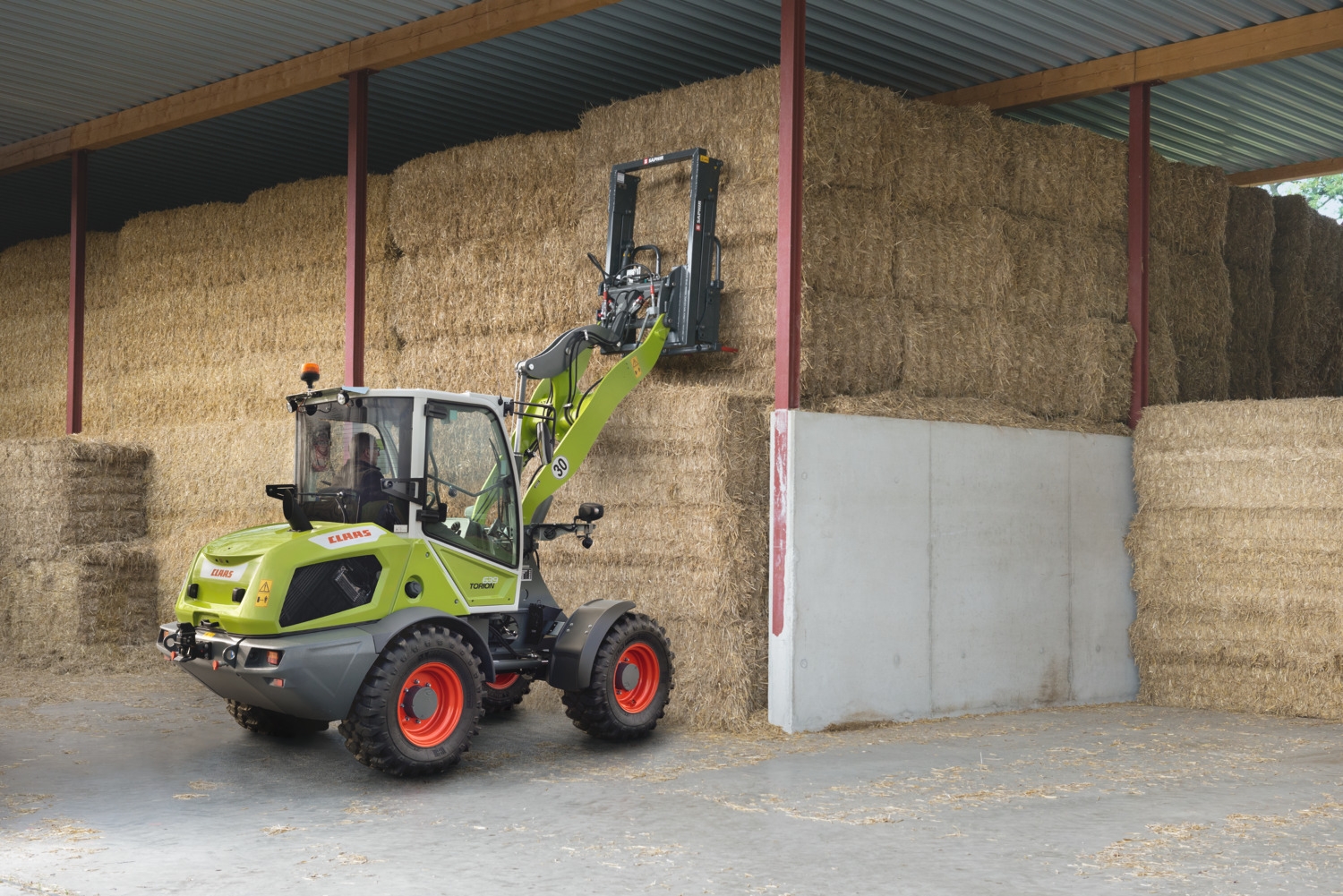

The Z-kinematics controls the pallet fork safely and securely
Control the lift mast and implement conveniently with a single multi function lever / joystick
The rear-mounted engine acts as a counterweight

TORION		Max. height of bucket pivot point (m)	Max. dump-over height (m)	Max. tipping load, fully articulated (t)	Max. breakaway power (kN)	Max. payload with loading fork (t)
639	Z-ST	3.34	2.98	3.9	57	2.5
639	Z-HL	3.56	3.18	3.6	58	2.3
535	Z-ST	3.19	2.82	3.5	47	2.1
535	Z-HL	3.34	2.97	3.3	50	2
530	Z-ST	3.18	2.82	3	40	1.9

Z-ST = Z-kinematics, standard

Z-HL = Z-kinematics, high lift

CPS - CLAAS Power Systems.

Engine. Hydraulics. Drive.

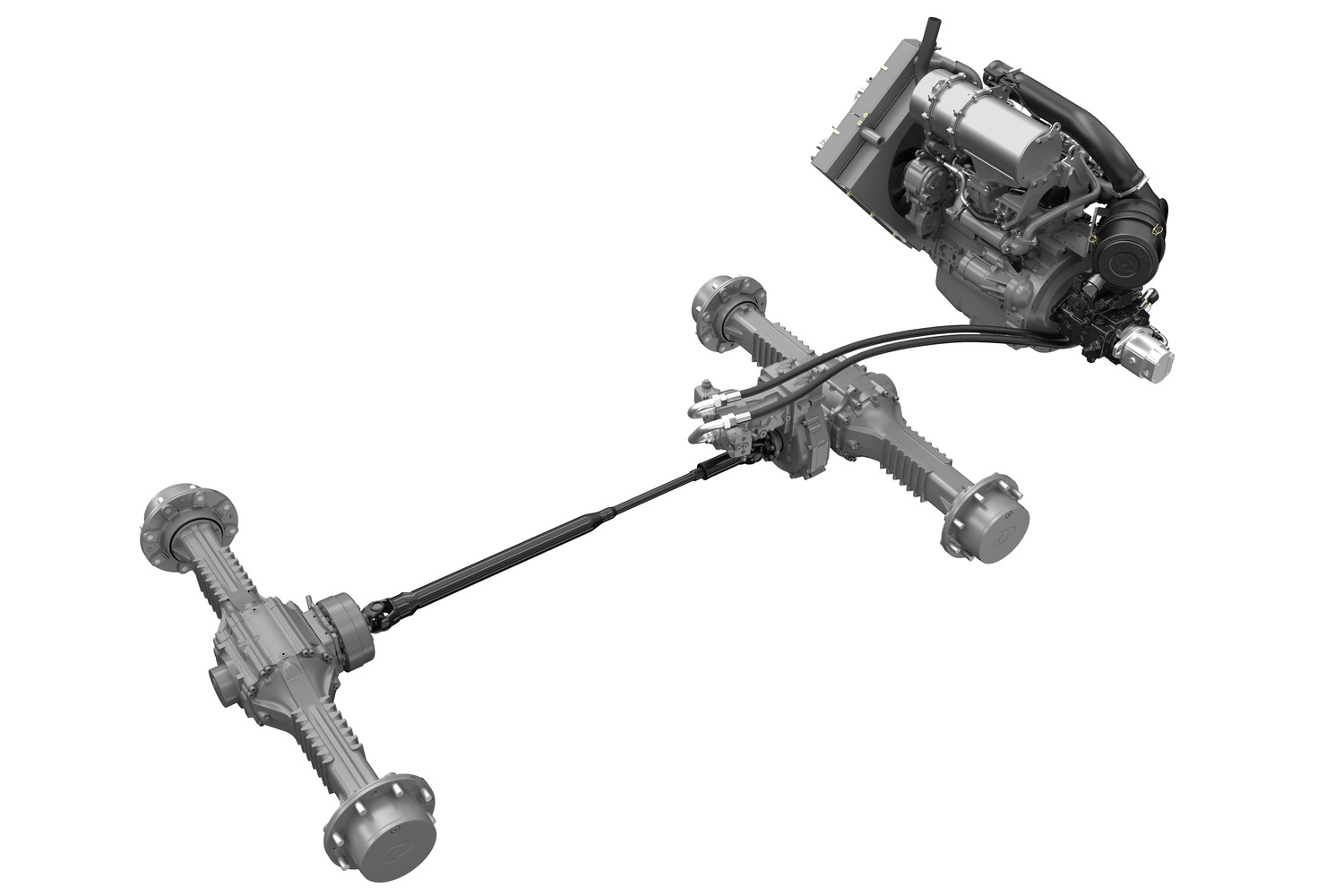

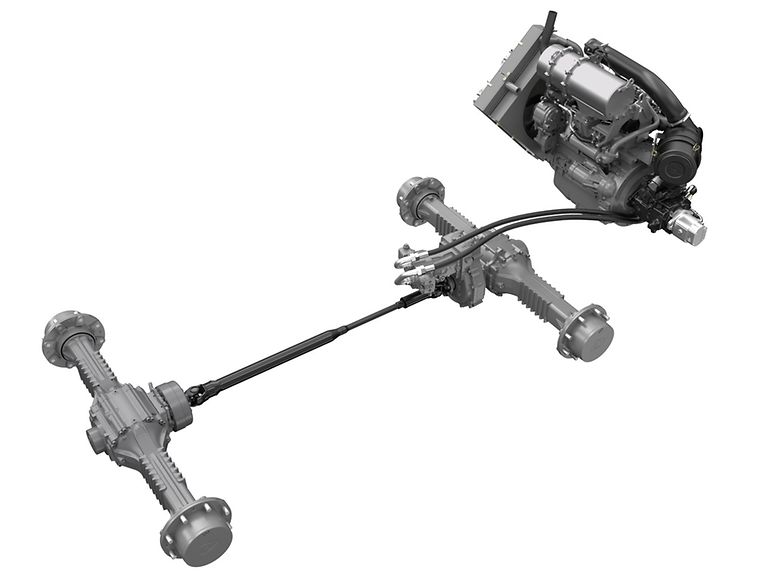

The small TORION series features a continuously variable hydrostatic ground drive to make your work a breeze. The drive is built from high-quality, durable materials and delivers impressively comfortable driving characteristics. As a result, you’ll drive the TORION accurately in any speed range and adjust its thrust precisely. Driving performance is identical in both forward and reverse travel.

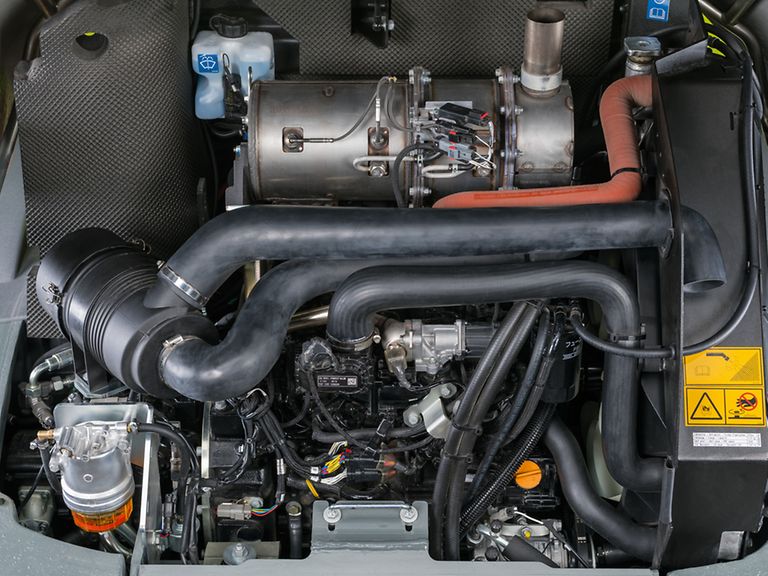

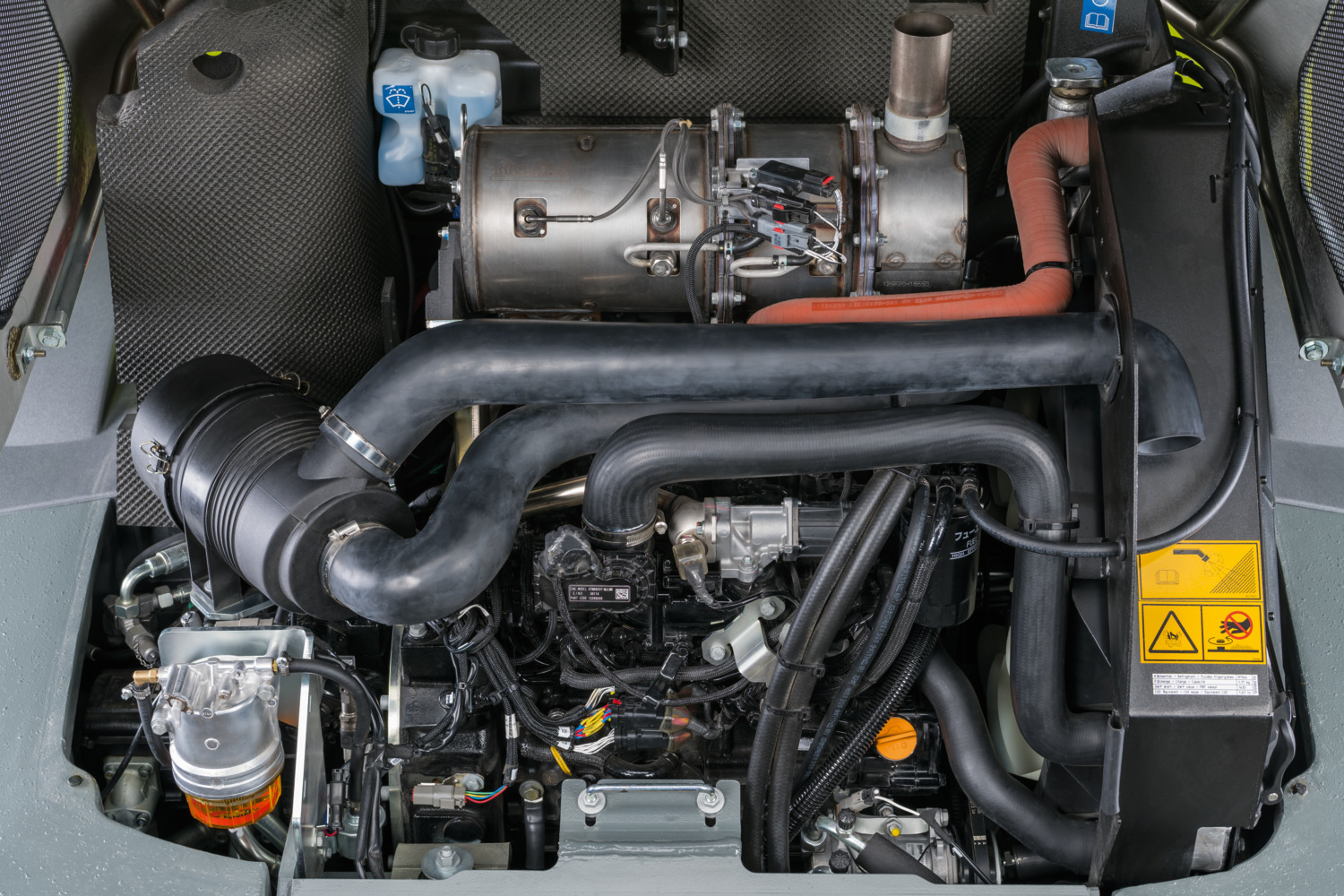

Robust 4-cylinder engines.

All TORION engines are robust and low-maintenance. They easily deliver the power this agile all-rounder needs for any of the diverse applications in your business.

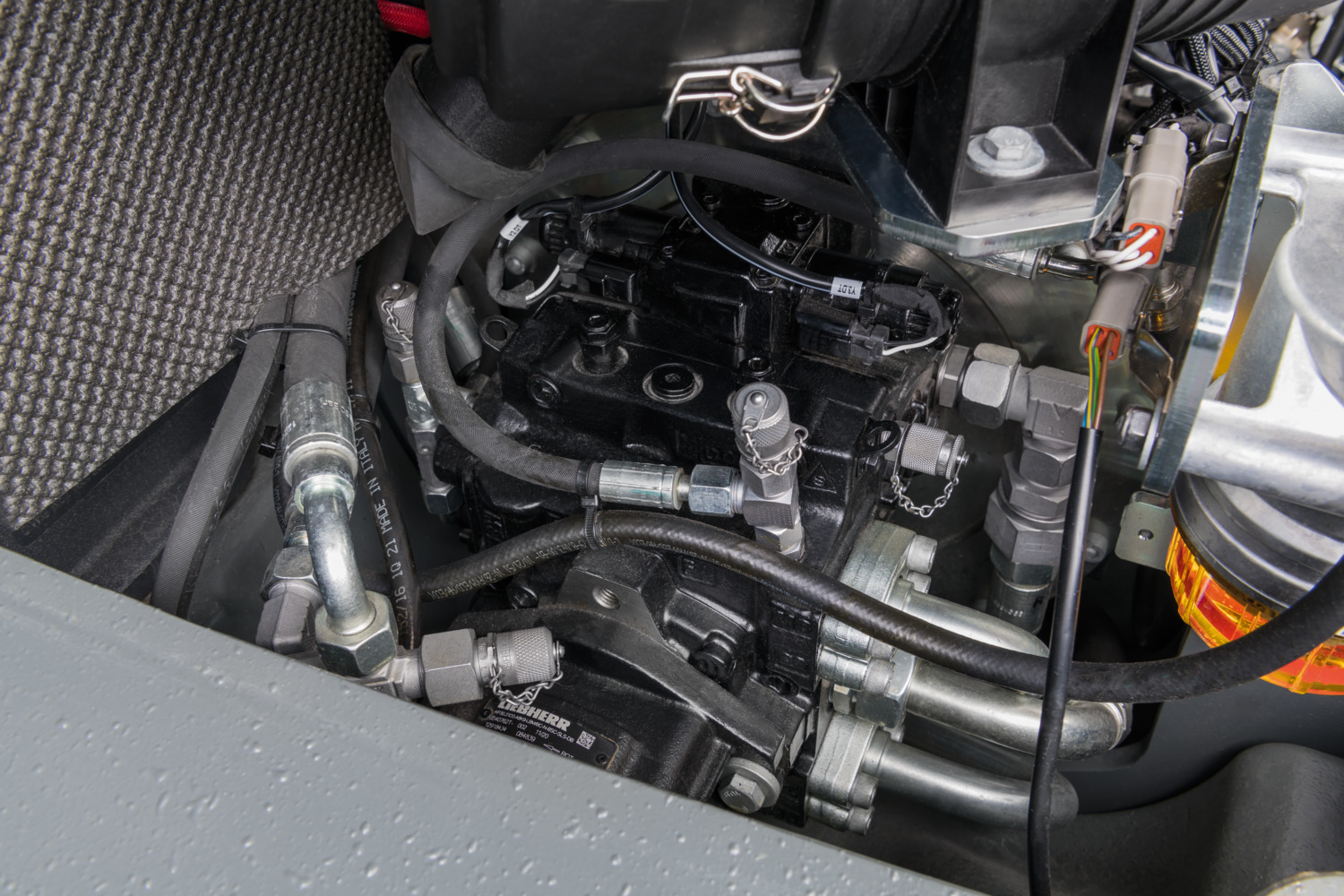

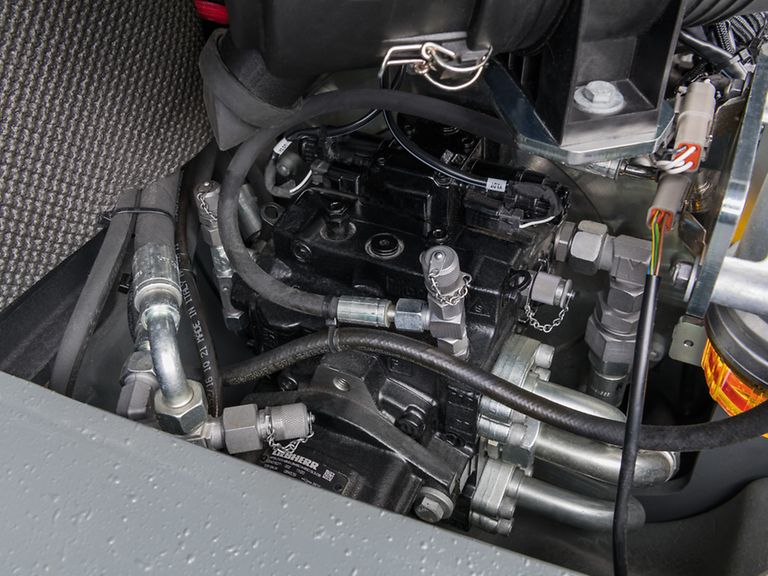

Powerful hydraulic system.

Whether pushing or lifting heavy loads or loading with speed and precision, the hydraulic system of the small TORION series provides all the power you need for your implements. As a result, you get your work done quickly and are ready for essentially any challenge your business throws at you.

Model	Rated engine output (kW/hp)	Nominal engine speed (rpm)	Max. torque (Nm)	at engine speed (rpm)	Engine displacement (l)	Hydraulic capacity (l/min / bar)	Max. speed (km/h)
639	55/74	2500	263	1690	2.09	80/230	30
535	55/74	2500	263	1690	2.09	70/230	30
530	34/46	2650	140	1950	2.19	61/230	20

How much power would you like?

Digital solutions for loaders

With CLAAS Machine connect, you can easily transfer machine and process data online.

Specifications

Model	Tip load fully articulated (kg)	Max. height bucket pivot point (m)	Max. output ECE R 120	Hydraulic capacity	Operating weight (kg)
639	3,600-3,900	3.34-3.56	55 kW / 74 PS	80 l/min / 230 bar	5,700
535	3,250-3,500	3.19-3.34	55 kW / 74 PS	70 l/min / 230 bar	4,920-4,970
530	3,000	3.18	34 kW / 46 PS	61 l/min / 230 bar	4,600
