TORION 738T SINUS
Your loader unit has everything under control.

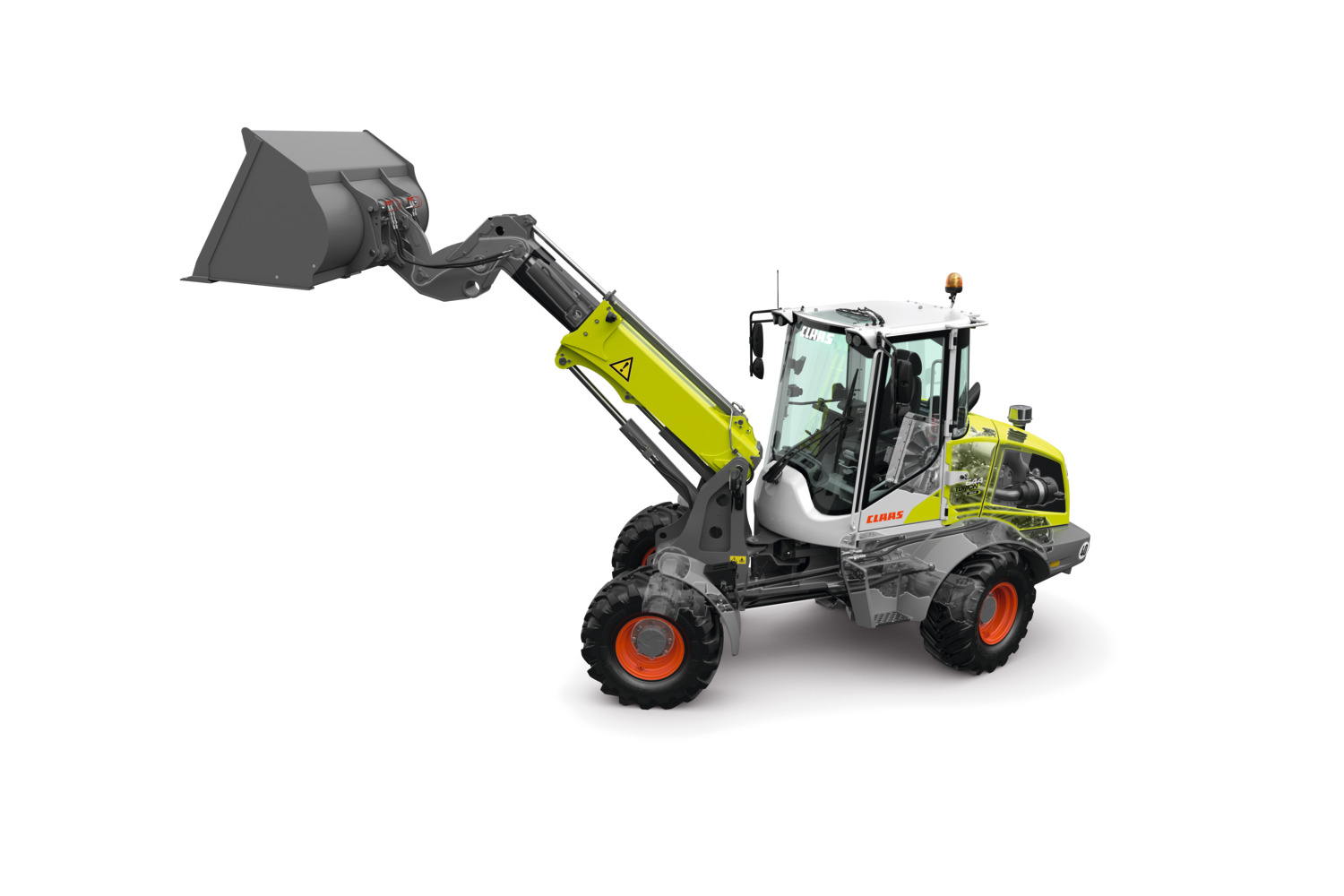

The TORION 738T telescopic wheel loader combines all of the positive features of the SINUS series and reaches remarkable lift heights thanks to a bucket pivot point at 4.96 m.

Make use of its strengths.

SMART LOADING speeds up your loading cycles
Powerful telescopic arm
SMART SHIFTING – infinitely variable hydrostatic ground drive
Maximum speed of 40 km/h – save time and work more productively
High manoeuvrability, thanks to articulated joint and steered rear axle
Ideal all-round visibility from the 4-pillar cab

SMART LOADING protects both drivers and their nerves.

SMART LOADING automates loading functions and reduces operators’ workload every minute of the day.

SMART LOADING is a unique assistance system that actively supports you when loading heavy weights. It precisely manages the interaction between all functions needed to optimise loading cycles. You only need to set the functions once, and they are then performed automatically. The TORION 738 T SINUS supports you with a dynamic load limiter so that you are always safe on the road, even during challenging loading work.

How SMART LOADING supports your work.

You work more safely and precisely
Your loading cycles are more efficient
You protect the bucket and the machine
You tire less quickly

Standing firm on a tiny base.

SINUS steering.

The TORION SINUS is steered not only via the central articulated joint, but also via the rear axle. The front chassis is connected to the rear stub axle with two steering rods. As soon as the driver turns the loader with the steering wheel, the rear axle is also steered in sync.

Left: TORION SINUS with steered rear axle
Right: TORION with rigid rear axle: +11%

Powerful in the tightest of spaces.

The rear axle steers permanently.

The TORION SINUS has less articulation at full steering angle thanks to the permanently co-steering rear axle. The advantages: a smaller turning circle with greater stability and payload. The TORION SINUS lifts more, is more agile and is even more comfortable to drive.

How much power would you like?

Enough thrust.

Smooth and accurate travel.

The TORION SINUS has a hydrostatic drive system with two driving ranges for optimum adaptation to your operating requirements. You select the driving range with a switch, and then have precise, infinitely variable control of the speed via the accelerator pedal. The TORION SINUS changes gear when it’s right for you – without you even noticing. The two-stage hydrostatic ground drive synchronises according to the driving style. Depending on the position of the accelerator pedal, the transmission shifts at between 8 and 16 km/h.

Digital solutions for loaders

With CLAAS Machine connect, you can easily transfer machine and process data online.
