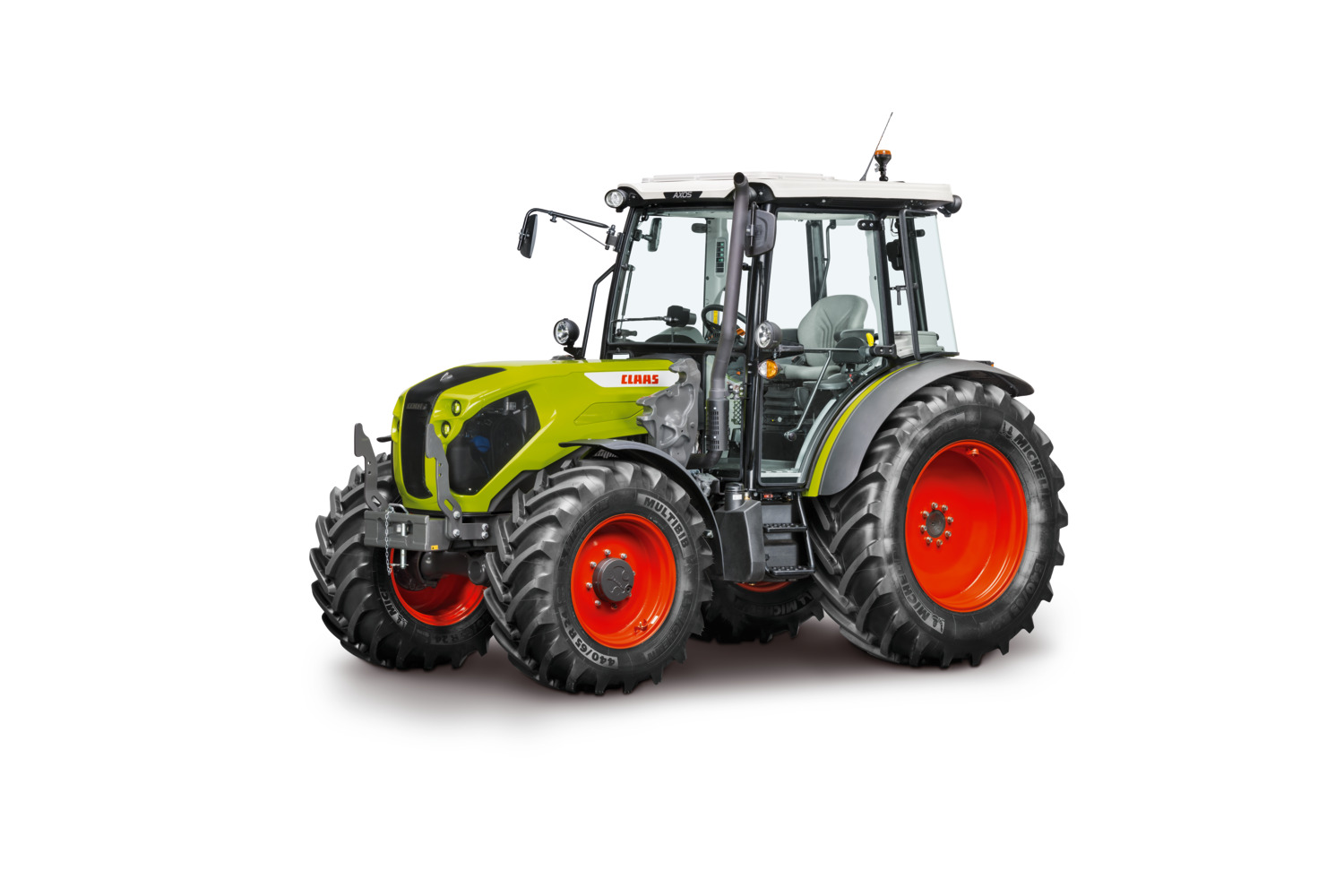

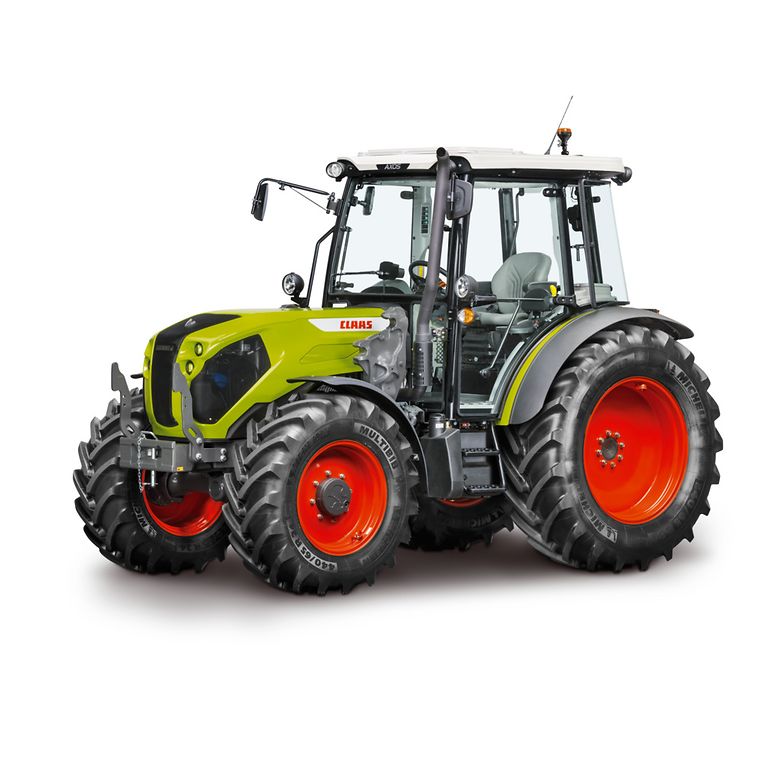

AXOS 2
The versatile way to get more done.

The AXOS 2 is the sturdy all-rounder on your farm. Compact and agile in the yard, productive and soil-friendly in the field thanks to large tyres and a powerful engine. Everything is designed to ensure that you get your work done fast and efficiently – whatever comes your way.

Versatility and comfort to make you more productive.

Versatility. Saving you time. A payload of almost 2 t combined with a 3.35 t lift capacity at the rear allows you to use wider, heavier implements.
Comfort. Work more efficiently. The logical and intuitive arrangement of the controls simplifies your work processes, leaving you free to focus on the job in hand.
Performance. Be more productive. The lively engine, evenly distributed gears and high hydraulic output of up to 87 l/min are key to the efficiency of the AXOS 2.
Reliability. Always ready for work. Put your faith in the high-quality components, the meticulous workmanship and of course, the round-the-clock CLAAS Service – every single day.

Saving you time.

Versatility.

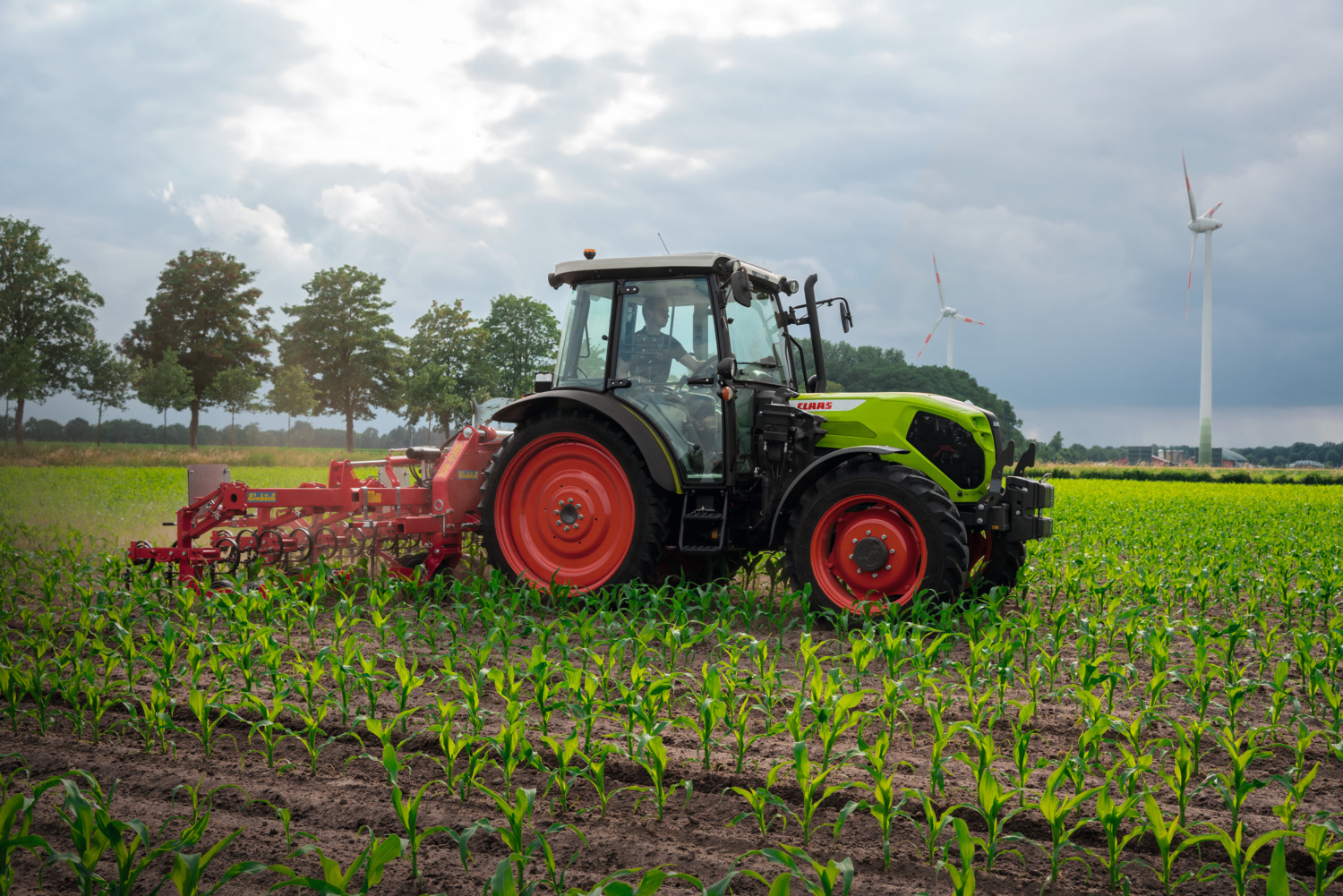

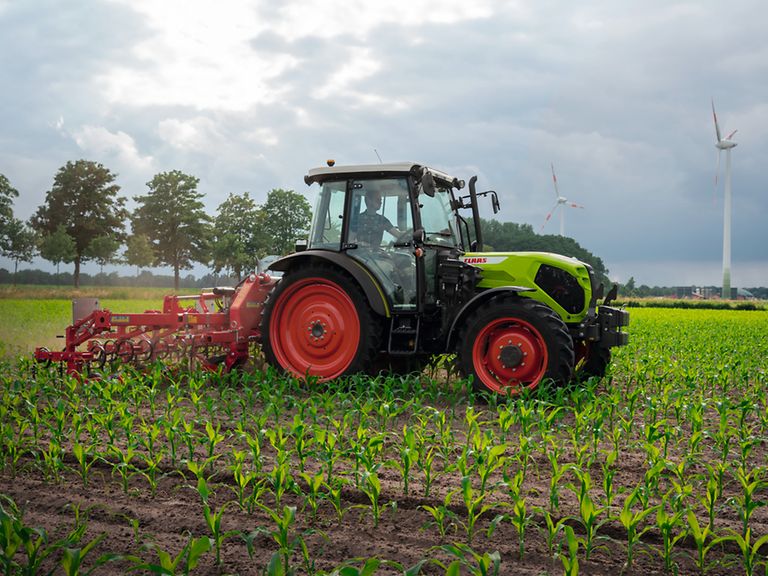

You'll be amazed by the versatility and manoeuvrability of the AXOS 2, no matter how you choose to use it. The 34" rear wheels with a diameter of 1.6 m and a maximum width of 540 mm are ideal in the field. With a lower tyre pressure you can protect the soil, and with a payload of almost 2 t, you can use wider and heavier implements.

The kerb weight of 4.1 t combined with optimal weight distribution and the long wheelbase makes for safe and stable transport operations and draught work. The generous ground clearance makes it easy to drive over swaths or work in crops at an advanced stage of growth during forage harvesting and crop spraying.

Highly versatile.

Lift anything you like.

With a maximum lift capacity of 3.35 t at the ball ends of the rear linkage, the AXOS 2 is well equipped for the daily rigours of work. The rear linkage comes with an electronic operating unit as standard. The menu in the instrument panel provides the driver with an overview of the rear linkage at all times.

A fully integrated front linkage with a lift capacity of 3.2 t is available as an option for the AXOS 2. The integrated design of this front linkage combined with a short distance between the front axle and coupling points reduces the overhang with the front ballast or front mower and improves front implement guidance. The front linkage is operated via a mechanical or an electronic spool valve, depending on the specification.

A perfect fit.

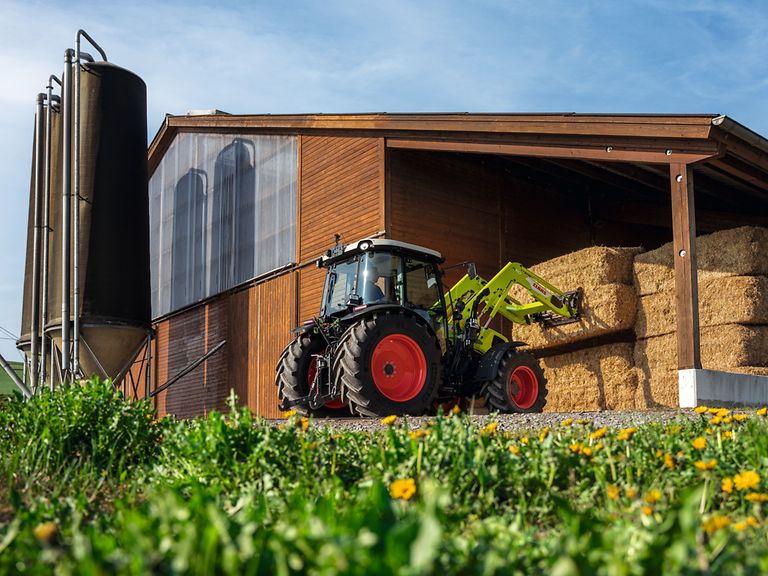

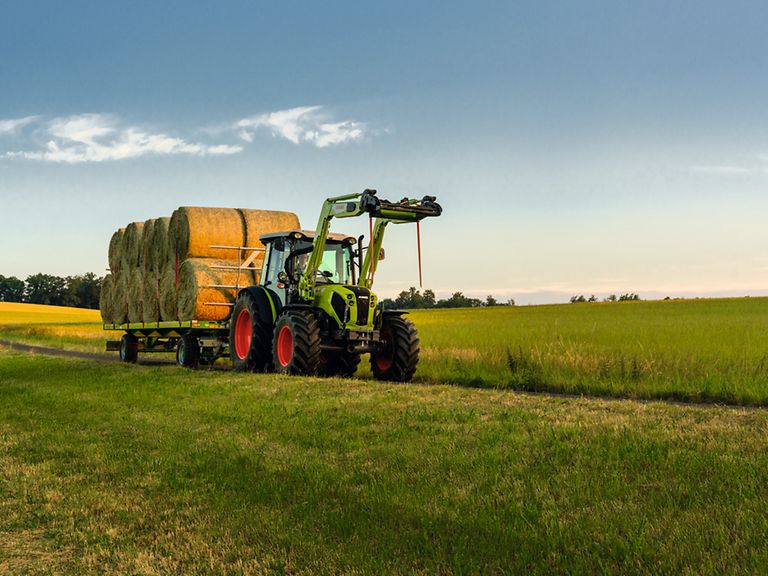

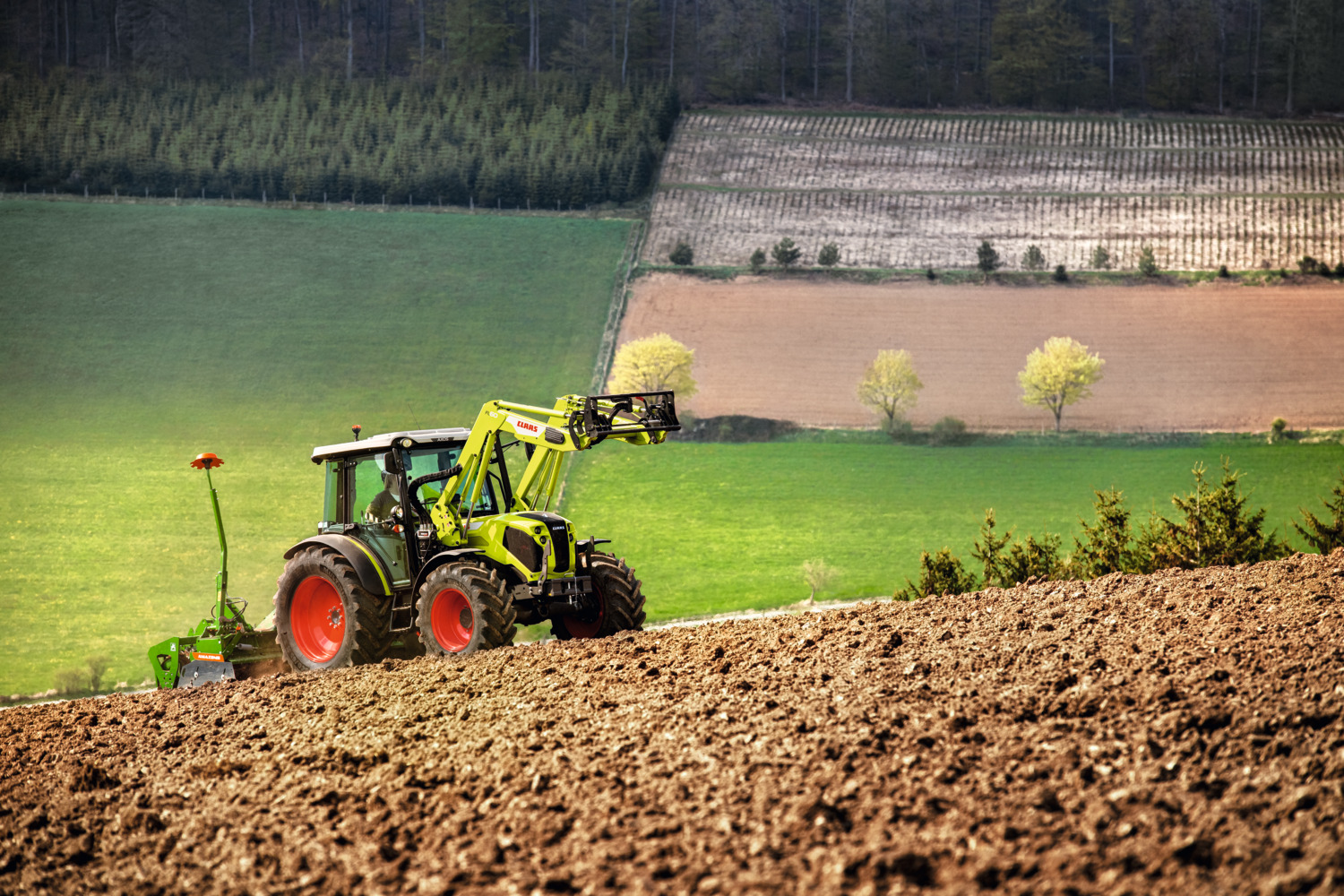

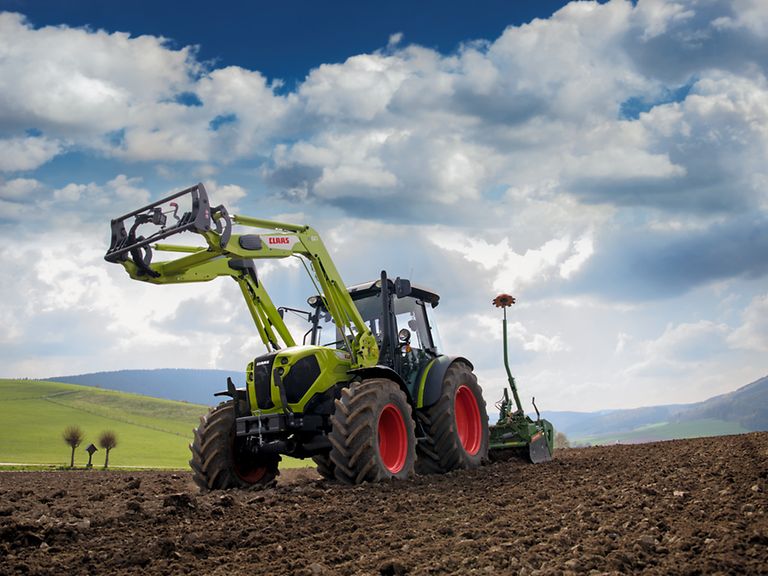

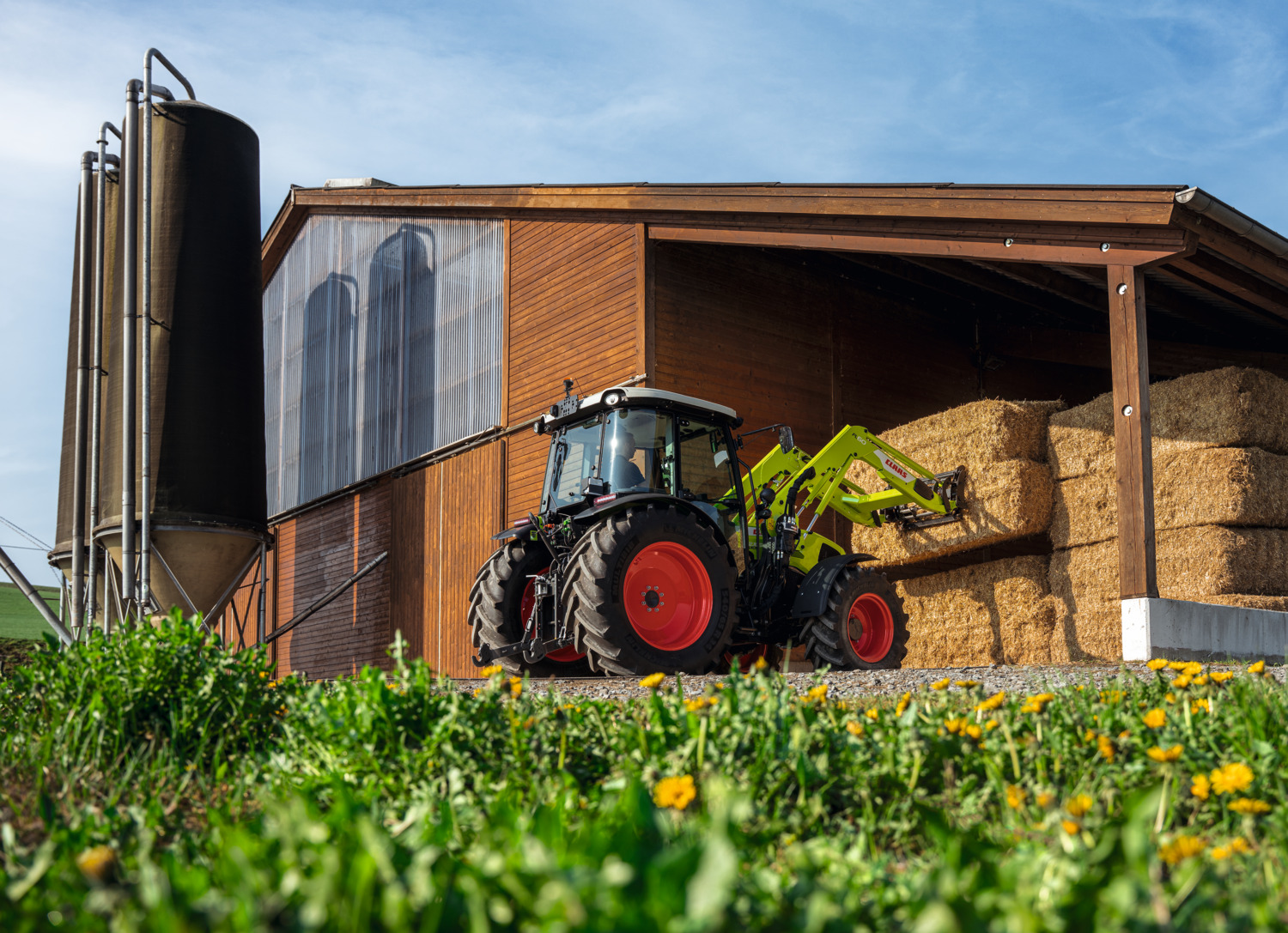

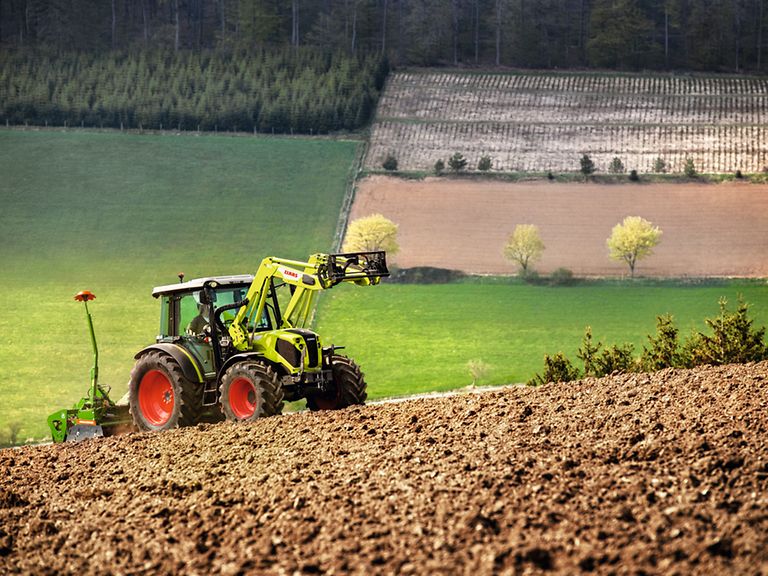

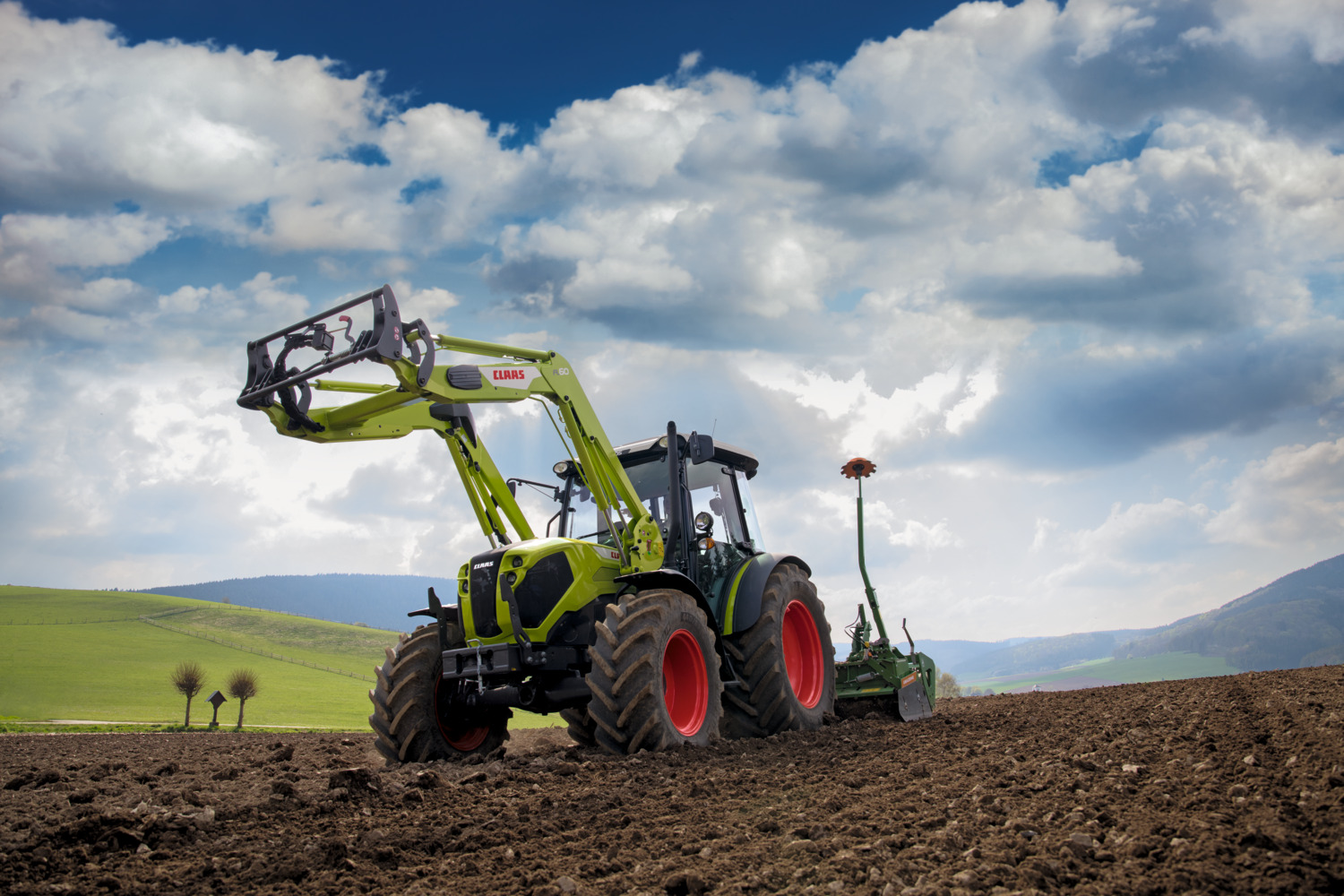

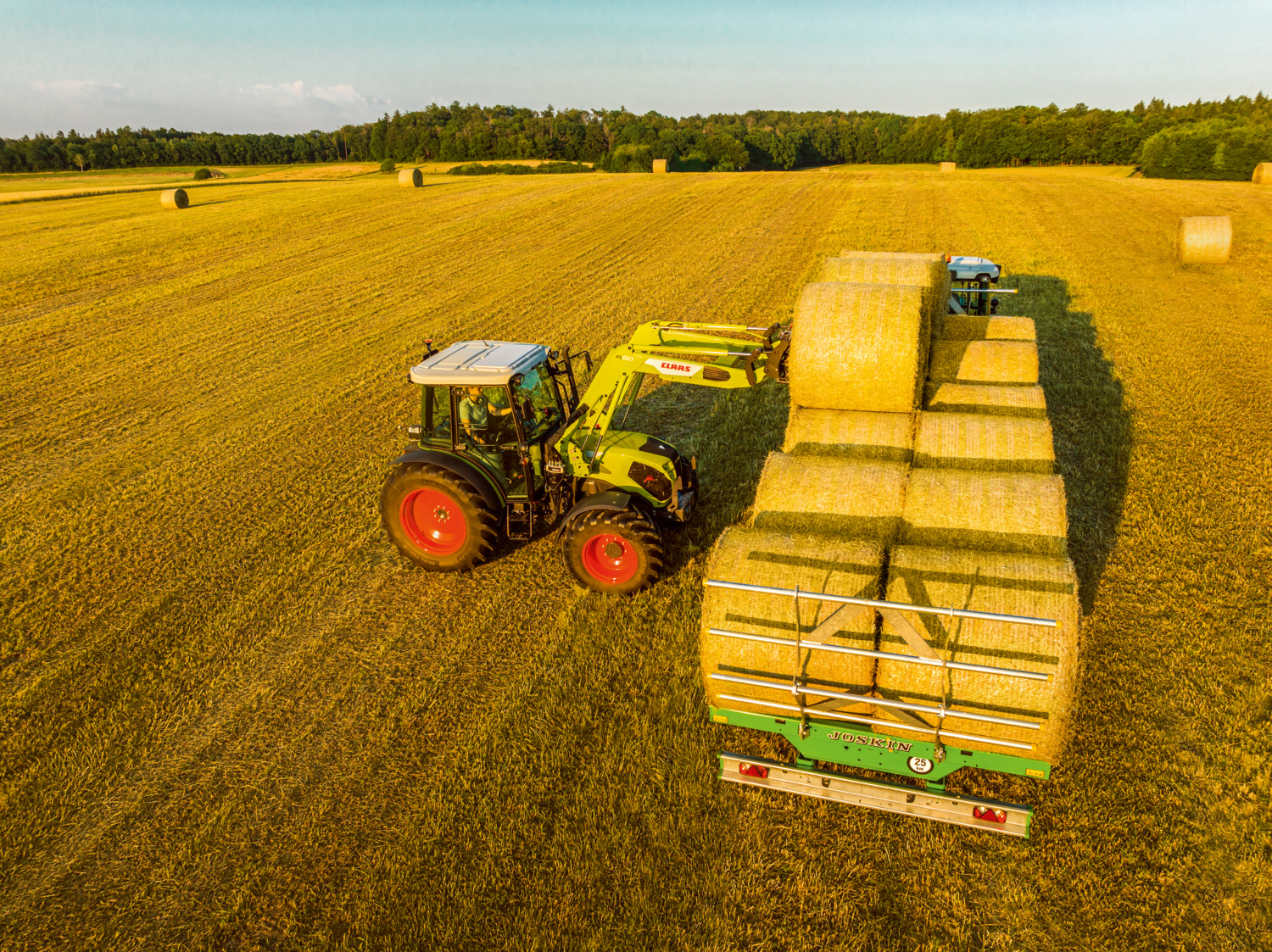

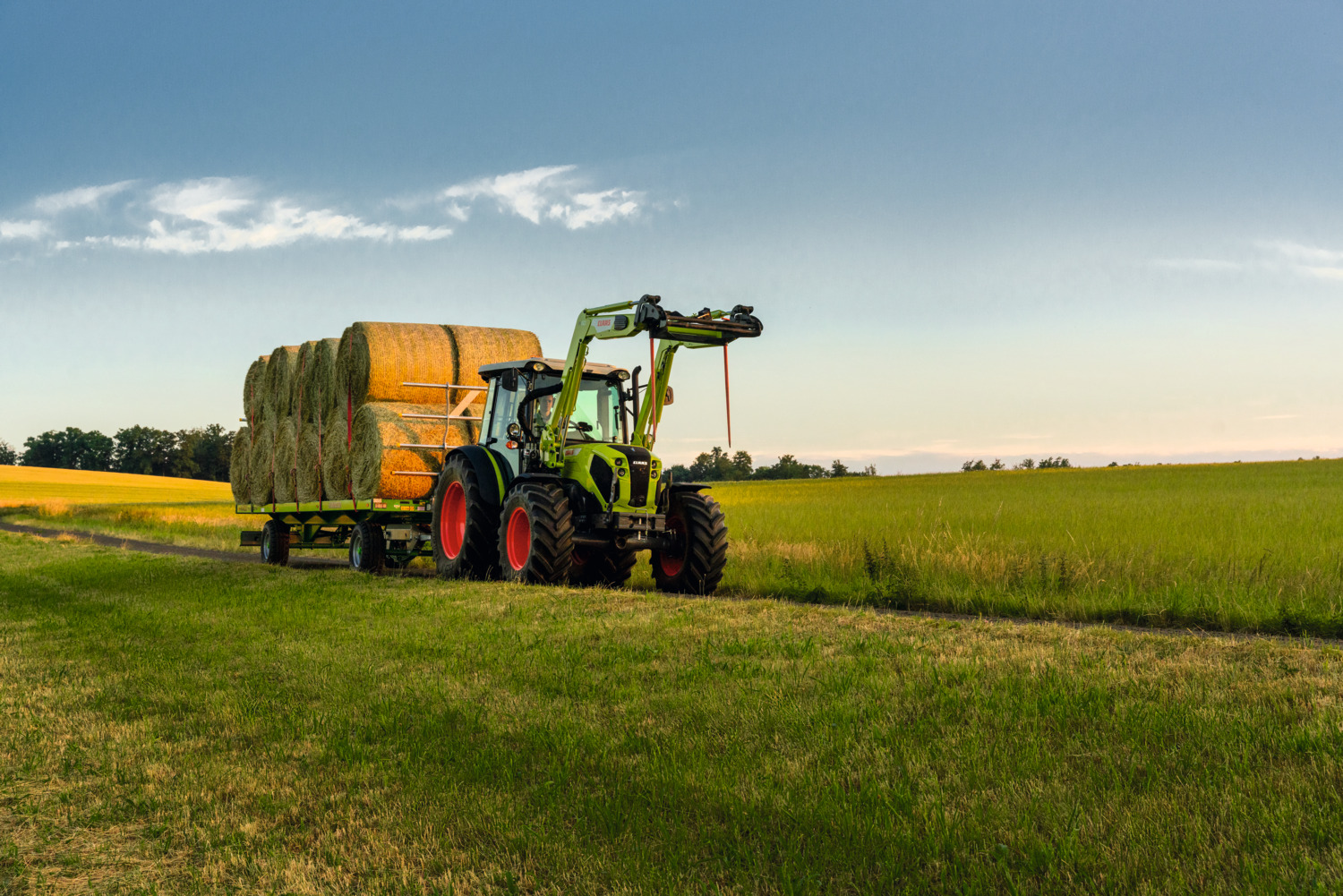

CLAAS front loaders.

With front loaders, the connection to the tractor is crucial for safe, fast loading operations. So when developing the AXOS series, we made sure that the attachment brackets were fully integrated into the overall tractor concept. The brackets are positioned a long way back, providing stability during heavy work.

A robust bolted connection made from high-strength cast steel joins the front loader bracket to the engine half frame – without compromising the steering lock or ease of maintenance.

The E-PILOT S is the ideal electronic control system for use in conjunction with the tractor's mechanical spool valves. It gives you fingertip control of all front loader functions.

Constant output – low fuel consumption.

Engine.

The 3.6 l cubic capacity guarantees low fuel consumption. When combined with a well-balanced 4-cylinder engine, this ensures that the tractor runs very smoothly with low noise levels and a long service life. Despite its compact format, the AXOS with viscous fan and the latest injection and emission control technology is superbly equipped for efficient operation.

The AXOS 2 features an electronic common rail injection and one engine speed memory as standard. A second speed memory is available as an option. The desired engine speed can be selected at the press of a button, while two further buttons are provided for finer adjustment – especially helpful for PTO work.

Using the clutch pedal is a thing of the past.

REVERSHIFT and TWINSHIFT.

With the REVERSHIFT / TWINSHIFT transmission with 30 forward and 15 reverse gears, the AXOS 2 offers the perfect balance between high mechanical efficiency, ease of operation and high ride comfort. Efficient transfer of power to the wheels reduces fuel consumption. Intuitive operation makes the driving experience feel very natural and prevents fatigue on long working days. With 10 gears in the main operating range between 5 and 15 km/h, the AXOS always offers the perfect solution.

The AXOS 2 reaches a top speed of 40 km/h at just 1,750 rpm – saving valuable fuel and reducing the noise level during transport operations.

Keep up the pressure.

The hydraulics.

Three hydraulic pumps are optionally available to give a maximum combined flow of 114 l/min. With this configuration, the first circuit supplies the steering system and the second circuit the rear linkage, both at 27 l/min. The third pump supplies the spool valves at 60 l/min. This enables overlapping actions to be performed simultaneously or implement combinations with extremely high hydraulic requirements to be operated. Valuable fuel savings can also be achieved by operating at low engine speeds while maintaining a high hydraulic output.

Reassuringly reliable.

Developed over many years.

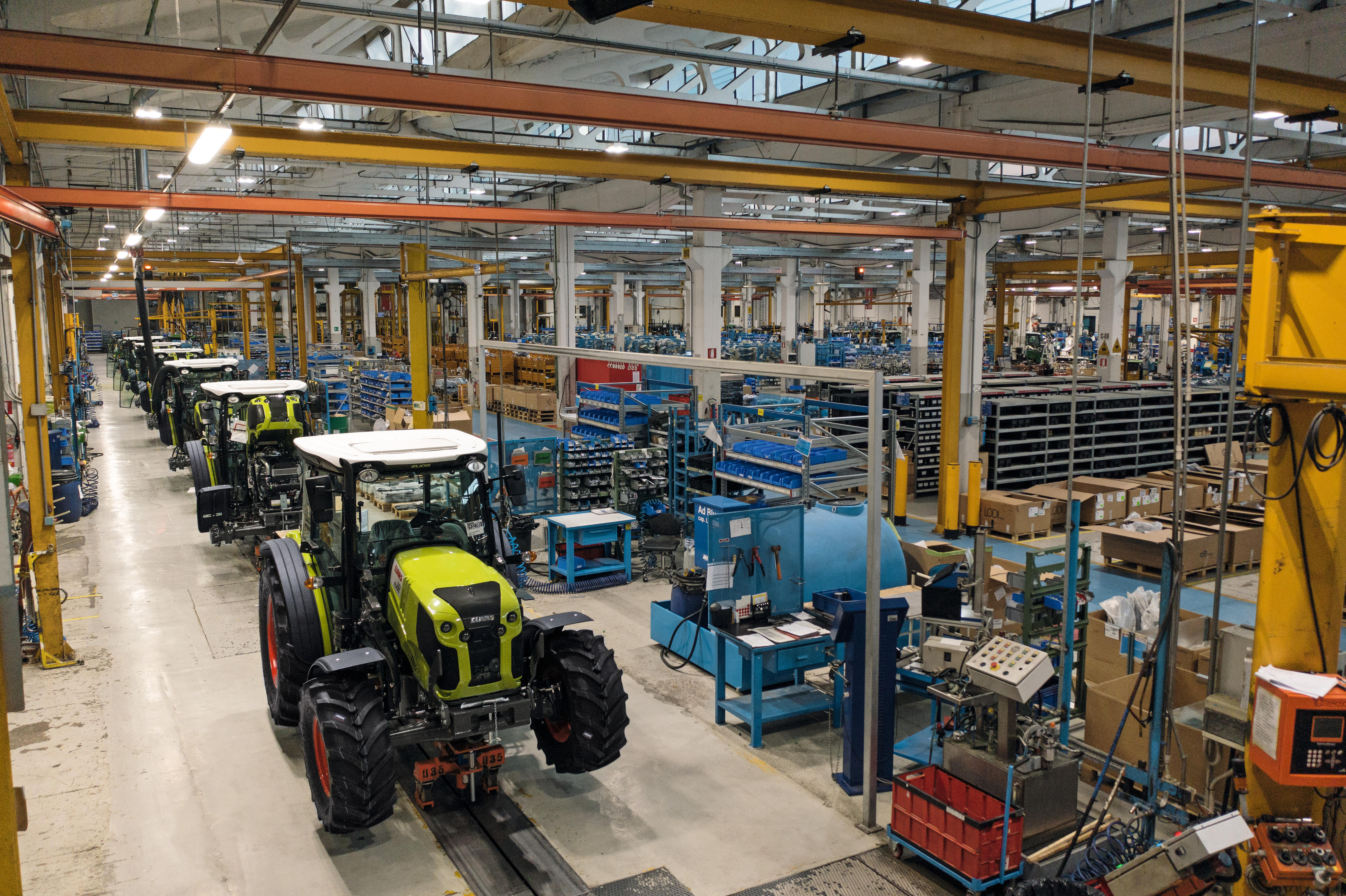

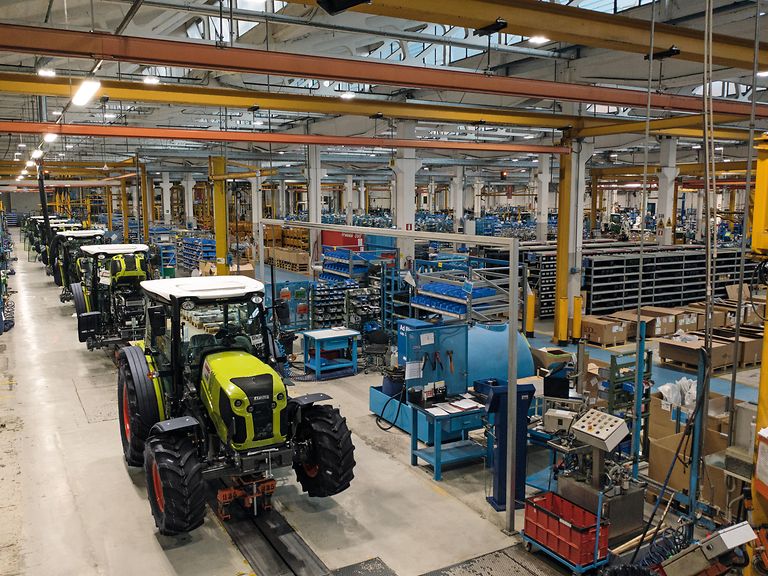

The production facility is not the only factor that determines the success of an outstanding product – it's also about how all the carefully matched components work perfectly together. The Rovigo factory has been developing and manufacturing compact tractors for working in vineyards, orchards and other specialist crops for around 35 years.

High-quality manufacturing.

Operational reliability counts.

When it comes to manufacturing the AXOS, quality that lasts is not our only priority. Your satisfaction is paramount. Since 2009, more than 10,000 CLAAS tractors have rolled off the assembly line – three generations in all.

Intelligent production processes and seamless quality controls ensure outstanding manufacturing quality. This is how we ensure that you can completely rely on your tractor at every minute of the day.

Technical Data

Model	Number of cylinders	Displacement (l)	Max. output ECE R 120 (CV)	Transmission	Min. overall width (mm)
2.105	4	3.60	103	30/15 TWINSHIFT (2 powershift speeds / 3 mechanically controlled groups / 5 mechanical gears) + REVERSHIFT	1,858
2.95	4	3.60	92	30/15 TWINSHIFT (2 powershift speeds / 3 mechanically controlled groups / 5 mechanical gears) + REVERSHIFT	1,858
