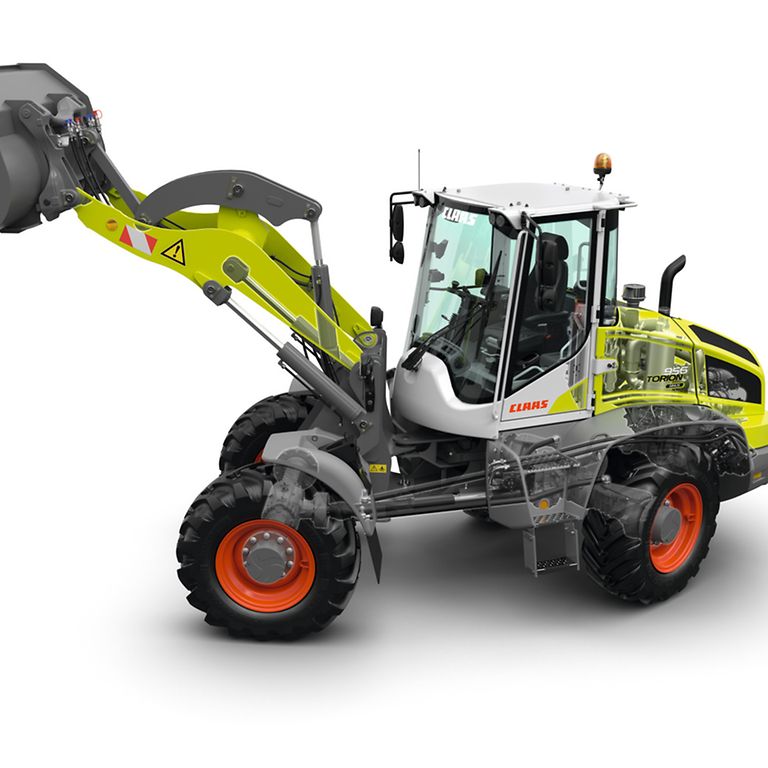

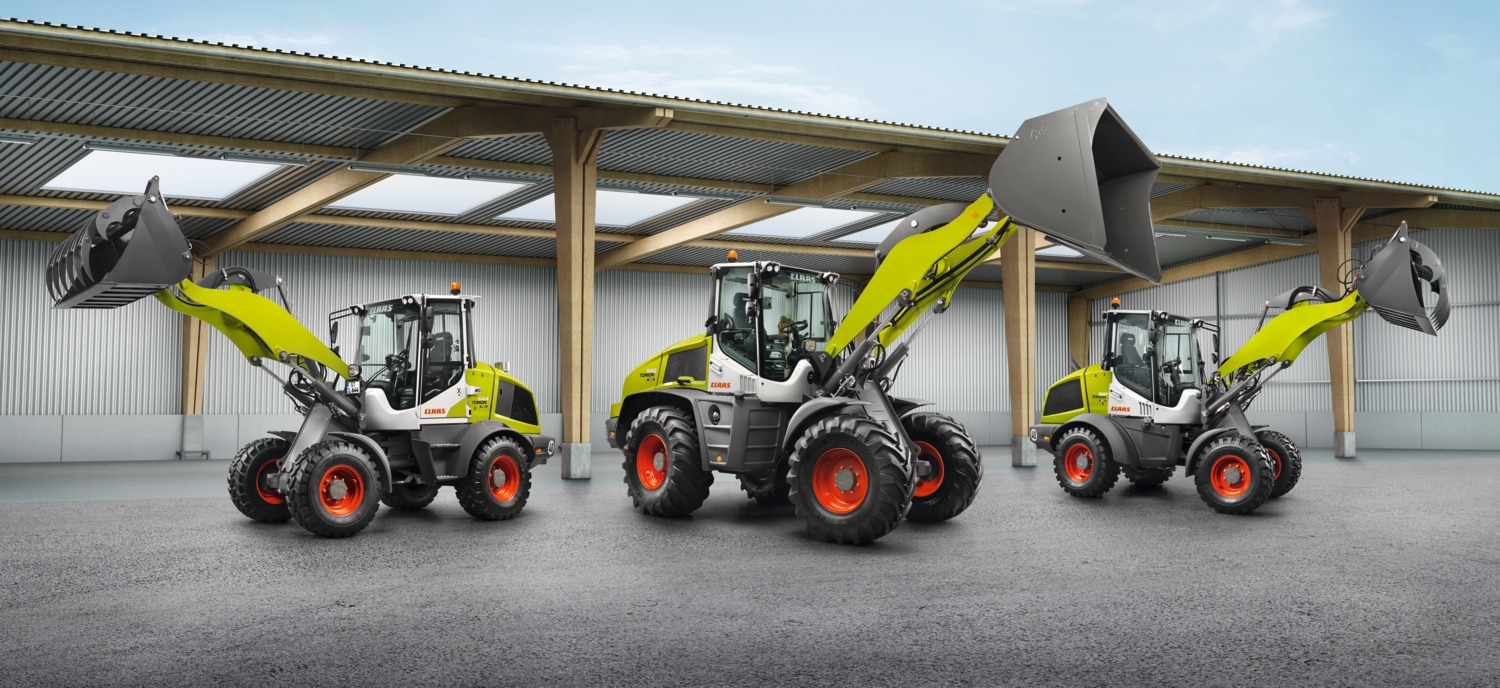

TORION 956 / 644 / 537 SINUS
Lift high and work safely.

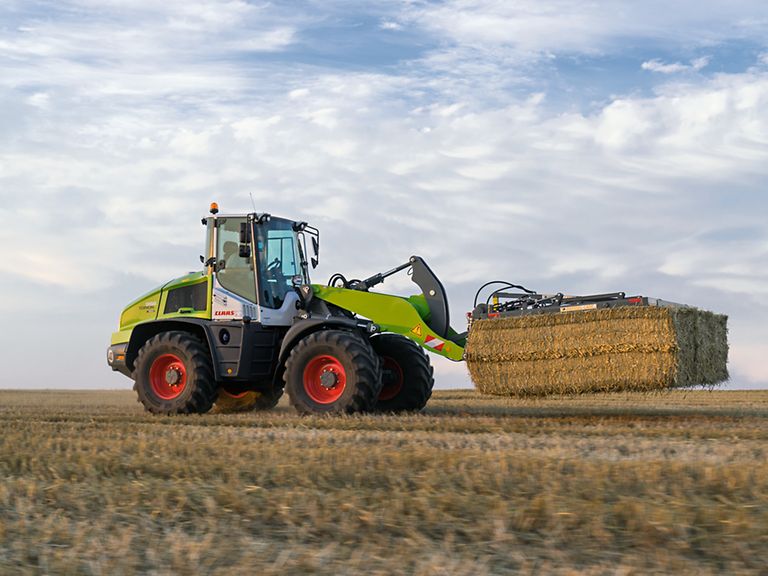

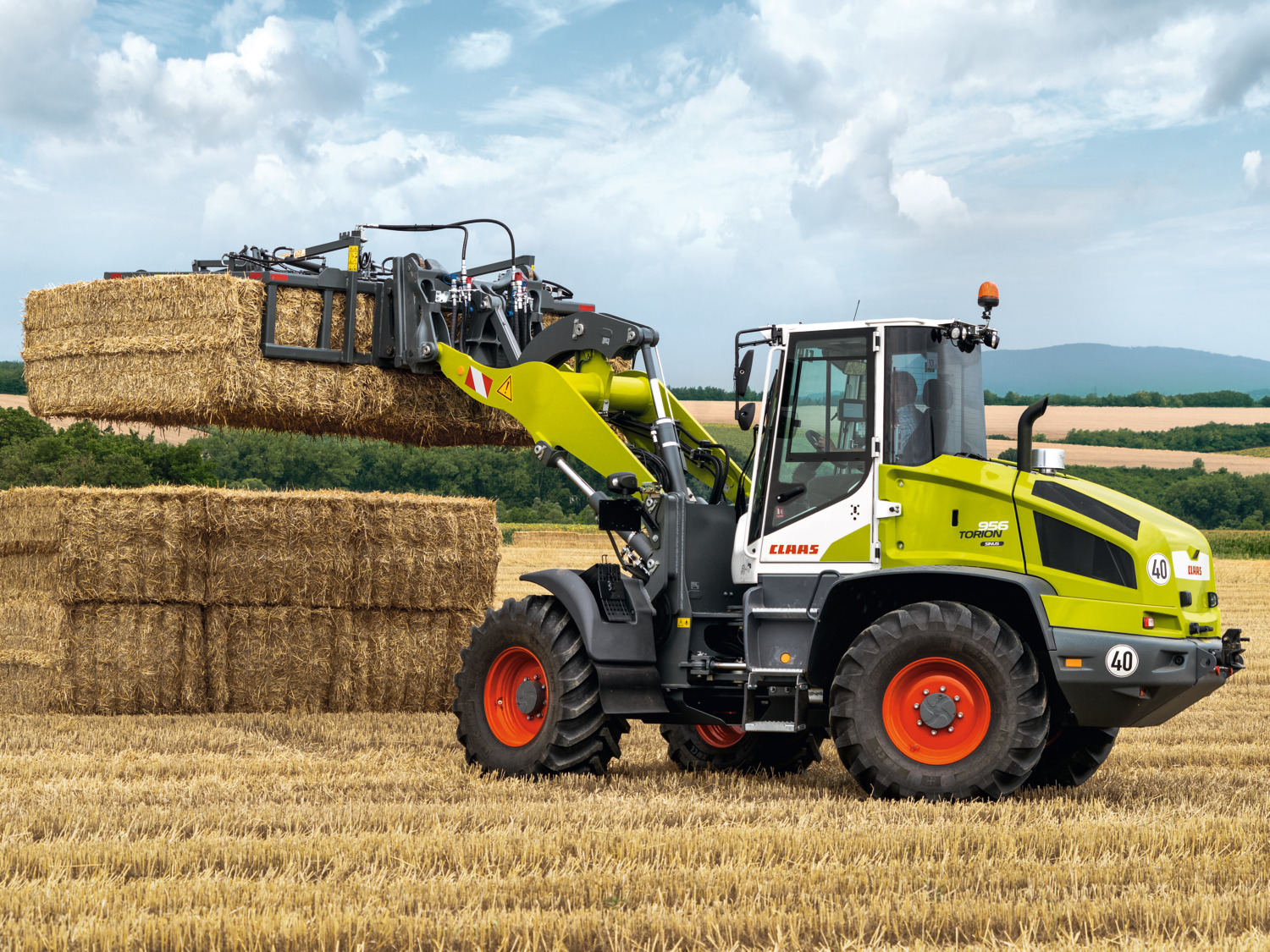

Handling even more goods in a short period of time, stacking bales high, lifting heavy loads in tight spaces – the TORION SINUS does everything to make your day more productive.

Make use of its strengths.

SMART LOADING speeds up your loading cycles

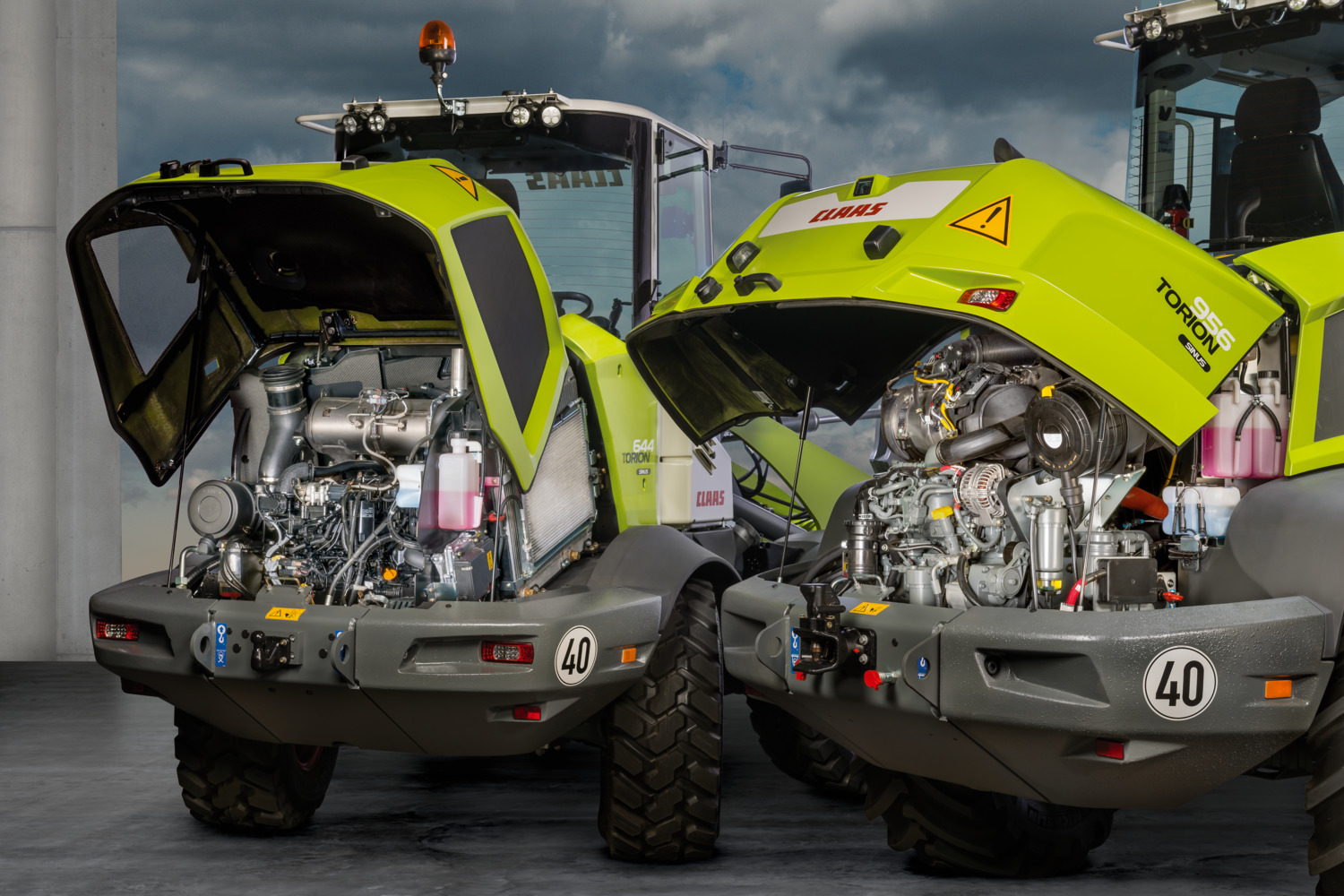

Powerful motors
SMART SHIFTING – infinitely variable hydrostatic ground drive

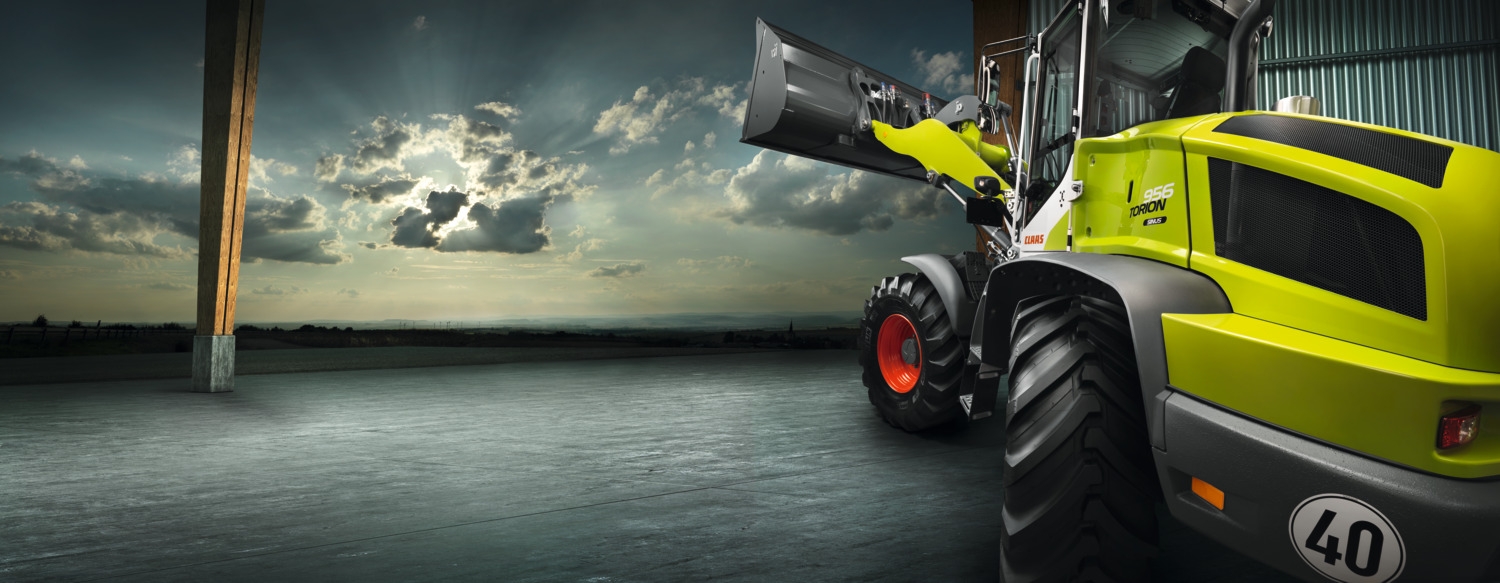

Maximum speed of 40 km/h – save time and work more productively
High manoeuvrability, thanks to articulated joint and steered rear axle
Ideal all-round visibility from the 4-pillar cab

Digital solutions for loaders

With CLAAS Machine connect, you can easily transfer machine and process data online.

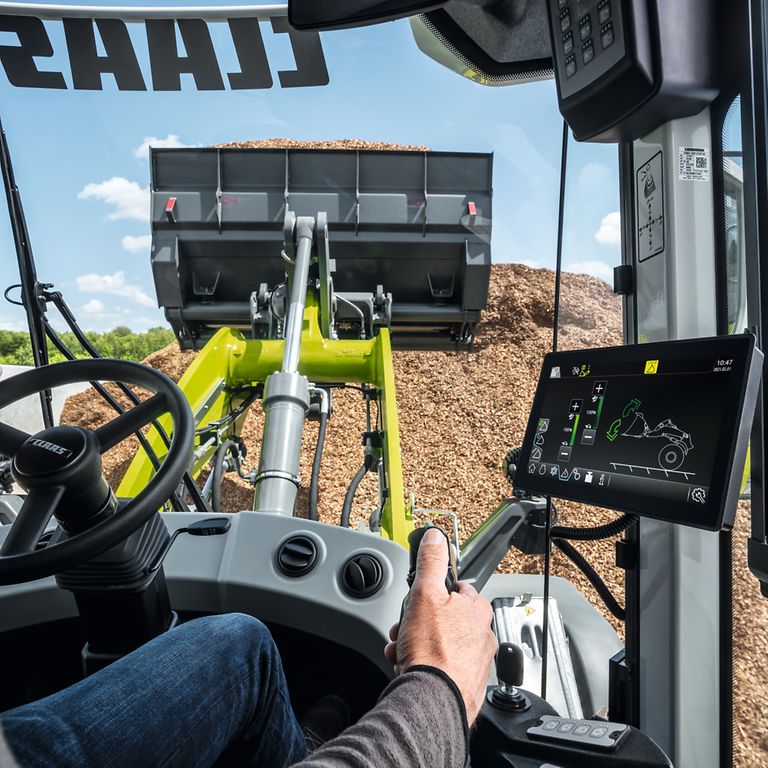

SMART LOADING protects both drivers and their nerves.

SMART LOADING automates loading functions and reduces operators’ workload every minute of the day.

SMART LOADING is a unique assistance system that actively supports you when loading heavy weights. It precisely manages the interaction between all functions needed to optimise loading cycles. You only need to set the functions once, and they are then performed automatically.

How SMART LOADING supports your work.

You work more safely and precisely
Your loading cycles are more efficient
You protect the bucket and the machine
You tire less quickly

Standing firm on a tiny base.

SINUS steering.

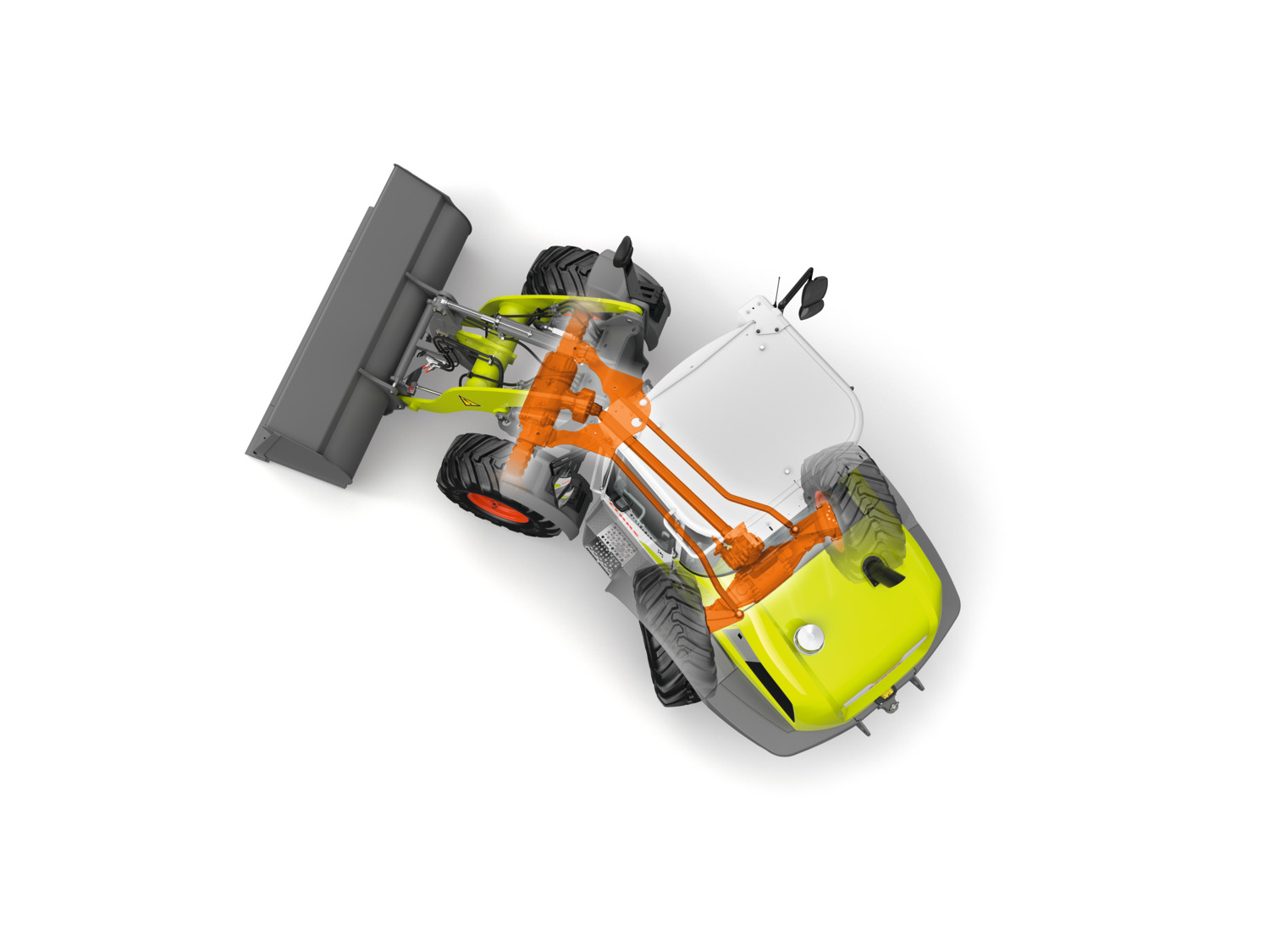

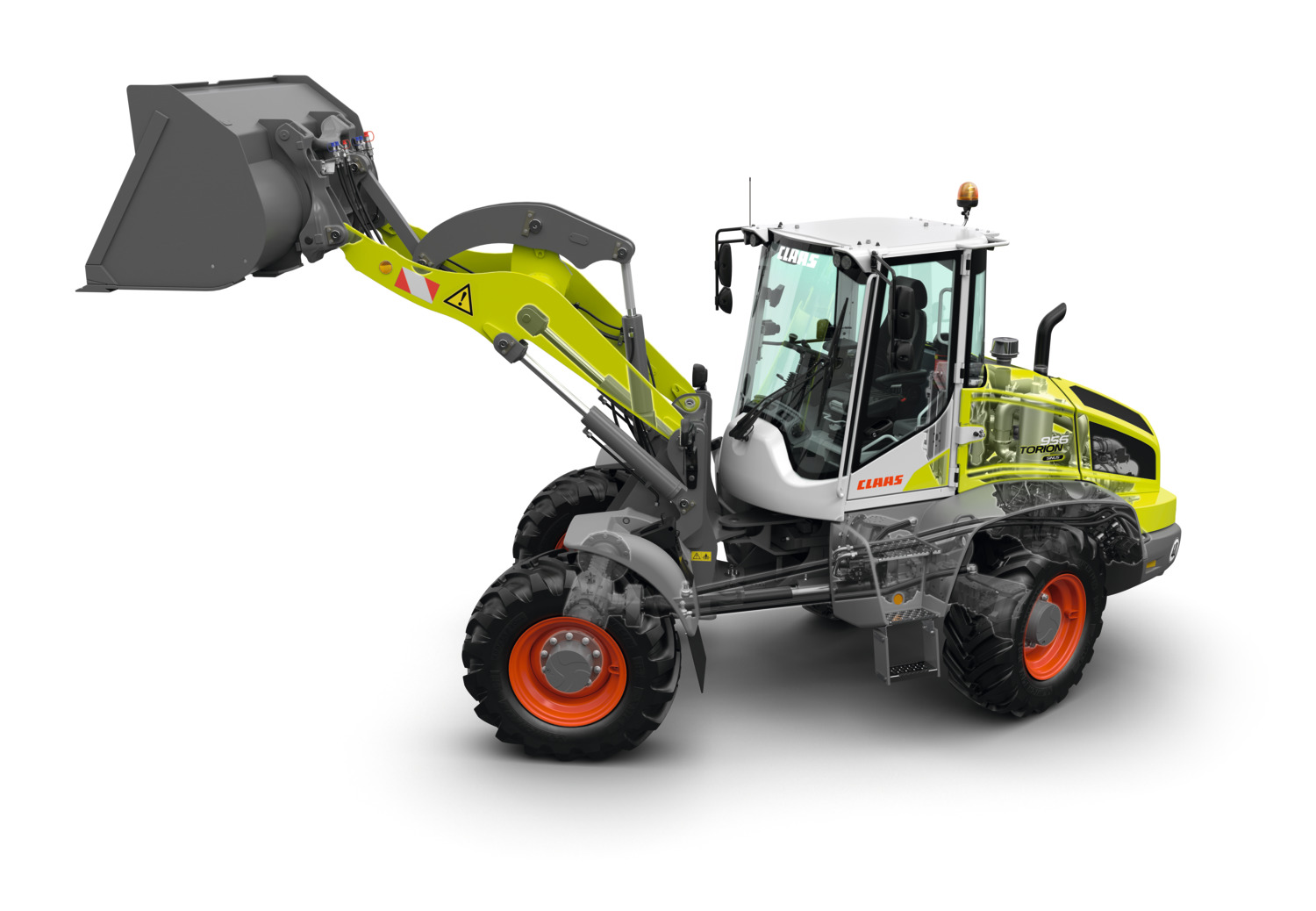

The TORION SINUS is steered not only via the central articulated joint, but also via the rear axle. The front chassis is connected to the rear stub axle with two steering rods. As soon as the driver turns the loader with the steering wheel, the rear axle is also steered in sync.

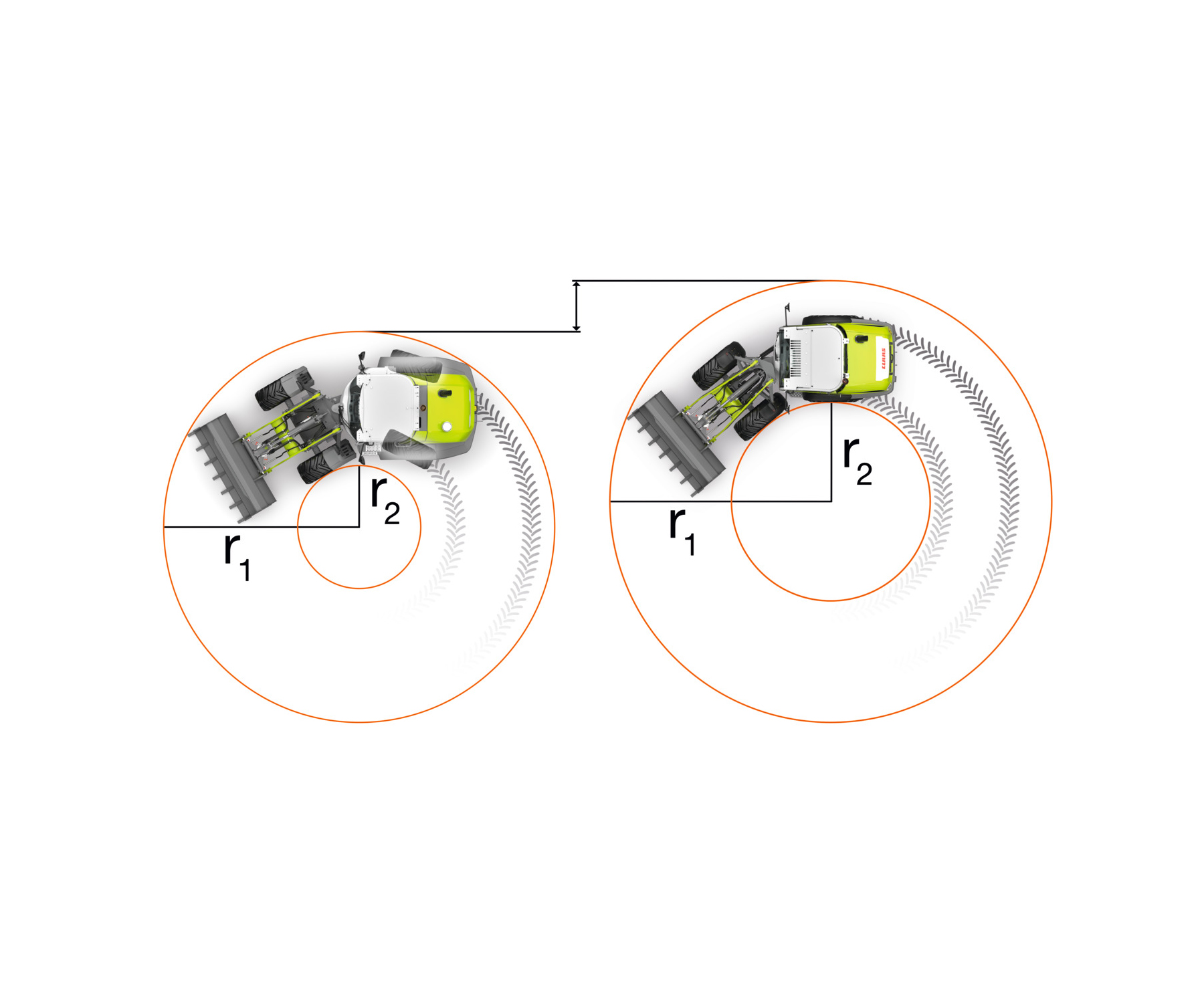

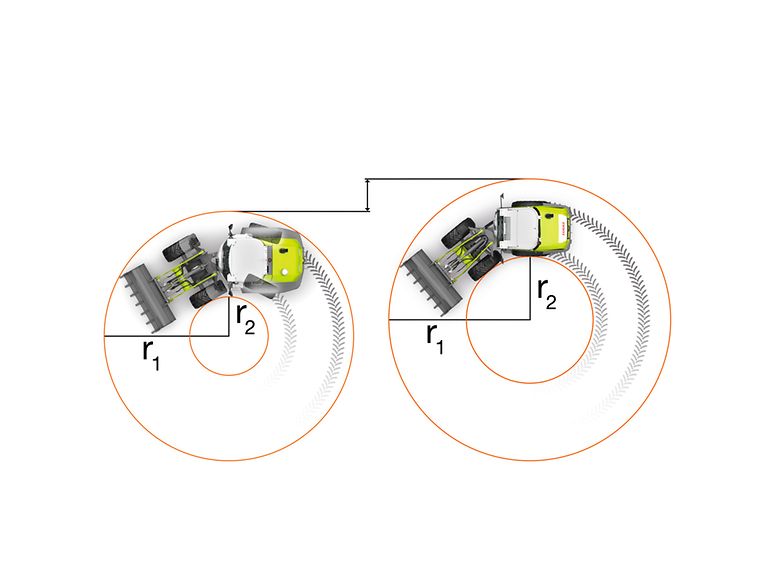

Left: TORION SINUS with steered rear axle
Right: TORION with rigid rear axle: +11%

Powerful in the tightest of spaces.

The rear axle steers permanently.

The TORION SINUS has less articulation at full steering angle thanks to the permanently co-steering rear axle. The advantages: a smaller turning circle with greater stability and payload. The TORION SINUS lifts more, is more agile and is even more comfortable to drive.

Enough thrust.

Smooth and accurate travel.

The TORION SINUS has a hydrostatic drive system with two driving ranges for optimum adaptation to your operating requirements. You select the driving range with a switch, and then have precise, infinitely variable control of the speed via the accelerator pedal. The TORION SINUS changes gear when it’s right for you – without you even noticing. The two-stage hydrostatic ground drive synchronises according to the driving style. Depending on the position of the accelerator pedal, the transmission shifts at between 8 and 16 km/h.

Specifications

Model	Tip load fully articulated (kg)	Max. height bucket pivot point (m)	Max. output ECE R 120	Hydraulic capacity	Operating weight (kg)
956 SINUS	4,825-5,575	3.72-4.01	76 kW / 103 PS	115 l/min / 240 bar	9,070-9,120
644 SINUS	3,750-4,430	3.35-3.79	54 kW / 73 PS	90 l/min / 210 bar	6,390-6,630
537 SINUS	3,750	3.22	54 kW / 73 PS	70 l/min / 230 bar	5,550
