Harvest without constraints.

LEXION 8000 / 7000.

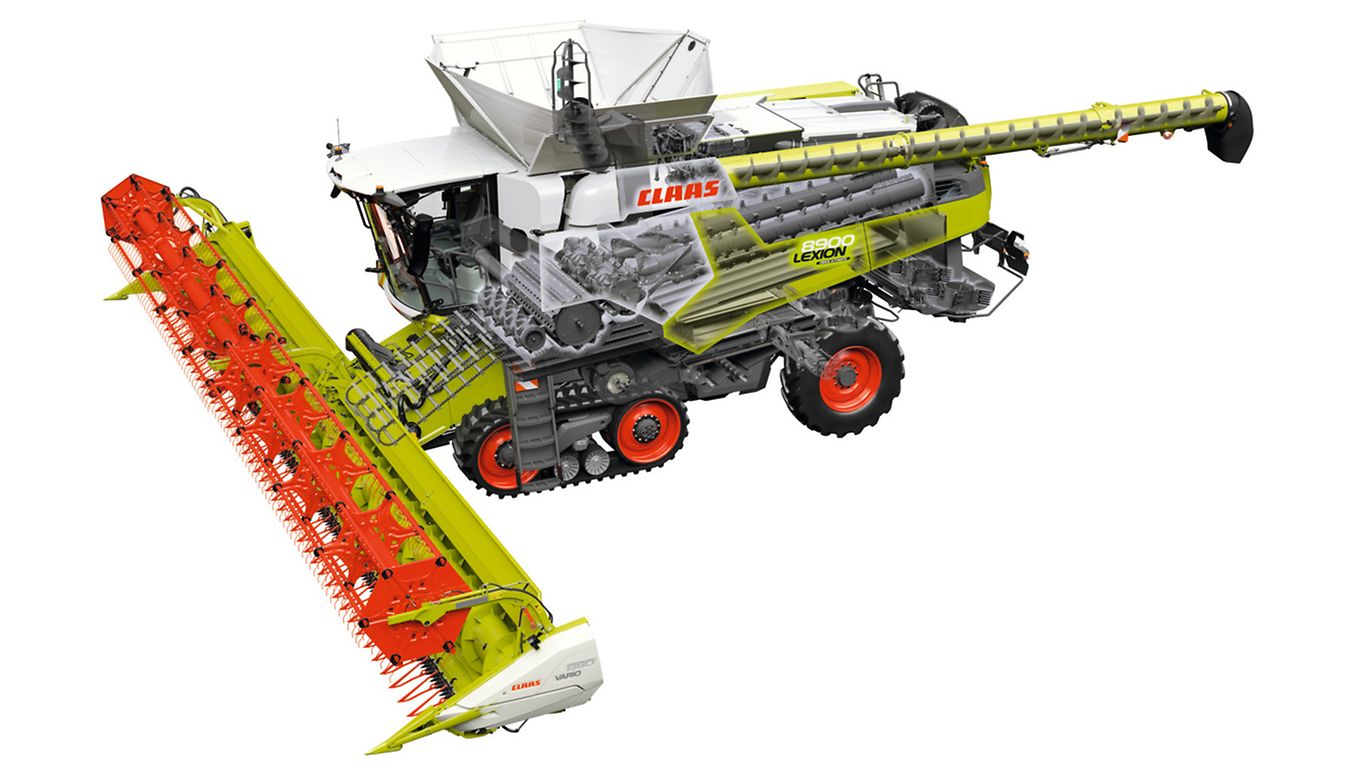

The APS SYNFLOW HYBRID threshing unit’s 17 11/16 in (450 mm) accelerator drum begins the extremely efficient threshing process, enabling impressive throughput rates.

It accelerates the crop flow evenly at up to 66 ft/s (20 m/s). This generates high centrifugal forces for maximum separation across all concave surfaces.

Large drum diameters and small contact angles enable particularly flat transitions between the threshing and feeder drums as well as the rotors. As a result, the crop flows through the combine in a straight line for maximum efficiency. There are also no unnecessary changes of speed or direction of flow. This protects the straw and saves fuel.

You can customize the LEXION just how you want it to meet your individual needs and maximize your harvest.

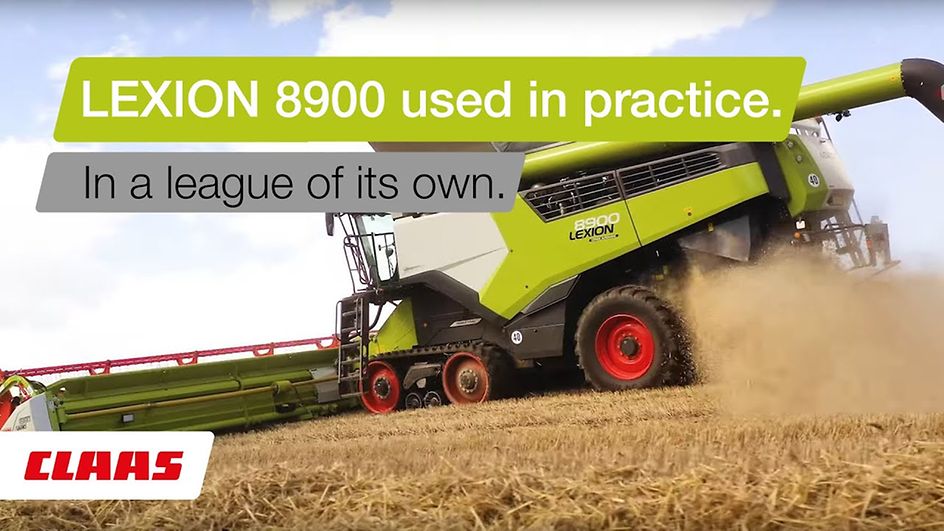

• With 790 hp, the LEXION 8900 is the top model in the series.
• The LEXION 8800 can now call on 700 hp instead of 653 hp while the LEXION 8700 has an output of 626 hp instead of 585.
• DYNAMIC POWER adjusts the engine output to the amount of power required. This saves you up to 10% of your fuel.
• DYNAMIC COOLING reduces your diesel costs. The variable fan drive automatically adjusts its speed to the amount of cooling needed.
• TERRA TRAC reduces soil compaction. The track units offer maximum driving comfort and are narrow enough for the road.

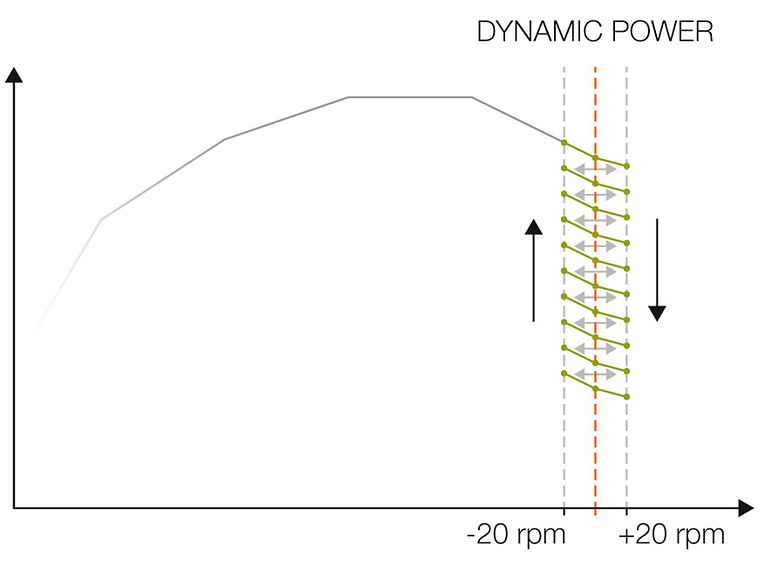

DYNAMIC POWER automatically adjusts the engine output of your LEXION to the operating conditions. This means you’re always running with the most efficient power curve when operating under partial load and can save up to 10% of fuel during swathing, for example. When working under maximum load, such as emptying the grain tank with the straw chopper on, maximum engine output is automatically maintained.

DYNAMIC POWER uses a variety of power curves depending on the engine load. For example, if the engine speed changes, the power is automatically adjusted accordingly.

What makes DYNAMIC COOLING so unique?

• Variable fan drive provides cooling when required
• Provides effective and reliable cooling
• Uses full fan speed only under full load
• Minimizes dust clouds
• Keeps the radiator and engine compartment cleaner
• Automatically increases speed to blow dust away from the engine compartment when the grain tank unloading tube is extended
• Extends the air filter maintenance intervals

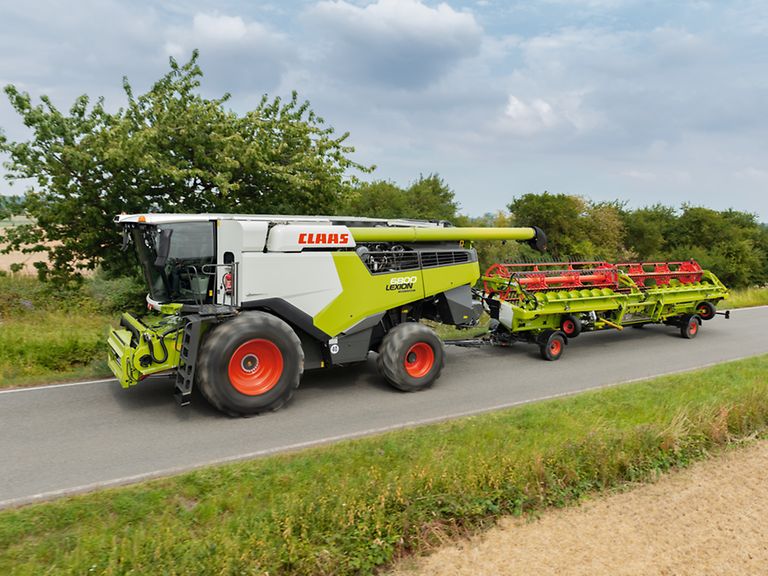

All LEXION models are equipped with a 2-speed hydrostatic drivetrain with convenient gear selection via the buttons on the armrest. The high efficiency of the hydrostatic drive saves power for optimal use by the rest of the machine. Both the wheeled machines and the TERRA TRAC models can travel at up to 25 mph (40 km/h).

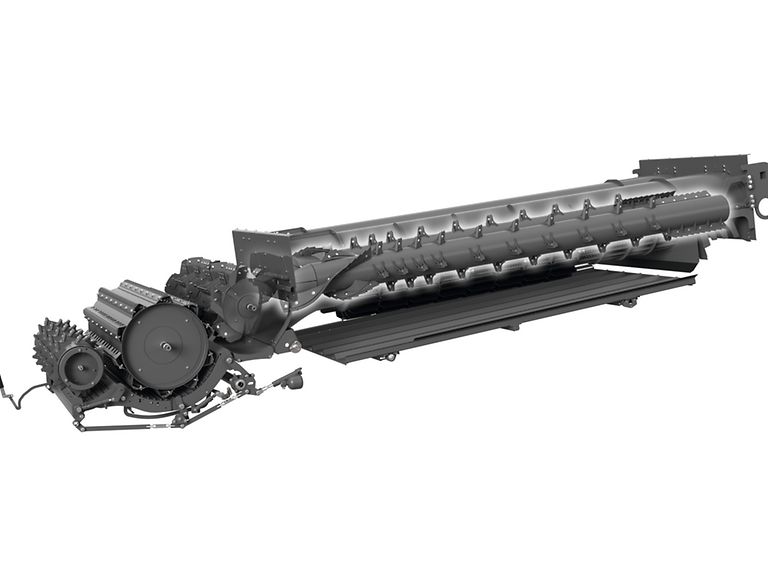

The eccentrically positioned ROTO PLUS high-performance rotors generate powerful centrifugal forces to separate any remaining grain from the straw. Each rotor has a diameter of 17 1/2 in (445 mm) and a length of 165 11/32 in (4,200 mm), providing an extra-large separation area.

The mixture of grain, straw and chaff first passes over the grain pan via the separate returns pan before passing over the straw walker steps and on to the cleaning shoe. This significantly reduces the load on the cleaning shoe.

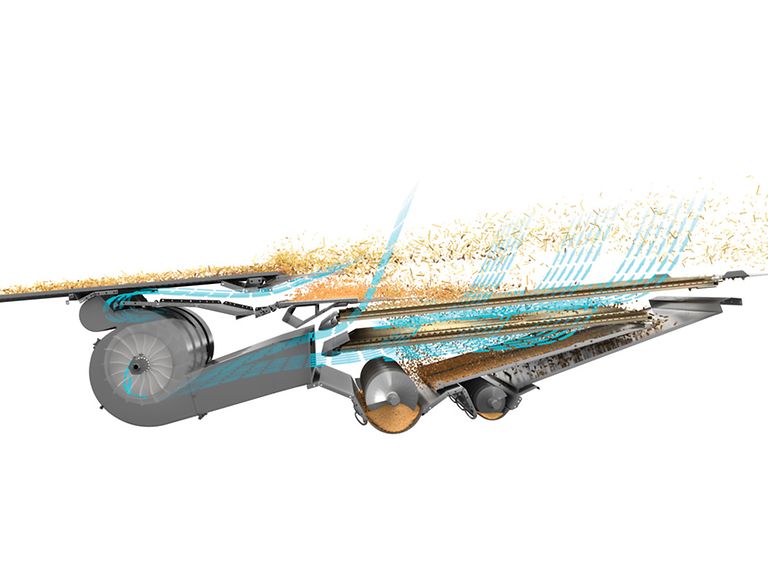

The JET STREAM cleaning system with its hydraulic fan speed variator and high-performance returns is designed specifically to work together with the ROTO PLUS secondary separation unit. A dual-ventilated step enables intensive pre-cleaning.

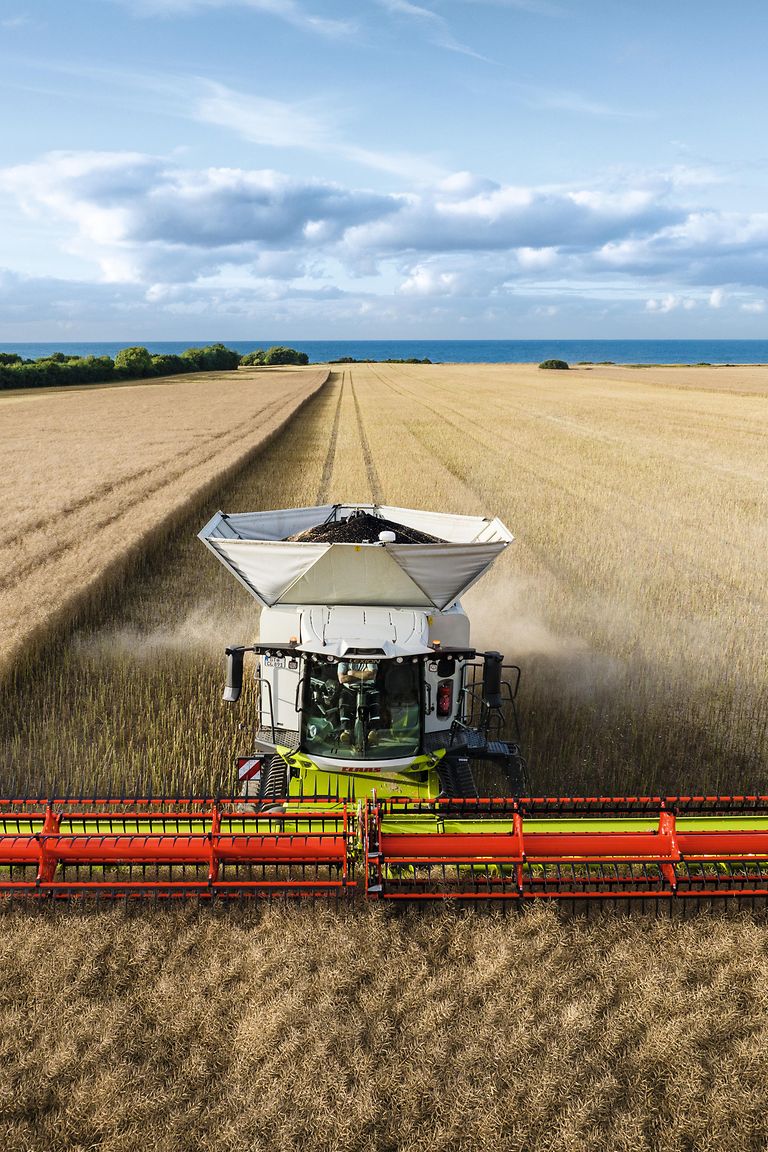

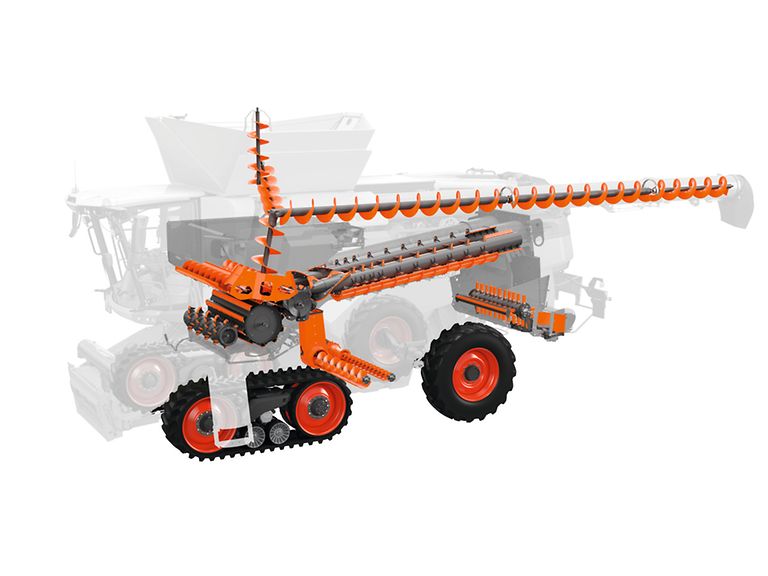

With a volume of up to 510 bu (18,000 l), the grain tank has a capacity to match the huge throughput of the LEXION.

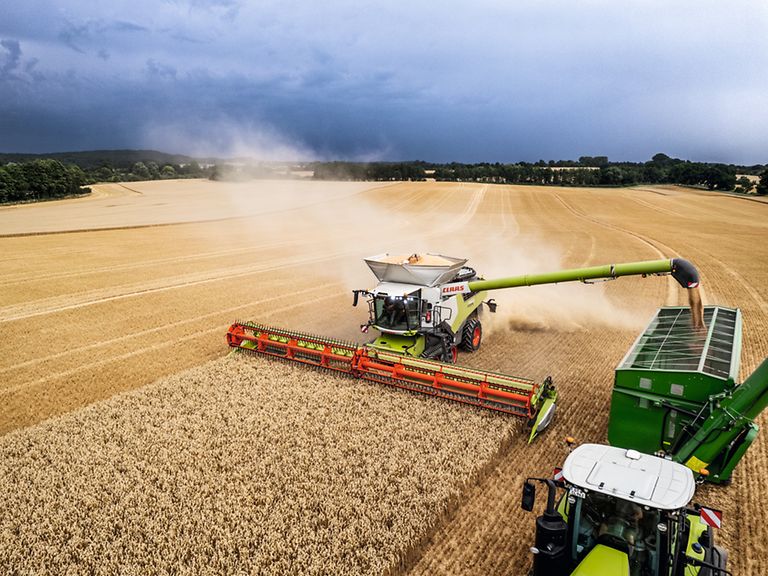

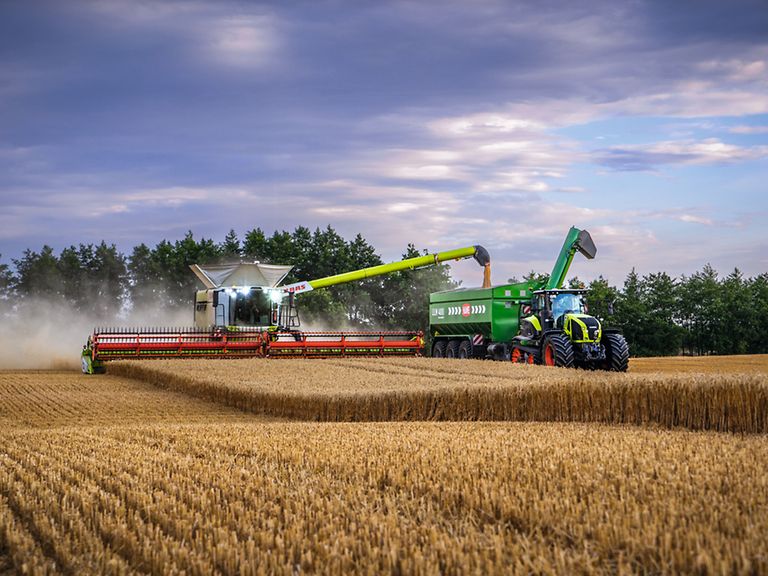

At 48 gps (180 l/s) you can unload the large grain tank of the LEXION in record time. If you need to, you can also slow down the flow rate from 48 gps (180 l/s) to 24 gps (90 l/s), immediately stop the unloading process or turn off the augers gradually in order to completely empty the grain tank unloading tube first. − Reliable filling of the transport vehicles − No losses during unloading.

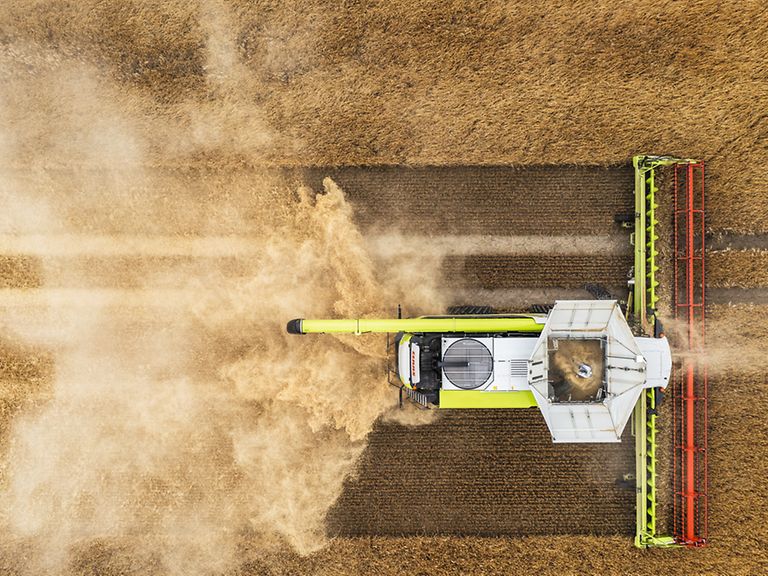

Even when the machine is operating in strong crosswinds, handling high straw volumes or negotiating side slopes, the power spreader always distributes the straw with precision. Comprising two discharge rotors turning in opposite directions at a constant speed, it takes both the chopped material and the chaff straight from the cleaning section, accelerates it further and spreads it evenly across the entire working width.

During swathing, the chaff blower automatically turns outwards. Swaths of long straw and chaff/broken straw mixture are laid separately. For straw spreading, however, the chaff blower forces the sieve pan discharge straight into the power spreader for active distribution. The chopped straw and the sieve pan discharge are spread across the entire working width.

CEMOS AUTOMATIC is a self-learning operator assistance system that provides continuous, active support throughout the entire harvesting process. Based on the given harvesting specifications, such as grain quality, threshing quality, level of cleaning, straw quality and throughput, the system analyzes sensor feedback and settings during operation and optimizes your LEXION to maximize its performance.

The functions at a glance:

• CEMOS DIALOG guides the operator to the best machine settings
• AUTO CROP FLOW protects the entire system against overload
• AUTO SLOPE controls the fan setting depending on the slope
• CRUISE PILOT actively controls the harvesting speed
• AUTO CLEANING improves cleaning by controlling the sieve opening and fan speed
• AUTO SEPARATION optimizes the rotor speed and rotor flap position to improve the secondary separation
• AUTO THRESHING provides fully automatic adjustment of the threshing concave clearance and the threshing drum speed
• 4D cleaning optimizes the rotor flap position depending on the slope in order to make optimum use of the cleaning system

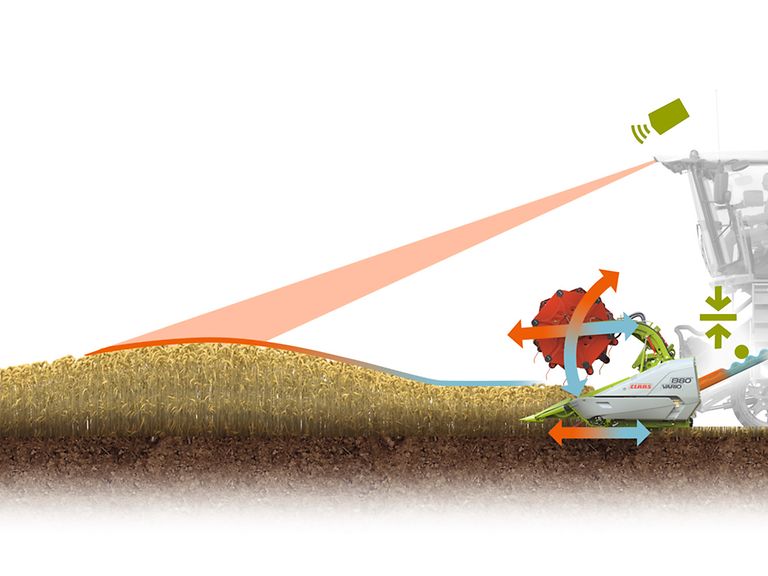

• AUTO HEADER actively controls the position of the reel and the VARIO cutterbar table
• AUTO CHOPPING improves the chopped material quality and reduces fuel consumption

Controlled through CEBIS, the CEMOS DIALOG operator assistance system guides you to the optimal machine setup. After confirming the settings you want, CEMOS DIALOG does the rest. You’re frequently prompted to check the settings, which also gives you more insight into how to choose the right settings for the given conditions.

The machine gives you constant feedback on which settings could be optimized. It lists all the factors imposing the greatest limitations on throughput and actively suggests ways to increase performance.

Harvest with minimal grain losses.

• You only have to calibrate the loss sensors at the start of the day.
• CEMOS DIALOG provides active feedback on loss measurements.
• After adjusting the loss level, the sensitivity of the sensors is corrected automatically.
• The machine always operates right up to the limit set for acceptable losses.

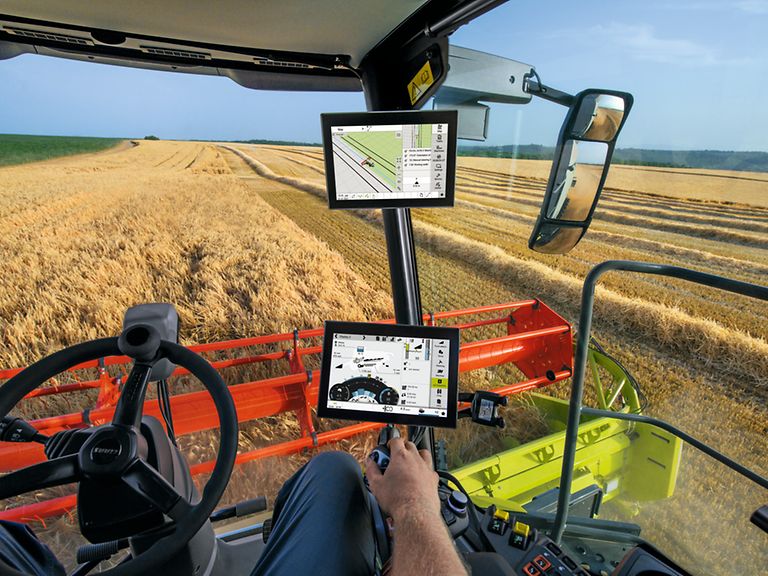

Steering systems are an essential tool in your everyday work. The LEXION can be equipped with automatic steering systems, which you can employ depending on the job at hand: the digital AUTO PILOT or the satellite-based GPS PILOT CEMIS 1200.

• Machine connect shares machine data via the cloud.
• With CEMIS 1200, you can create and manage all your jobs directly on the machine.
• DataConnect allows you to process your machine data, regardless of manufacturer.
• Machine connect simplifies maintenance and service.

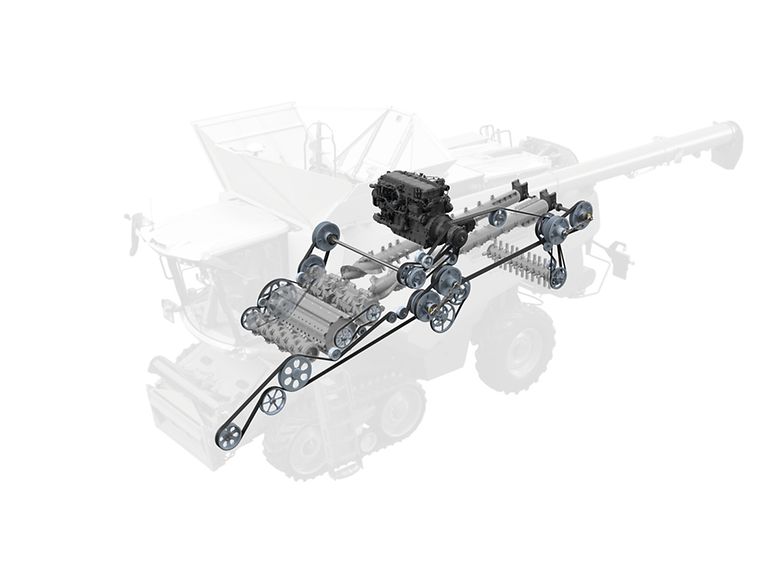

A drive system that has what it takes:

• Hydraulically actuated dry clutch
• Hydraulically tensioned main belts
• Standardized belt tensioners
• Improved power transmission
• Lower maintenance costs

When it comes to maintenance, the LEXION continues the legacy of its predecessors as an exceptionally low-maintenance machine. Maintenance intervals are long, with the working hydraulics requiring an oil change only every 1,000 hours. Daily maintenance is quick and easy, and all major service points are easily accessible.

The robust engine compartment cover makes it even easier to access the grain tank and to perform any necessary maintenance tasks. It’s slip-resistant and designed to be walked on. Handrails and a folding step provide additional safety.

• All the maintenance points around the machine are easily accessible.
• Contact points for the mobile ladders enable safe access for maintenance and cleaning tasks.

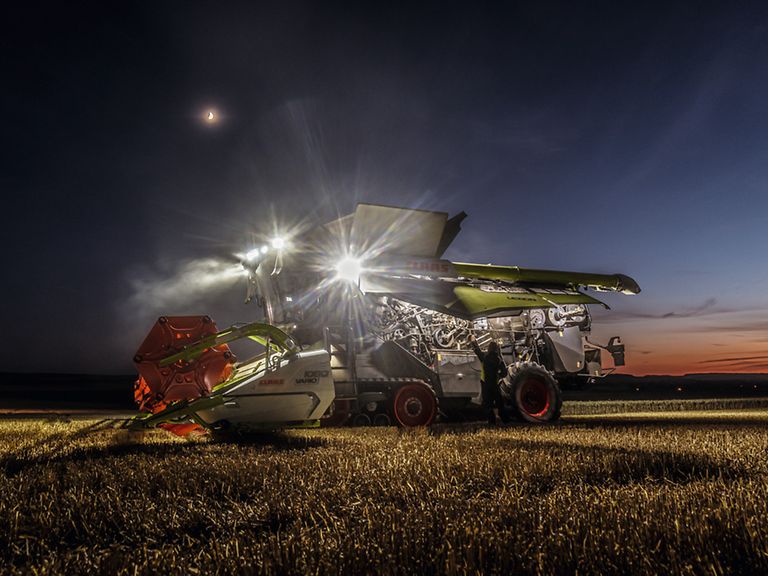

• The side panels, steps and engine compartment are brightly lit.
• A door provides easy access to the grain tank.

All components subject to heavy wear and tear in the crop flow are also available in PREMIUM LINE quality on request. These are the right choice when you have to harvest under extreme conditions which are particularly hard on your combine harvester. PREMIUM LINE components are extra resistant to wear and corrosion and have a very long service life. Even with intensive annual use or when used on difficult-to-harvest crops, these parts will not usually have to be changed until after several harvest seasons. The increased durability is a result of special manufacturing processes, high-quality materials and special coatings.

MAXI CARE Plus is a combination of service level agreements tailored to your individual requirements for maximum operational reliability and predictable cost management. For example, you can combine MAXI CARE Protect, the extended warranty, with the CLAAS MAXI CARE Maintenance.

As part of the MAXI CARE Maintenance contract, all defined maintenance work is carried out by your CLAAS service partner. Of course, only CLAAS ORIGINAL spare parts and operating supplies are used, which gives you full cost transparency and a high resale value.
